RHODAN Lower Unit with Shaft – 36V | For Fishing Boats
DESCRIPTION

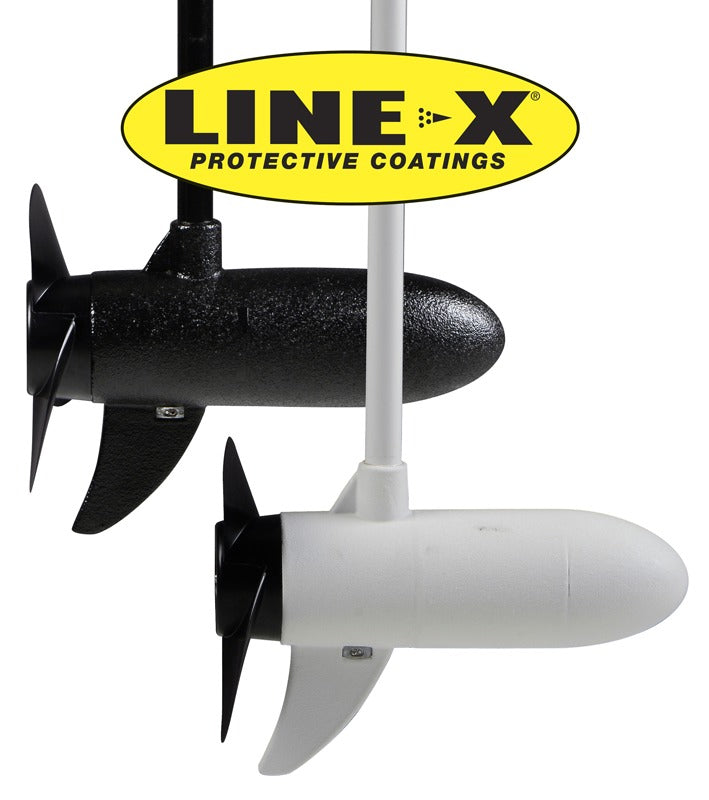

Model #: RMS-LU36. Specify shaft length and color. Includes Line-X. Ships with heat shrink. Propeller sold separately.
The Rhodan Lower Unit with Shaft – 36V is an advanced GPS-guided trolling motor designed to take your fishing experience to the next level. With powerful 120 lbs of thrust, the motor operates on a 36V system and features Anchor Mode that automatically keeps your boat in place, even in harsh conditions, using a high-definition GPS receiver. Whether you’re anchored in place or tracking along a shoreline, the Rhodan HD GPS Anchor+® Trolling Motor makes it easier than ever to maintain your position while fishing.
This system includes four anchor site memories and eight route memories, allowing you to create intricate paths of up to 1000 miles long. Once recorded, these routes can be retraced at your preferred speed, and the motor will steer your boat to the destination. The motor also features manual control, allowing you to use the system like a traditional trolling motor with wireless control for thrust and steering. Constructed with a corrosion-resistant composite shaft and Line-X® finish, this unit is designed for saltwater use and provides long-lasting durability even in harsh marine environments. The motor is available in black and white models and ships with a heat shrink for added protection.
Whether you’re navigating the waters or holding your position while fishing, the Rhodan Lower Unit with Shaft – 36V ensures precise control and unmatched reliability on the water.
GPS Anchor
GPS guided and wirelessly controlled, this unique Trolling Motor is designed to improve your fishing experience. This patented system has evolved to its present configuration over years of use by its inventor. When you find a spot where the fish are biting, touch the anchor button on the fob and the GPS Guided Trolling Motor will automatically keep the bow of the boat within a few feet of the spot while you concentrate on the fish.
Rhodan Marine Systems has incorporated a remarkable micro-computer module that utilizes a high definition GPS receiver to monitor and control the trolling motor. Our quiet and powerful thruster delivers 120 pounds thrust (36V), 80 pounds thrust (24V) or 55 pounds (12V) by industry standards. Each system includes a wireless fob, a quick release mount, and an efficient 3-bladed propeller.
Thrust Rating:120 Pounds
Operating Voltage:36VDC
Recommended Circuit Breaker Rating:50A
Propeller:3-Blade Weedless
Shaft Length:84, 72, 60, 54, 48 (Inches)
Memories Exclusively for Fishing Holes:4
Memories for Routes and/or Fishing Holes:8
Total Memory Locations:12
Maximum Recorded Route Length:Over 1000 Miles!
ANCHOR MODE
In Anchor Mode, the Rhodan HD GPS Anchor+® Trolling Motor will keep the boat’s bow parked where you want it, in any depth of water, automatically compensating for wind, waves and cross-current. Anchor sites can be jogged in precise 5 foot increments in four directions relative to the boat’s heading using the wireless fob. No need to mess with a wet, tangled anchor line. High definition precision differential GPS receiver provides remarkable positioning accuracy.
TRACK MODE
In the Track Mode, the Rhodan HD GPS Anchor+® Trolling Motor will automatically pull the boat along a chosen course, continually compensating for wind and current disturbances. Dual Tilt-compensated compasses keep your boat on a stable directed path as your boat makes a beeline track for your chosen target. This allows you to fish your favorite shoreline without continually correcting your boat’s heading. The track speed is adjustable (32 thrust settings) and the track heading can be changed in precise 5 degree increments, all using the wirelessfob.
MANUAL MODE
In the Manual Mode, the system behaves just like a normal trolling motor, allowing the operator to wirelessly steer the system and control the thrust. Rhodan has refined the system further by incorporating Thrust Dependent Electronic Steering Control, complete forward and reverse thrust capabilities, and anti-wrap-up technology which prevents the power cord from winding itself around the shaft.
ADVANCED MODES
The Rhodan HD GPS Anchor+® Trolling Motor has 12 memory locations. Four of these are dedicated to memorizing anchor sites. The remaining eight can be used to record intricate paths or routes over 1000 miles long! The twelve memories will remain in the system memory even after power down. Paths can be recorded while running at trolling speed and even at cruising speed with the trolling motor stowed! Play your recorded routes back at your chosen speed while the precision HD GPS Anchor+® steers your system for you! The system will automatically anchor the boat when it completes a memorized route. See the owner’s manual for more information.
Key Features
Powerful Thrust: Delivers 120 lbs thrust on a 36VDC system for consistent performance.
Multiple Operating Modes: Includes Anchor Mode, Track Mode, Manual Mode, and Advanced Modes for versatile control.
Memory Locations: Save up to 12 memories including 4 anchor sites and 8 routes.
Advanced GPS Technology: Features high-definition precision GPS for accurate position holding and route tracking.
Durable and Reliable: Constructed with a corrosion-free composite shaft and Line-X® finish for optimal saltwater use.
Detailed Specifications
Specification
Details
Thrust Rating
120 lbs at 36VDC
Operating Voltage
36VDC
Propeller Type
3-Blade Weedless
Shaft Length Options
84", 72", 60", 54", 48" (inches)
Recommended Circuit Breaker
50A
Anchor Mode
Keeps the boat’s bow in place, compensating for wind and current
Track Mode
Guides the boat along a selected course
Manual Mode
Traditional trolling motor control with thrust and steering
Memory Locations
12 (4 anchor sites, 8 routes)
Route Length
Over 1000 miles
Model Color Options
Black, White
Construction
Corrosion-free composite shaft with Line-X® finish
Saltwater Use
Equipped with sacrificial zinc anodes
In Package:
Rhodan Lower Unit with Shaft – 36V (Specify shaft length: 84", 72", 60", 54", or 48") (Specify color: Black or White)
Line-X® Finish: Ensures corrosion resistance and durability, suitable for saltwater use.
Heat Shrink: Included for added protection during installation.
Mounting Hardware: Comprehensive set for easy attachment to your vessel.
