Sitrex 8 and 10 'V' Type Wheel Rake QR Rake 18' to 24'6" Working Width for Tractor
Sitrex 8 and 10 'V' Type Wheel Rake QR Rake 18' to 24'6" Working Width for Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Products Description
Sitrex 8 and 10 'V' Type Wheel Rake QR Rake 18' to 24'6" Working Width for Tractor
DESCRIPTION

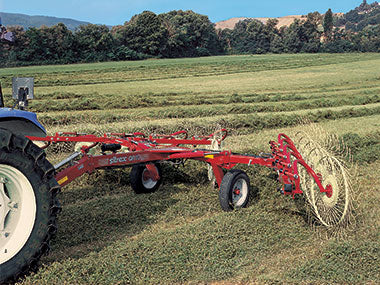

The Sitrex QR V-Type Wheel Rake series offers a high-quality solution for farmers seeking an efficient, durable, and easy-to-use hay raking machine. Available in 8, 10, or 12-wheel configurations, these rakes provide excellent performance with the simplicity of operation. Built with robust materials and designed for long-lasting durability, each rake in the QR range is capable of handling large quantities of hay with exceptional maneuverability and stability, both in the field and during transport.
These rakes offer adjustable working widths to match different field requirements, and the exclusive clearance design ensures seamless hay flow without clogging. The rakes are compact yet spacious enough to allow smooth operations, ideal for farmers who value quality and productivity.
Key Features
- Versatile Rake Configurations: Choose from 8, 10, or 12-wheel options to fit your operation.
- Exceptional Maneuverability: Designed to be stable and easy to handle, even on uneven terrain.
- Compact Yet Spacious Design: Plenty of clearance for hay flow and efficient transport.
- Adjustable Windrow Width: Ranges from 3' to 6'7", adapting to various hay drying needs.
Detailed Specifications
QR8 Model
| Specification | Details |
|---|---|
| Model | QR8 |
| Number of Wheels | 8 |
| Max Working Width | 18' (5.5m) |
| Min Working Width | 16'4" (5m) |
| Transport Width | 8'5" (2.6m) |
| Tractor HP | 30 HP |
| Weight | 1675 lbs |
QR10 Model
| Specification | Details |
|---|---|
| Model | QR10 |
| Number of Wheels | 10 |
| Max Working Width | 21' (6.4m) |
| Min Working Width | 19' (5.8m) |
| Transport Width | 8'5" (2.6m) |
| Tractor HP | 30 HP |
| Weight | 1875 lbs |
QR12 Model
| Specification | Details |
|---|---|
| Model | QR12 |
| Number of Wheels | 12 |
| Max Working Width | 24'6" (7.5m) |
| Min Working Width | 21'8" (6.6m) |
| Transport Width | 8'5" (2.6m) |
| Tractor HP | 50 HP |
| Weight | 2115 lbs |
In Package:
- Sitrex QR V-Type Wheel Rake (8, 10, or 12-wheel configuration)
- High-performance finger wheels
- Heavy-duty frame and transport wheels
