TurfTime Smooth Roller 3/8” Heavy Duty | Model AR-30 Series | 60"-144" Rolling Width | 30" Roller Diameter | For Tractor / Skid Steer
DESCRIPTION
TurfTime Equipment’s Heavy Duty Smoothing Rollers are an excellent choice for rolling fairways and greens on golf course, leveling sports fields and parks and recreation sites, improving airfields, and smoothing grassy areas on farms and estates.
MULTI-USE TRACTOR ROLLERS

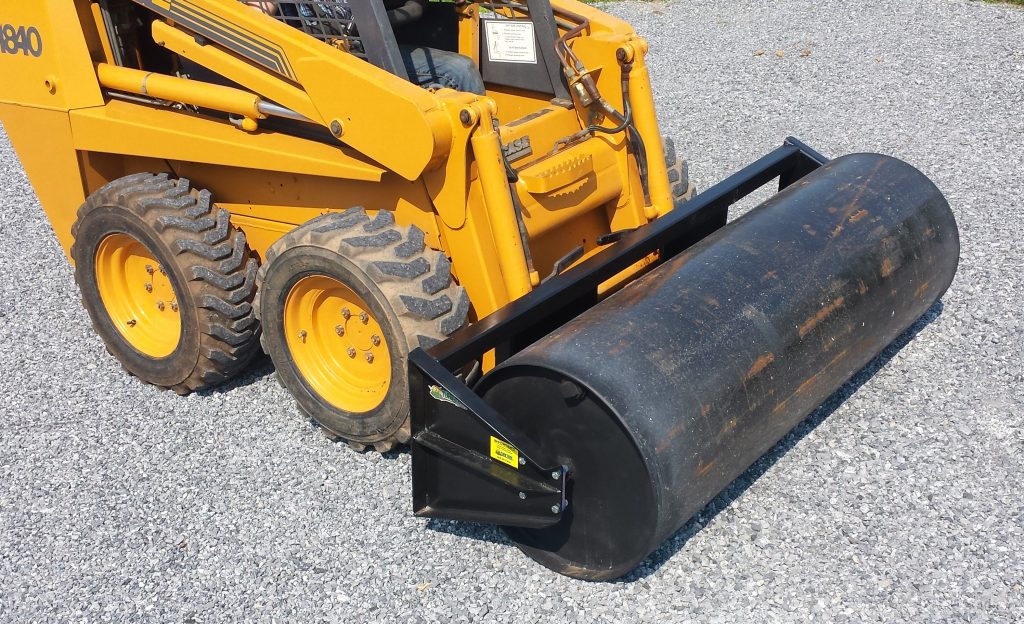

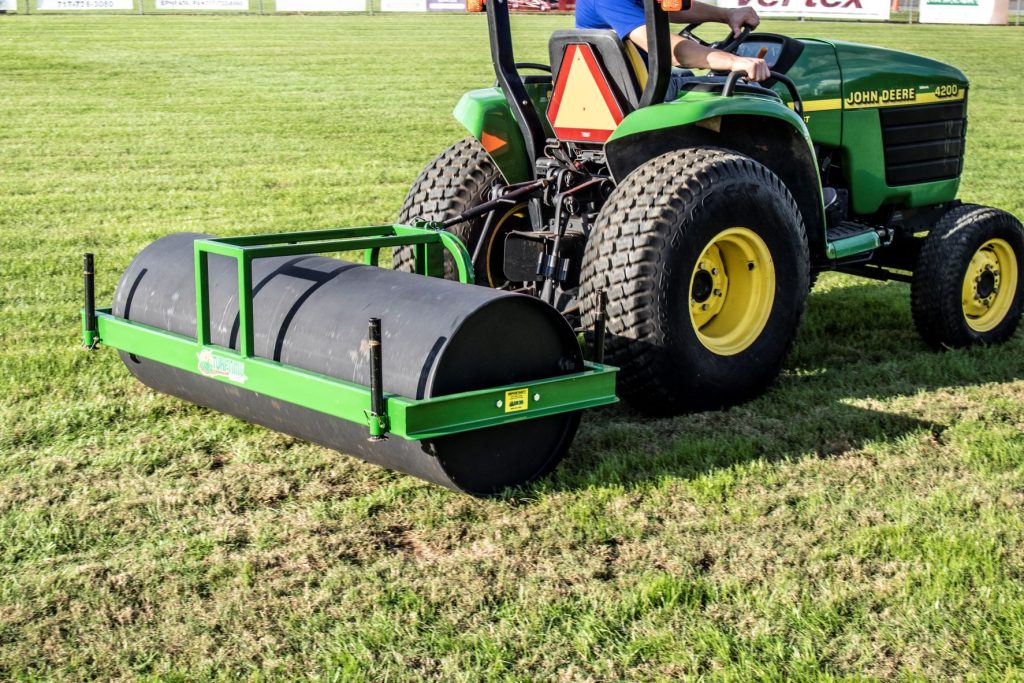

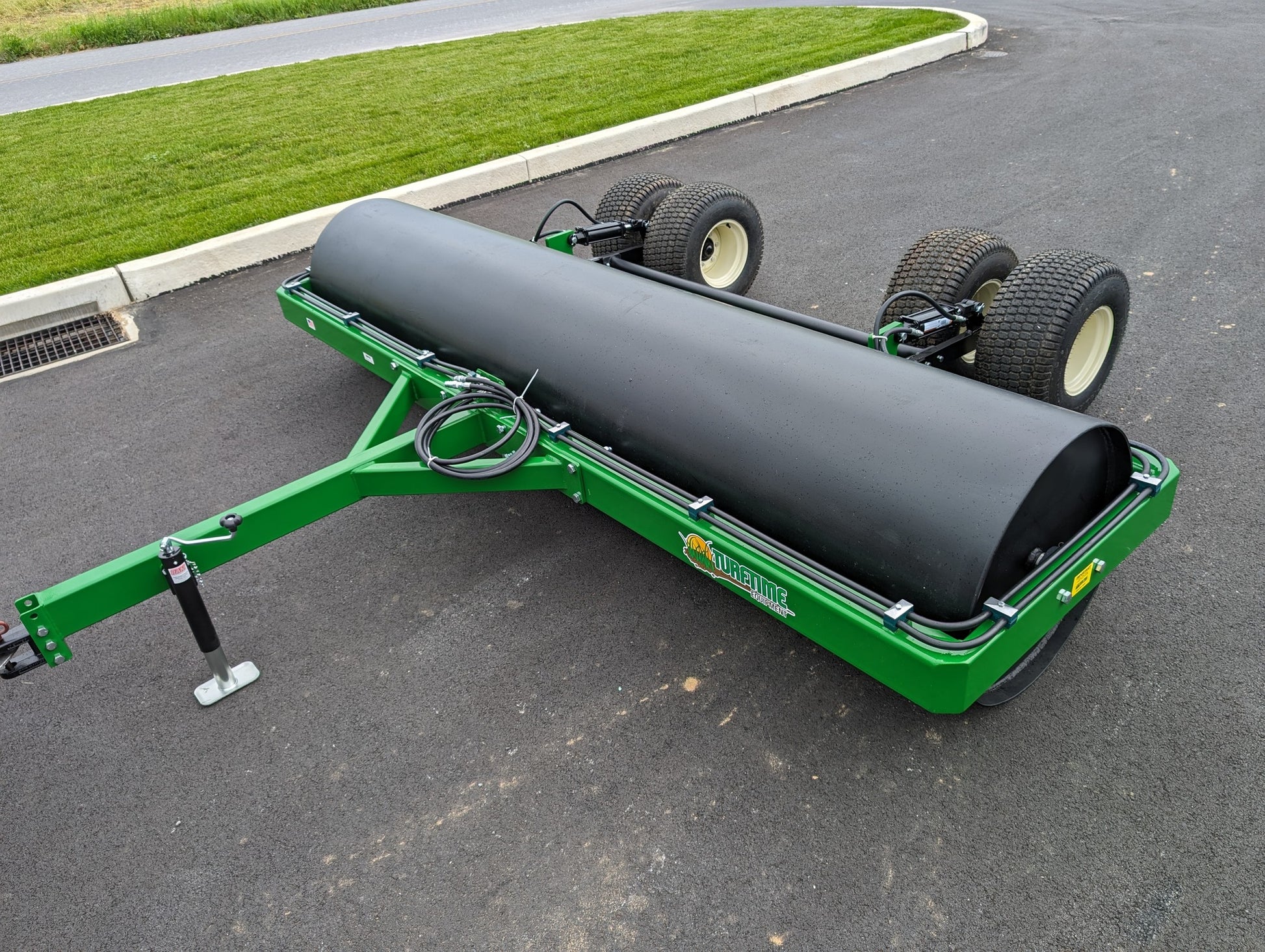

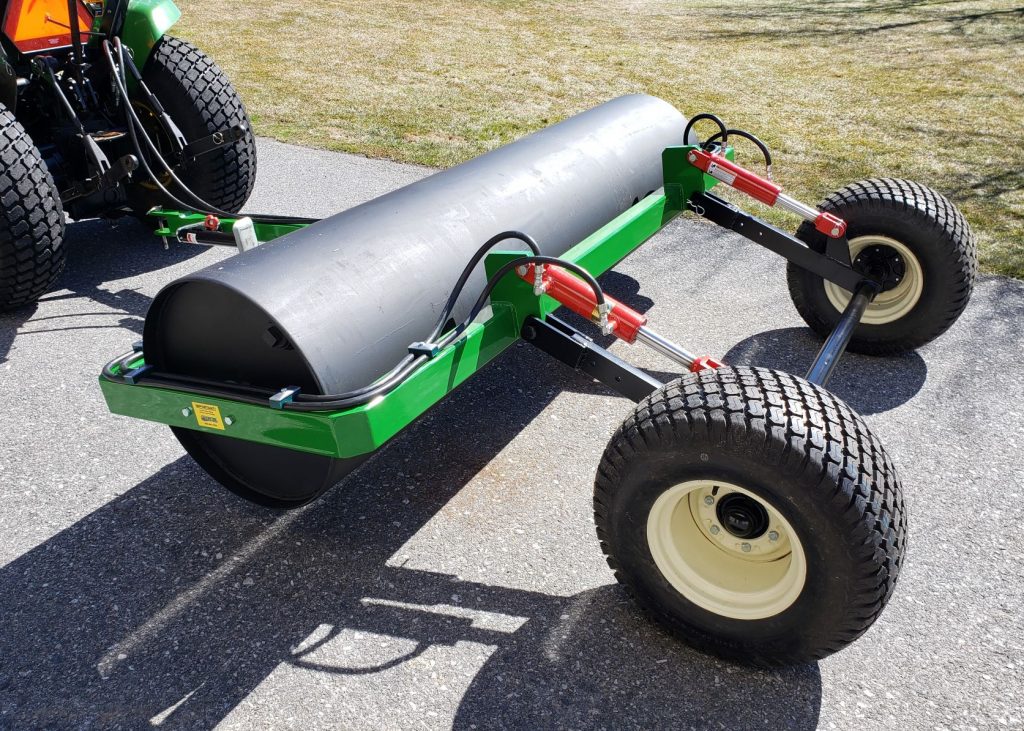

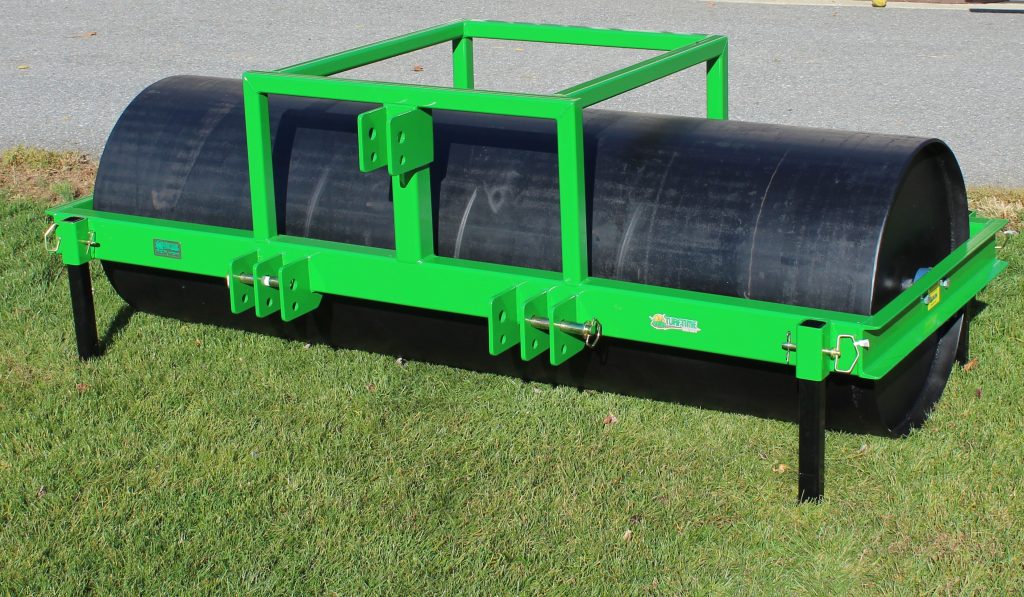

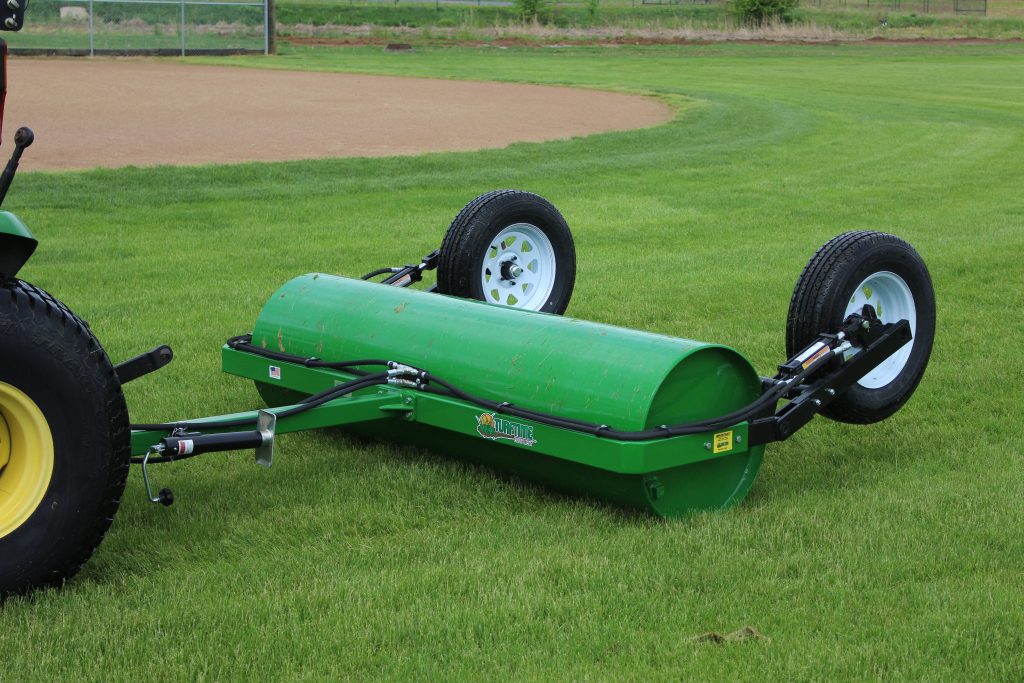

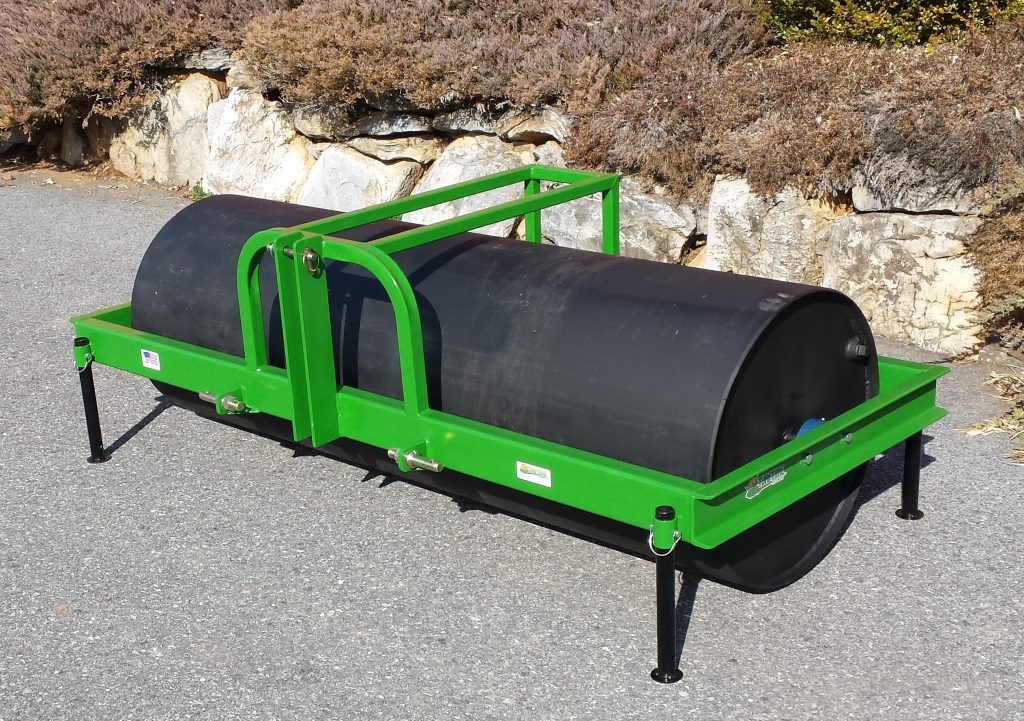

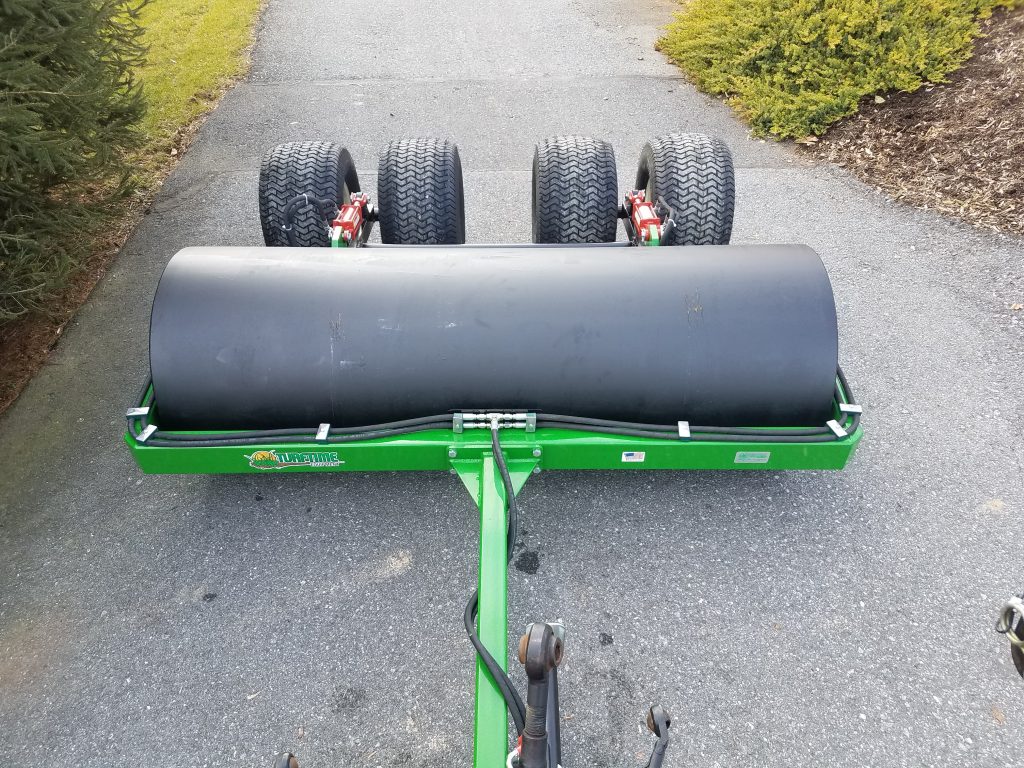

ALL TURFTIME ROLLERS ARE AVAILABLE WITH 3-POINT, SKID STEER ATTACH, OR WITH HYDRAULIC WHEEL KIT
The AR-Series is 3/8 inch thick steel available in 24″ or 30″ diameter drum, commercial grade rollers with ultra strong construction makes them a best choice for large sports complexes and other high use facilities including golf courses, stadiums, grass airstrips, polo fields, turf race tracks and recreational trails.
The LR-Series is 1/4 inch thick steel only available in 24″ diameter drum, The LR-Series roller is designed for landscapers, Home owners, and smaller municipalities or sports associations.
With a 3/8″ (1/4″ for LR series) thick steel rolling surface our rollers will stand up to the most rugged use, and are heavy enough to smooth most surfaces in one pass, saving you time and money.
BEST COMMERCIAL LAWN ROLLERS FOR ANY JOB:
Whether you are installing sod, leveling a sports field, rolling a golf course fairway and greens, or improving a ball field, polo field or pasture, if you need to roll it you can count on TurfTime Equipment’s Heavy Duty Rollers to get the job done. Also, consider rolling to pack gravel paths and cart-ways.
TurfTime Equipment rollers use water to adjust weight:
The end plates are 3/8″ (1/4″ for LR series) thick steel with a fill plug that allows you to add water to your desired extra weight using a standard hose.
TurfTime Equipment Rollers are Trouble free solid steel construction:
The axle is a heavy steel shaft running through the roller from end to end. A heavy duty tongue and frame with beefy grease able axle bearings make these sturdy rollers trouble free.
Key Features
- Drum Thickness: 3/8” thick (1/4” for LR series) ensures durability for commercial applications.
- Water-Fillable Drum: Easily add weight by filling the drum with water, controlled via a standard hose.
- Heavy-Duty Construction: Solid steel frame, reinforced bearings, and end-to-end axle for dependable performance.
- Adaptable to Any Turf: Smooth rolling performance ideal for leveling fairways, fields, golf greens, gravel paths, and more.
Detailed Specifications
ADVANTAGE Rollers (AR-30 Series) Specs
| Model | AR-3060 | AR-3072 | AR-3084 | AR-3096 | AR-30120 | AR-30144 |
|---|---|---|---|---|---|---|
| Roller Diameter | 30” | 30” | 30” | 30” | 30” | 30” |
| Wall Thickness | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” |
| Rolling Width | 60” | 72” | 84” | 96” | 120” | 144” |
| Frame Width | 66” | 78” | 90” | 102” | 126” | 150” |
| Frame Thickness | 3/16” | 3/16” | 3/16” | 3/16” | 3/16” | 3/16” |
| Length | 88” | 88” | 88” | 88” | 88” | 88” |
| Weight (Empty) | 870 lbs | 1045 lbs | 1220 lbs | 1385 lbs | 1750 lbs | 2080 lbs |
| Weight (Filled) | 2250 lbs | 2700 lbs | 3220 lbs | 3688 lbs | 4600 lbs | 5520 lbs |
