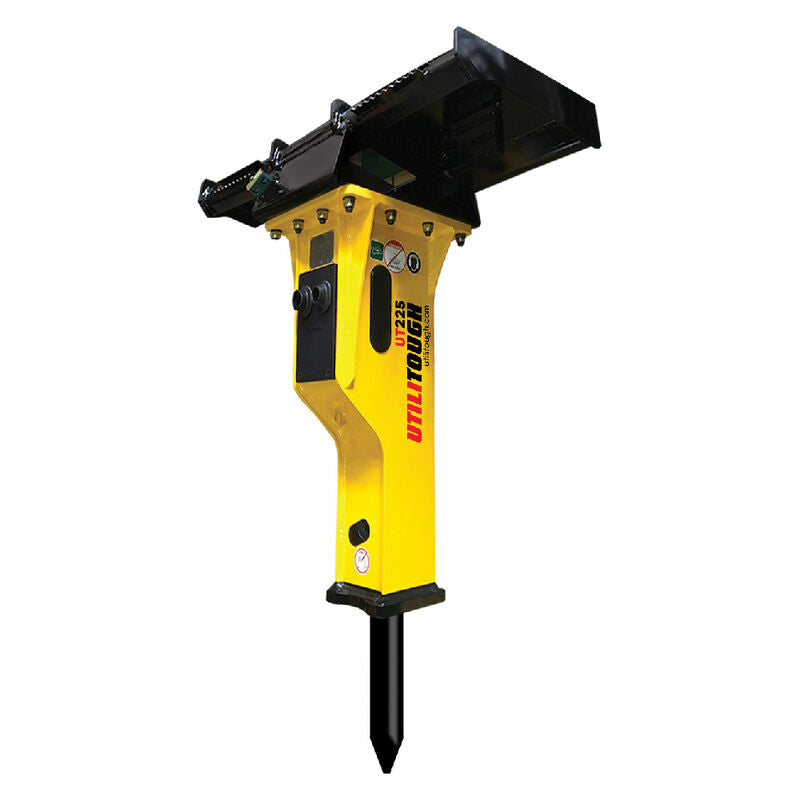

UTILITOUGH SKID STEER HYDRAULIC BREAKER
225 SERIES
DESCRIPTION
The UtiliTough Hydraulic Concrete Breaker is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Built for heavy industrial work such as breaking concrete slabs, cement, stone, and other materials. The 225 Series is designed for noise reduction and prevention of internal vibration and has a more expansive working space. Built with a 0.8~2.5-ton carrier weight range, it features a longer chisel point, a two-step stroke and idle blow prevention system, and a large tool pin. The breaker includes two heat-treated Moil Point tools, Hydraulic Hoses with Flat-Faced Couplers, gas charging kit, and a repair toolbox. This powerful breaker is made for the most demanding jobs and is made to last with less maintenance.
FEATURES
- 0.8~2.5-ton carrier weight range
- 408 LB breaker operating weight
- 3.97~7.92 GPM oil flow range
- Universal Skid Steer Quick Tach Mounting System
- Longer chisel point and larger through-bolt to improve durability
- Minimized welding on bracket fabrication process to strengthen durability
- Applied two-step stroke and idle blow preventing structure system
- Stronger impact power
- Low-noise
- Prevention of chisel stop pin loosening
- No oil loss when changing the control valve
- Lower vibration and tighter fastening between power cell and bracket
- Control valve can be replaced on-site with ease and speed
- Simple assembly and disassembly
- Easy maintenance (time and cost saving)
- Includes two Moil Point tools
- Includes Hydraulic hoses with Flat-Faced Couplers
- Includes Gas charging kit
- Includes repair toolbox
SPECIFICATIONS
| Operating Pressure |
1,280~1,707 PSI |
| Blow Rate (Long Stroke) |
540~1,000 BPM |
| Required Oil Flow |
3.97~7.92 GPM |
| Finish |
Powder-Coated Black/Yellow |
| Suitable Excavator |
1,600~5,000 lb. |
650 SERIES
DESCRIPTION
The UtiliTough Hydraulic Concrete Breaker is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Built for heavy industrial work such as breaking concrete slabs, cement, stone, and other materials. The 650 Series is designed for noise reduction and prevention of internal vibration and has a more expansive working space. Built with a 3.0~6.0-ton carrier weight range, it features a longer chisel point, a two-step stroke and idle blow prevention system, and a large tool pin. The breaker includes two heat-treated Moil Point tools, Hydraulic Hoses with Flat-Faced Couplers, gas charging kit, and a repair toolbox. This powerful breaker is made for the most demanding jobs and is made to last with less maintenance.
FEATURES
- 3.0~6.0-ton carrier weight range
- 618 LB breaker operating weight
- 7.9~17.1 GPM oil flow range
- Universal Skid Steer Quick Tach Mounting System
- Longer chisel point and larger through-bolt to improve durability
- Minimized welding on bracket fabrication process to strengthen durability
- Applied two-step stroke and idle blow preventing structure system
- Stronger impact power
- Low-noise
- Prevention of chisel stop pin loosening
- No oil loss when changing the control valve
- Lower vibration and tighter fastening between power cell and bracket
- Control valve can be replaced on-site with ease and speed
- Simple assembly and disassembly
- Easy maintenance (time and cost saving)
- Includes two Moil Point tools
- Includes Hydraulic hoses with Flat-Faced Couplers
- Includes Gas charging kit
- Includes repair toolbox
SPECIFICATIONS
| Operating Pressure |
1,565~2,702 PSI |
| Blow Rate (Long Stroke) |
550~1,300 BPM |
| Required Oil Flow |
7.9~17.1 GPM |
| Finish |
Powder-Coated Black/Yellow |
| Suitable Excavator |
6,614~14,330 lb. |
850 SERIES
DESCRIPTION
The UtiliTough Hydraulic Concrete Breaker is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Built for heavy industrial work such as breaking concrete slabs, cement, stone, and other materials. The 850 Series is designed for noise reduction and prevention of internal vibration and has a more expansive working space. Built with a 4.5~8.0 -ton carrier weight range, it features a longer chisel point, a two-step stroke and idle blow prevention system, and a large tool pin. The breaker includes two heat-treated Moil Point tools, Hydraulic Hoses with Flat-Faced Couplers, gas charging kit, and a repair toolbox. This powerful breaker is made for the most demanding jobs and is made to last with less maintenance.
FEATURES
- 4.5~8.0 ton carrier weight range
- 1,069 lb breaker operating weight
- 10.03~29.05 gpm oil flow range
- Universal Skid Steer Quick Tach Mounting System
- Longer chisel point and larger through-bolt to improve durability
- Minimized welding on bracket fabrication process to strengthen durability
- Applied two-step stroke and idle blow preventing structure system
- Stronger impact power
- Low-noise
- Prevention of chisel stop pin loosening
- No oil loss when changing the control valve
- Lower vibration and tighter fastening between power cell and bracket
- Control valve can be replaced on-site with ease and speed
- Simple assembly and disassembly
- Easy maintenance (time and cost saving)
- Includes two Moil Point tools
- Includes Hydraulic hoses with Flat-Faced Couplers
- Includes Gas charging kit
- Includes repair toolbox
SPECIFICATIONS
| Operating Pressure |
1,280~1,707 PSI |
| Blow Rate (Long Stroke) |
380~1,100 BPM |
| Required Oil Flow |
10.03~29.05 GPM |
| Hose Length |
.75 x 110-in. |
| Finish |
Powder-Coated Black/Yellow |
| Suitable Excavator |
9,921~17,637 lb. |
| Operation Weight |
1,069 lb. |
1000 SERIES
DESCRIPTION
The UtiliTough Hydraulic Concrete Breaker is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Built for heavy industrial work such as breaking concrete slabs, cement, stone, and other materials. The 1000 Series is designed for noise reduction and prevention of internal vibration and has a more expansive working. Built with a 4.5~8.0-ton carrier weight range, it features a longer chisel point, a two-step stroke and idle blow prevention system, and a large tool pin. The breaker includes two heat-treated Moil Point tools, Hydraulic Hoses with Flat-Faced Couplers, gas charging kit, and a repair toolbox. This powerful breaker is made for the most demanding jobs and is made to last with less maintenance.
FEATURES
- 4.5~8.0-ton carrier weight range
- 1,179 LB breaker operating weight
- 11.88~36.98 GPM oil flow range
- Universal Skid Steer Quick Tach Mounting System
- Longer chisel point and larger through-bolt to improve durability
- Minimized welding on bracket fabrication process to strengthen durability
- Applied two-step stroke and idle blow preventing structure system
- Stronger impact power
- Low-noise
- Prevention of chisel stop pin loosening
- No oil loss when changing the control valve
- Lower vibration and tighter fastening between power cell and bracket
- Control valve can be replaced on-site with ease and speed
- Simple assembly and disassembly
- Easy maintenance (time and cost saving)
- Includes two Moil Point tools
- Includes Hydraulic hoses with Flat-Faced Couplers
- Includes Gas charging kit
- Includes repair toolbox
SPECIFICATIONS
| Operating Pressure |
1,991~2,702 PSI |
| Blow Rate (Long Stroke) |
380~1,000 BPM |
| Required Oil Flow |
10~23.7 GPM |
| Hose Length |
.75 x 110-in. |
| Finish |
Powder-Coated Black/Yellow |
| Suitable Excavator |
9,921~17,637 lb. |
| Operation Weight |
1,125 lb. |
