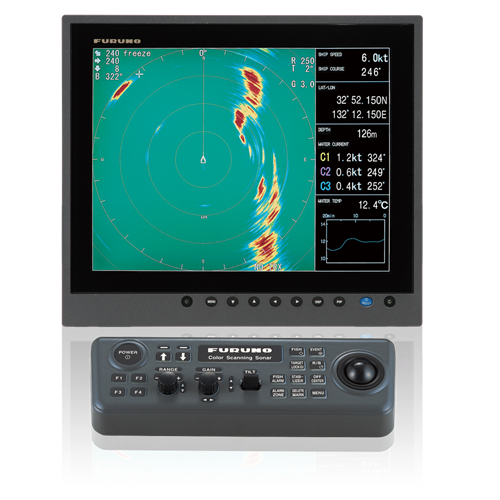

Furuno csh5lmk2 Omni Sonar
CSH5LMK2
Black Box Full-Circle Scanning Sonar, 55 kHz
A compact, mid-frequency Sonar with revolutionary fish and seabed discrimination
The CSH5LMK2 is a full-circle scanning sonar that can rapidly detect schools, individual fish and changing underwater conditions around a vessel. Fish distribution and seabed conditions are displayed in 16 colors, 360 degrees around your vessel. The CSH5LMK2 is considered a mid-frequency sonar at 55 KHz. Its wider beam width coupled with its enhanced target identification capabilities make it ideal for searching deeper waters. Fish and bottom echoes are clearly separated and bait fish are more easily tracked. With automatic tilt scanning as a standard feature, the CSH5LMK2 is suitable for both midwater trawlers and purse seiners.
The Sonar’s compact keyboard and Black Box configuration helps make for a flexible installation. Other components consist of either a 400 or 600mm stroke hull unit, a transceiver unit, and a processor unit. A variety of monitors are available to suit your installation and operational requirements. FURUNO’s MU-series displays are specially designed to meet the requirements of marine professionals around the world. For a second station, an additional display and a small remote controller can be simply plugged into the processor unit.
The control unit combines ergonomics and function in a user-friendly, comfortable configuration. All controls respond quickly to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation. An optional handheld remote controller allows for control of tilt, range and gain functions.
Navigation data can be displayed in the text window, with connection of appropriate sensors. The operator can place Event Marks on targets to better help tracking schools of fish or other objects of interest.
Sonar + Echo Sounder display
The Sonar picture appears on the left and the signal fed from the Echo Sounder at the lower right side of the screen. This mode is suitable for judging fish school concentration.
Sonar + Audio display
The Sonar picture appears on the left and the Audio display at the lower right side of the screen. This mode is useful for analyzing echoes in a desired area
