  • Pricing Unavailable, Request Quote
  • Versatile Planting: Supports both no-till and conventional planting methods.
  • Compact Design: Ideal for small fields, food plots, and hard-to-reach areas.
  • Durable Construction: Built with robust materials to handle varied terrains.
  • Generous Seed Capacity: 7.7 BU main box and 2.8 BU small box for efficient planting.
  • Precision Planting: Equipped with a slide plate meter system for controlled seed distribution.
View full details

How To Get A Quote

***Online pricing not available***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

1st Products No Till Drill - 5ft MULTI-drill 3pt & Pull Type

DESCRIPTION

5ft 3PT No-Till Drill

The 5ft 3PT No-Till Drill is designed for precision and durability, delivering exceptional performance for small-scale agricultural tasks. With a 54-inch working width and 6 openers spaced 9 inches apart, this drill is perfect for planting in food plots, small pastures, or wooded areas. The 3-point hitch design makes it easy to attach to tractors with 40+ HP.

5ft Pull-Type No-Till Drill

The 5ft Pull-Type No-Till Drill offers the same quality and precision as the 3PT model but features a self-contained lift and pull-type hitch for greater flexibility. With its variable speed electric drive, auxiliary seedbox, and integrated rear step and walk board, this drill is ideal for operations where a 3-point hitch is unavailable or impractical.

Key Features

  • Storage Cover: Protects the drill when not in use, ensuring longevity.
  • Rear Step and Walk Board: Allows for easy access to the seedbox and adjustments.
  • Auxiliary Seedbox: Provides additional planting versatility for various seed types.
  • 4 Stainless Steel Seed Plates: Guarantees precision planting across different crop varieties.
  • Variable Speed Electric Drive: Ensures consistent operation and planting speed.
  • Self-Contained Lift (Pull-Type): Makes the drill independent of tractor hydraulics for easy maneuverability.

Detailed Specifications

Specification 5ft 3PT Drill 5ft Pull-Type Drill
Drill Type No-till/Conventional No-till/Conventional
Meter System Slide Plate Control Slide Plate Control
Overall Width 80 in 80 in
Working Width 54 in 54 in
Dry Weight 1,780 lbs 1,960 lbs
Hitch Type 3-Point Lift Pull Type
Number of Openers 6 6
Row Spacing 9 in 9 in
HP Required 40+ 30+
Machine Length 59 in 110 in
Machine Height 64 in 64 in
Transport Height 76 in 76 in

Seed Capacity

Seed Box Capacity
Main Box 7.7 BU
Small Box 2.8 BU
Depth Range 0”-3”
Weight Bracket N/A

In Package

  • Protective storage cover
  • Rear step and walk board
  • Auxiliary seedbox for planting versatility
  • 4 stainless steel seed plates for precise planting
  • Variable speed electric drive for controlled operation
  • Self-contained lift system (Pull-Type Drill Only)

Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

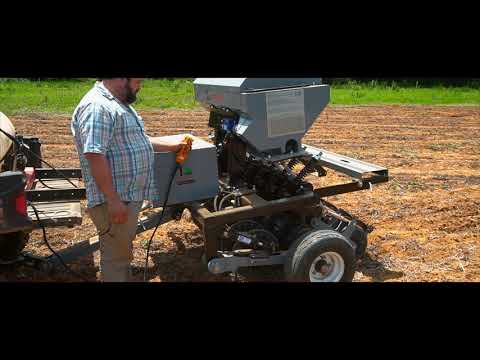

Videos
