Product Description
2025 Barko Stationary Electric Loader | Model 295-SE-ERS | Width 8' 5" Ft | Horsepower 100 HP | For Log Loaders
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION

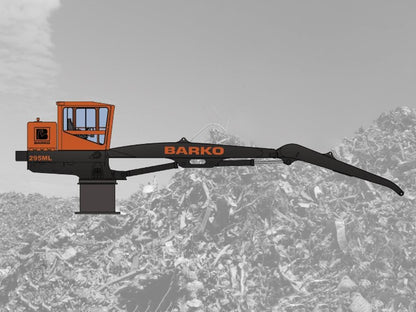

The Barko 295-SE-ERS Stationary Electric Loader combines efficiency and durability to meet industrial material handling needs. Powered by a 100 HP drip-proof encapsulated electric motor, this loader is built for reliability, delivering precise control through advanced load-sensing hydraulics and ergonomic joysticks. With its all-welded boom construction and a maximum lift capacity of 22,820 lbs, the 295-SE-ERS ensures consistent performance for demanding operations. Mounted on a stable 33-inch pedestal, it offers seamless integration with operational setups.
Key Features
- Electric Motor: Equipped with a 100 HP (75 kW), 3-phase motor for high performance and efficiency.
- Stable Pedestal: Mounted on a standard 33-inch pedestal with a 39-inch bottom plate, ensuring secure and stable installation.
- Load-Sensing Hydraulics: Matches pressure and flow for efficient power delivery, reducing operator fatigue and enhancing precision.
- Robust Boom Construction: All-welded box-type boom provides durability, sweeping curves for strength, and fatigue resistance.
- Swing Torque: Dual motors and planetary gearboxes deliver 30,000 ft-lbf swing torque for smooth operation.
- Operator Comfort: Ergonomically designed dual electric-controlled joysticks ensure ease and efficiency during long shifts.
- Service Accessibility: Centralized hydraulic valves and removable panels simplify maintenance.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 9' 3" (282 cm) |
| Overall Length | 38' 4" (1,168 cm) with 30' boom extended |
| Overall Width | 8' 5" (257 cm) |
| Operating Weight | 24,000 lbs (10,886 kg) without attachment |
| Height | 33" (838 mm) |
| Top Plate Diameter | 35.5" (902 mm) |
| Bottom Plate Diameter | 39" (991 mm) |
| Bottom Holes | (30) 1-3/8" (35 mm) holes equally spaced on a 34.5" (876 mm) diameter circle |
| Electric Motor | 100 HP (75 kW), 3-phase, 460 volts, 60 Hz |
| Electrical Features | NEMA 4 enclosure, motor start circuit, emergency stop |
| Tank Capacity | 120 gal. (454 L) |
| Pump Flow Rate | 70 GPM (265 LPM), variable displacement piston |
| Operating Pressure | 3,000 psi (206 bar) |
| Horizontal Reach | 30' (914 cm) |
| Vertical Reach | 36' 9" (1,120 cm) with pedestal |
| Maximum Lift Capacity | 22,820 lbs (10,351 kg) |
| Swing Torque | 30,000 ft-lbf (40,674 Nm) |
| Rotation Speed | 8 RPM |
| Service-Friendly Design | Centralized hydraulic valves, removable panels |
