Product Description
2025 Barko Stationary Electric Loader | Model 295-SER-ERS | Width 3' 3.5" Ft | Horsepower 100 HP | For Log Loaders
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION
The Barko 295-SER-ERS Stationary Electric Loader is optimized for precision and efficiency in material handling operations. Powered by a 100 HP open drip-proof electric motor, this loader incorporates advanced features like load-sensing hydraulics, ergonomic joystick controls, and robust boom construction. With a horizontal reach of 30 feet and a 150-gallon hydraulic tank for long intervals, the 295-SER-ERS offers unmatched productivity and reduced maintenance costs. Its compact yet durable design makes it a reliable solution for demanding industrial applications.
Key Features
- Electric Power: Equipped with a 100 HP (75 kW), 3-phase electric motor operating at 1,800 RPM for efficient and reliable performance.
- Durable Pedestal Mounting: Standard 33-inch pedestal with a 39-inch diameter bottom plate ensures stability and secure placement.
- Hydraulic System: Features load-sensing valves and a 70 GPM piston pump for efficient pressure and flow control.

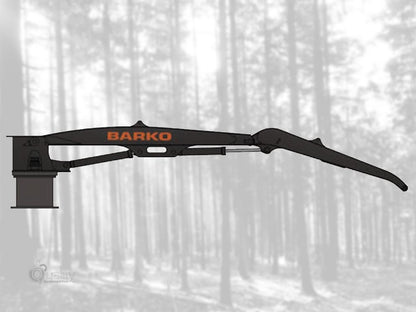

- Boom Design: All-welded box-type construction enhances durability and fatigue resistance with a maximum horizontal reach of 30 feet.
- Swing Torque: Dual Geroler motors and planetary gearboxes provide 30,000 ft-lbf swing torque for smooth and precise operations.
- Operator Controls: Multi-functional, electric-controlled joysticks mounted in the operator station ensure comfort and ease of use.
- Service Accessibility: Centralized hydraulic valves, bolt-on cylinder glands, and removable panels simplify maintenance and extend service life.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 6' 3" (191 cm) |
| Overall Length | 32' 3" (983 cm) with 30' boom extended |
| Overall Width | 3' 3.5" (100 cm) |
| Operating Weight | 18,000 lbs (8,165 kg) without attachment |
| Height | 33" (838 mm) |
| Top Plate Diameter | 35.5" (902 mm) |
| Bottom Plate Diameter | 39" (991 mm) |
| Bottom Holes | (30) 1-3/8" (35 mm) holes equally spaced on a 34.5" (876 mm) diameter circle |
| Electric Motor | 100 HP (75 kW), 3-phase, 460 volts, 60 Hz |
| Electrical Features | NEMA 4 enclosure, key start switch, motor start circuit |
| Tank Capacity | 150 gal. (568 L) |
| Pump Flow Rate | 70 GPM (265 LPM), variable displacement piston |
| Operating Pressure | 3,000 psi (206 bar) |
| Horizontal Reach | 30' (914 cm) |
| Vertical Reach | 36' 9" (1,120 cm) with pedestal |
| Maximum Lift Capacity | 22,820 lbs (10,351 kg) |
| Swing Torque | 30,000 ft-lbf (40,674 Nm) |
| Rotation Speed | 8 RPM |
| Service-Friendly Design | Centralized hydraulic valves, bolt-on cylinder glands, removable panels |
