Product Description
2025 Barko Stationary Electric Loader | Model 495-SE-ERS | Width 8' 5" Ft | Horsepower 100 HP | For Log Loaders
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION

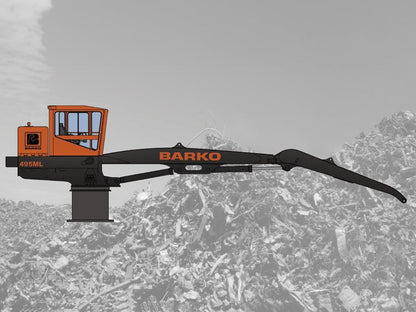

The Barko 495-SE-ERS Stationary Electric Loader is a versatile and powerful machine designed for efficient material handling in industrial and forestry applications. Powered by a 100 HP open drip-proof encapsulated electric motor, this loader provides consistent performance and precision control. Mounted on a durable 33-inch pedestal, it features up to 32 feet of horizontal reach, load-sensing hydraulics, and robust boom construction for handling heavy loads. With dual electric-controlled joysticks and centralized service features, the 495-SE-ERS ensures smooth operation, operator comfort, and reduced maintenance time.
Key Features
- Electric Power Source: Powered by a 100 HP (75 kW) 3-phase electric motor with NEMA 4 electrical enclosure for efficient operation.
- Pedestal Design: Mounted on a standard 33-inch pedestal with 49-inch bottom plate for stable and secure installation.
- Load-Sensing Hydraulics: Ensures precise metering by matching pressure and flow, reducing operator fatigue and optimizing grapple functionality.
- Boom Strength: All-welded box-type design enhances durability and fatigue resistance with horizontal reach of 32 feet.
- Swing Torque: Dual motors and planetary gearboxes deliver 44,000 ft-lbf of swing torque for smooth and powerful movements.
- Operator Controls: Ergonomic, dual electric-controlled joysticks ensure intuitive and efficient operation.
- Service Accessibility: Centralized hydraulic valves, bolt-on cylinder glands, and removable panels simplify maintenance.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 9' 3" (282 cm) |
| Overall Length | 40' 7" (1,237 cm) with 32' boom extended |
| Overall Width | 8' 5" (257 cm) |
| Operating Weight | 26,000 lbs (11,793 kg) without attachment |
| Height | 33" (838 mm) |
| Top Plate Diameter | 43.25" (1,099 mm) |
| Bottom Plate Diameter | 49" (1,245 mm) |
| Bottom Holes | (36) 1-3/8" (35 mm) holes equally spaced on a 42" (1,067 mm) diameter circle |
| Electric Motor | 100 HP (75 kW), 3-phase, 460 volts, 60 Hz, operating at 1,800 RPM |
| Electrical Package | Includes motor start circuit, key start switch, emergency stop console |
| Tank Capacity | 120 gal. (454 L) |
| Pump Flow Rate | 70 GPM (265 LPM), variable displacement piston |
| Operating Pressure | 3,600 psi (248 bar) |
| Horizontal Reach | 32' (975 cm) |
| Vertical Reach | 37' 7" (1,145 cm) with pedestal |
| Maximum Lift Capacity | 28,720 lbs (13,027 kg) |
| Swing Torque | 44,000 ft-lbf (59,656 Nm) |
| Rotation Speed | 9 RPM |
| Cab Features | Not specified |
| Service-Friendly Design | Centralized hydraulic valves, removable panels |
