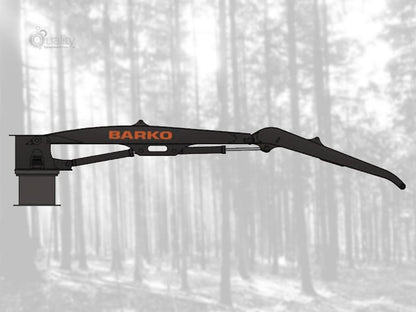

2025 Barko Stationary Electric Loader | Model 495-SER-ERS | Width 3' 10.5" Ft | Horsepower 100 HP | For Log Loaders
2025 Barko Stationary Electric Loader | Model 495-SER-ERS | Width 3' 10.5" Ft | Horsepower 100 HP | For Log Loaders
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
2025 Barko Stationary Electric Loader | Model 495-SER-ERS | Width 3' 10.5" Ft | Horsepower 100 HP | For Log Loaders
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION
The Barko 495-SER-ERS Stationary Electric Loader is designed to maximize productivity and efficiency in industrial applications. Powered by a 100 HP drip-proof encapsulated electric motor, this loader offers precise control and consistent performance. Mounted on a standard 33-inch pedestal, it boasts a horizontal reach of up to 32 feet, providing optimal functionality for demanding tasks. With load-sensing hydraulics, robust boom construction, and centralized valves, the 495-SER-ERS ensures seamless operation, operator comfort, and simplified maintenance.
Key Features
- Electric Power Source: Equipped with a 100 HP (75 kW) drip-proof electric motor and a NEMA 4 electrical enclosure for reliable and efficient operation.
- Pedestal Mounting: Includes a standard 33-inch pedestal with a 49-inch bottom plate for secure installation and stability.
- Load-Sensing Hydraulics: Matches pressure and flow for efficient power delivery, reducing operator fatigue and fuel waste.
- Boom Performance: All-welded, fabricated box-type design provides strength and fatigue resistance, with a horizontal reach of 32 feet.
- Swing Torque: Dual motors and planetary gearboxes generate 44,000 ft-lbf of swing torque for precise and balanced loading.
- Operator-Friendly Controls: Ergonomic, multi-functional joystick controls ensure seamless operation and enhanced comfort.
- Service Accessibility: Centralized greasing system and bolt-on cylinder glands simplify maintenance, extending product life.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 6' 3" (191 cm) |
| Overall Length | 34' 5" (1,049 cm) with 32' boom extended |
| Overall Width | 3' 10.5" (118 cm) |
| Operating Weight | 20,000 lbs (9,072 kg) without attachment |
| Height | 33" (838 mm) |
| Top Plate Diameter | 43.25" (1,099 mm) |
| Bottom Plate Diameter | 49" (1,245 mm) |
| Electric Motor | 100 HP (75 kW), 3-phase, 460 volts, 60 Hz at 1,800 RPM |
| Electrical Package | NEMA 4 enclosure, motor start circuit, emergency stop controls |
| Swing Torque | 44,000 ft-lbf (59,656 Nm) |
| Rotation Speed | 9 RPM |
| Tank Capacity | 150 gal. (568 L) |
| Pump Flow Rate | 70 GPM (265 LPM), variable displacement piston |
| Operating Pressure | 3,600 psi (248 bar) |
| Horizontal Reach | 32' (975 cm) |
| Vertical Reach | 37' 7" (1,145 cm) with pedestal |
| Maximum Lift Capacity | 28,720 lbs (13,027 kg) |
| Joystick Controls | Multi-functional, electric-controlled joysticks |
| Service-Friendly Design | Centralized valves, bolt-on cylinder glands |
