Product Description
2025 Barko Tracked Harvester | Model 260B-D | 25.75 Tons Class | Width 11' 1.5" Ft | For Harvesting Applications
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION
Unleash the Barko 240B-H Tracked Harvester to conquer the toughest forestry challenges with unparalleled power and efficiency. Designed to excel in demanding environments, this machine sets the standard for reliability and productivity. Built upon decades of engineering expertise and user feedback, the 240B-H delivers superior performance that meets the needs of forestry professionals worldwide.
Key Features
- High-Power Engine: Equipped with a 225-HP Cummins QSB6.7 Tier 4 Final diesel engine with SCR aftertreatment for optimal performance and fuel efficiency. Includes a 36-inch auto reversing fan and heavy-duty cooling package.
- Advanced IQAN Control System: Customized electrohydraulic controls tailored for harvesting applications, offering infinite variable control and operator programmable settings.
- User-Friendly IQAN-MD4 Display: Provides system information and diagnostics via a Parker IQAN-MD4 cab display, enhancing operational transparency and troubleshooting.
- Enhanced Hydraulic System: Features an electric fill pump, improved internal hydraulic bypass, and standard hydraulic tank vacuum pump for consistent performance in all weather conditions.
- Durable Undercarriage: D5 undercarriage with 7.5-inch chain pitch, offering 26.2 inches of ground clearance and 9 feet, 4 inches width with 600-mm pads for exceptional stability and maneuverability.
- Superior Drawbar Pull: With a better than 1.3 to 1 ratio drawbar pull, the 240B-H effortlessly handles steep terrain and challenging landscapes.
- Robust Swing System: Dual swing-drive motors ensure continuous rotation with high torque of 50,787 foot-pounds, supported by an oversized swing bearing and extended boom reach.
- Innovative Cab Design: Patent-pending forward-sliding cab for easy access during maintenance, complemented by a large hydraulically opening gull wing door serving as a stable working platform.
- Operator Comfort: Climate-controlled cab with a heated air-ride seat, ample storage, and entertainment options including AM/FM radio with MP3 auxiliary.
- Enhanced Visibility: Features a 1.25-inch polycarbonate window for safety, air knife system for debris-free windows, and LED lighting for optimal job site visibility.
- Extended Fuel Capacity: 125-gallon fuel tank ensures longer operating intervals, minimizing downtime.
Detailed Specifications
| Category | Specification |
|---|---|
| Weight | 25.75 tons (51,500 lbs) |
| Overall Height | 11' 3" (343 cm) |
| Boom Reach | 27' 1" (826 cm) |
| Track Length | 14' 3" (434 cm) |
| Ground Clearance | 29" (74 cm) |
| Overall Width | 11' 1.5" (339 cm) |
| Engine | 225 HP Cummins QSB6.7 Tier 4 Final |
| Fuel Tank Capacity | 125 gal. (473 L) |
| Hydraulic Pressure | 4,500 psi (310 bar) |
| Main Pump Capacity | Load-sensing, 120 gal. (454 L) |
| Swing Torque | 50,787 ft-lbf (68,858 Nm) |
| Travel Speed | High: 2.1 mph (3.4 km/h); Low: 1.2 mph (1.9 km/h) |
| Maximum Tractive Effort | 65,481 lbf (291.3 kN) |
| Ground Pressure | 7.07 psi with 700 mm shoes |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

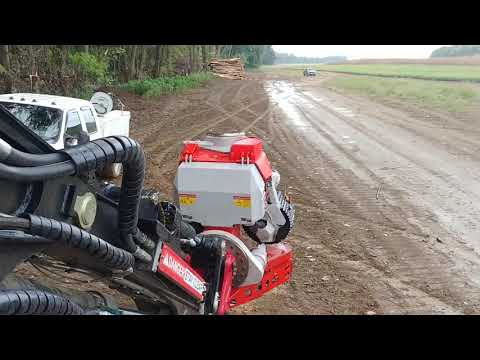

Videos
