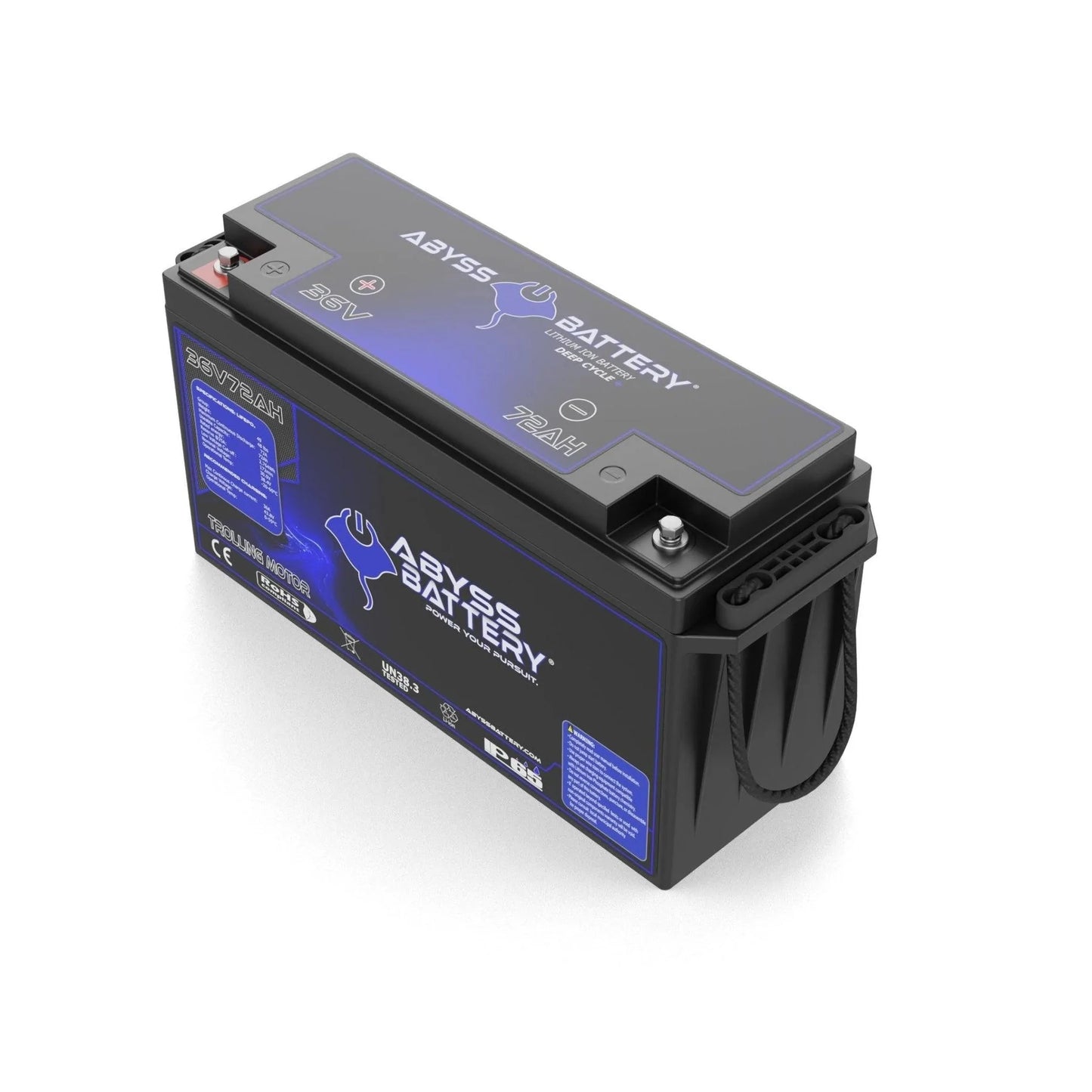

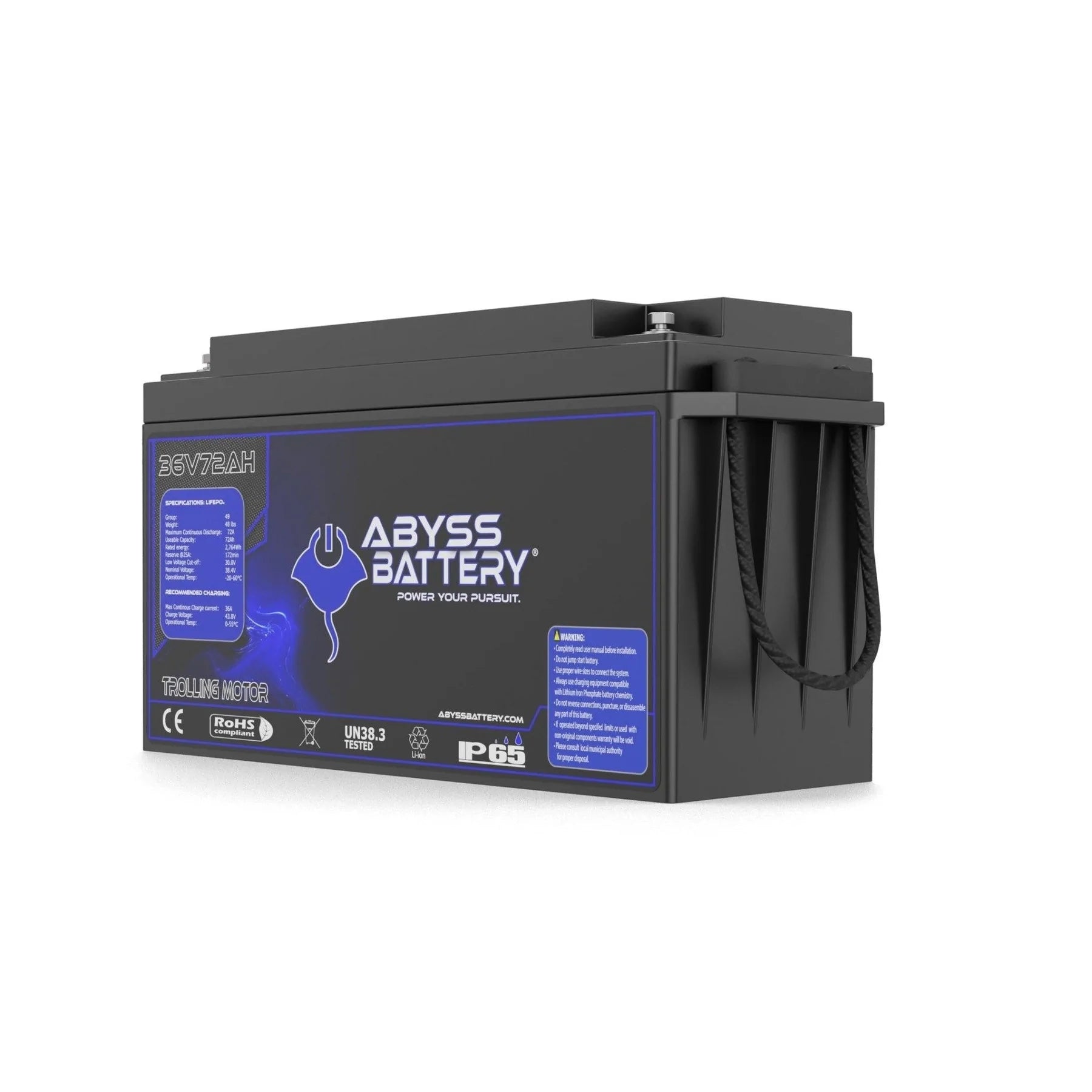

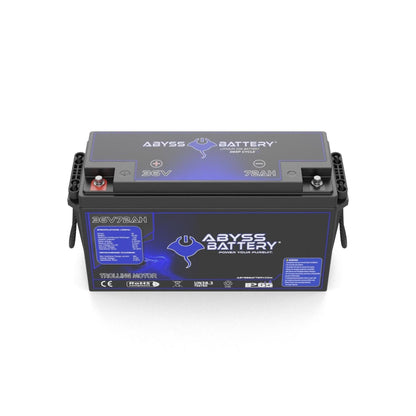

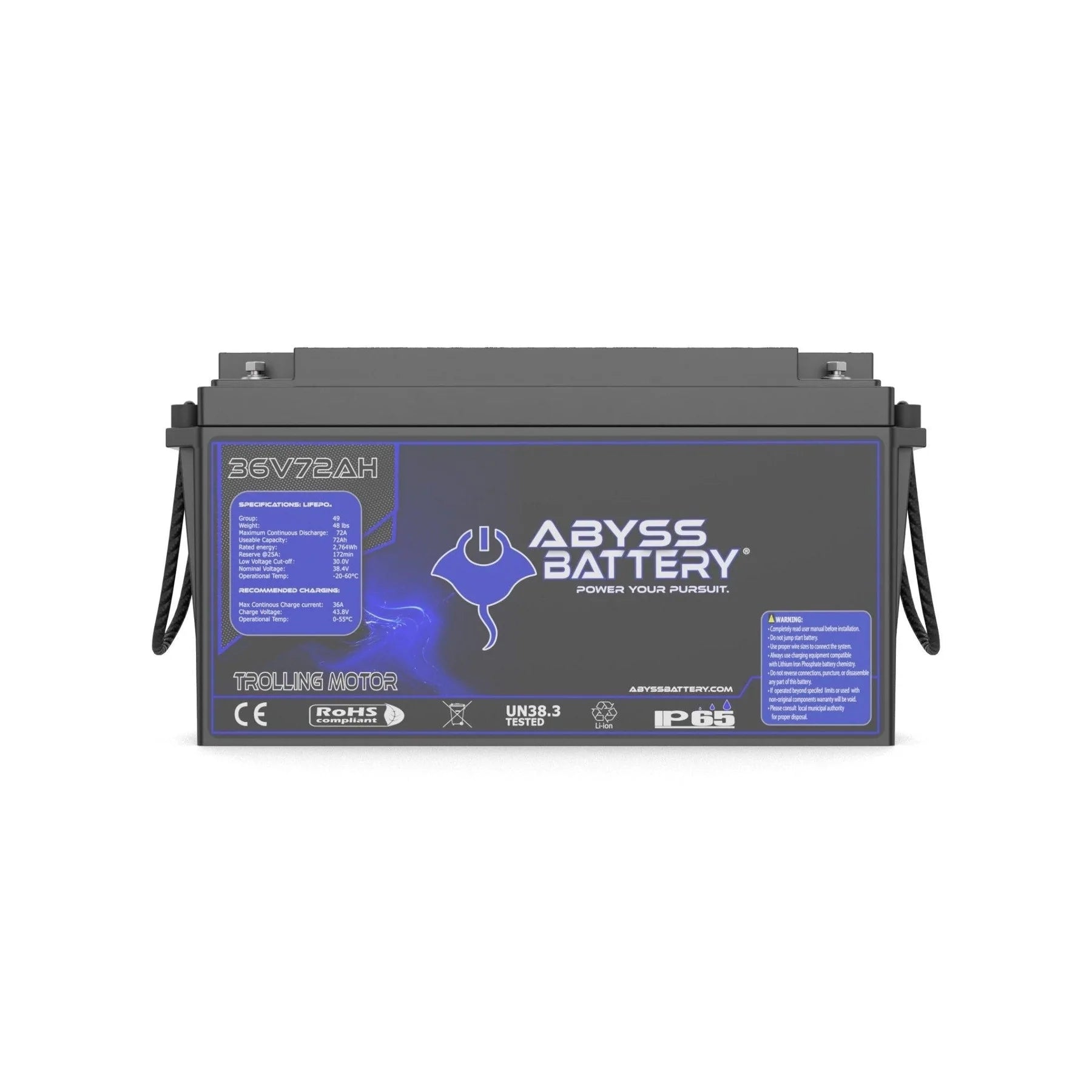

Abyss® 36V 72Ah Lithium Trolling Motor Battery

Product Description

Abyss® 36V 72Ah Lithium Trolling Motor Battery

DESCRIPTION

Upgrade your marine adventures with the ABYSS® 36V 72Ah Lithium Trolling Motor Battery, a powerful and efficient energy solution for serious anglers. Compact and lightweight, this Group 49 lithium battery is the perfect replacement for three bulky 12V lead-acid batteries, freeing up storage space and reducing overall weight on your boat.

Engineered to handle demanding conditions, the battery is ideal for deep cycle applications, ensuring reliable power whether you're trolling in calm weather or navigating rough waters. Bluetooth® connectivity allows you to monitor and manage the battery's performance in real-time, while built-in heating technology ensures consistent operation in colder environments.

Perfect for center console boats 36 feet and up, this battery offers an extended runtime and steady power output, making it a dependable choice for multi-day fishing trips.

Design Features:

• Higher qualified cylindrical cells 🔋

UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.

• Bluetooth® Monitoring 📲

Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.

• Built-in Heating ♨️

• More stable and firm internal structure ⚙️

Cell holders protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve heat dissipation.

GENERAL



ELECTRICAL



CHARGING

Battery Safety

Abyss Battery® strives to make the safest and most reliable lithium iron phosphate batteries for the most demanding environments, that’s why our batteries are only made with certified components and used in applications around the world. All Abyss Lithium batteries conform to the standard entities and regulations listed below.

SUPPLIER CODE OF CONDUCT

Download © 2021-2022 Abyss Battery Safety Data Sheet

UL-Listed/IEC62133-2017

We only use cells listed with UL standards entities.

QUALITY AND ENVIRONMENTAL MANAGEMENT SYSTEMS (ISO Certified)

ISO 9001:2008 Quality Management System
ISO 14001:2004 Environmental Management System

IEC/UL 62133

IEC62133 certifications and additional laboratory services are available as required by our OEM clients.

Abyss Battery®, Inc manufacturing process is compliant and licensed on a international level by TÜV Rheinland for Functional Safety as a result of exposure to harsh marine environments such as vibration, impact, ignition protection, water ingress and salt spray corrosion common on pleasure craft and boats. TÜV Rheinland stands for safety and quality in virtually all areas of business and life. TÜV Rheinland’s highly qualified experts test technical systems and products around the world, support innovations in technology and business, train people in numerous professions and certify management systems according to international standards. In doing so, the independent experts generate trust in products as well as processes across global value-adding chains and the flow of commodities. Since 2006, TÜV Rheinland has been a member of the United Nations Global Compact to promote sustainability and combat corruption.

UN/DOT 38.3: Lithium Battery Transportation

All Abyss Battery®, Inc. Lithium Batteries are required to pass section 38.3 of the UN Manual of Tests and Criteria, to ensure the safety of using products for our end users and for shipping purposes. We are proud of our investment to ensure our products have been UN38.3 certified.

T1 – Altitude Simulation
This is low pressure testing that simulates unpressurized airplane space (cargo area) at 15,000 meter altitude. After storing batteries at 11.6kPa for >6 hours, these criteria shall be met: no mass loss, leaking, venting, disassembly, rupture or fire, and voltage within 10% of pre-test voltage.

T2 – Thermal Test
This test covers changes in temperature extremes from -40°C to +75°C.  Batteries are stored for 6 hours at -40°C (12 hours for large cells/batteries), then 6 hours at +75°C (12 hours for large cells/batteries), for a total of 10 cycles. Testing may be performed in a single chamber or thermal shock chamber, but less than 30-minute transitions shall be used.

T3 – Vibration
This test simulates vibration during transportation.  Test is a Sine Sweep: 7Hz – 200Hz – 7Hz in 15 Minutes; 12 Sweeps (3 hours); 3 mutually perpendicular axes.

T4 – Shock
This test also simulates vibration during transportation.  Test is a Half-Sine pulse: 150G/6ms for small cells/batteries; 50G/11ms for large cells/batteries; 3 pulses per direction; 6 directions (+/-z, +/-x, +/-y).  Same pass criteria as T1.

T5 – External Short Circuit
This test simulates an external short to the terminals of the cell or battery. At temperature of +55°C, apply short circuit (<0.1ohm) across terminals.  Maintain at least an hour after sample temperature returns to +55 +/-2°C.  Pass criteria are: Case temperature does not exceed +170°C and no disassembly, rupture, or fire within 6 hours of test.  Fuse, current limiting circuit, and venting mechanism activation are allowable.

T6 – Impact
This test is only applicable to primary and secondary cells.  For cylindrical cells >20mm diameter, it simulates impact to case of cell. For cylindrical cells <20mm diameter and all other cell constructions, it simulates crushing of a cell. Pass criteria for any type is: Case temperature does not exceed +170°C & no disassembly or fire within 6 hours of test.

T7 – Overcharge
This test is for secondary or rechargeable batteries only.  It simulates an overcharge condition on a rechargeable battery: 2x the manufacturer’s recommended charge current for 24 hours.  Then battery shall be monitored for 7 days for fire or disassembly.

T8 – Forced Discharge
This testing simulates a forced discharge condition for primary and secondary cells only.

Warranty

Thank you for taking interest in the products we offer at Abyss Battery. This Limited Warranty applies to physical goods, and only physical goods purchased from Abyss Battery. We recommend you protect your investment and register your warranty.

If your battery is not registered within 90 days of purchase, warranty will begin at manufacture date of battery. Proof of ownership is required. Warranties are not transferrable. Unlike other Lithium battery companies, Abyss Battery has additional support through the purchase of our Extended Warranty program.

Manufacturer’s Limited Warranty

Warranty Coverage

5-Year Free Replacement

After 5 years, 35% Off a New Replacement up to 10-Years

Extended Warranty

Extended Coverage

7-Year Free Replacement

After 7 years, 50% off a new Replacement For Life

Enjoy 7 years of peace of mind when you buy ReCharge+ for your Battery. ReCharge+ for Abyss Battery® Extends your Free 5-Year Replacement Coverage by 2+ additional years from your purchase. In addition to a free battery replacement, you’ll get 24/7 priority access to our Battery experts by chat or phone.

One stop for support:

• 24/7 priority access to Battery experts by chat or phone
• Global repair coverage
• Onsite repair for Batteries: Request that a technician come to your work site
• Mail-in repair: Mail in your Battery using a prepaid shipping box provided by Abyss Battery
• Carry-in repair: Bring your Battery in to our Authorized Service Providers

Key Features

• Compact & Lightweight Design: Replaces three 12V lead-acid batteries with one 36V lithium battery.
• Smart Monitoring: Bluetooth® app for real-time tracking of charge status, temperature, and performance data.
• Cold-Weather Performance: Built-in heating system for seamless operation in low temperatures.
• Long Cycle Life: 3000 cycles at 100% DOD and 6000 cycles at 80% DOD, ensuring years of reliable use.
• Marine-Grade Durability: IP65-rated for water and dust resistance, with a robust design for vibration and impact protection.

Detailed Specification

36V 72AH BATTERY DATASHEET

Physical Specifications

• Dimensions: 19.0" x 6.69" x 9.44" in
• 490×171×240mm (Group 49)
• Approximate Weight:  48.5 lbs (22 Kg)
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell
• Cell Holder: Yes

In Package

• ABYSS® 36V 72Ah Lithium Trolling Motor Battery
• Bluetooth® Monitoring App (Android/iOS compatible)
• User Manual

Manuals & Documents

BATTERY MANUAL

CHARGER MANUAL

BLUETOOTH® APP QUICK GUIDE

ELECTRIC REEL BATTERY

ABYSS 12V120AH DATA SHEET

GROUP 31 BATTERY DATA SHEET
