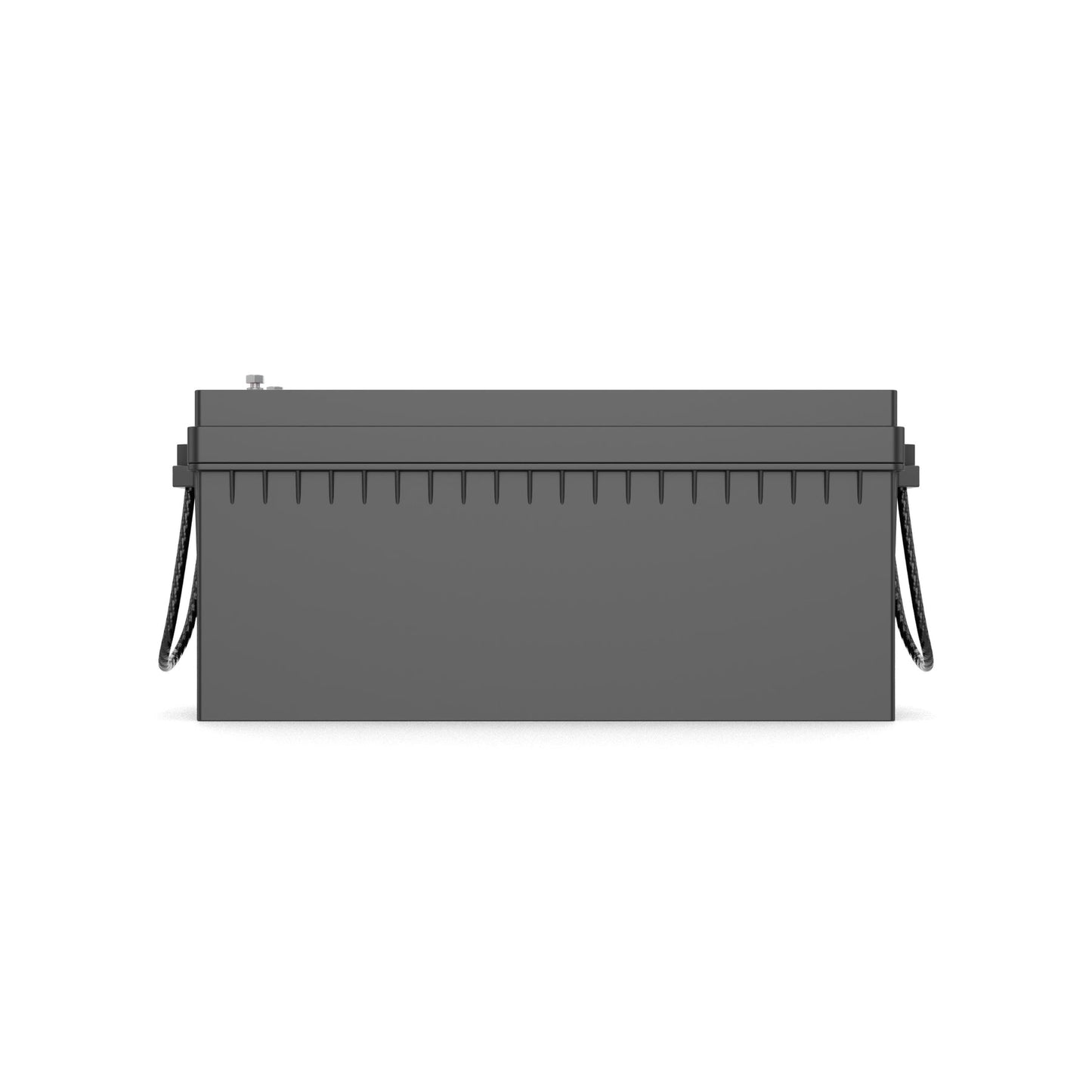

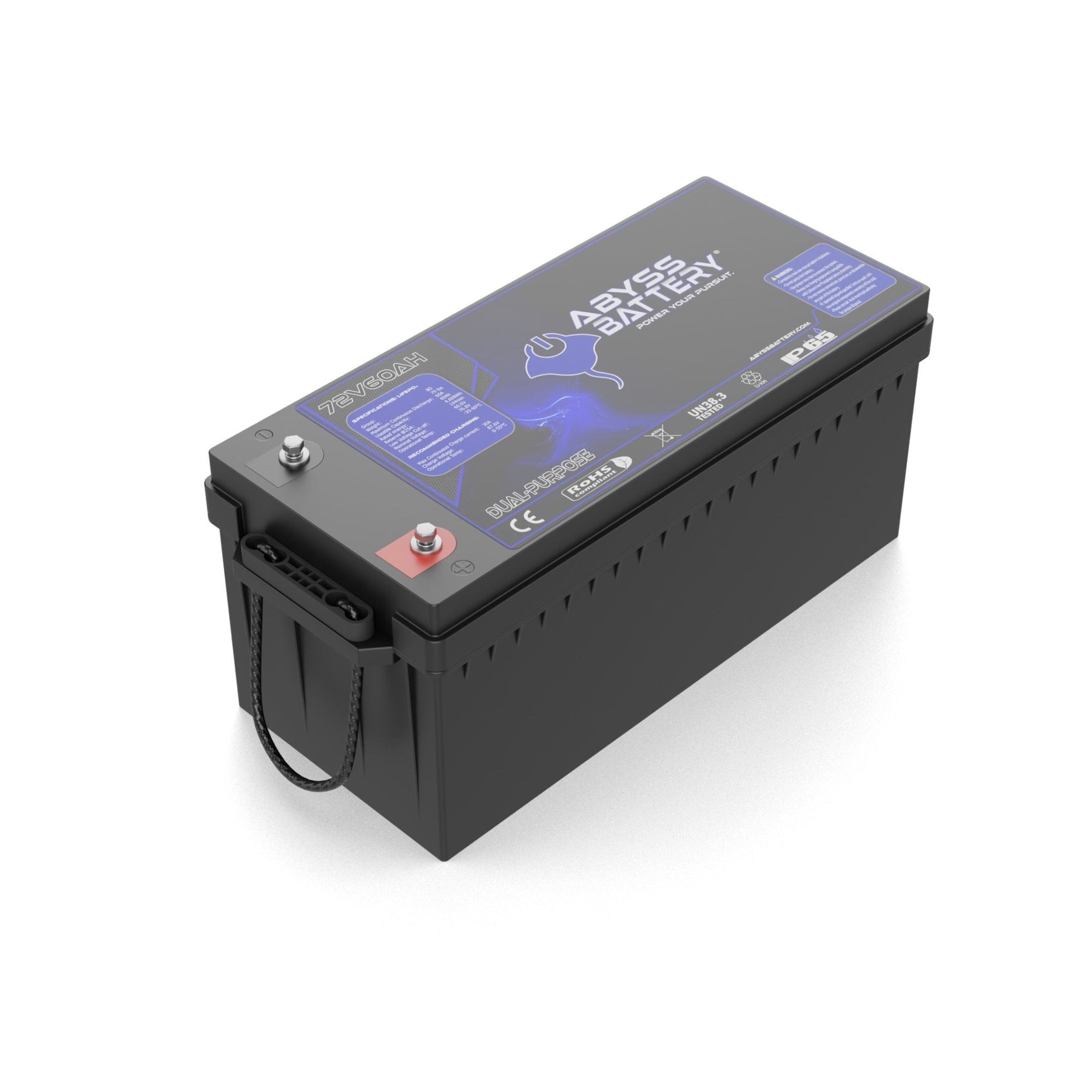

Abyss® | Lithium Golf Cart Battery | Model AB-72V60 | Voltage 72V | 60Ah Deep Cycle | Group 8D Drop-In Replacement | IP65 Waterproof | Bluetooth BMS
Abyss® | Lithium Golf Cart Battery | Model AB-72V60 | Voltage 72V | 60Ah Deep Cycle | Group 8D Drop-In Replacement | IP65 Waterproof | Bluetooth BMS
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Abyss® | Lithium Golf Cart Battery | Model AB-72V60 | Voltage 72V | 60Ah Deep Cycle | Group 8D Drop-In Replacement | IP65 Waterproof | Bluetooth BMS
DESCRIPTION
Say goodbye to limited range and outdated battery tech the ABYSS® 72V 60Ah Lithium Golf Cart Battery redefines what your golf cart is capable of. Built for maximum performance, safety, and durability, this Group 8D LiFePO4 deep cycle battery delivers uncompromising power across every hole, every ride, and every adventure.
Whether you’re navigating the fairway or cruising the community, this smart lithium battery offers longer runtime, faster charging, and Bluetooth-enabled battery monitoring right from your smartphone. It’s a direct drop-in replacement for 72V AGM or lead-acid batteries, making your upgrade hassle-free with no complicated modifications required.
Engineered with cutting-edge lithium iron phosphate chemistry, the ABYSS® 72V battery offers superior cycle life up to 6000 cycles while being safer, lighter, and more efficient than traditional alternatives. The integrated 24S150A smart BMS protects your system from overcharge, deep discharge, and temperature extremes, all while keeping your performance optimized in real time.
Tested and certified to meet UN38.3, RoHS, CE, IEC, and ABYC safety standards, this is the professional-grade power solution trusted by marine, recreational, and heavy-use operators worldwide.
If you're ready to take your golf cart to the next level, the ABYSS® 72V 60Ah battery is the upgrade you’ve been waiting for. More distance. More durability. More confidence with every charge.
Key Features
- High-Performance LiFePO4 Chemistry Safe, lightweight, and long-lasting with up to 6000 charge cycles at 80% DOD.
- 72V 60Ah Deep Cycle Power Built for demanding golf cart applications, with maximum energy density and peak output.
- Bluetooth Smart Monitoring Stay connected via Android/iOS with real-time data on voltage, capacity, cycles, and temperature.
- Drop-In AGM/Lead-Acid Replacement Fits Group 8D battery trays with no major installation changes needed.
- Advanced Smart BMS Built-in 24S150A Battery Management System for thermal, overcurrent, and low-voltage protection.
- IP65-Rated Enclosure Rugged, weather-resistant case keeps components protected from dust, water, and debris.
- Certified & Compliant Fully tested under UN38.3, UL 1642, IEC62133, CE, RoHS, ABYC meets global safety standards.
- Ultra-Low Self-Discharge Holds charge for months with <3% monthly loss perfect for seasonal use and storage.
- Eco-Friendly & Maintenance-Free No acid, no fumes, no corrosion just clean, safe, lithium power.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | ABYSS® |
| Model Name | 72V Lithium Golf Cart Battery |
| Model Number | AB-72V60 |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 76.8V |
| Nominal Capacity | 60Ah |
| Battery Type | Group 8D – Deep Cycle |
| Max Continuous Discharge Current | 60A |
| Peak Discharge Current (300ms) | 500A |
| Standard Charge Current | 12A |
| Fast Charge Current | 30A |
| Charge Voltage | 86.4V |
| Discharge Cut-Off Voltage | 60V |
| Cycle Life | 3000 cycles @ 100% DOD, 6000 cycles @ 80% DOD |
| Bluetooth Monitoring | Yes (Android/iOS via BMS App) |
| BMS Specs | 24S150A Smart Battery Management System |
| Self Discharge Rate | <3% per month |
| Charge Efficiency | 100% @ 0.2C |
| Discharge Efficiency | 98–100% @ 1C |
| Operating Temp (Charge) | 0°C to 55°C (32°F to 131°F) |
| Operating Temp (Discharge) | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp Range | -5°C to 45°C (23°F to 113°F) |
| Dimensions (L x W x H) | 20.47" x 8.66" x 10.5" (521 x 267 x 220 mm) |
| Approximate Weight | 81.5 lbs (37 kg) |
| Terminal Type | M8 |
| Enclosure Rating | IP65 – Water/Dust Resistant |
| Case Material | Durable ABS Plastic |
| Certifications | UL 1642, UN38.3, RoHS, CE, IEC62133, ABYC Compliant |
| Cell Type | Cylindrical LiFePO4 Cells |
| Parallel Connections | Up to 4 units |
| Serial Connections | Not supported |
