Firminator G3 4 Feet, 5 Feet, 6 Feet and 8 Feet

Firminator G3 4 Feet, 5 Feet, 6 Feet and 8 Feet

Regular price $7,300.00 USD
Regular price Sale price $7,300.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Seed Agitator
Hydraulic Top Link

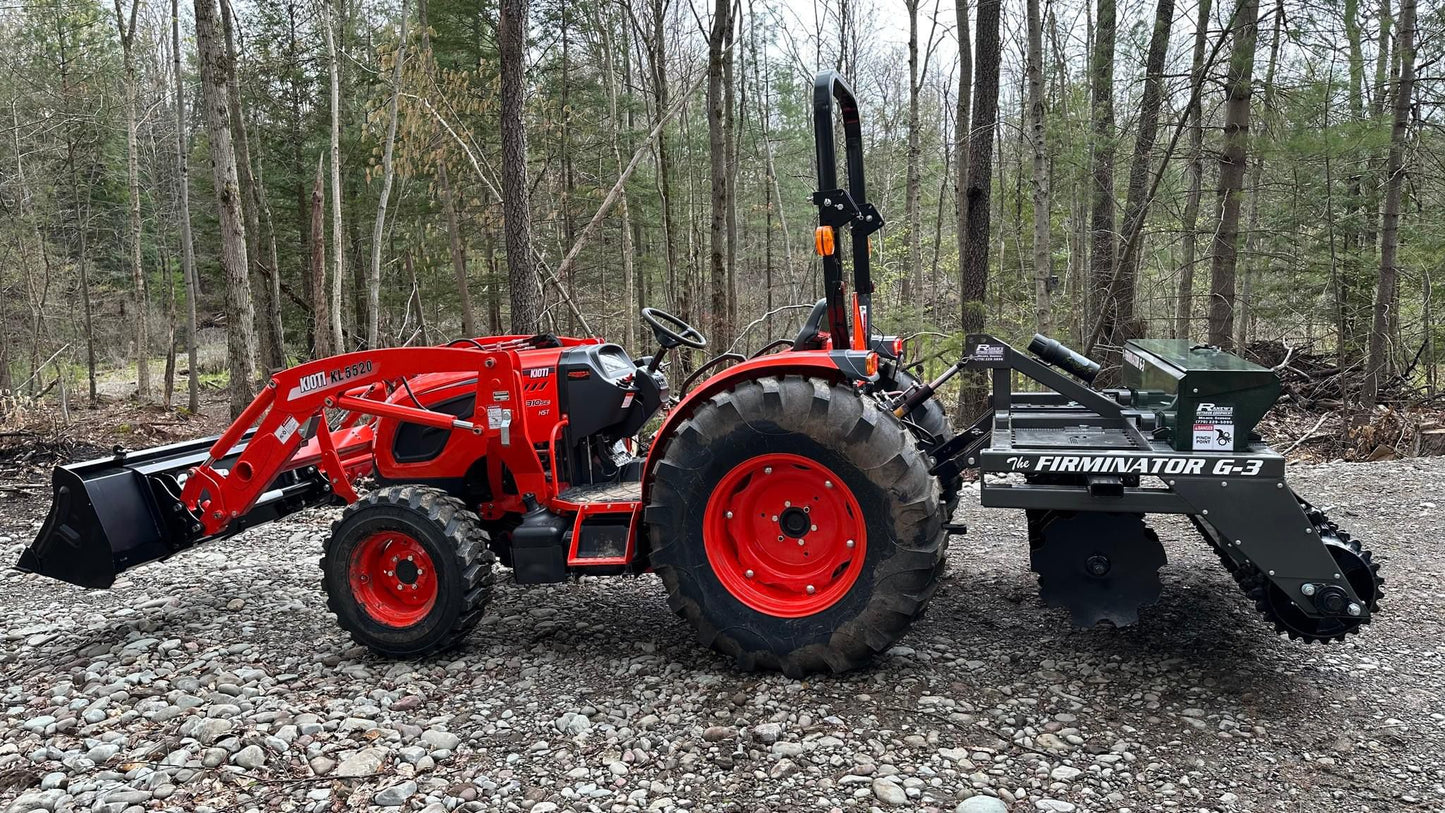

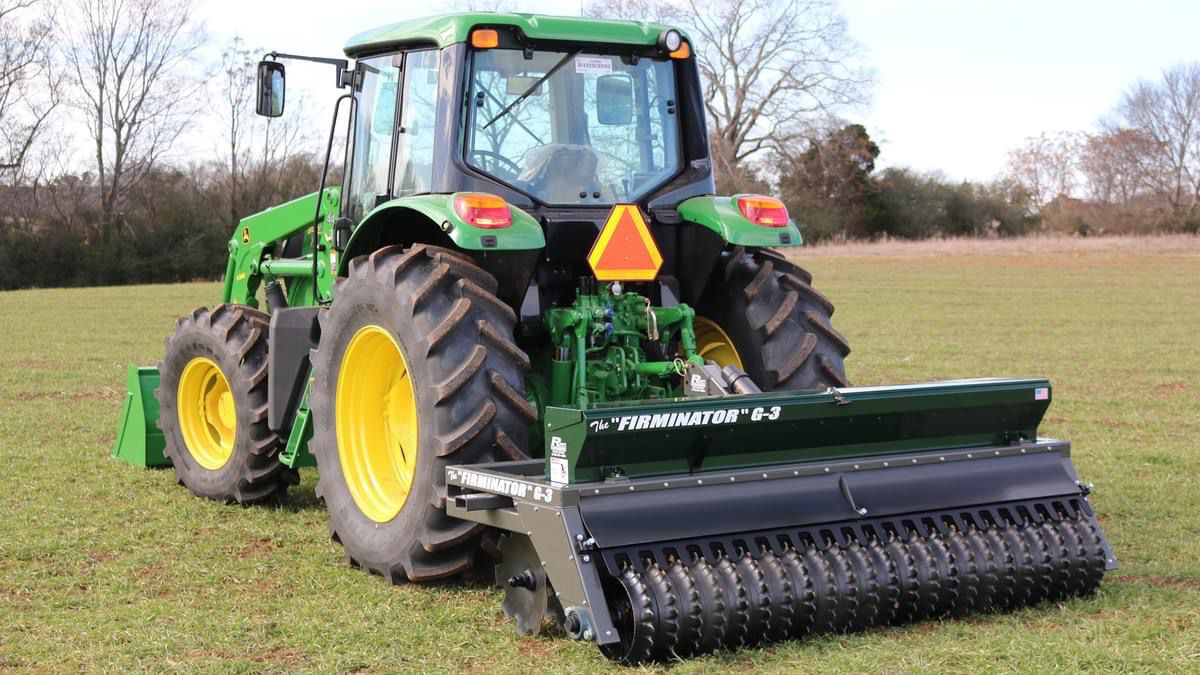

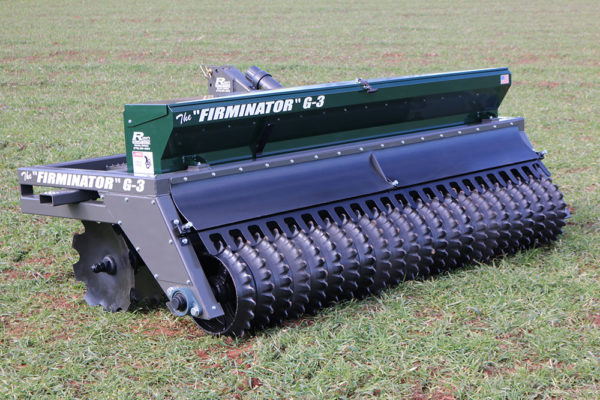

Firminator (3 pt.) Disk, Seeder & Cultipacker

Description:

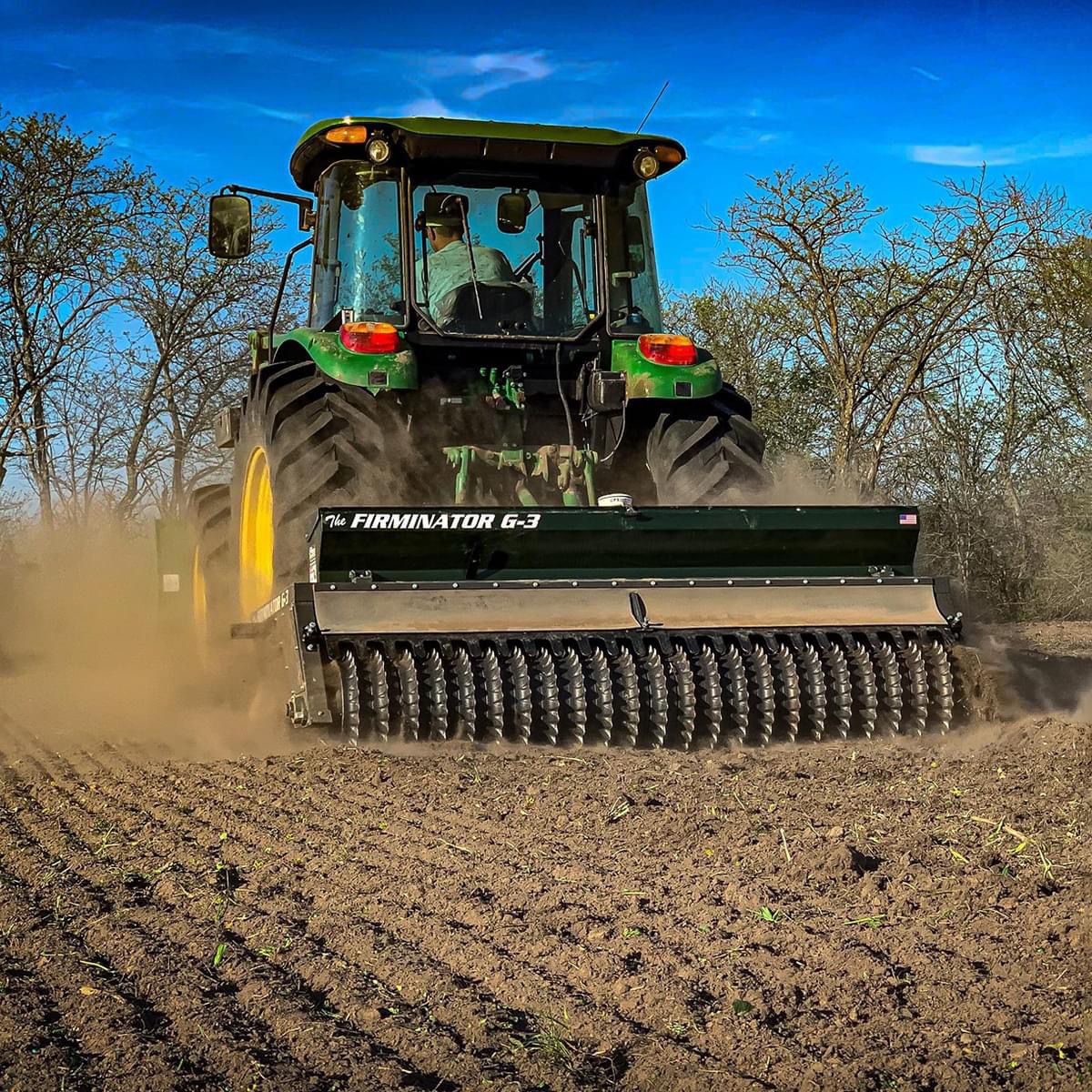

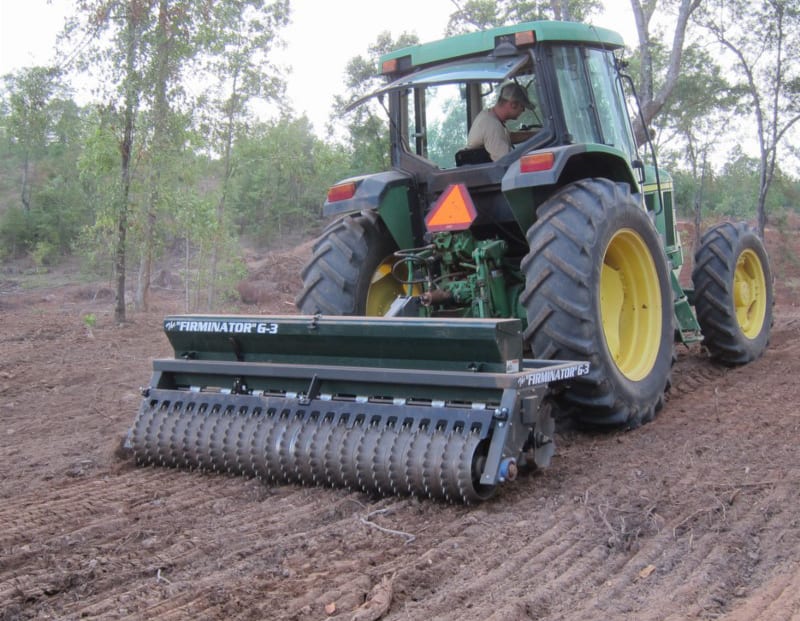

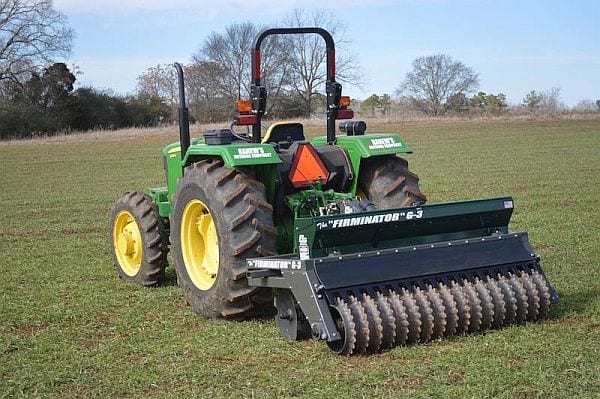

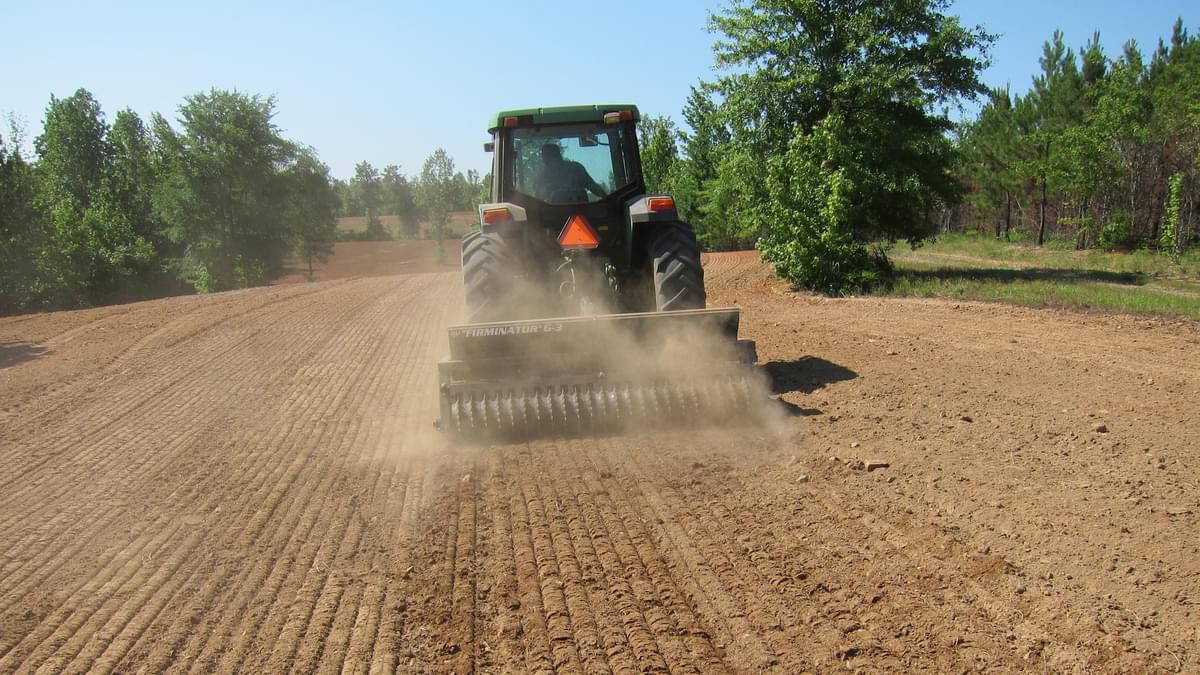

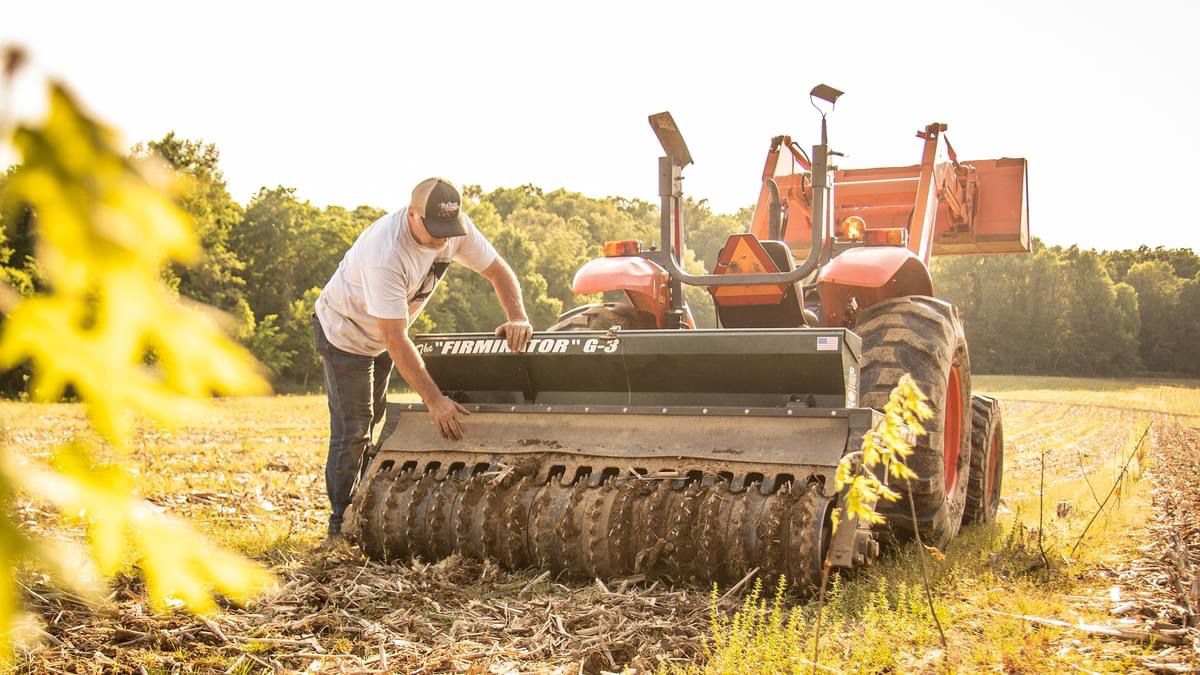

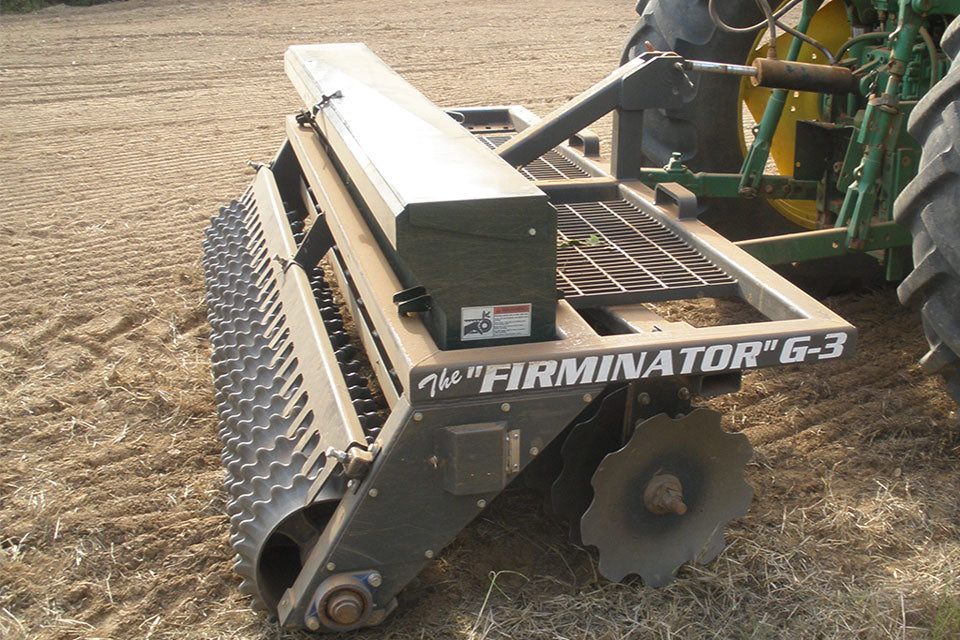

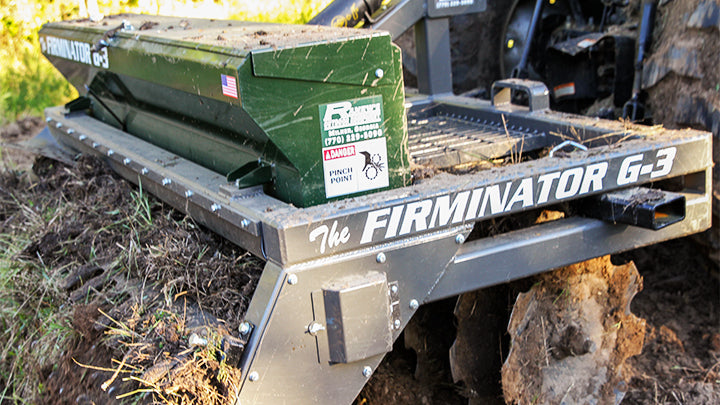

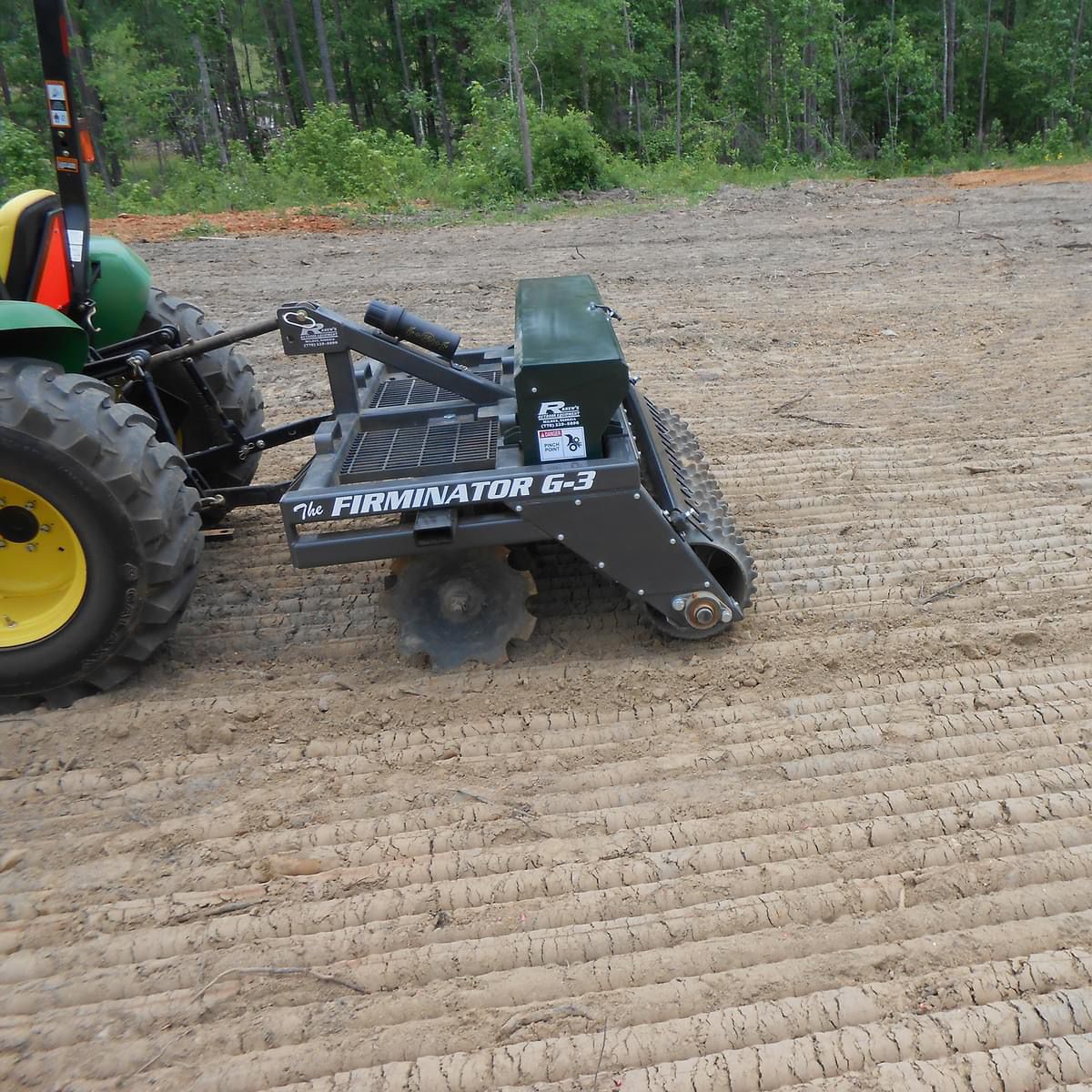

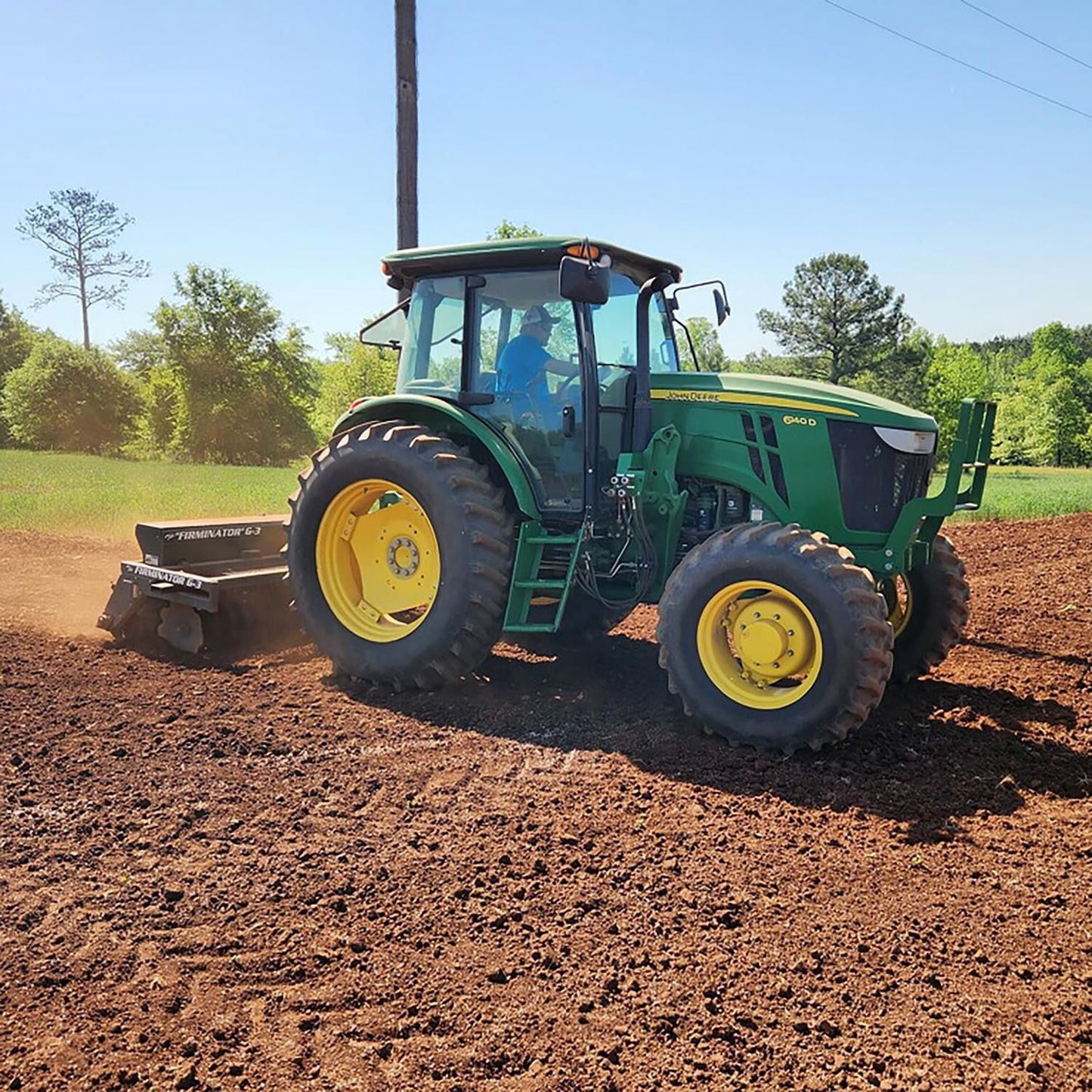

The Firminator G3 allows you to disk, seed, and cultipack at the same time or one at a time. One hook up with one piece of equipment to do all your food plot tillage and planting. The Firminator food plot implement is the ideal piece of equipment for all food plots and deer management needs. The Firminator will do all the necessary work of planting from start to finish. From disking new field sites with lots of debris to no-till fields and conservation plating it's perfect.

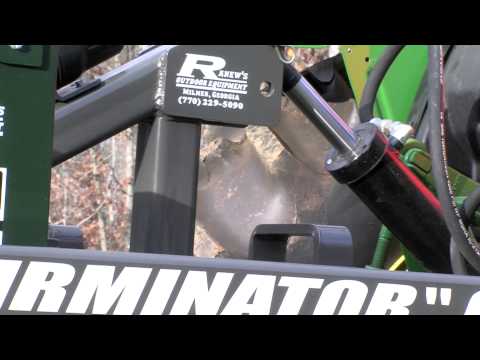

The main pitch adjustment is controlled through the top link of the three point connection. By shortening the top link adjustment, the Firminator is leaned more heavily onto its disk assembly and provides a deeper cut. A mid range setting allows for great all-in-one applications. By lengthening the top link even more, just the cultipacker will be at work. Disk angles are adjusted easily by the removal of a pin and sliding the pivoting disk beam to one of many holes on an arc: Choose from straight, 5, 10, 15, and 20 degree angle settings. Set the aggressiveness of the disk angles suitable to loosen your particular soil type and situation. Using straight or a minimal angle for lightly opening thatch and soil to perform overseeding without disturbing existing forages or “no-till” type seedings.

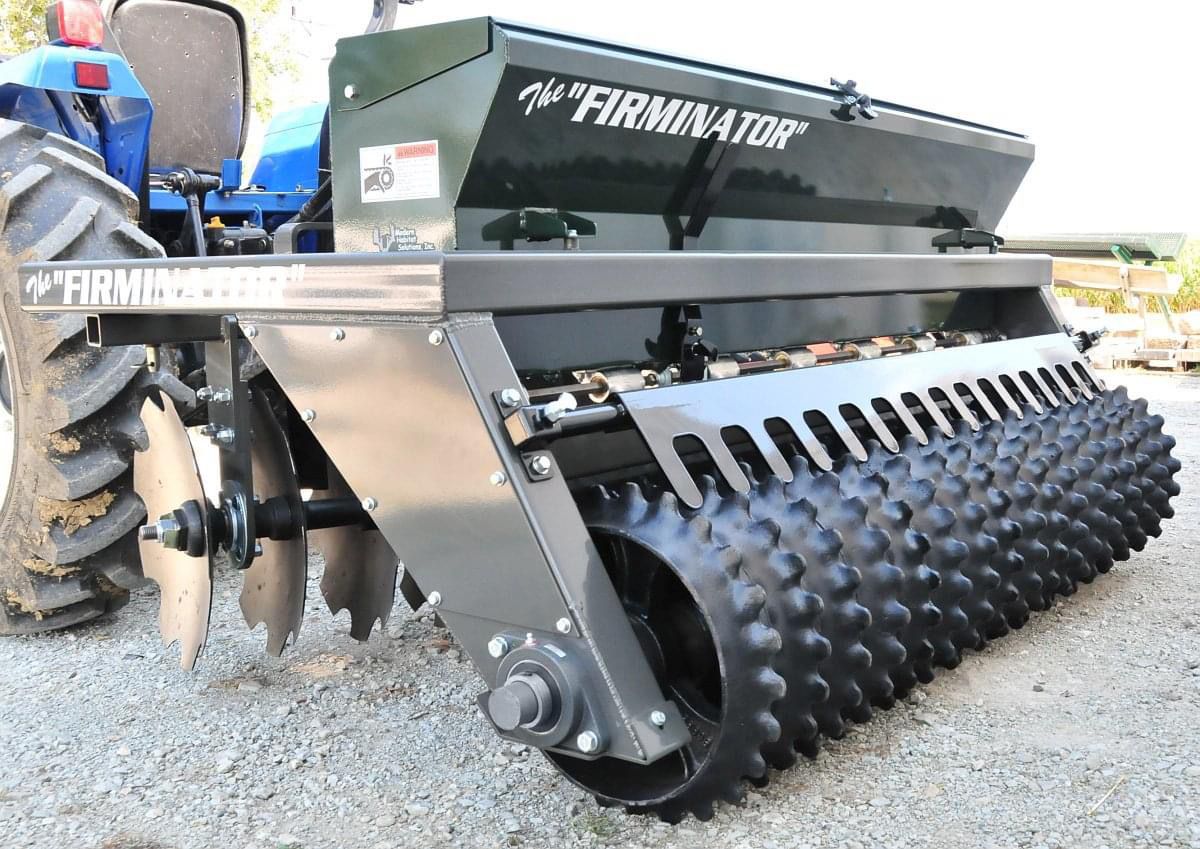

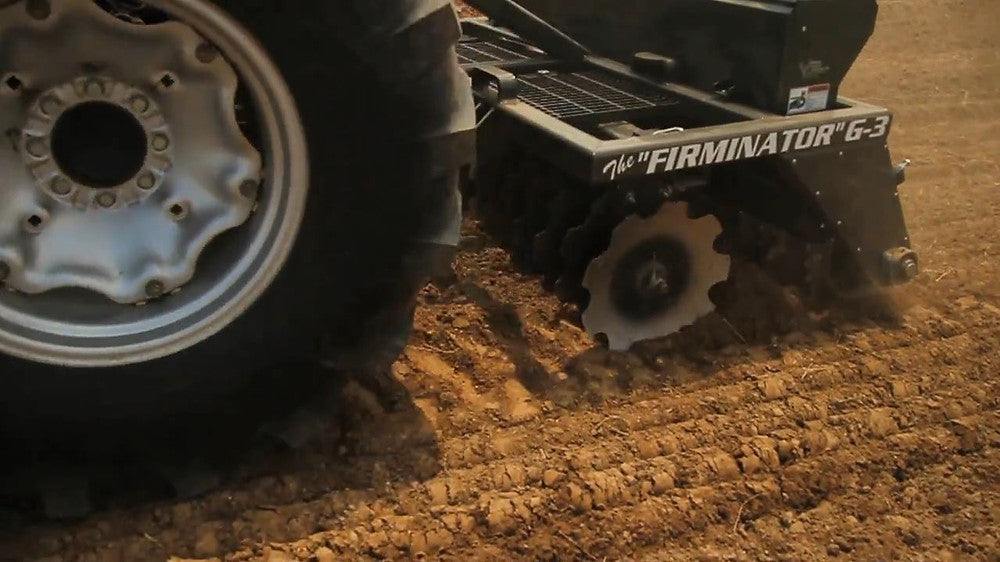

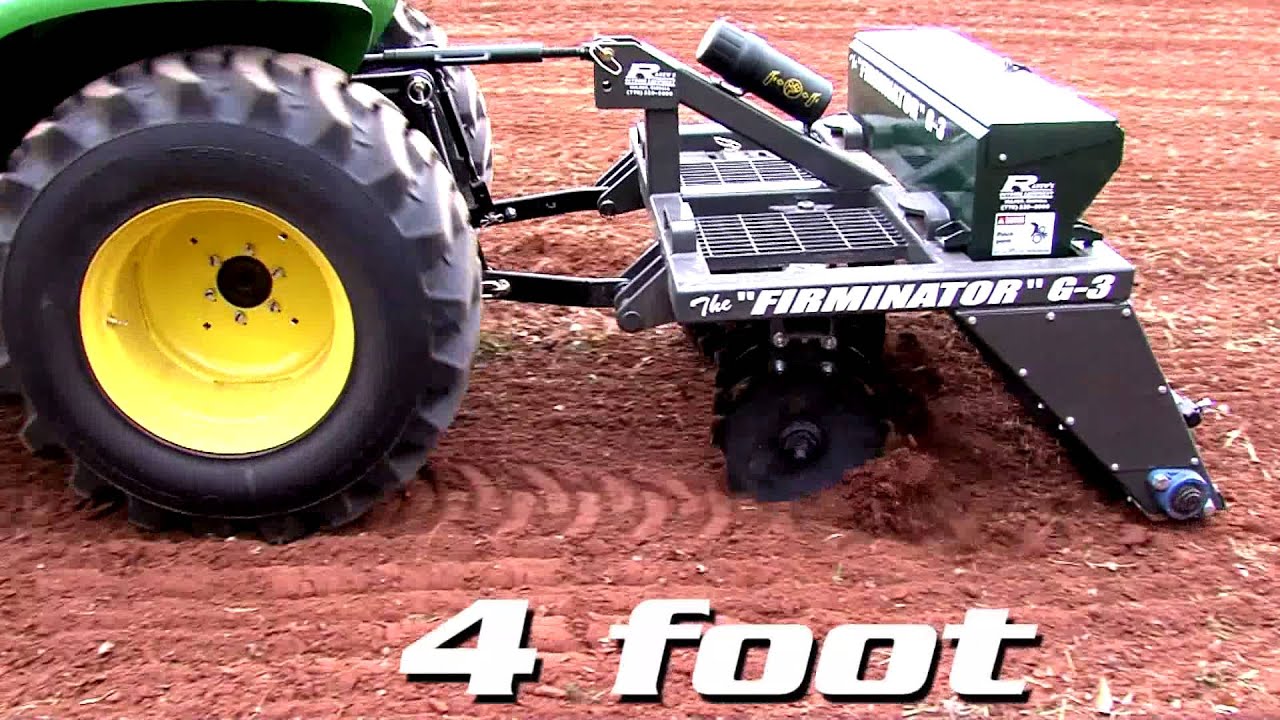

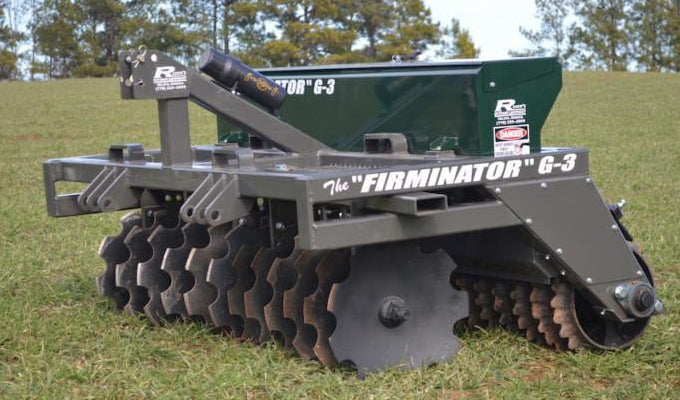

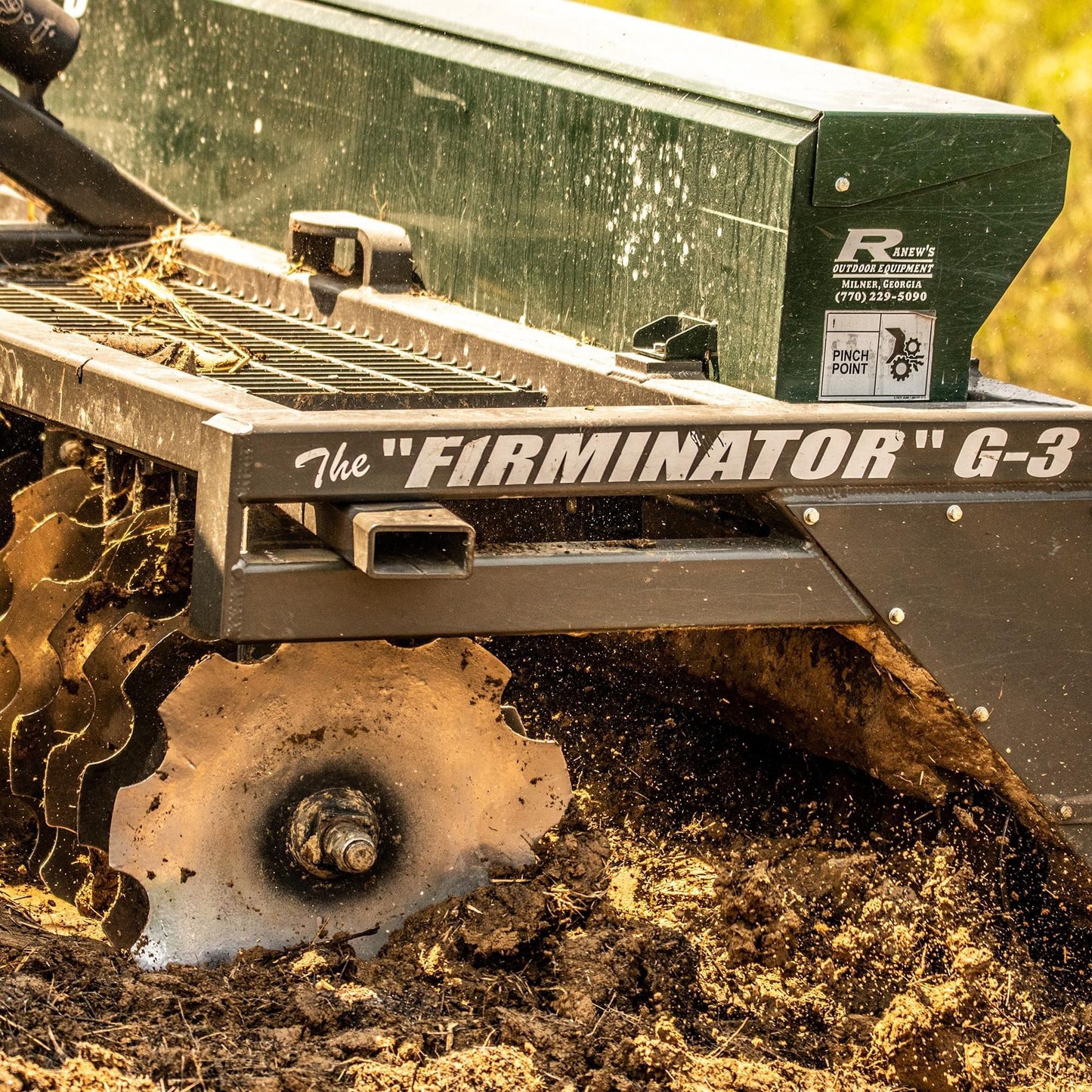

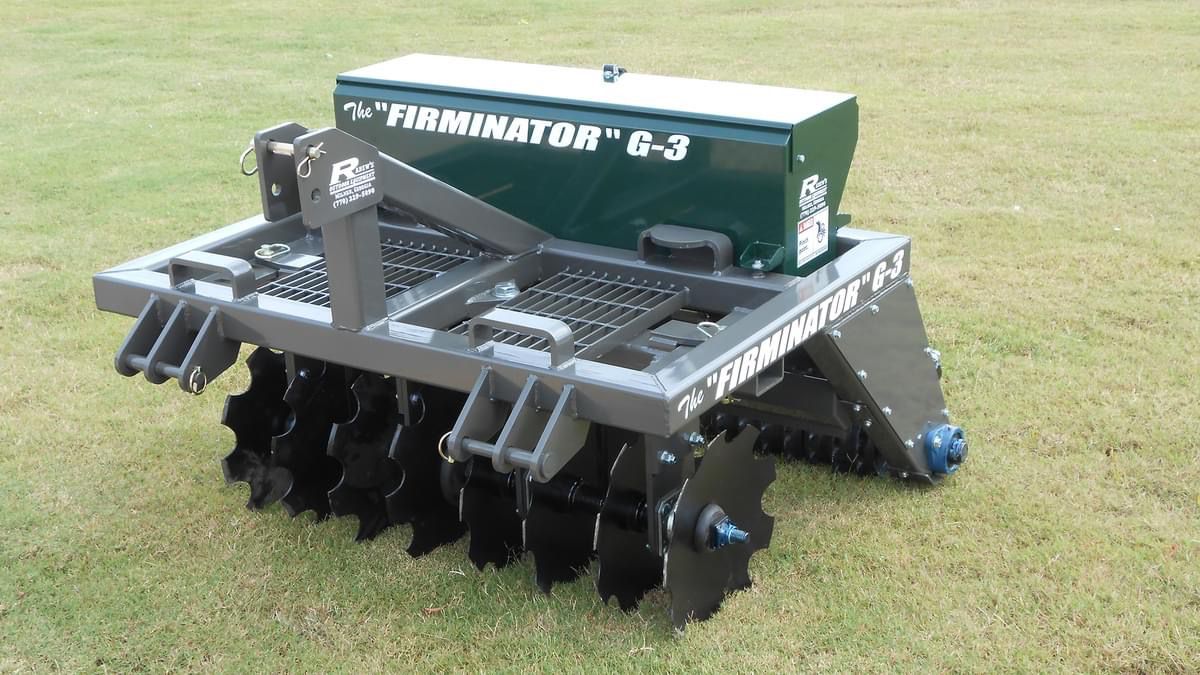

The disk blades of the Firminator food plot implement are heavy, 18″, notched 9-gauge steel. Disk blades are spaced at 6" spacing with custom made iron disk spools, disk blade scrapers to prevent mud or vegetation build-up and an adjustable center-ripper shank. This shank is depth adjustable, and removes with two pins.

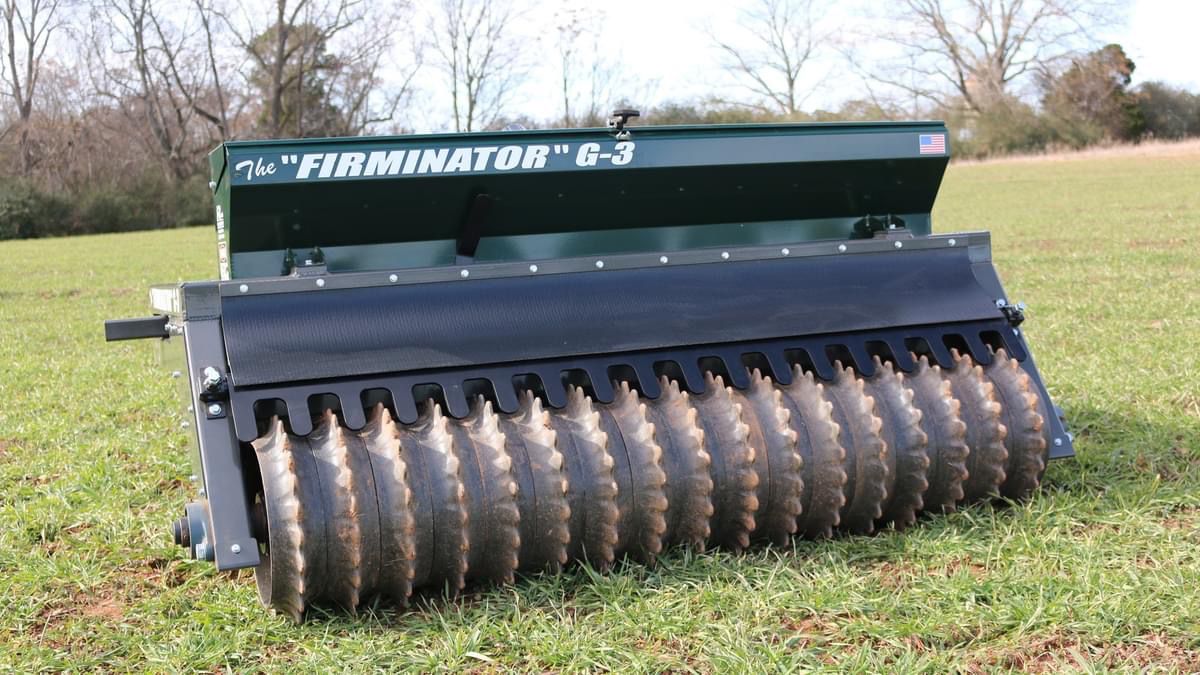

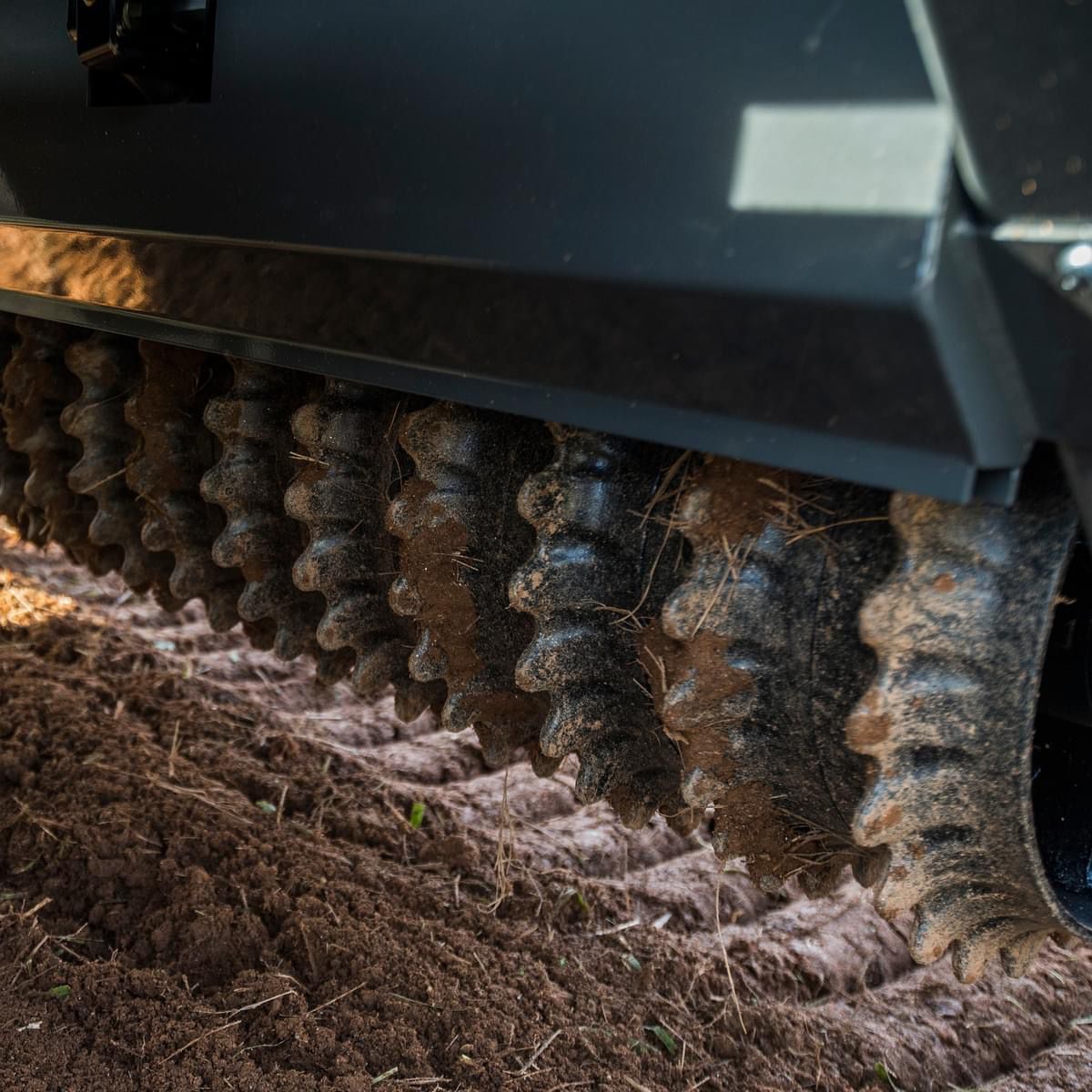

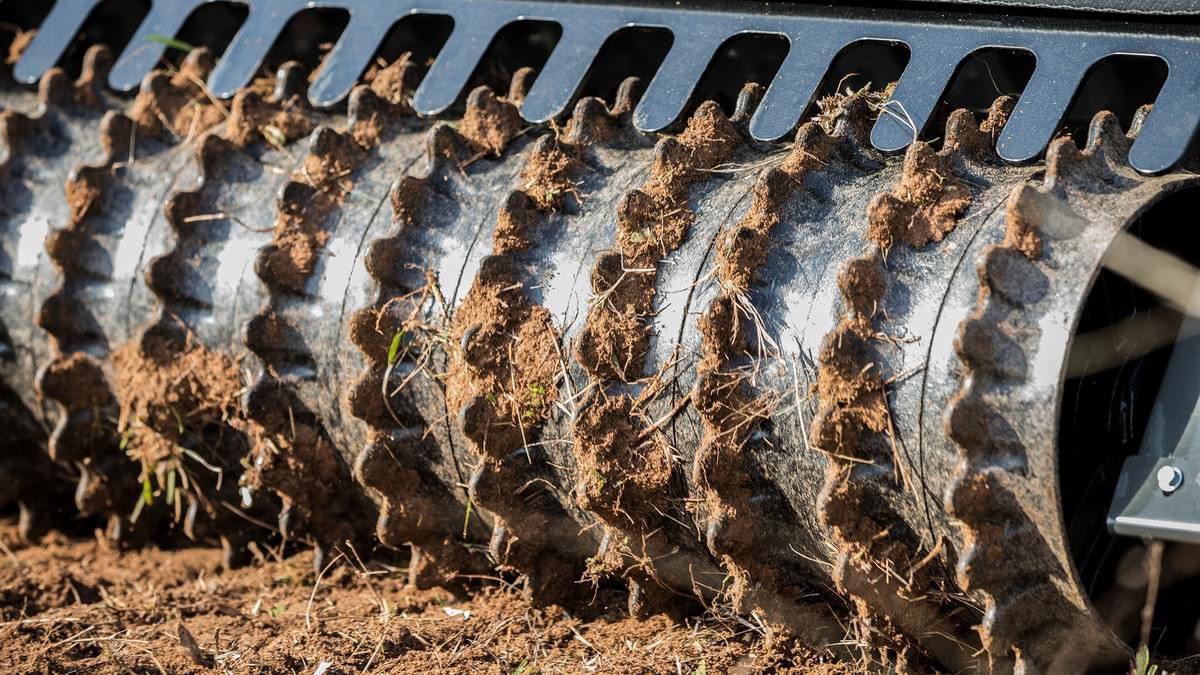

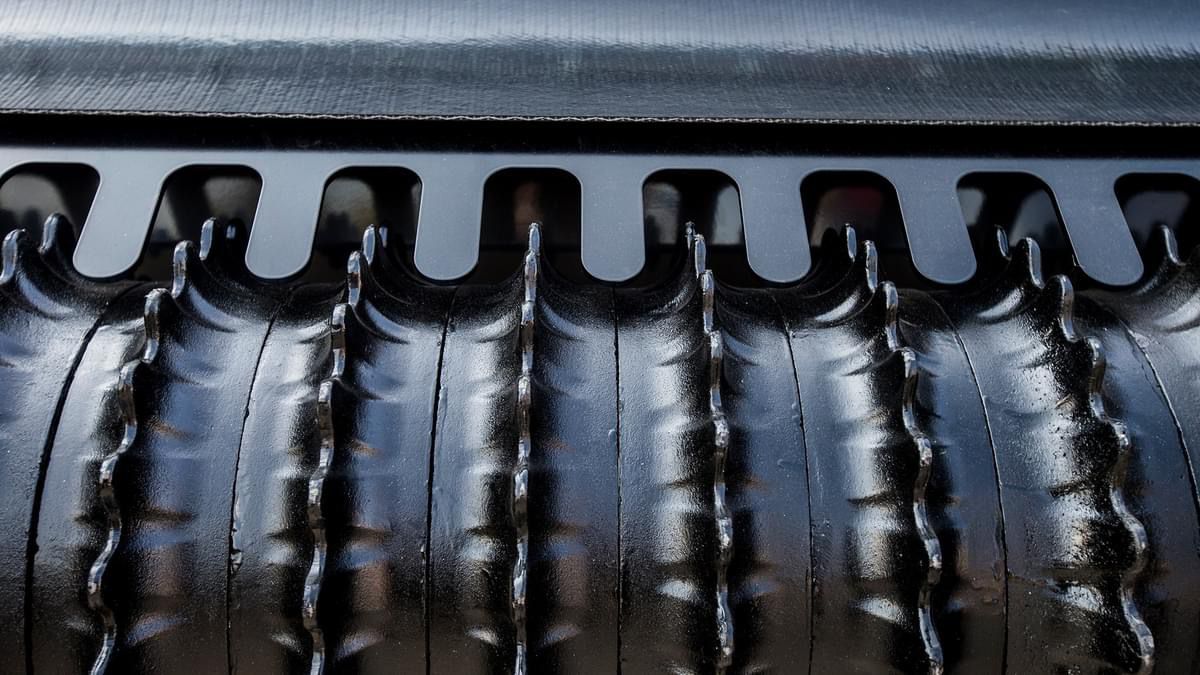

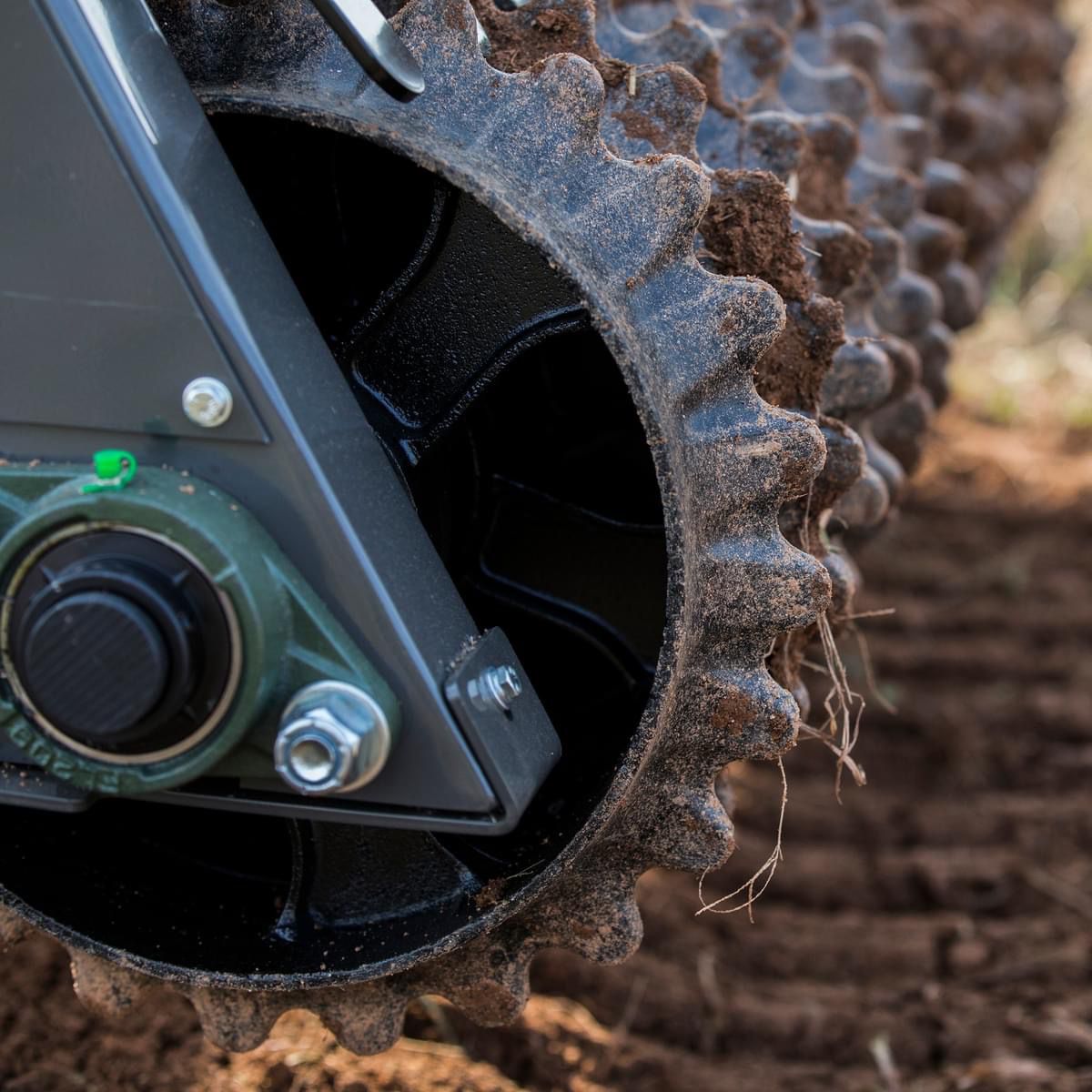

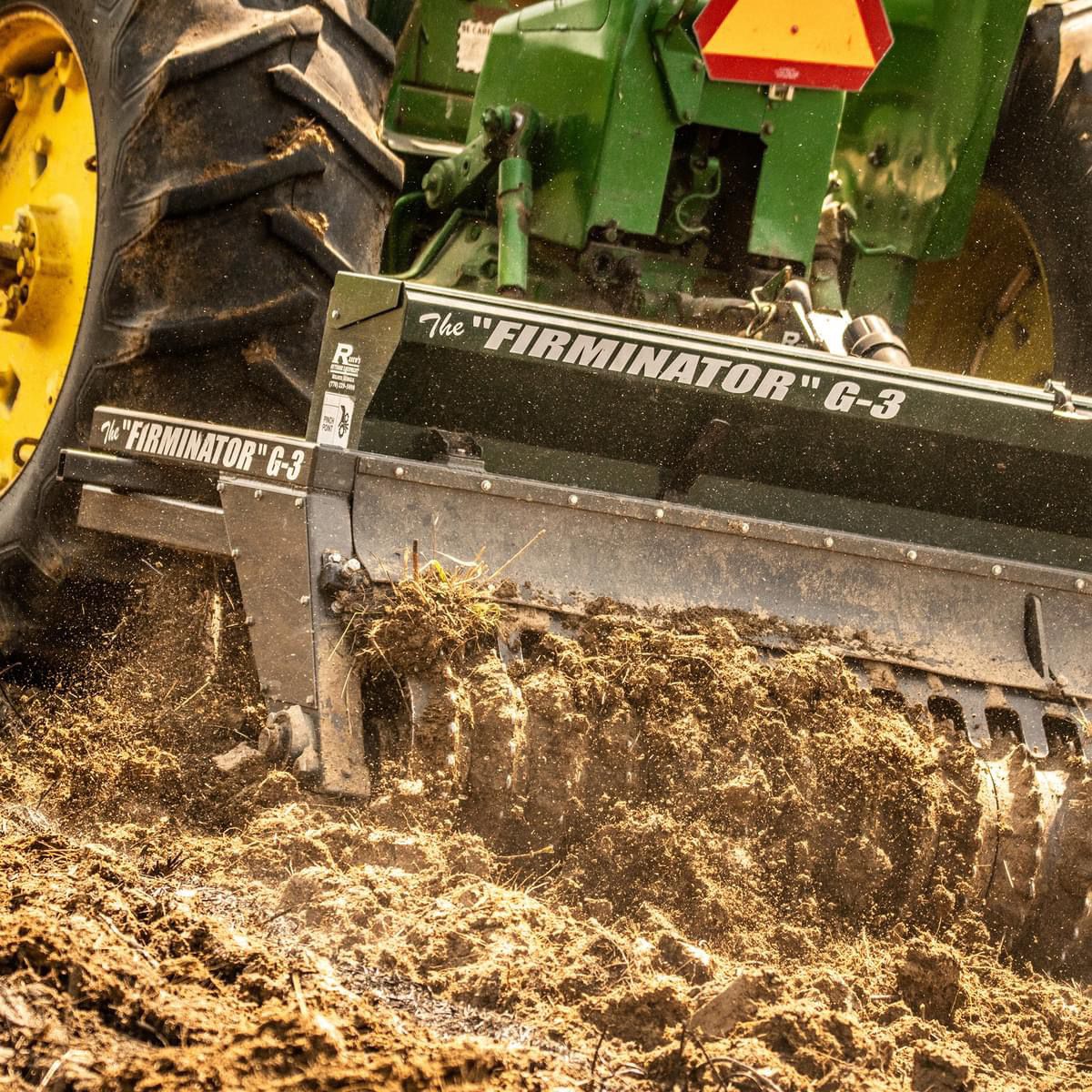

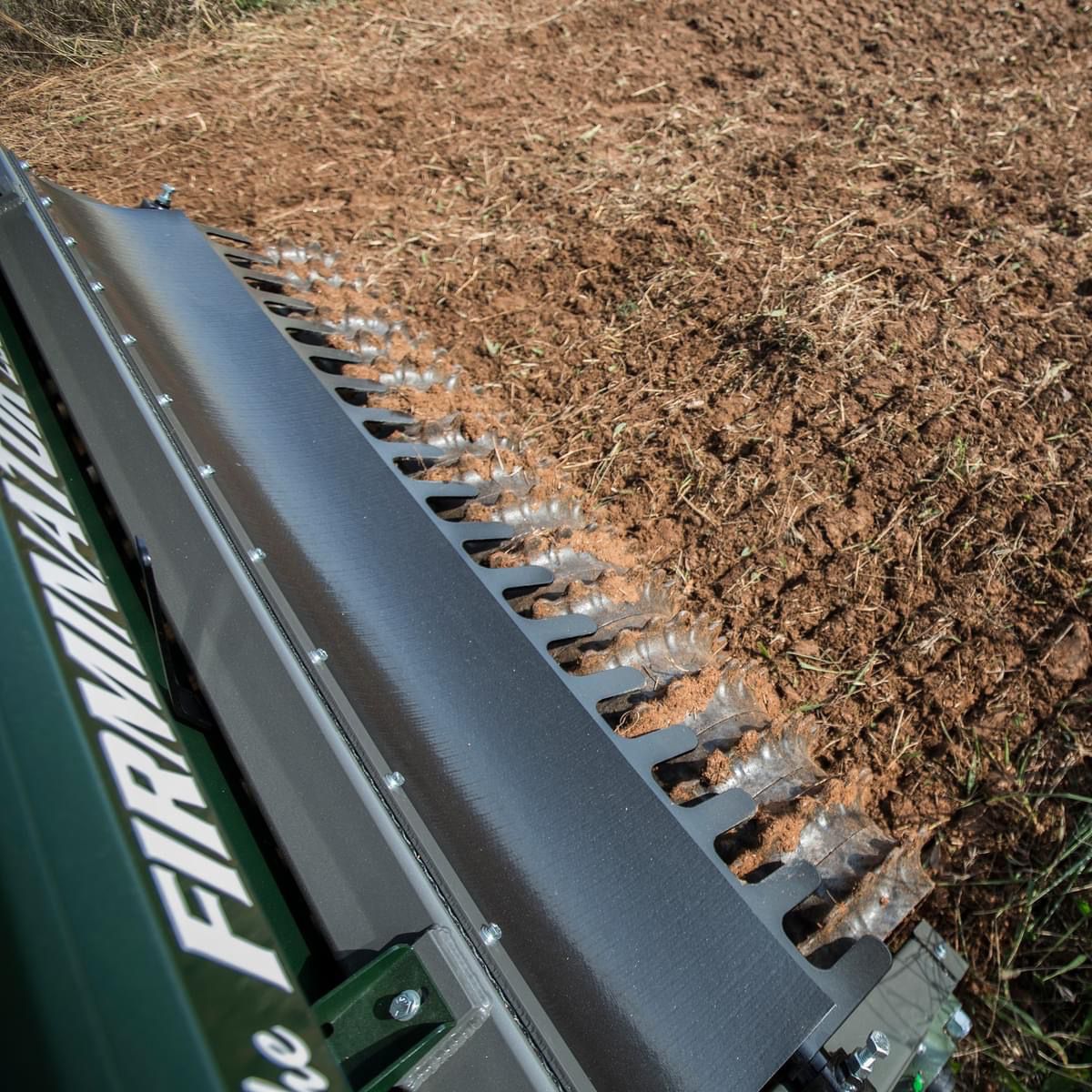

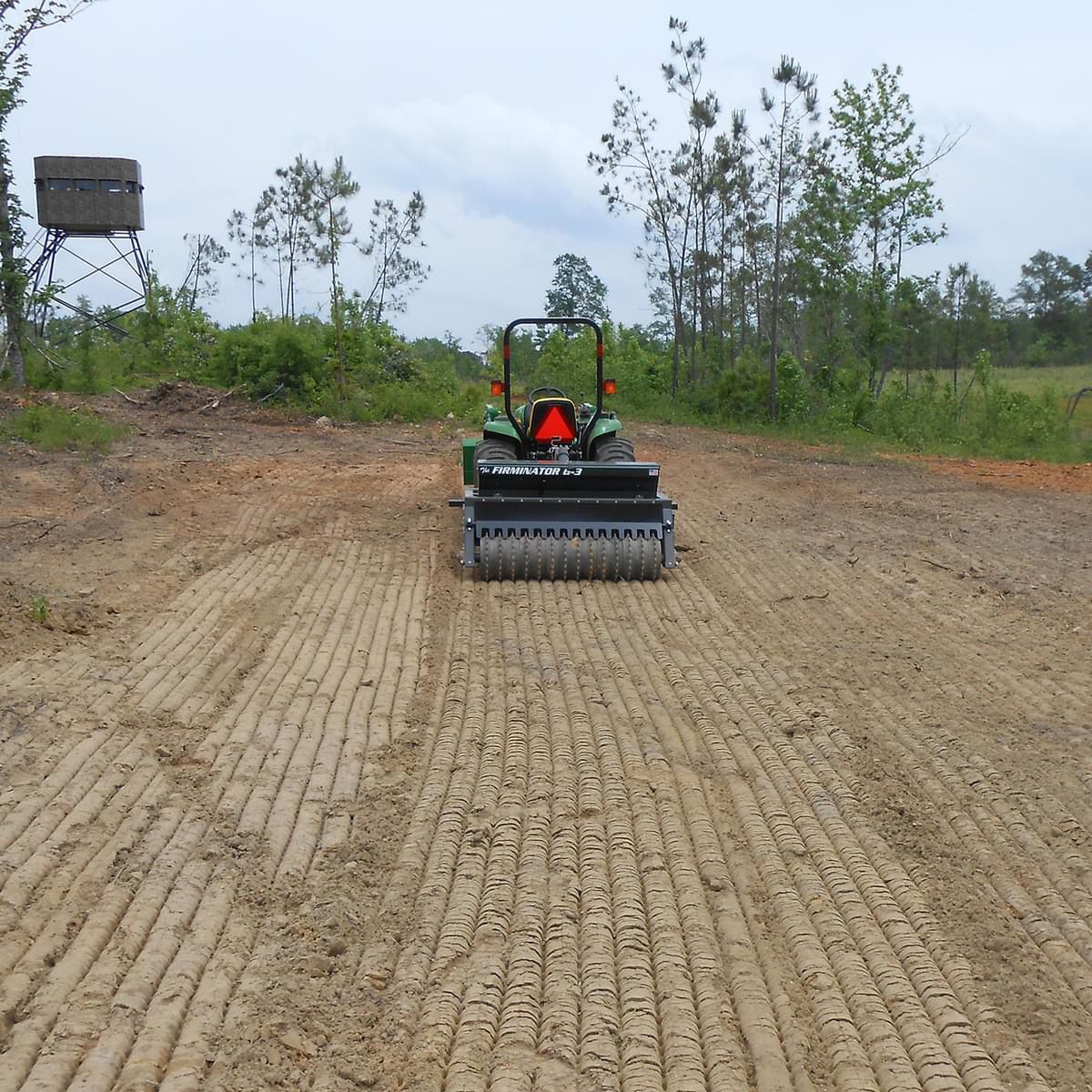

The cultipacker is a very important component for proper food plot installation. The heavy, notched, cast-iron cultipacker wheels are proven to eliminate air space, pulverize clods and level the soil while providing a beautifully prepared, firm seedbed. This is essential for achieving high germination rates. The Firminator got its name from the resulting seed bed that it produces! Each unit is equipped with cultipacker scrapers to keep the assembly clean and rolling in even less than ideal conditions.

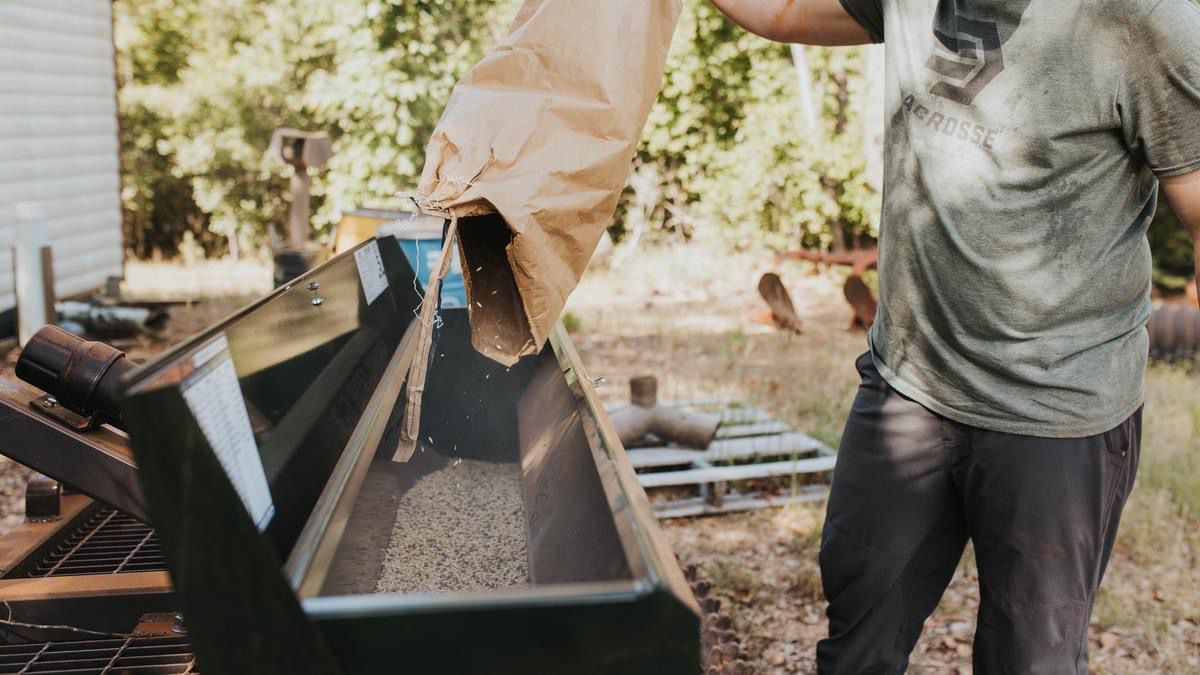

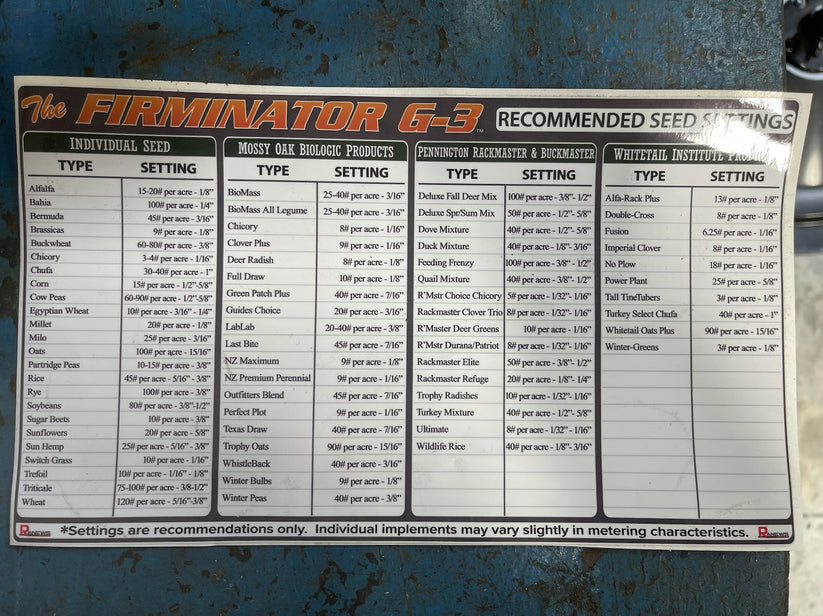

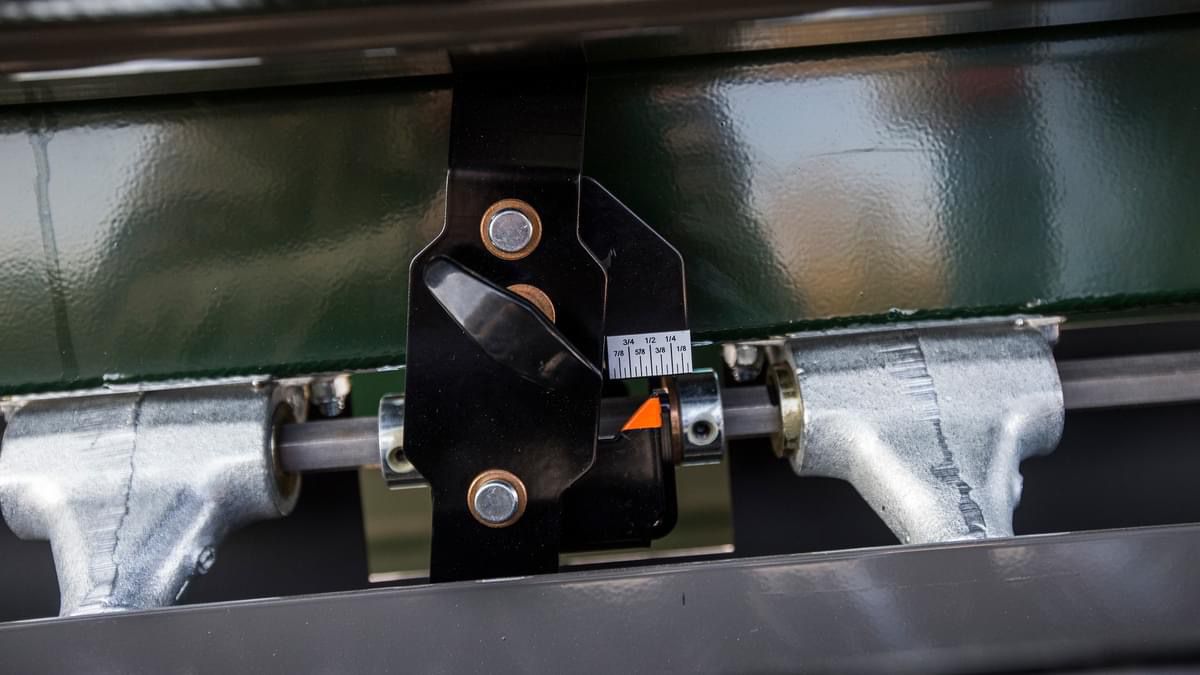

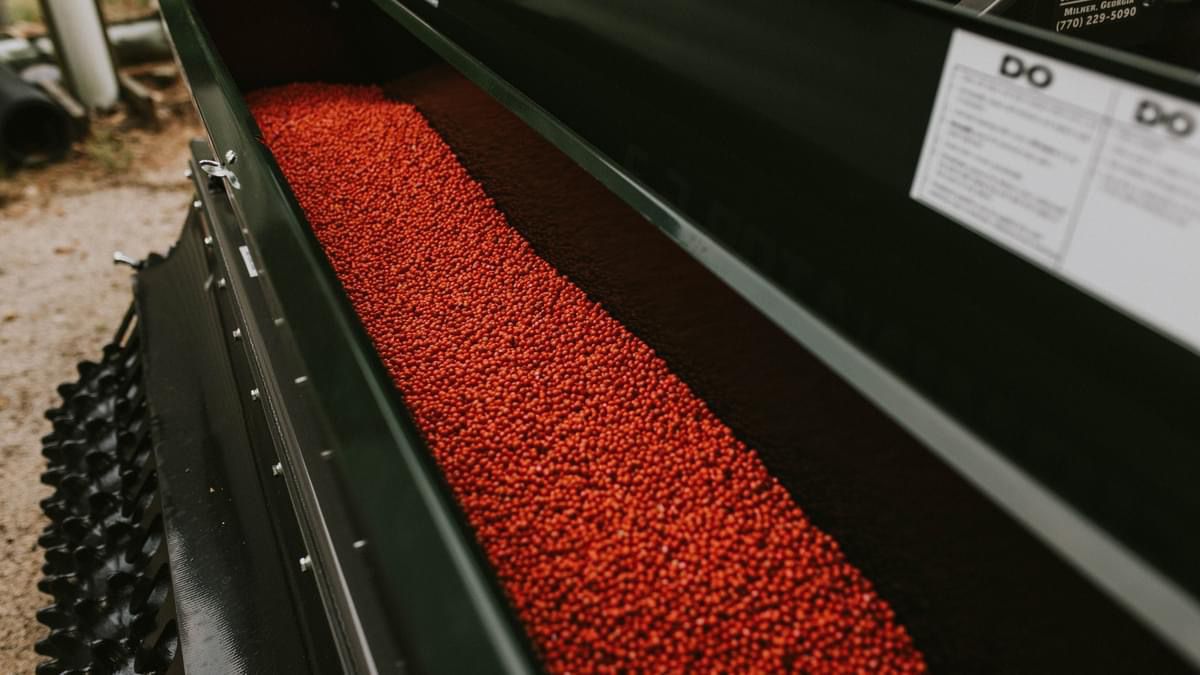

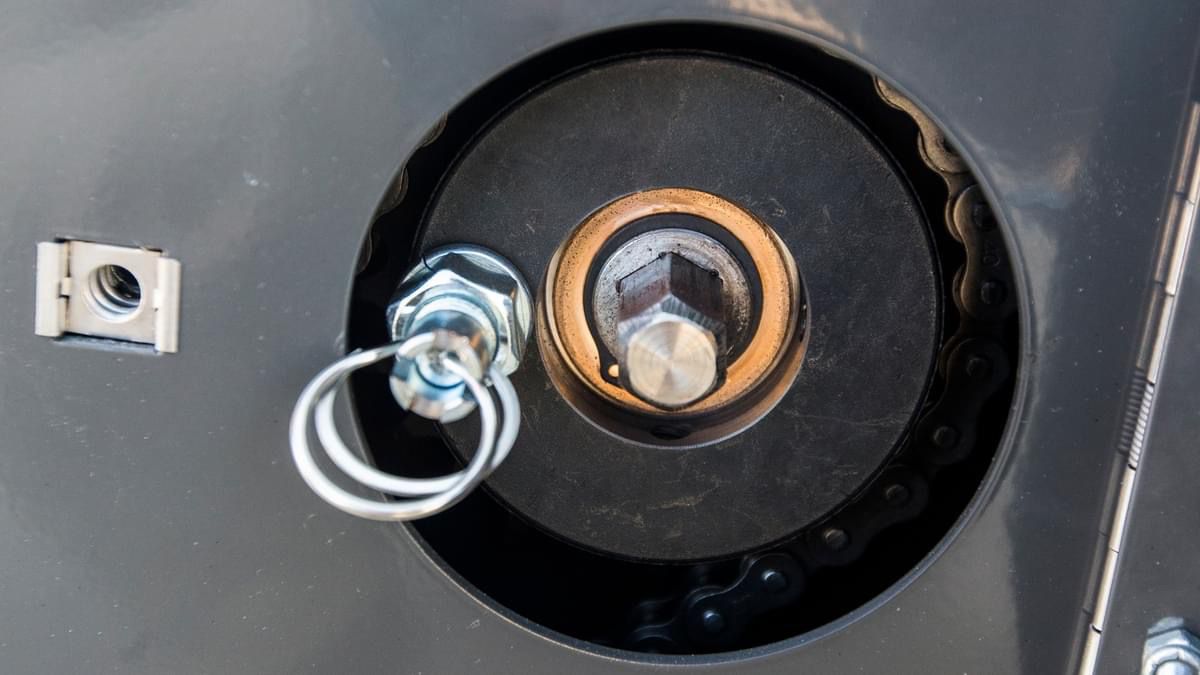

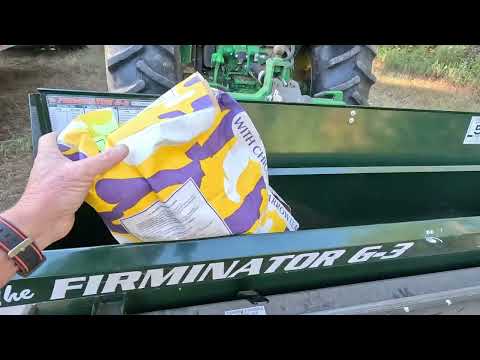

The accu-seed system handles seeds of all sizes from the tiniest of clovers up to corn, soybeans, peas, sunflowers and everything in between! The system is ground driven, the seed is metered out relative to the speed you are traveling. When the Firminator stops rolling, the seed stops falling. No more wasted, expensive seed! Fill the seed hopper and adjust the metering openings by moving the linkage handle on the back of the seed box. An indicator on the handle shows the seed size selections in one-sixteenth inch graduations. Simply set the size for the largest seed in the hopper, and the metering system will dispense the seed at the generally accepted rate.

An optional seed hopper agitator is available. This agitator is useful for keeping seed thoroughly mixed and preventing small seeds from sifting through too quickly when custom mixing seeds of extreme size differences.


SPECS 4′ 5′ 6′ 8′
Weight (lbs) 960-1160 1250-1500 1450-1750 2150
Disking Width (in) 43 55 67 91
Cultipacker Width (in) 46 56 70 94
Min Recommended HP 20 30 35 55
Seed Hopper (in) 14 x 14.5 x 12 57.5 x 14.5 x 12 75 x 14.5 x 12 100.5 x 14.5 x 12
Bushel Capacity 3+ 3+ 5+ 6+
Disks (#/Size) 8-16″ 8-16″ 12-18″ 16-18″
Tow Method 3pt Cat 1 3pt Cat 1 3pt Cat 1 or 2 3pt Cat 1 or 2

Features:

  • Wide range of angle and pitch adjustments
  • Disks, seeds, and cultipacks
  • Heavy tilt for deeper disk penetration
  • Handles seeds of all sizes as well as blends
  • Greasable flange bearings
  • 3″ square tubing frame
  • Heavy plate steel flanges
  • Durable, attractive powder-coat finish
  • Stainless steel metering shafts
  • Bronze bushings for lubrication and durability
  • Adjustable chain tensioners

RUGGED:

  • 3″ heavy wall square tube frame
  • 18″ 9 gauge disk harrow blades on 6″ centers
  • True agricultural grade cast iron cultipacker
  • 18″ heavy duty center ripper

VERSATILE:

  • Professional grade food plot implement
  • Plants seeds of all sizes
  • Great for erosion control plantings
  • Forestry roads, pastures, no-till and CRP

RELIABILITY:

  • 99% customer satisfaction
  • Precision seeding system
  • Durable powder-coat finish
  • One implement to till, plant, and cultipack
