Firminator ATV - UTV Model

Product Description

Firminator ATV / UTV Model All In One Food Plot Implement

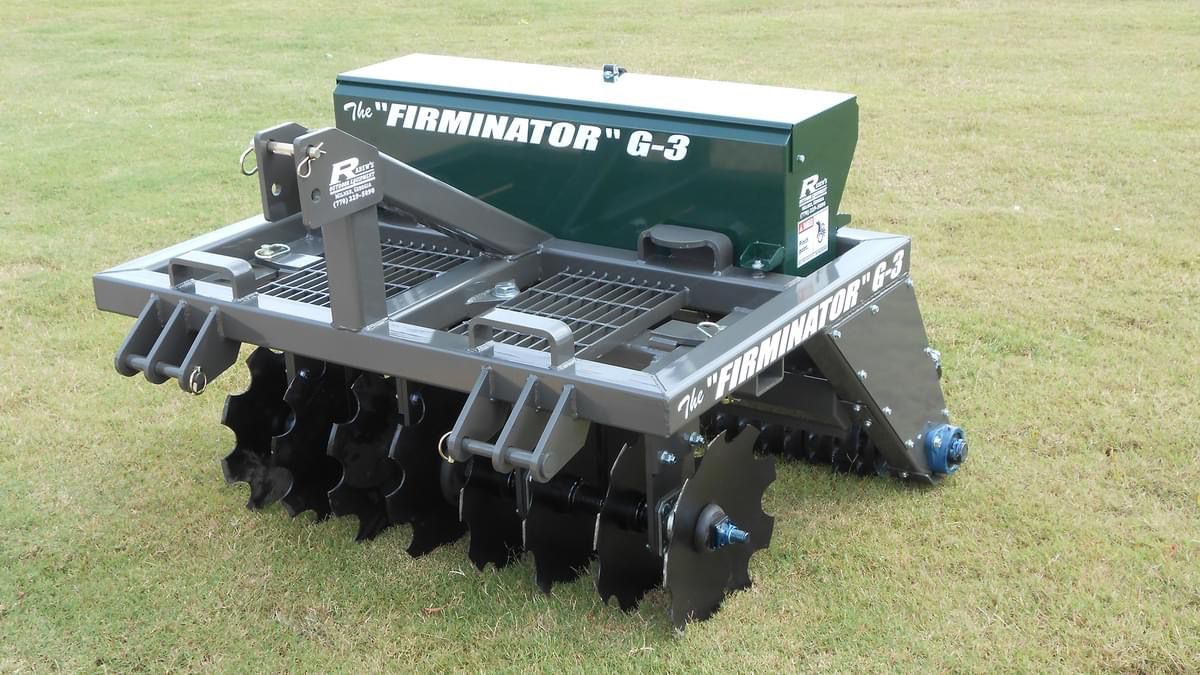

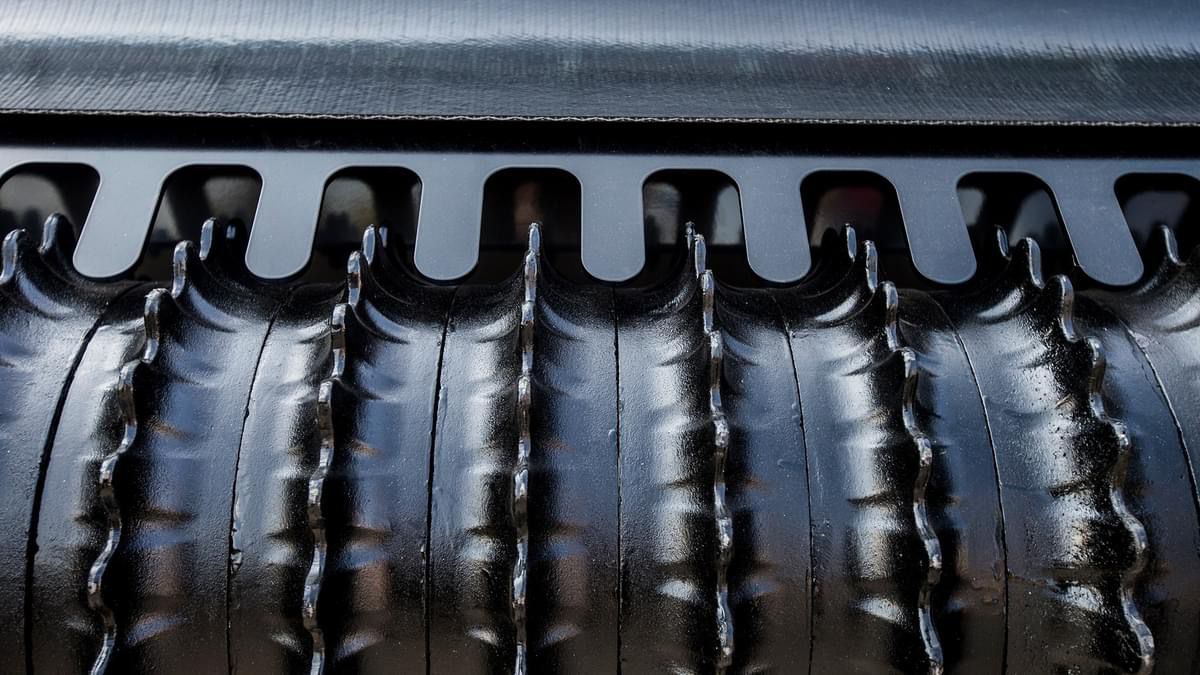

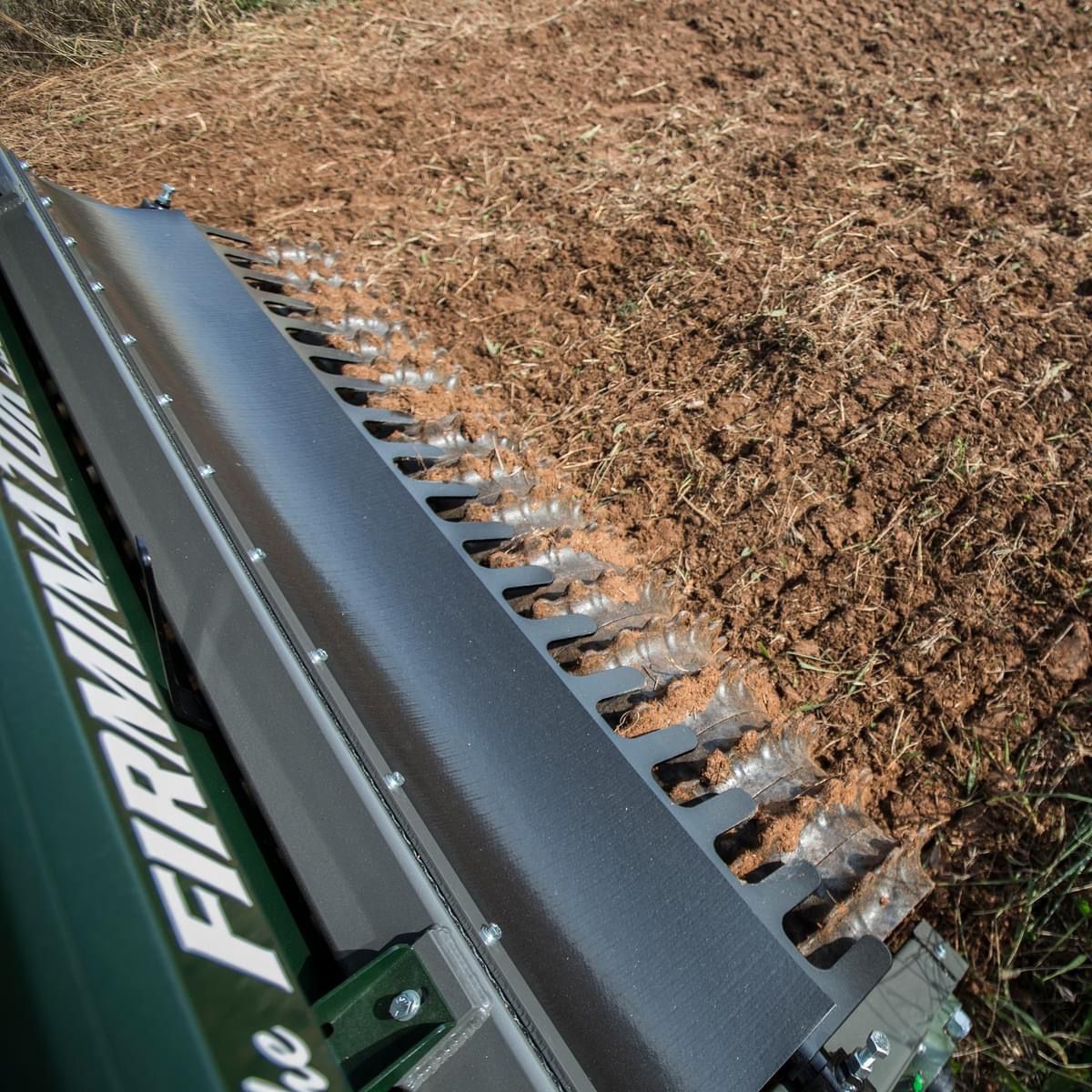

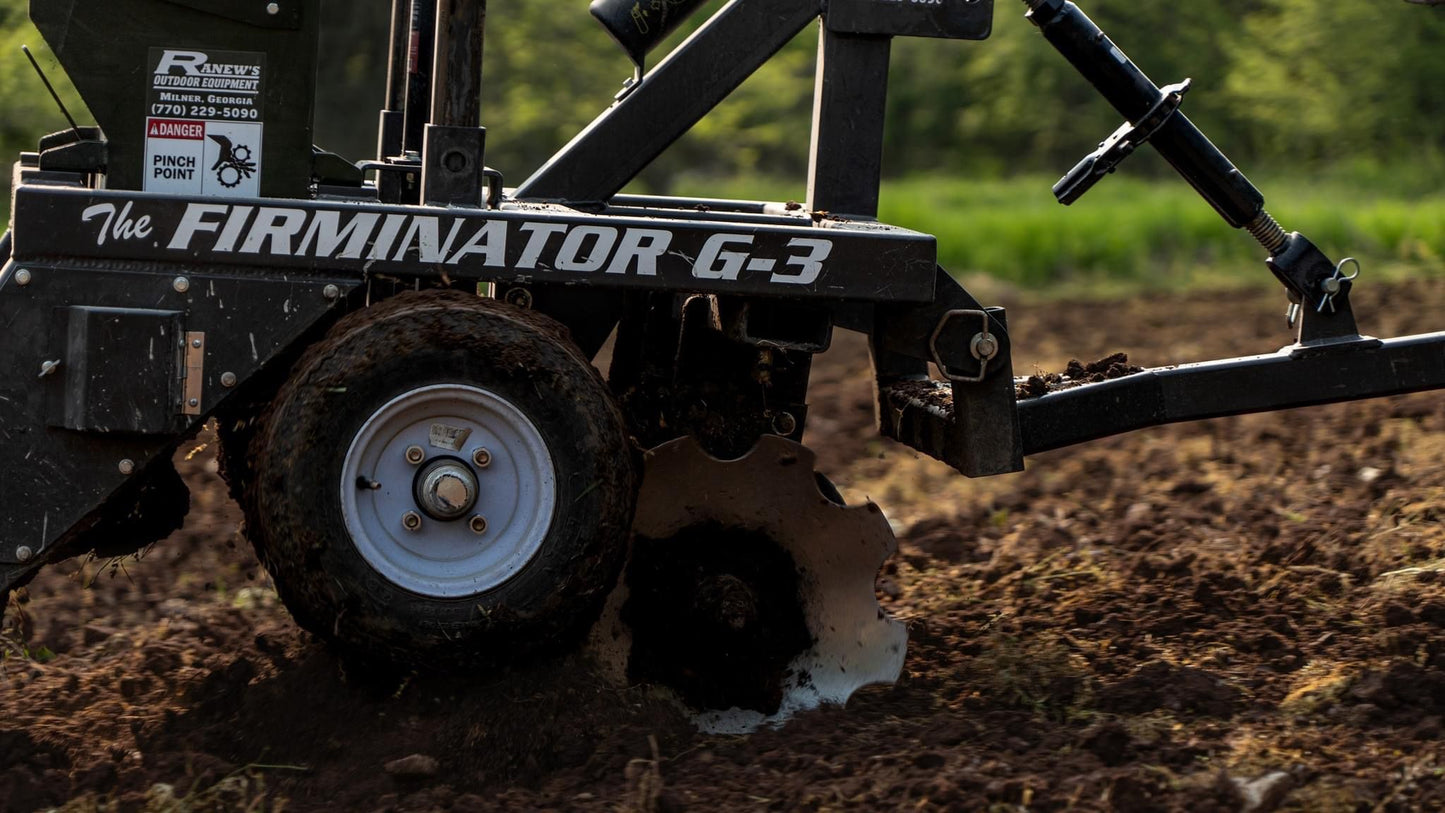

Ranew’s Outdoor Equipment is proud to introduce the Firminator G-3 ATV Model. The new ATV Model takes all of the features of the full size 3 point implement and right-sizes it for ATV’s and UTV’s. The ATV Model combines 12 inch ground turning disks with our precision accu-seed seed delivery system, and a true agricultural grade cast iron cultipacker. The ATV Model is sized for ATV’s, but it is no lightweight. Its frame is constructed of 3 inch steel square tubing, and its seed box is constructed of steel just like the three point models. It weighs over 800 pounds which allows it to break up and dig in hard ground when other ATV harrows would just bounce across the surface. The ATV Model comes with a tow bar sized for a 1 7/8″ ball, but also retains the 3 point hitch just in case you want to use it on a small tractor. We recommend a minimum of 500cc ATV or UTV to allow the Firminator to perform at its best.

The accu-seed System is another incredible feature of The Firminator. It handles seeds of all sizes from the tiniest of clovers up to corn, soybeans, peas, sunflowers and everything in between! It is this versatility that makes it an excellent choice for todays land managers and can be used to properly install food plots, filter strips, pastures, lawns, and other conservation plantings. Because the system is ground driven, the seed is metered out relative to the speed you are traveling. When the Firminator stops rolling, the seed stops falling. No more wasted, expensive seed! You may fill the seed hopper and adjust the metering openings by moving the linkage handle on the back of the seed box. An indicator on the handle shows the seed size selections in one-sixteenth inch graduations. Simply set the size for the largest seed in the hopper, and the metering system will dispense the seed at the generally accepted rate. It almost sounds too simple!

Package Included

Key Features

• Used with 500cc or larger ATV/small tractor
• High-quality jack to raise & lower tires
• Adjustable links allow better cutting
• Able to maneuver in small food plots
• Plants many seed sizes as well as blends

Detailed Specifications

• Frame 3” square tubing
• Weight 860 lbs.
• Discing Width 32”
• Cultipacker Width 34”
• Recommended cc/hp 500 CC min
• Seed Hopper Dimensions 34” x 14.5” x 12”
• Seed Hopper Capacity 2+ Bushel
• Disc #9 gauge and spacing 6 (14”) discs at 6” spacing
• Tow method 1 7/8” ball on tow bar or 3Pt Cat 1
