Product Description

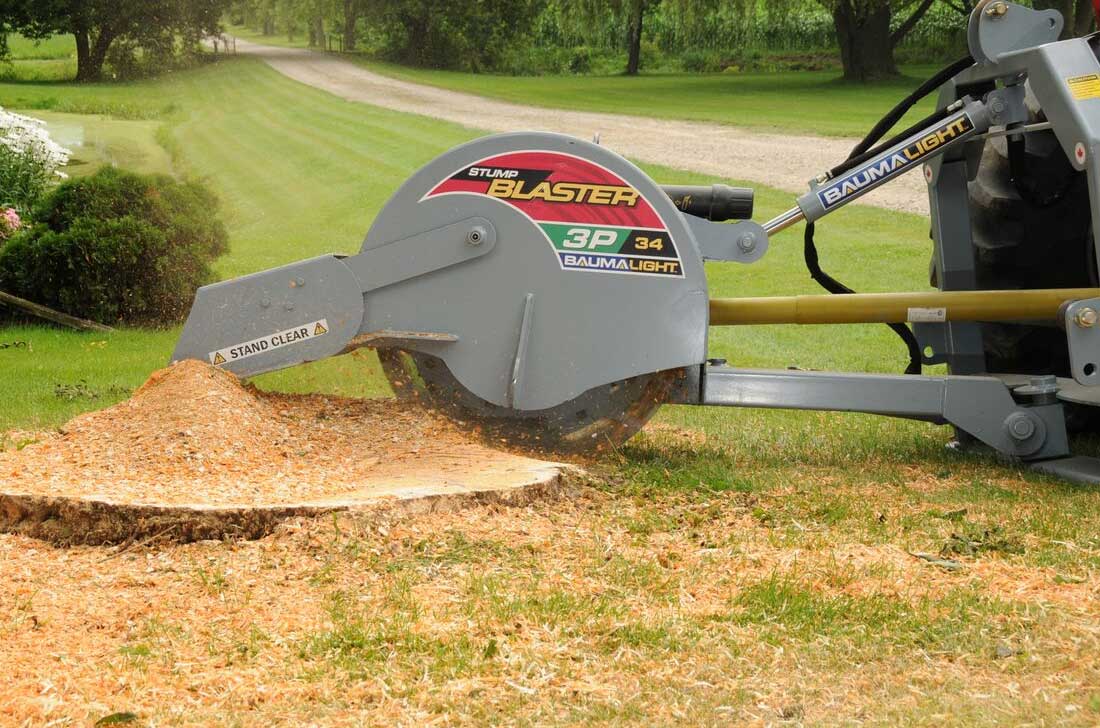

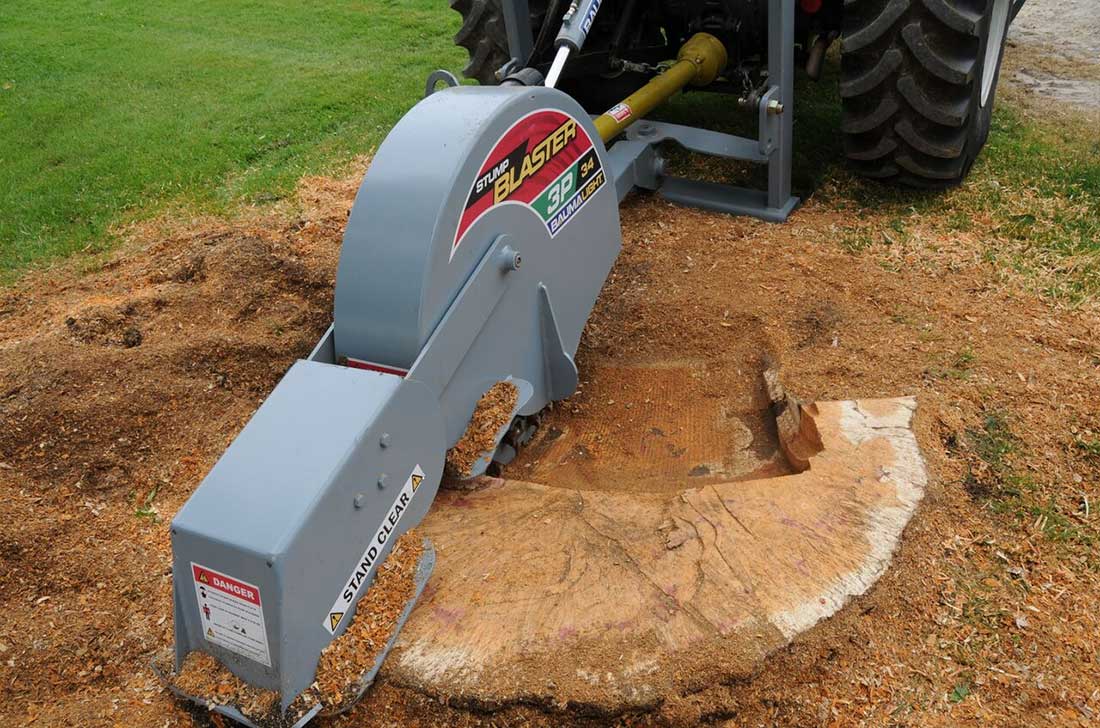

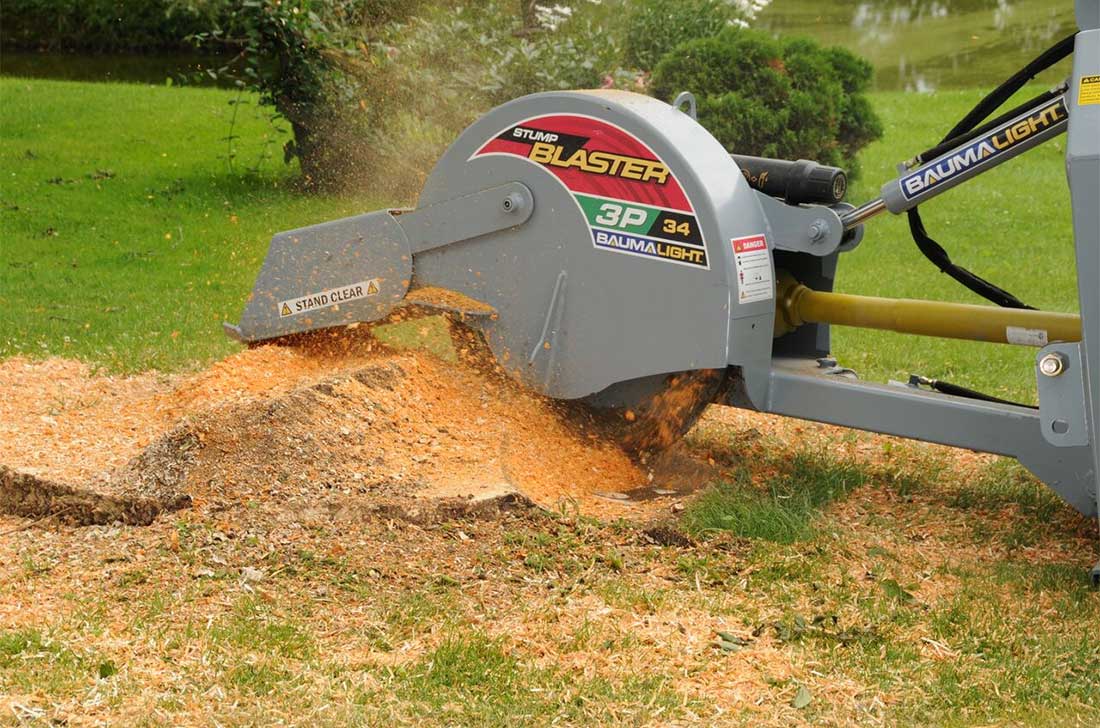

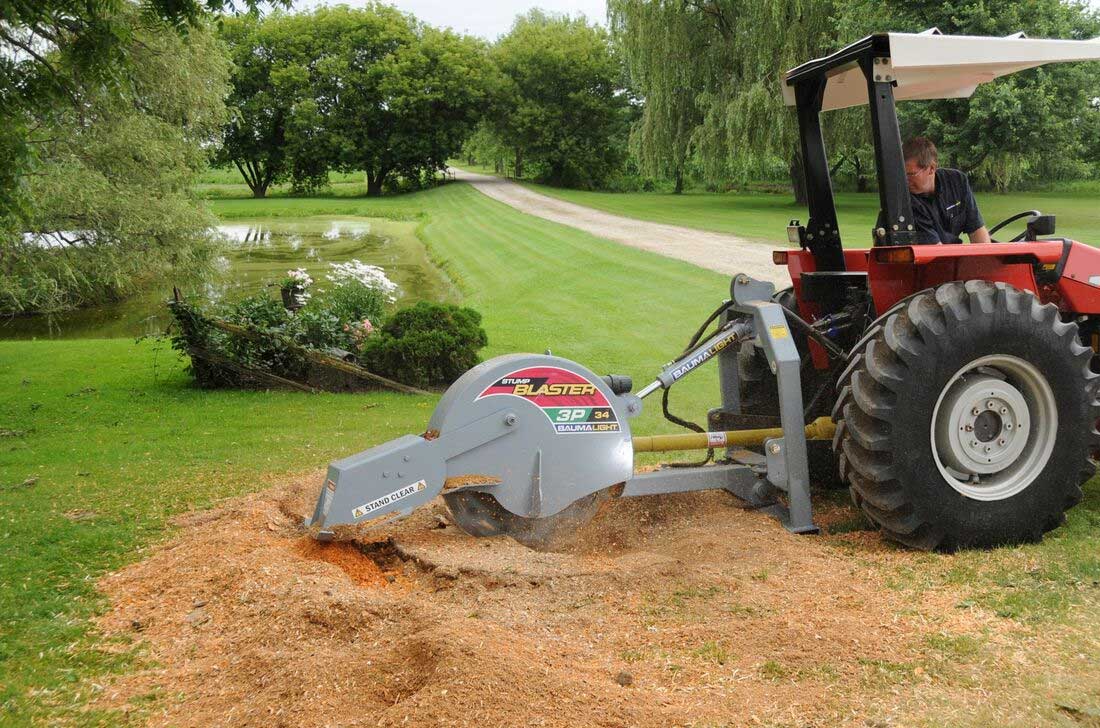

Baumalight | 3 Point Hitch Stump Grinder | 3P34 | 34" Rotor | 50-80 HP | For Tractor
DESCRIPTION

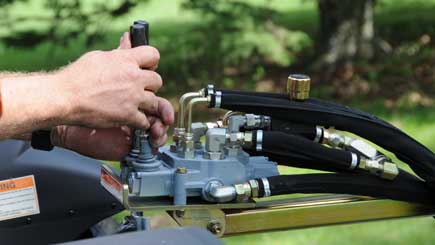

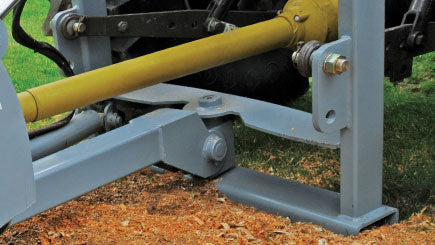

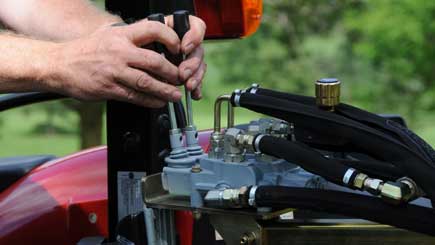

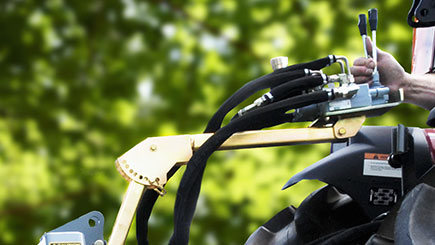

The Baumalight 3P24 PTO Stump Grinder is a robust and efficient tool designed for tractors with 30–50 HP motors. Equipped with a 24" rotor carrying 34 replaceable carbide-tipped teeth, this grinder is built to tackle tough stumps with precision and ease. The cutting and lifting cylinders are powered by your tractor’s hydraulic remotes, requiring two remote hydraulics for optimal performance. For tractors with only one remote, an optional S1050 valve kit is available. The heavy-duty base ensures stability during operation, reducing stress on the tractor, while the flow control feature allows you to fine-tune the grinding sweep speed for maximum efficiency. With a cutting depth of 18" above ground and 8" below ground, the 3P24 is perfect for lawn care, fence row clearing, and other stump grinding tasks.

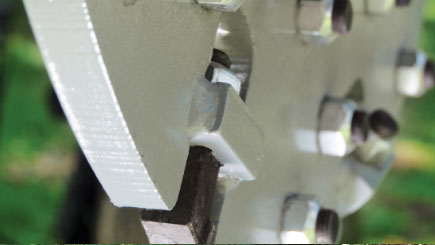

The direct drive system, powered by the tractor’s PTO, transfers energy through a rugged gearbox to the rotor, generating 803 Ft.-Lbs of torque and achieving a rotor speed of 810 RPM. The ¾" thick steel rotor serves as the backbone of the cutting system, ensuring durability and smooth operation. This stump grinder is an excellent choice for both residential and commercial applications.
Key Features
- High Power Compatibility: Designed for tractors with 50-80 HP, making it suitable for a variety of applications.
- Efficient Cutting Depth: Capable of grinding stumps up to 25" above ground and 14" below ground.

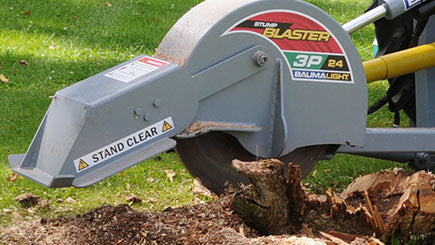

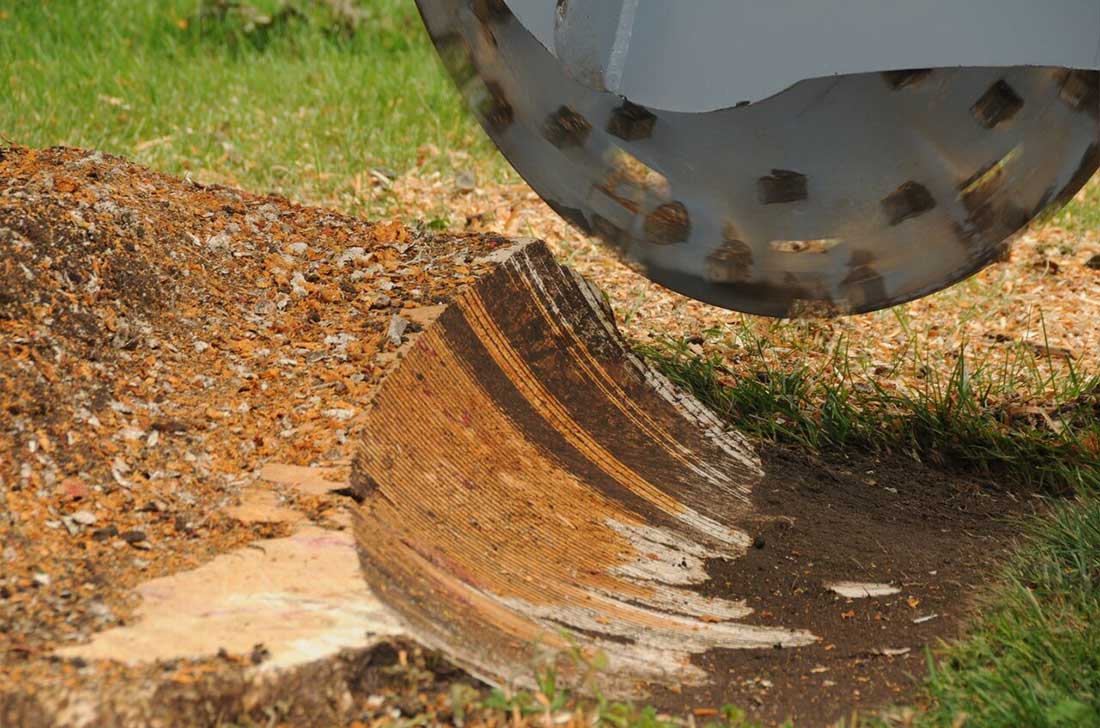

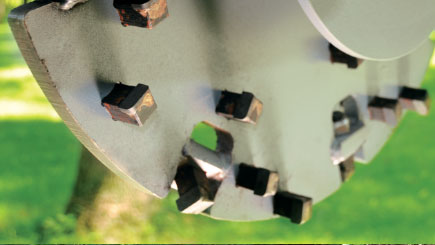

- Carbide Tipped Teeth: Durable teeth designed to withstand tough conditions, ensuring reliable cutting performance.
- Quick Grinding Time: Grind a 30" wide and 12" deep stump in as little as 4 minutes with an 80 HP tractor.

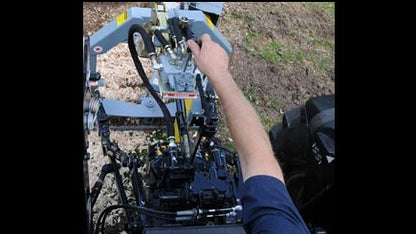

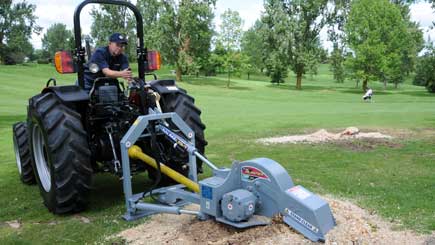

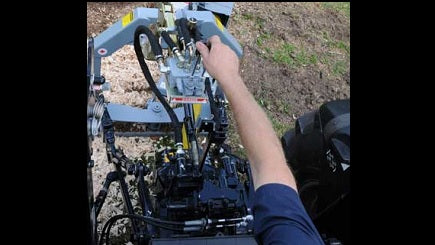

- Flow Control: Easily adjust the cutting pass speed to match your tractor's performance for optimal efficiency.

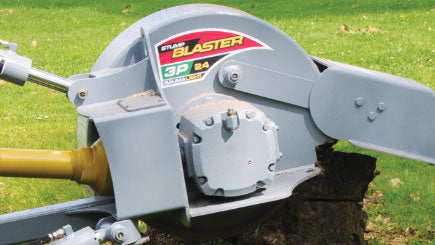

- Heavy-Duty Gearbox: Transfers power efficiently from the tractor’s PTO to the rotor, creating 803 ft-lbs of torque.

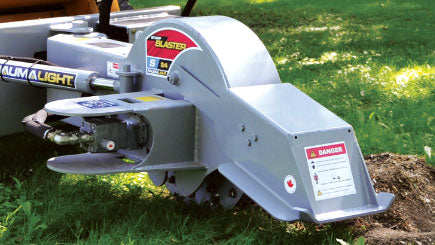

- Floating Deflector: Provides effective chip and debris control during operation, adjustable for tight spaces.

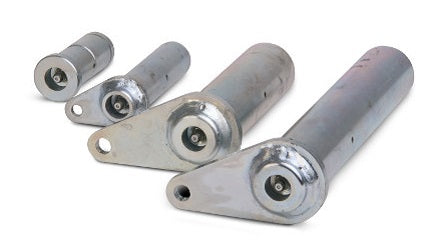

- Greaseable Pins: Zinc-plated pins to prevent corrosion, ensuring smooth operation over the lifespan of the unit.
Detailed Specifications
|
Specification |
Details |
|---|---|
|
Model No. |
3P34 |
|
Recommended HP Size |
50-80 HP |
|
Maximum Engine HP |
85 HP |
|
Maximum PTO HP |
75 HP |
|
Transmission |
Any |
|
Hydraulic GPM |
5–20 |
|
Rotor Size |
34" |
|
Number of Teeth |
52 |
|
Cutting Wheel Speed |
810 RPM |
|
Cutting Height - Above Ground |
25" |
|
Cutting Depth - Below Ground |
14" |
|
Maximum Cutting Depth - Per Pass |
9" |
|
Maximum Horizontal Cut |
32" |
|

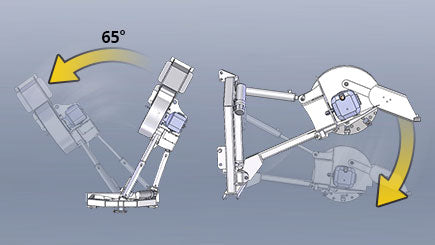

Swing Arc |
65° |
|
Hub Torque |
1475 Ft.-Lbs. |
|
Over Torque Protection |
Slip clutch |
|
Hitch |
Cat II |
|
Quick Hitch Compatibility |
No |
|
No. of Remotes Required - Hydraulic |
1 or 2 |
|
Unit Weight (Shipping) |
1231 lbs |
|
Width (Shipping) |
48" |
|
Length (Shipping) |
54" |
Comparison Chart
| Model No. | 1P14 | 1P24 | 3P24 | 3P34 | 3P40 |
|---|---|---|---|---|---|
| Recommended HP Size | 20-45 | 20-45 | 25-55 | 45-80 | 60-120 |
| Maximum Engine HP | 45 | 50 | 58 | 85 | 125 |
| Maximum PTO HP | 35 | 40 | 50 | 75 | 115 |
| Transmission | Hydrostatic only | Hydrostatic only | Any | Any | Any |
| Hydraulic GPM | -- | -- | 5–20 | 5–20 | 5–20 |
| Rotor Size | 16" | 24" | 24" | 34" | 34" |
| Number of Teeth | 12 | 34 | 34 | 52 | 52 |
| Tooth Part number | H3000 | S1000 | S1000 | S1000 | S1000 |
| Tooth Construction | High speed round tooth | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in |
| Cutting Wheel Speed | 540 RPM | 540 RPM | 810 RPM | 810 RPM | 1000 RPM |
| Cutting Height - Above Ground | 10" | 10" | 18" | 25" | 25" |
| Cutting Depth - Below Ground | 5" | 6" | 8" | 14" | 14" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 6" | 9" | 9" |
| Maximum Horizontal Cut | 18" | 22" | 22" | 32" | 32" |
| Swing Arc | 0° | 0° | 65° | 65° | 65° |
| Hub Torque | 664 Ft.-Lbs. | 885 Ft.-Lbs. | 885 Ft.-Lbs. | 1475 Ft.-Lbs. | 1327 Ft.-Lbs. |
| Over Torque Protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Hitch | Cat I | Cat I | Cat I or II | Cat II | Cat II |
| Quick hitch compatibility | Yes | Yes | No | No | No |
| No. of Remotes Required - Hydraulic | 0 | 0 | 1 or 2 | 1 or 2 | 1 or 2 |
| Requires 12 Volt DC | No | No | No | No | No |
| Input Speed | 540 | 540 | 540 | 540 | 1000 |
| Unit Weight (Shipping) Lbs. | 360 | 450 | 920 | 1231 | 1280 |
| Width (Shipping) | 36" | 36" | 42" | 48" | 48" |
| Length (Shipping) | 30" | 30" | 49" | 54" | 54" |
