Baumalight 3-Point Hitch Stump Grinder | Model 1P24 | Rotor Size 24" | Horsepower 20-45 HP | For Tractors

Product Description

Baumalight 3-Point Hitch Stump Grinder | Model 1P24 | Rotor Size 24" | Horsepower 20-45 HP | For Tractors

DESCRIPTION

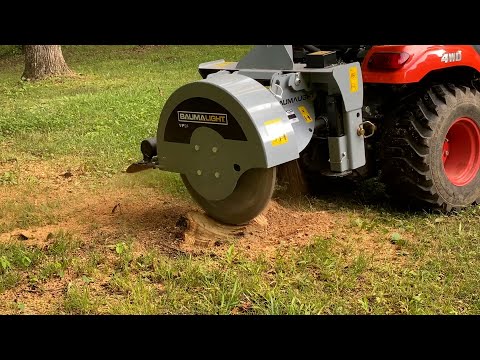

The 1P24 PTO stump grinder is designed for small tractors that are equipped with hydrostatic drive and Category 1 3PH, and is compatible with most CAT I quick hitches. This tractor-mounted stump grinder model allows you to grind small and midsized stumps efficiently with a 24" Rotor, carrying 34 replaceable heavy ¾” shank carbide tipped teeth and has a cutting depth of 10" above ground and 6" below ground with the cutting wheel speed of 540 RPM. The carbide tipped teeth is 3/4-inch-thick. The maximum cutting depth per pass is 5" and maximum horizontal cut is 22". With no hydraulics required this versatile PTO Stump Grinder is controlled with gravity feed which is ideal for tractors with no hydraulic remotes. In case if there is a sudden advance of the tractor while grinding, the hinge will automatically swing the grinding head out a bit, keeping even pressure on the stump. The stump grinder unit weight is 350 lbs, has a frame width of 30” and length of 48". A stump of 30" width and 12" depth can be ground in 15 mins with a 40HP tractor, with 30HP it takes around 20 mins. ¾" thick steel rotor acts as a backbone for the stump blaster cutting system.

All Baumalight stump grinders are made in Canada and offered through most farm and equipment dealers so you always will have local support to service or support for your stump grinder which is always best. If you don’t mind servicing your own equipment then buying from some of our internet dealers who drop ship to end users might also be a good option for you, if you cannot get a response from your local dealer.

We offer a free 6-pack of teeth with the purchase of a new unit, ensuring you have spare parts on hand and will direct ship any replacement parts to end users if our dealer so requests, we even support warranty work done by end users if that is more ideal for both the dealer and end user. All sales must be through dealers and we will cover a reasonable amount of time if the dealer does warranty work when the end user takes the unit to the dealer for repairs, but many times an end user will spend less time replacing a part at home, then traveling to a dealer so we will support what makes the most sense.

Does your tractor require our Extension kit

Tractor must have hydro-static drive. On subcompact tractors with short arms, the D005735 Extension kit is required.
Before using the 1P24 Stump Grinder, you must first measure your compact tractor to see if you require our D005735 Extension kit.

Key Features

• Recommended HP Size: Suitable for tractors with 20-45 HP, ensuring reliable cutting performance.
• Maximum Engine HP: Supports up to 50 HP, delivering strong operational efficiency.
• Maximum PTO HP: Rated for 40 HP, optimizing power transfer to the cutting system.
• Hydrostatic Transmission Required: Designed specifically for hydrostatic drive systems, enhancing control and precision.
• 24" Rotor Size: Provides efficient stump grinding, covering a wide cutting area.
• 34 Carbide Steel Bolt-In Teeth: Ensures durable and aggressive grinding, extending tool lifespan.
• Cutting Wheel Speed: Operates at 540 RPM, delivering consistent grinding action.
• Cutting Height Above Ground: Capable of 10-inch high grinding, allowing versatility in operations.
• Cutting Depth Below Ground: Reaches 6 inches below the surface, enabling complete stump removal.
• Maximum Cutting Depth Per Pass: Removes up to 5 inches per pass, ensuring efficient grinding.
• Maximum Horizontal Cut: Covers 22 inches, improving productivity for larger stump clearance.
• Swing Arc: Fixed at 0°, offering direct forward cutting without rotational movement.
• Hub Torque: Delivers 885 Ft.-Lbs. of rotational force, maximizing grinding efficiency.
• Unit Weight: Weighs 450 lbs, balancing stability and portability for tractor-mounted use.

Detailed Specifications

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

General Shipping Info:

• Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
• Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
• Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
• Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
