Product Description
Baumalight Fixed Tooth Mulcher | Model MX330 | Path Width 38" | Machine Size 3-10 Tons | For Excavators
Description

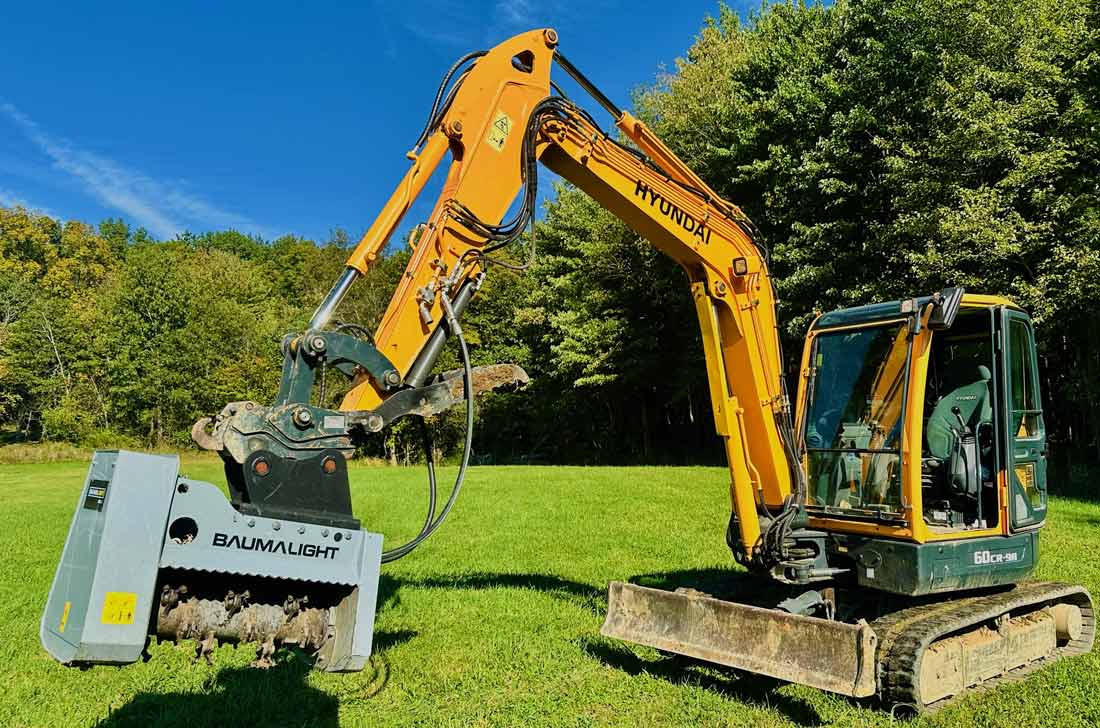

Our 300 series fixed tooth brush mulcher for excavators, with adequate flow, the MX330 brush mulcher will efficiently cut heavy vegetation and light brush using high speed teeth. The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is the ease of rotating the teeth so there is always a sharp edge to make mulching easier. See our brush cutting size chart to see how much this home owner excavator mounted forestry mulcher can process. To verify motor options for maximum brush cutting sizes, you can visit the chart below. With the built-in control and precision of the excavator, mulching around objects is not a problem, whether it’s in a ditch or overhead. A relief valve is provided to protect the motor and the hydraulic systems from pressure spikes. When obstacle hits the relief valve, the valve is opened and the pressure is relieved. Integrated skid shoes are provided to help the brush mulcher to better float over the ground for optimal mulching action. A heavy-duty reinforced belt delivers the force from the gear box to the rotor. The rotor bearings are factory lubricated with a lithium or lithium complex base grease which is suitable for this application. A powder coating finish is provided to prevent the rusting.
Key Features
- Efficient Cutting: Cuts heavy vegetation and light brush using high-speed teeth.
- Concave Shaped Carbide Tips: Provides aggressive brush mulching action by chipping the brush bit by bit.
- Rotating Teeth: Ensures there is always a sharp edge, making mulching easier.
- Brush Cutting Size Chart: Refer to the chart for processing capacity and motor options for maximum brush cutting sizes.
- Built-In Control and Precision: Allows for mulching around objects, whether in a ditch or overhead.
- Relief Valve: Protects the motor and hydraulic systems from pressure spikes by relieving pressure when an obstacle is hit.
- Integrated Skid Shoes: Helps the brush mulcher float over the ground for optimal mulching action.
- Heavy-Duty Reinforced Belt: Transfers force from the gearbox to the rotor.
- Factory Lubricated Rotor Bearings: Lubricated with lithium or lithium complex base grease suitable for this application.
- Powder Coating Finish: Prevents rusting and ensures durability.
| Feature | Details |
|---|---|
| Integrated Skid Shoes | Provides ground floatation for consistent mulching height |
| High Speed Teeth | 3-in-1 rotatable carbide teeth for aggressive brush cutting |
| Hardened Teeth Holders | Resists deformation; increases tooth life and uptime |
| 6 Free Teeth Included | Bonus set of replacement teeth stored in the owner's manual tube |
| Spiral Tooth Pattern | Engages one tooth at a time for smoother operation |
| Overtorque Relief Valve | Protects motor/system by releasing pressure during overload events |
| Reinforced Belt Drive | Heavy-duty belt absorbs impact loads from rotor to gearbox |
| Wire Protection Kit | Steel shielding guards motor and components from fence wire damage |
| Powder Coat Finish | Enhanced durability and rust resistance over traditional paint |
Detailed Specifications
MX Series Excavator Mulcher Specifications |
||||||||
|---|---|---|---|---|---|---|---|---|
Feature |
MX230 |
MX330 |
MX530 |
MX530R |
MX548R |
MX948R |
MX960R |
MX1160R |
| Connection Code | A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Min Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Min Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max Wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below | 1.5" Above to 1" Below | 1.5" Above to 1" Below | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part # | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of Cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not Important | Not Important | See Motor Options | See Motor Options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
