Product Description
Baumalight Fixed Tooth Mulcher | Model MX530 | Path Width 40" | Machine Size 4-14 Tons | For Excavators
Description

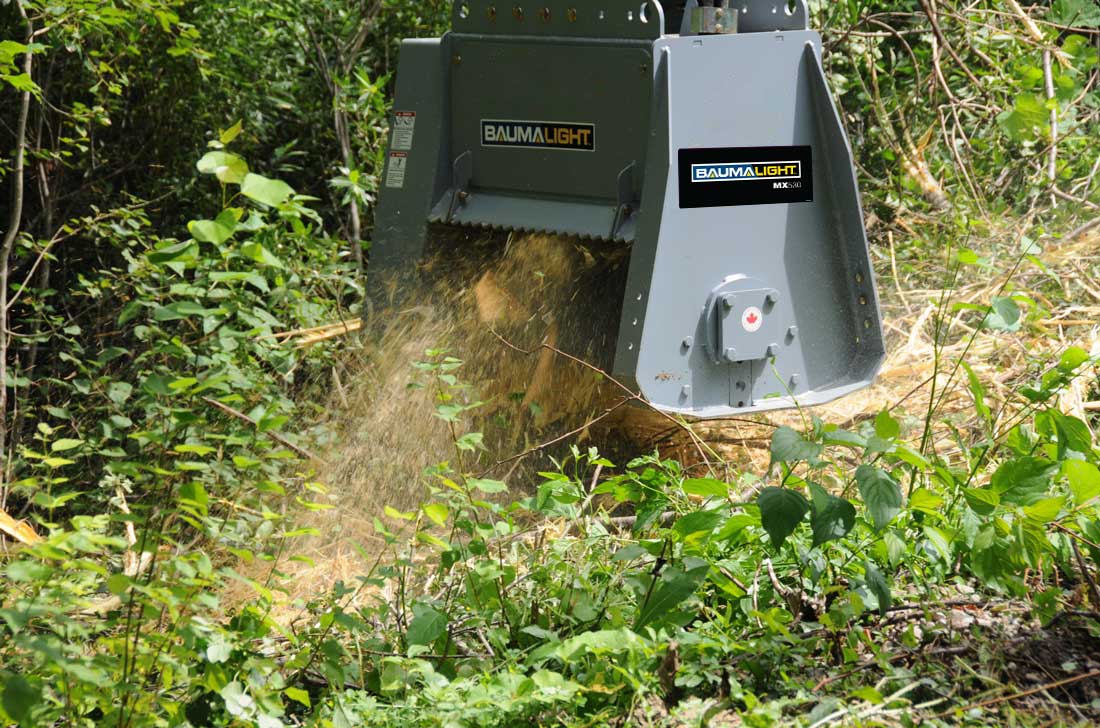

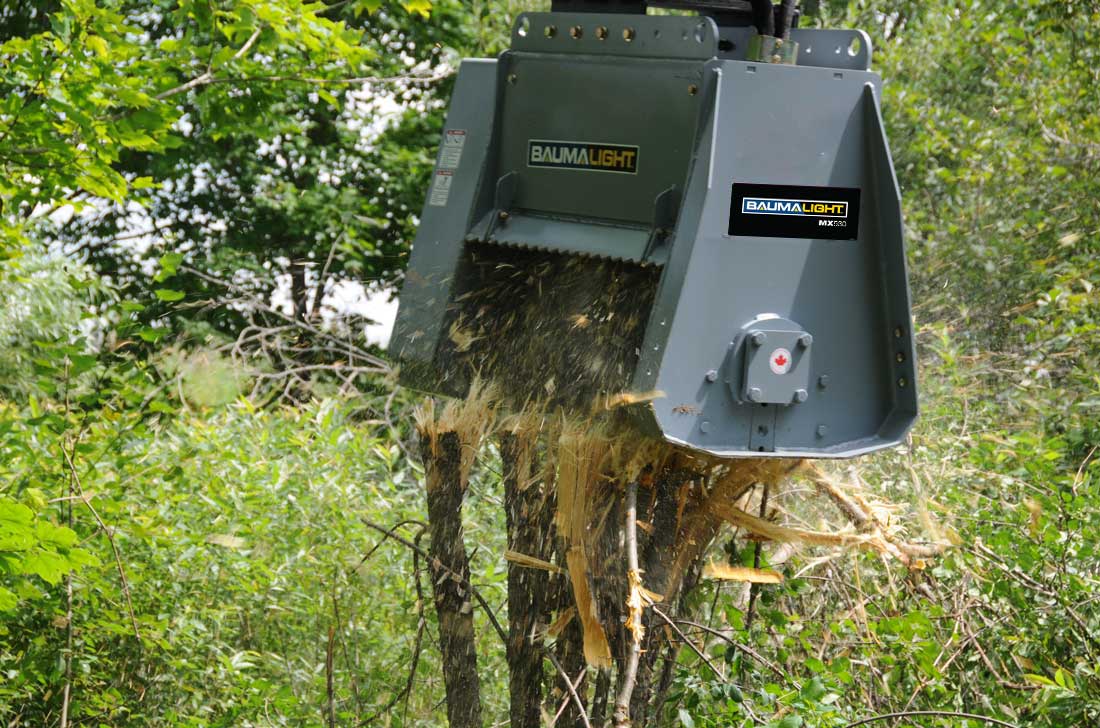

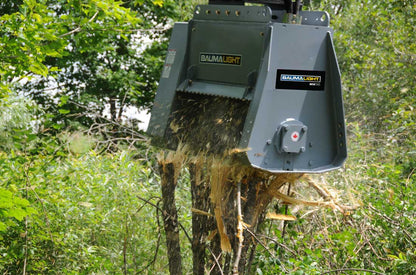

Our 500 series fixed tooth brush mulchers for excavators are designed to maintain and clear fence lines on farms and entry level contractor work. The 500 series Baumalight brush mulchers will efficiently mulch heavy brush and small trees and are offered with two different type of teeth. The Planer style teeth the units are shipped with, take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action, these can be ordered as replacement teeth only. The spiral tooth pattern helps in one tooth at a time for smooth mulching. Their V-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. This absorbs the impacts from multiple directions. The heavy-duty teeth holders resist bending and helps to work longer. See our brush cutting size chart to see what limb size this excavator mounted forestry mulcher can handle. To verify motor options for maximum brush cutting sizes, you can visit the chart below or better yet, enter your skidsteer model into our motor sizing calculator. With the build in control and precision of the excavator, mulching around objects is not a problem, whether it’s in a ditch or overhead. For the brush clearing needs a bent axis piston motor is used to maximize the hydraulic flow and pressure. The heavy-duty frame all steel sheet metal is welded and gusseted in all main areas.
Key Features
- 40" Mulching Width: Optimized for narrow paths, roadside maintenance, and selective clearing

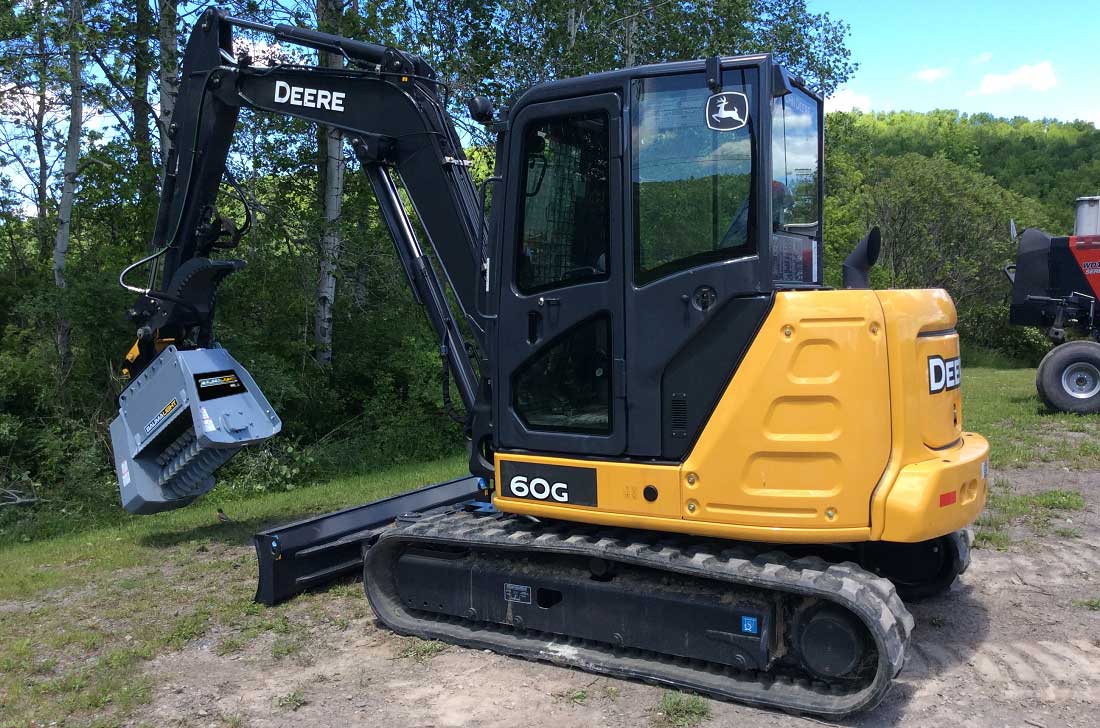

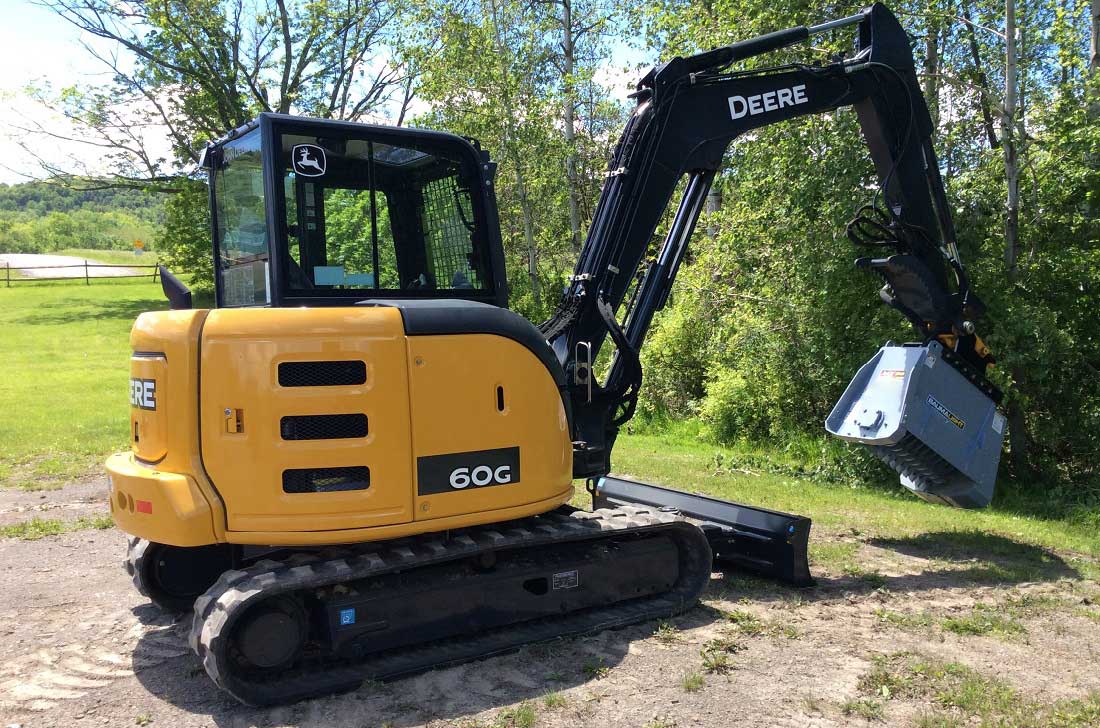

- Excavator Compatibility: Designed for machines in the 4–12 ton range for flexible deployment
- Fixed Tooth Rotor: Delivers aggressive mulching performance with replaceable carbide-tipped teeth
- Heavy-Duty Construction: Reinforced housing and skid plating for durability in rocky or woody terrain
- High Speed Teeth: 3-in-1 rotatable teeth extend usability and lower maintenance frequency
- Hydraulic Motor: Bent-axis piston motor maximizes torque and efficiency from available flow
- Rotor Design: Thick steel rotor with extended tooth clearance prevents clogging and heat buildup
- Large Debris Shield: Contains chips and protects operator with optional chain curtain
- Powder Coat Finish: Resists corrosion and wear for extended service life in harsh conditions
- Excavator Mount Plate: Weld-on compatible bracket for custom fitting on host machine
- Low Profile Design: Allows close-to-ground operation and improved visibility for precision work
- Replaceable Wear Components: Serviceable teeth holders and rotor components simplify field maintenance
| Feature | Details |
|---|---|
| Integrated Skid Shoes | Provides ground floatation for consistent mulching height |
| High Speed Teeth | 3-in-1 rotatable carbide teeth for aggressive brush cutting |
| Hardened Teeth Holders | Resists deformation; increases tooth life and uptime |
| 6 Free Teeth Included | Bonus set of replacement teeth stored in the owner's manual tube |
| Spiral Tooth Pattern | Engages one tooth at a time for smoother operation |
| Overtorque Relief Valve | Protects motor/system by releasing pressure during overload events |
| Reinforced Belt Drive | Heavy-duty belt absorbs impact loads from rotor to gearbox |
| Wire Protection Kit | Steel shielding guards motor and components from fence wire damage |
| Powder Coat Finish | Enhanced durability and rust resistance over traditional paint |
Detailed Specifications
MX Series Excavator Mulcher Specifications |
||||||||
|---|---|---|---|---|---|---|---|---|
Feature |
MX230 |
MX330 |
MX530 |
MX530R |
MX548R |
MX948R |
MX960R |
MX1160R |
| Connection Code | A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Min Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Min Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max Wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below | 1.5" Above to 1" Below | 1.5" Above to 1" Below | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer Teeth |
| Tooth Part # | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of Cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (Tool Tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with Tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not Important | Not Important | See Motor Options | See Motor Options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
