Baumalight Flail Mower | Model FEB700/C540 | 88" Working Width | 18-35 GPM | For Skid Steer

Baumalight Flail Mower | Model FEB700/C540 | 88" Working Width | 18-35 GPM | For Skid Steer

Regular price $12,400.00
Regular price Sale price $12,400.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Heavy-Duty Design: Built to handle grass, weeds, light brush, and small trees with ease.
  • 88" Cutting Width: Wide cutting path and 80" rotor width for efficient large-area coverage.
  • F7000 Flail Teeth in Spiral Pattern: Reduces power demands while maximizing cutting effectiveness.
  • Bent Axis Piston Motor: Optimizes hydraulic flow for powerful performance in demanding tasks.
  • Low-Profile Structure: Improved forward visibility to eliminate blind spots for safer, precise mowing.
View full details

Product Description

Baumalight Flail Mower | Model FEB700/C540 | 88" Working Width | 18-35 GPM | For Skid Steer



Lead Time: 3.5 weeks

DESCRIPTION

 FEB700 Flail Mower for Skidsteer 18-35 GPM

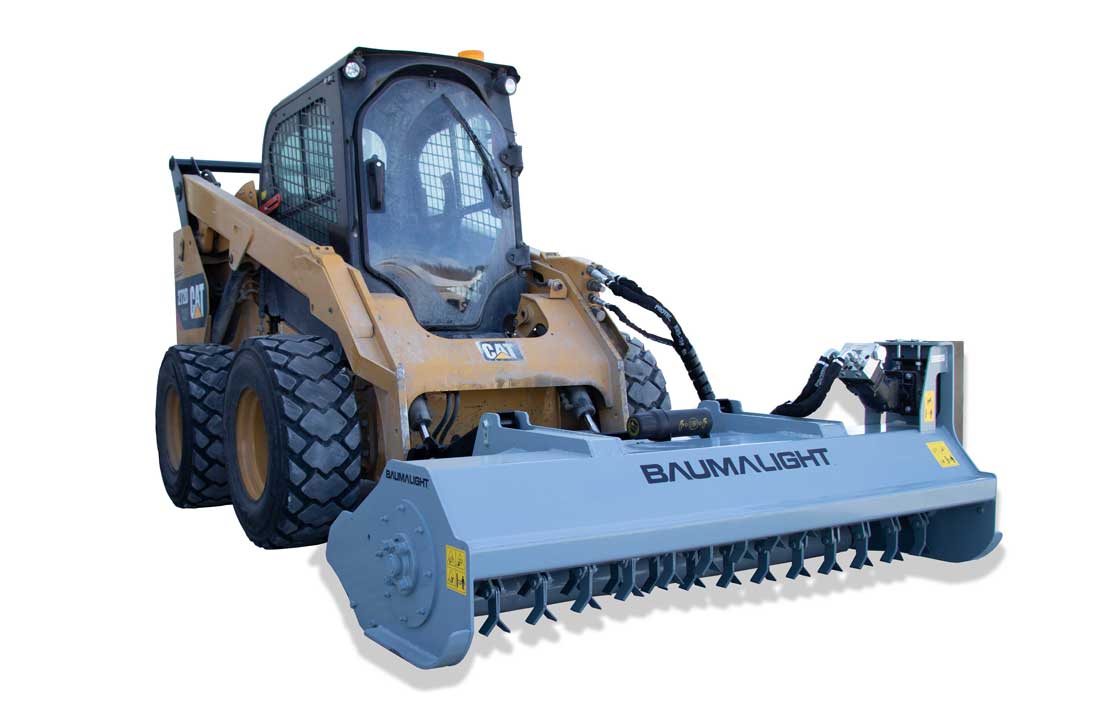

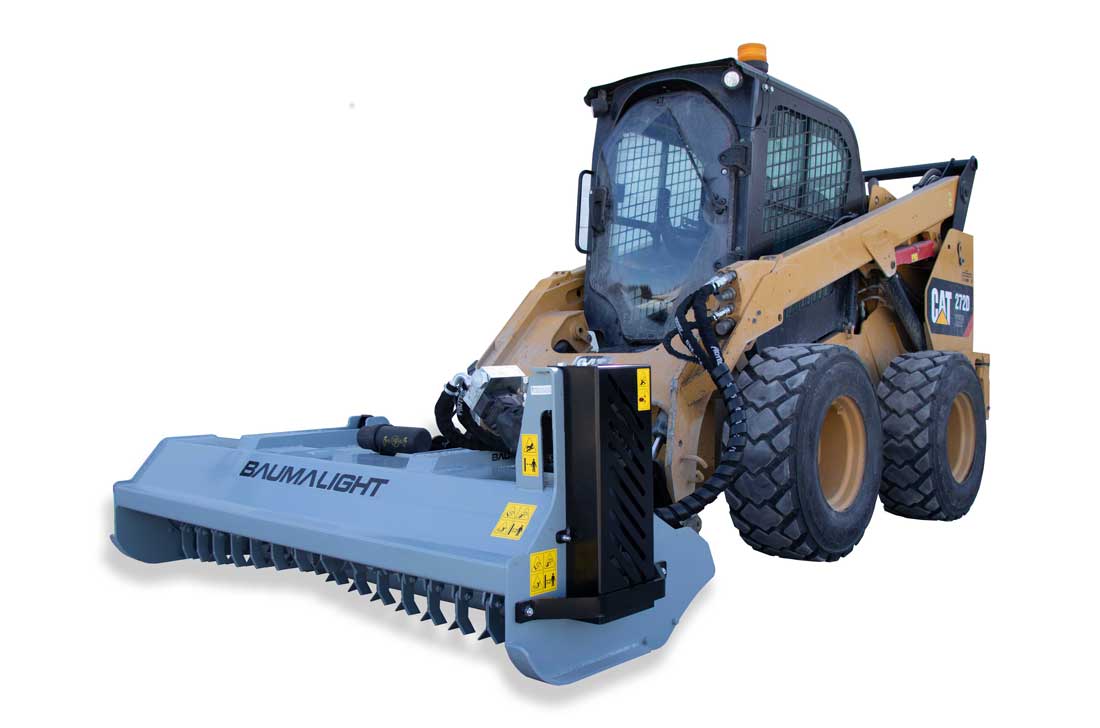

The Baumalight FEB700 flail mower is a heavy duty and versatile agricultural tool designed for efficiently mowing and mulching a variety of vegetation, including grass, weeds, light brush, and small trees. The mower features a sturdy frame that is designed to withstand the rigors of demanding work environments, making it ideal for use in agricultural, commercial, and municipal applications. Its low-profile design allows for excellent forward visibility and eliminates “blind spots” as material nears or enters the machine. With a path width of 88 inches and a rotor width of 80 inches, this flail mower is capable of covering large areas quickly and efficiently. The specially designed back discharge feature allows material to flow evenly and smoothly through the machine resulting in unmatched capacity and performance.

The rotor is equipped with heavy-duty, free-swinging flail knives that are designed to effectively cut and shred vegetation while minimizing damage to the underlying soil. The FEB700 Flail mower comes with 42 blade clusters in a spiral pattern, which are mounted on a rotor shaft that measures 1.75 inches in diameter. The rotor diameter at the tips is 17.5 inches, and the rotor weight, including tools, is 253 lbs.

The FEB700 uses a standard universal skidsteer mounting plate making it easy to attach and remove from your vehicle and works well from 18-35 GPM and takes up to 4000 PSI. However, it does require a case drain to be installed for smooth operation. To maintain a steady, even mow height, the flail mower can be easily adjusted by lifting or lowering the skidsteer plate as the mower pivots on the roller bar. The unique floating skidsteer plate and independent linkage provide free movement and allows the mower to glide over uneven surfaces ensuring a uniform and consistently mowed finish in most types of terrain.

To ensure the longevity of the FEB700 Flail mower and reduce repair costs over time, a built-in relief system is installed to provide protection against overload or other damaging events. This system protection plays a critical role in safeguarding the machine from potential damage. Overall, the Baumalight FEB700 flail mower is a heavy build light industrial tool with a goal to give reliable performance, durability, and versatility for a variety of mowing and mulching applications.

Key Features

  • INTEGRATED SKID SHOES

    These durable skid shoes help the mowers to better float over the ground for optimal cutting action.

    These durable skid shoes help the mowers to better float over the ground for optimal cutting action.

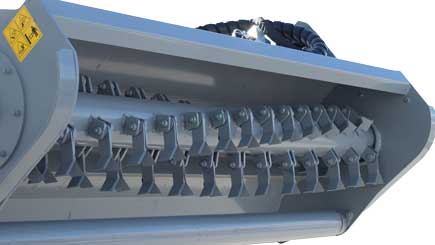

  • F7000 FLAIL TEETH IN A SPIRAL PATTERN

    The heavy F7000 flail teeth are mounted in a spiral patter for maximum efficiency as more material can be cut with less power if the flail teeth are in a spiral pattern on the rotor.

    The heavy F7000 flail teeth are mounted in a spiral patter for maximum efficiency as more material can be cut with less power if the flail teeth are in a spiral pattern on the rotor.

  • FIXED ROLLER BAR

     The fixed roller bar ensures that the flail mower cuts at a consistent height, which is important for maintaining a neat and tidy appearance, resulting in a more even cut across the entire area being mowed. The fixed roller bar helps protect the flail mower's blades from damage, as it prevents the blades from hitting rocks, stumps, or other obstacles on the ground.

    The fixed roller bar ensures that the flail mower cuts at a consistent height, which is important for maintaining a neat and tidy appearance, resulting in a more even cut across the entire area being mowed.
The fixed roller bar helps protect the flail mower's blades from damage, as it prevents the blades from hitting rocks, stumps, or other obstacles on the ground.

  • LOW-PROFILE

    The body is designed with a low profile in order to provide good forward visibility so operator does not lose sight of material as it enters the mower.

    The body is designed with a low profile in order to provide good forward visibility so operator does not lose sight of material as it enters the mower.

  • BENT AXIS PISTON MOTOR

    Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

    Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

  • CASE DRAIN – VENT TO ATMOSPHERE

    To prevent pressure relief activation on the motor seal, the FEB700 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you

    To prevent pressure relief activation on the motor seal, the FEB700 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you

  • ARMOURED AND SLEEVED HYDRAULIC HOSES

    Baumalight hoses are sleeved for hose protection and operator safety.

    Baumalight hoses are sleeved for hose protection and operator safety.

  • UNIVERSAL SKIDSTEER ADAPTOR

    Quickly and easily mount the Flail Mower to any skidsteer with the universal skidsteer plate.

    Quickly and easily mount the Flail Mower to any skidsteer with the universal skidsteer plate.

  • OVERTORQUE PROTECTION - RELIEF

    The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.

    The relief valve protects the motor and the hydraulic system from pressure spikes. When an obstacle is hit the relief valves open and relieves the pressure.

  • ADJUSTABLE BELT TENSIONER

    The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.

    The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.

  • LARGE DISCHARGE

    This design encourages discharge so the capacity of the machine increases substantially.

    This design encourages discharge so the capacity of the machine increases substantially.

  • FLOATING SKIDSTEER PLATE

    The unique floating back plate and independent linkage provide free movement and allows the mower to glide over uneven surfaces ensuring a uniform and consistently mowed finish in most types of terrain.

    The unique floating back plate and independent linkage provide free movement and allows the mower to glide over uneven surfaces ensuring a uniform and consistently mowed finish in most types of terrain.

  • POWDER COATED FINISH

    Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

    Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

  • GREASEABLE PINS

    Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

    Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

Detailed Specifications

Part #: FEB700/C540
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: FLAIL MOWER SKID STEER
Industry: CONSTRUCTION
Machine Size: SSL
Attachment Size: 88" WORKING WIDTH

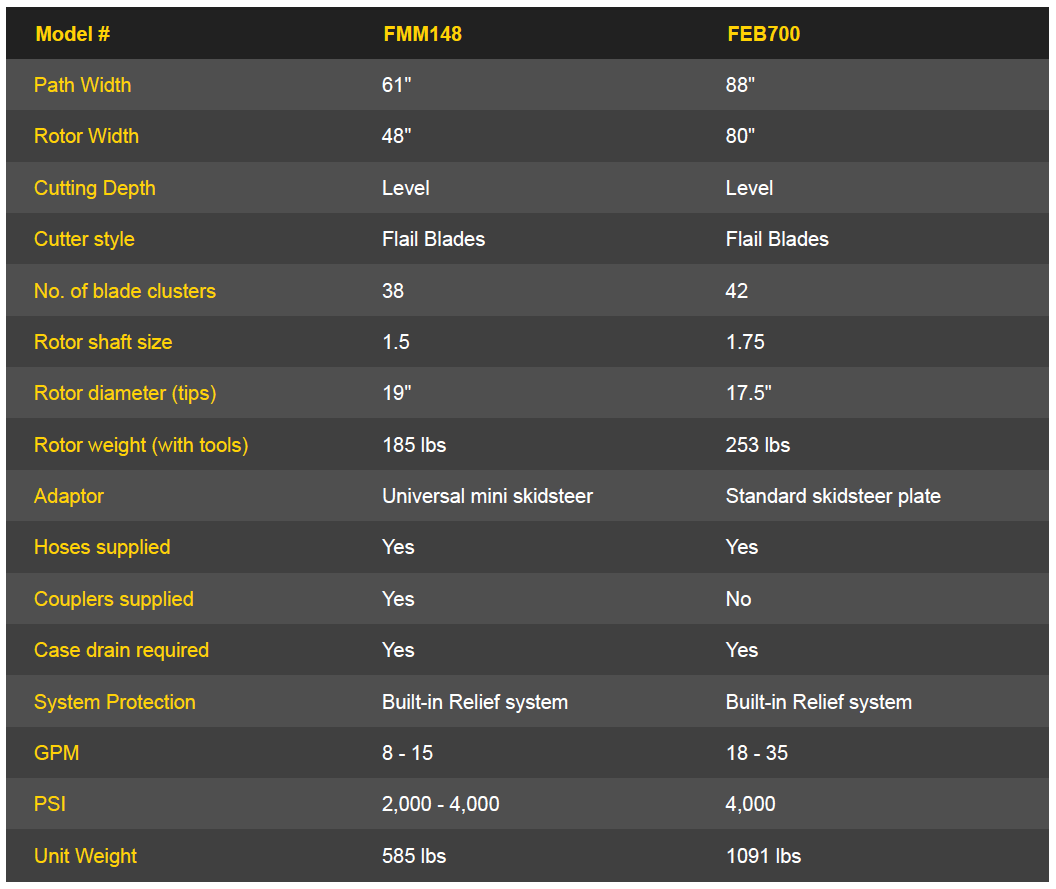

Comparison Chart

Model FMM148 FEB700
Path Width 61" 88"
Rotor Width 48" 80"
Cutting Depth Level Level
Cutter Style Flail Blades Flail Blades
Number of Blade Clusters 38 42
Rotor Shaft Size 1.5" 1.75"
Rotor Diameter (tips) 19" 17.5"
Rotor Weight (with tools) 185 lbs 253 lbs
Adaptor Universal mini skidsteer Standard skidsteer plate
Hoses Supplied Yes Yes
Couplers Supplied Yes No
Case Drain Required Yes Yes
System Protection Built-in Relief System Built-in Relief System
GPM 8 - 15 18 - 35
PSI 2,000 - 4,000 4,000
Unit Weight 585 lbs 1091 lbs
