Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70-85 HP | Hydraulic Flow 5-20 GPM | For Tractors & Skid Steers
Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70-85 HP | Hydraulic Flow 5-20 GPM | For Tractors & Skid Steers
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70-85 HP | Hydraulic Flow 5-20 GPM | For Tractors & Skid Steers
Description

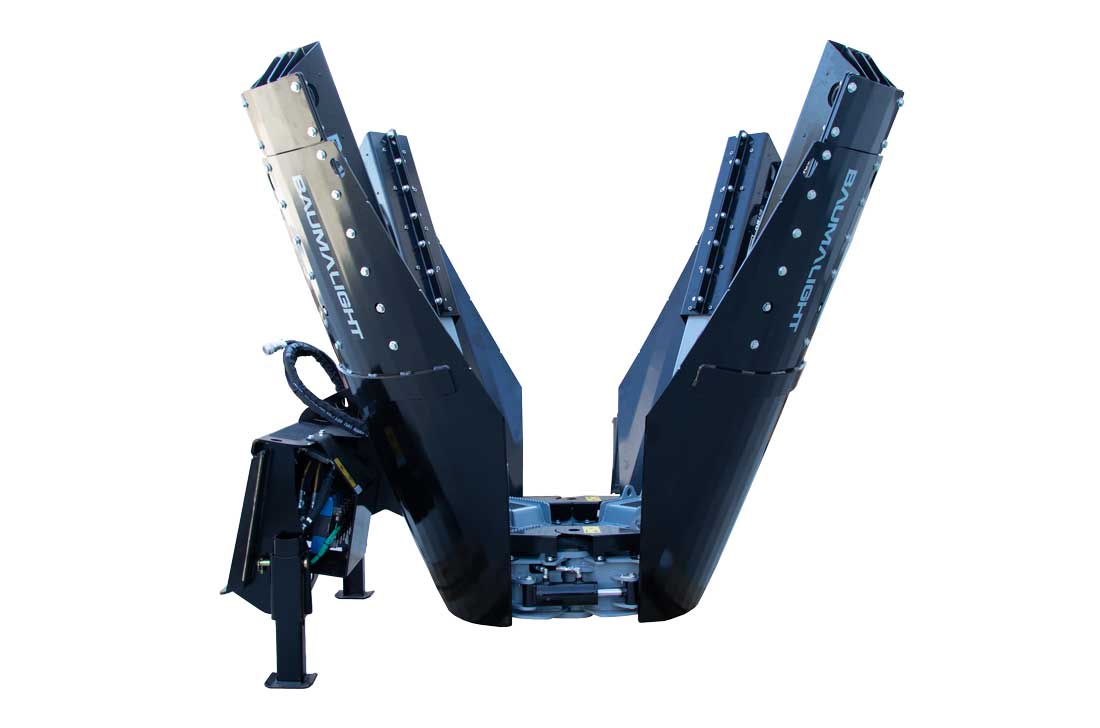

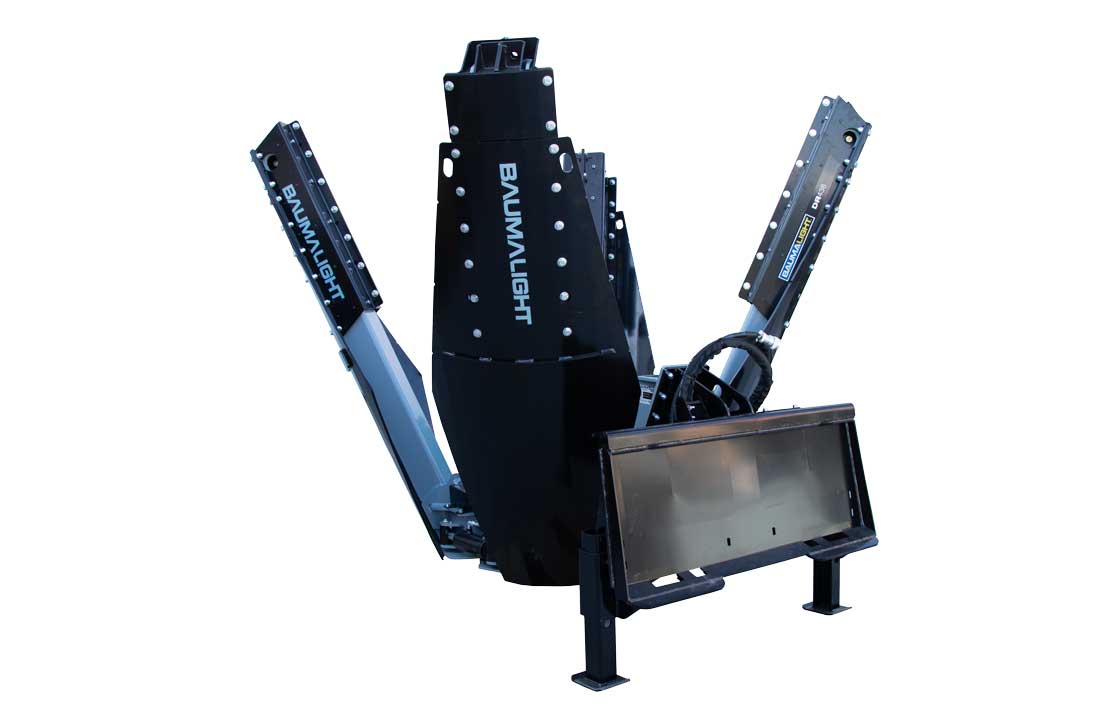

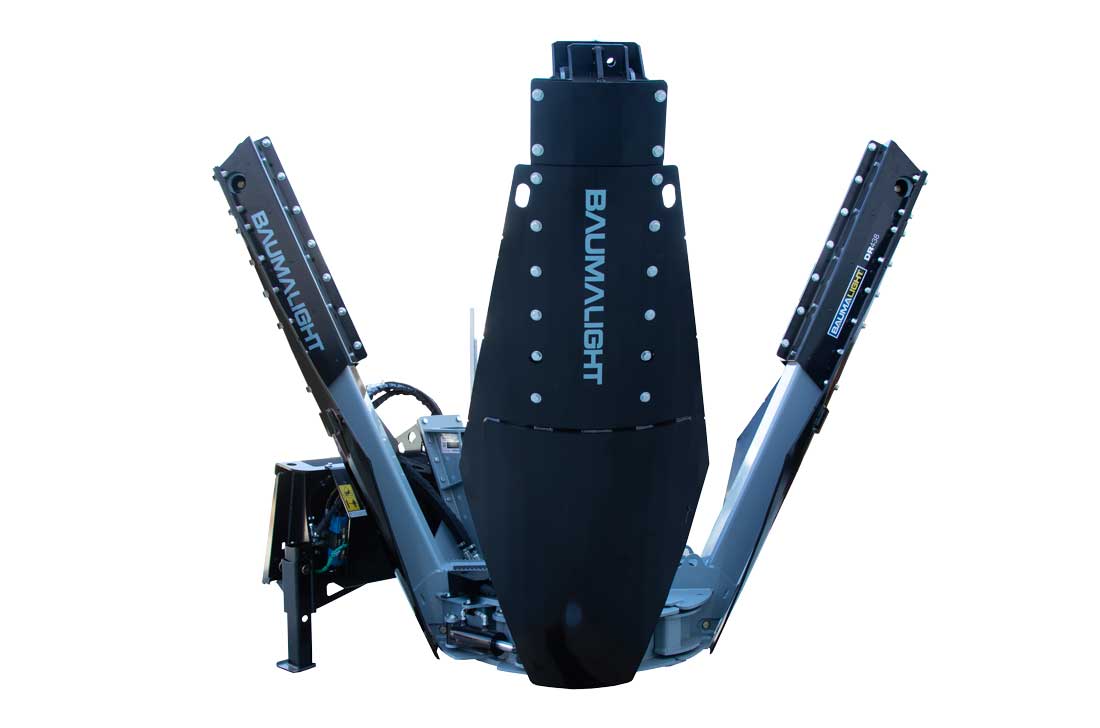

The DR438 tree spade is manufactured from high quality components with a goal to provide constant and reliable power for many years. The spades are made from heavy duty T1 steel and run off of your skidsteers hydraulic system for consistent, reliable power. During the lifting process, each spade is operated by a strong hydraulic cylinder, which helps to keep the spade in place.
The Baumalight DR438 Tree Spade is a small shovel that can handle many tasks, including digging in difficult soil. The spade is 38 inches in diameter and the blade is 5/16-inch thick made out of T1 steel is incredibly strong and can handle a lot of pressure. DR438 tree spade is easy to operate. The spade has intuitive controls that allow the operator to adjust the depth and angle of the spade to suit the task at hand. The spade has a locking mechanism that holds the tree in place.
Whether you're a professional landscaper, a tree nursery owner, or a DIY enthusiast, the Baumalight DR438 Tree Spade is an excellent choice for all your tree-moving needs. With its powerful hydraulics, compact design, and intuitive controls, this tree spade is the perfect tool for getting the job done quickly and efficiently.
Control Options & Features
Baumalight offers the DR438 tree spade with three different control configurations to match user needs:
- Electric Controls (20' Wire) – Requires 12V wiring to the spade.
- Wireless Controls (Needs 12V to Spade) – Provides remote operation flexibility.
- AUX Hydraulic Controls (Requires Skid Steer Make/Model) – Hydraulic-powered control system requiring skid steer specification for proper integration.
Key Features
| Feature | Description | Image |
|---|---|---|
| Anti Slip Step Pads | Non-slip step pads for easy entry and safer operation. |  |
| Adjustable Stabilizers | Two adjustable stabilizers on the skid steer plate for adapting to different root ball sizes. |  |
| JIC Fittings | Secure hydraulic connections for improved servicing and durability. |  |
| Sleeved Hoses | All hoses are sleeved for protection against wear and operator safety. |  |
| Powder Coat Finish | Heavy-duty construction with a durable powder-coated finish for longevity. |  |
| Lockable Latch | Hands-free lockable latch ensures a sturdier frame while spading trees. |  |
| Lifting Eye | Integrated lifting eyes for easy storage and transport. |  |
| Truncated Blades | Provide narrower bottom cuts for better soil penetration and compression in clay and sand. |  |
| Nylon Sliders | Long-life nylon sliders cover all 4 sides of the towers, requiring no grease and allowing smooth blade movement. |  |

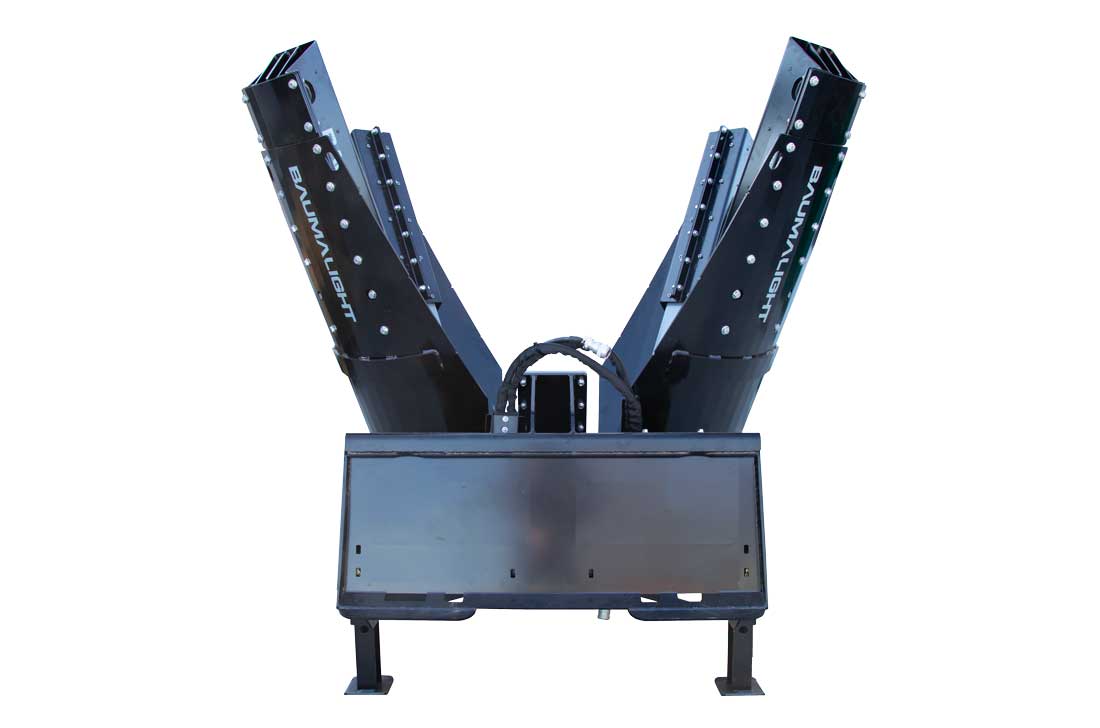

| Universal Skidsteer Adapter | Compatible with various skid steer models for easy attachment. |  |
| Bolt-in Tractor Loader Adapter | Optional feature (not included in the spade price). |  |
| Wide Range of Control Options | Baumalight remote control options improve tree spade efficiency. |  |
| Hardened Steel Bushings | Spring bushings made from chrome-vanadium AISI 6150 steel, ensuring durability at pivot points. |  |
| Greaseable Pins | Zinc-plated pins prevent corrosion for smooth operation over time. |  |
Detailed Specifications
Tree Spade Control Options |
|||
|---|---|---|---|
Feature |
Electric Controls |
Aux Connection |
Wireless Controls |
| Control Type | Wired Electric | Hydraulic Aux | Wireless Remote |
| Wire Length | 20 ft | Requires Harness | 20 ft |
| Live Pin Requirement | N/A | N/A | 1 Pin |
| Tree Size (Evergreen) | Up-to 4" | Up-to 4" | Up-to 4" |
| Tree Size (Hardwood) | Up-to 3.5" | Up-to 3.5" | Up-to 3.5" |
| Minimum Equipment Weight | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) |
Comparison Chart
DR Series Tree Spade Specifications |
||||
|---|---|---|---|---|
Feature |
DR434 |
DR438 |
DR444 |
DR448 |
| Tree Size (Evergreen) | 3.5" | 4" | 5" | 6" |
| Tree Size (Hardwood) | 3" | 3.5" | 4" | 5" |
| Root Ball Diameter (inches) | 34" | 38" | 44" | 48" |
| Root Ball Depth | 23" | 27" | 31" | 38" |
| Opening (Width) | 10" | 17" | 27" | 30" |
| Hydraulic Flow (GPM) | 5-20 | 5-20 | 5-20 | 5-20 |
| Blade Truncation | Semi | Semi | Semi | Full |
| Weight | 2480 | 2500 | 2950 | 3785 |
| Weight with Root Ball (lbs) | 2865 | 3410 | 4150 | 6020 |
Manual & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

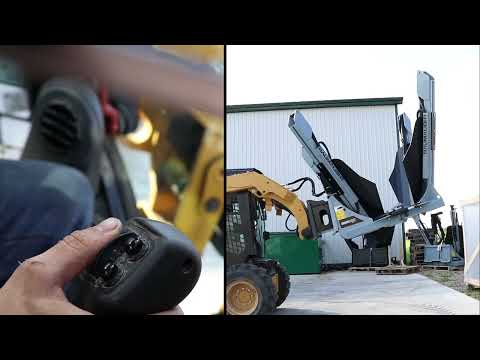

Videos
