Product Description
Baumalight Industrial Tree Spade | Model DR-444 | Ball Attachment Size 44" | Horsepower 80-90 HP | Hydraulic Flow 5-20 GPM | For Tractors & Skid Steers
Description
The DR444 tree spade is designed with a selection of high-quality components with a goal of a unit that is built to last. The spade itself is made from heavy-duty T1 steel, and the hydraulic system is designed to deliver consistent, reliable power for years to come. Each spade is operated by a powerful hydraulic cylinder, which helps to keep the spades in position when lifting the tree along with its root ball from the ground.

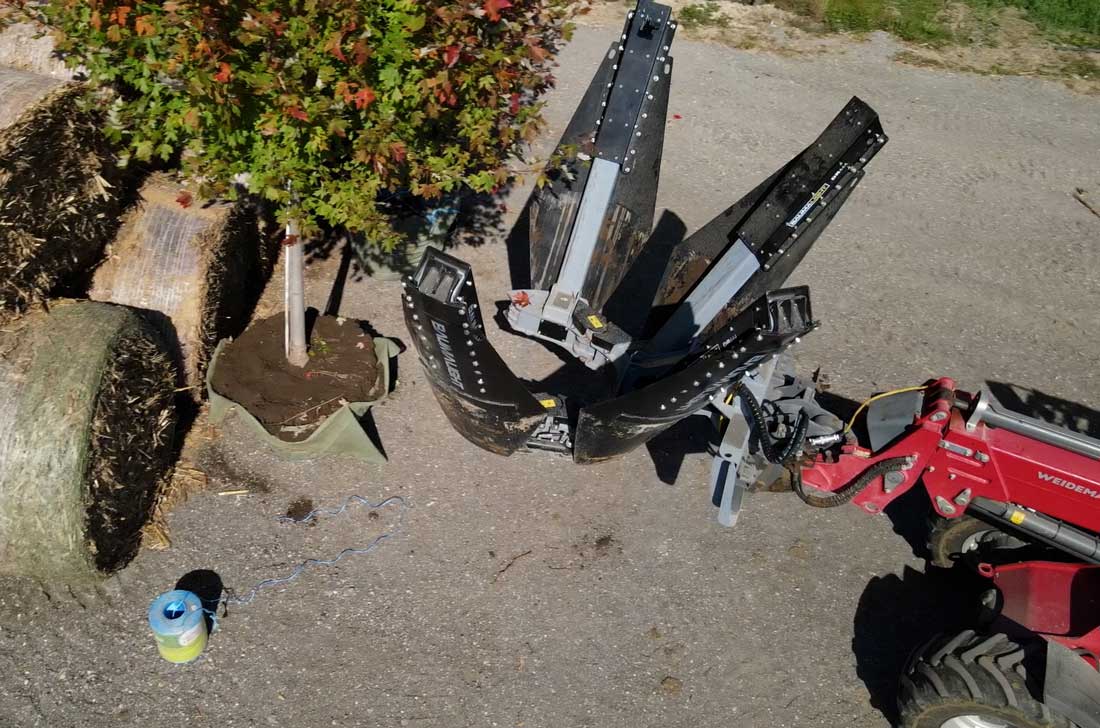

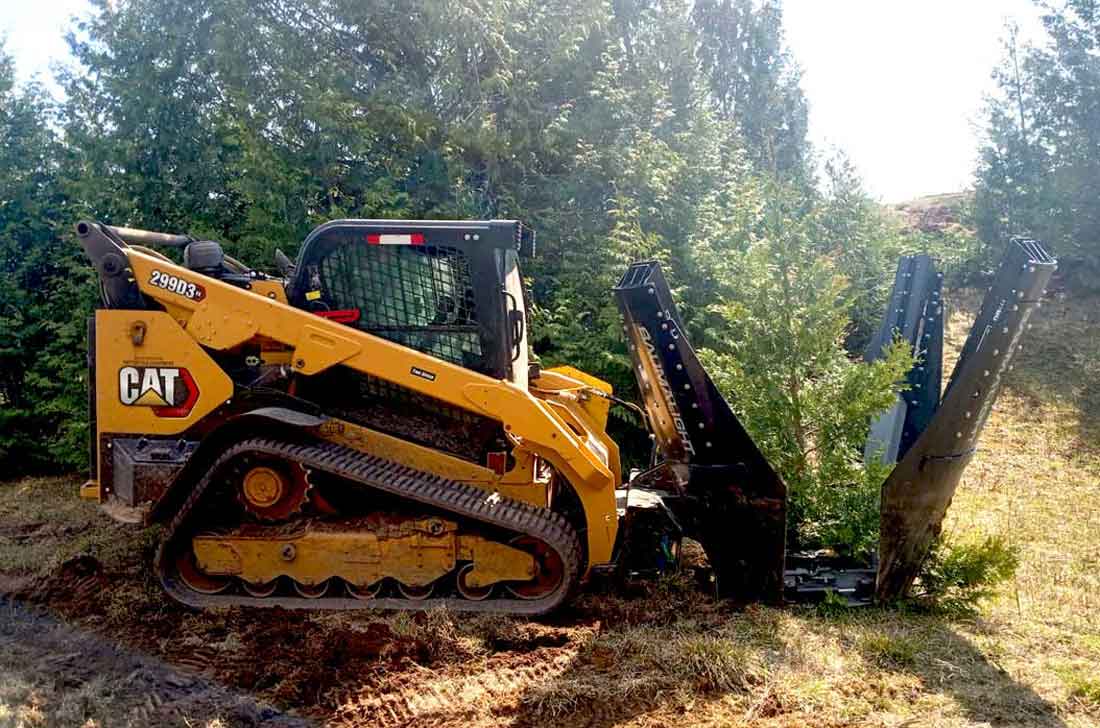

A features of the Baumalight DR444 is its compact design. Despite its capacity, the DR444 is designed to fit on a standard skid steer, making it easy to transport and use in a variety of settings. The spade measures 44 inches in diameter, making it ideal for trees up to 5 inches in diameter in soft woods and 4 inches in hardwood.
The blade thickness of the Dr444 tree spade is 5/16-inch T1, which is a type of high-strength steel known for its toughness and durability. This blade thickness ensures that the blade can cut through the soil and roots of the tree with ease, reducing the stress on the tree during transplantation.
Another key feature of the Baumalight DR444 Tree Spade is its ease of use. The spade is designed to be simple and straightforward, with intuitive controls that allow the operator to adjust the depth and angle of the spade to suit the task at hand. The spade is also equipped with a locking mechanism that keeps the tree securely in place during transport.
Whether you're a professional landscaper, a tree nursery owner, or a DIY enthusiast, the Baumalight DR444 Tree Spade is an excellent choice for all your tree-moving needs. With its powerful hydraulics, compact design, and intuitive controls, this tree spade is the perfect tool for getting the job done quickly and efficiently.
Control Options & Features
Baumalight offers the DR444 tree spade with three different control configurations to match user needs:
- Electric Controls (20' Wire) – Requires 12V wiring to the spade.
- Wireless Controls (Needs 12V to Spade) – Provides remote operation flexibility.
- AUX Hydraulic Controls (Requires Skid Steer Make/Model) – Hydraulic-powered control system requiring skid steer specification for proper integration.
Key Features
| Feature | Description | Image |
|---|---|---|

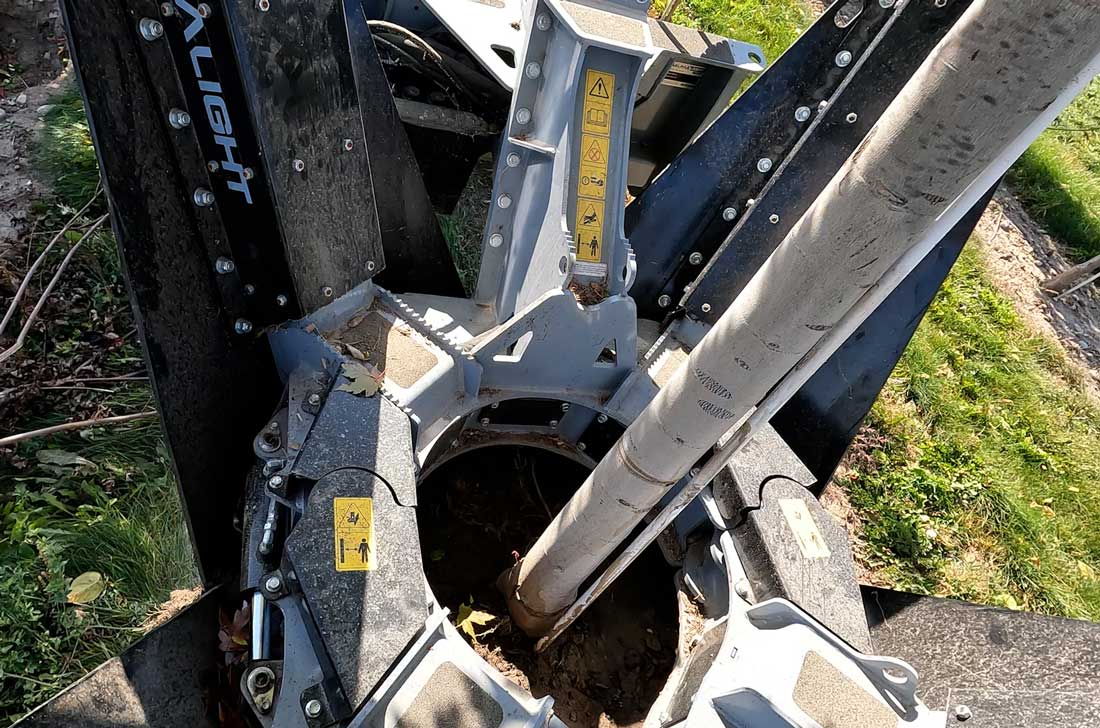

| Anti Slip Step Pads | Non-slip step pads for easy entry and safer operation. |  |
| Adjustable Stabilizers | Two adjustable stabilizers on the skid steer plate for adapting to different root ball sizes. |  |

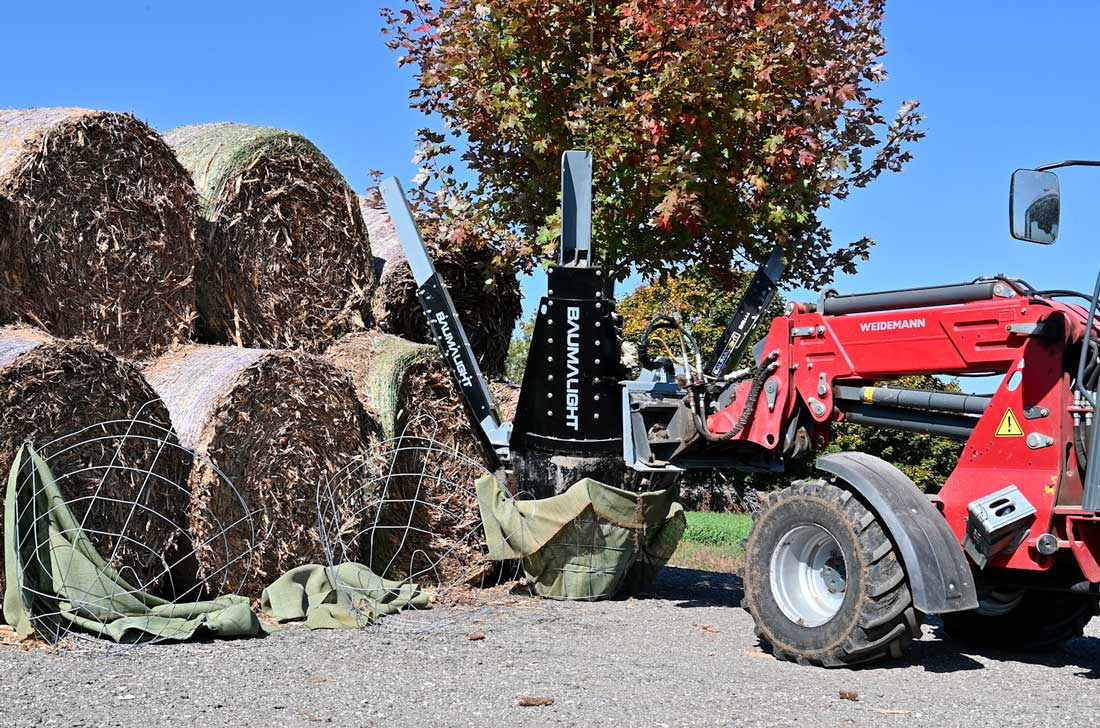

| JIC Fittings | Secure hydraulic connections for improved servicing and durability. |  |
| Sleeved Hoses | All hoses are sleeved for protection against wear and operator safety. |  |

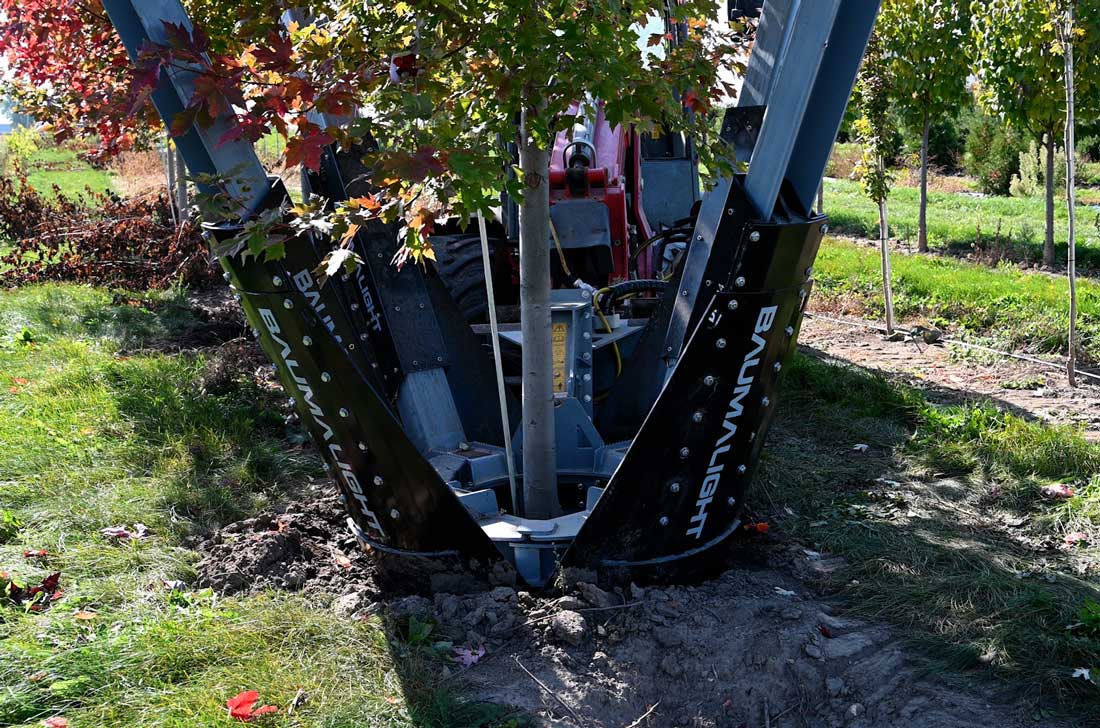

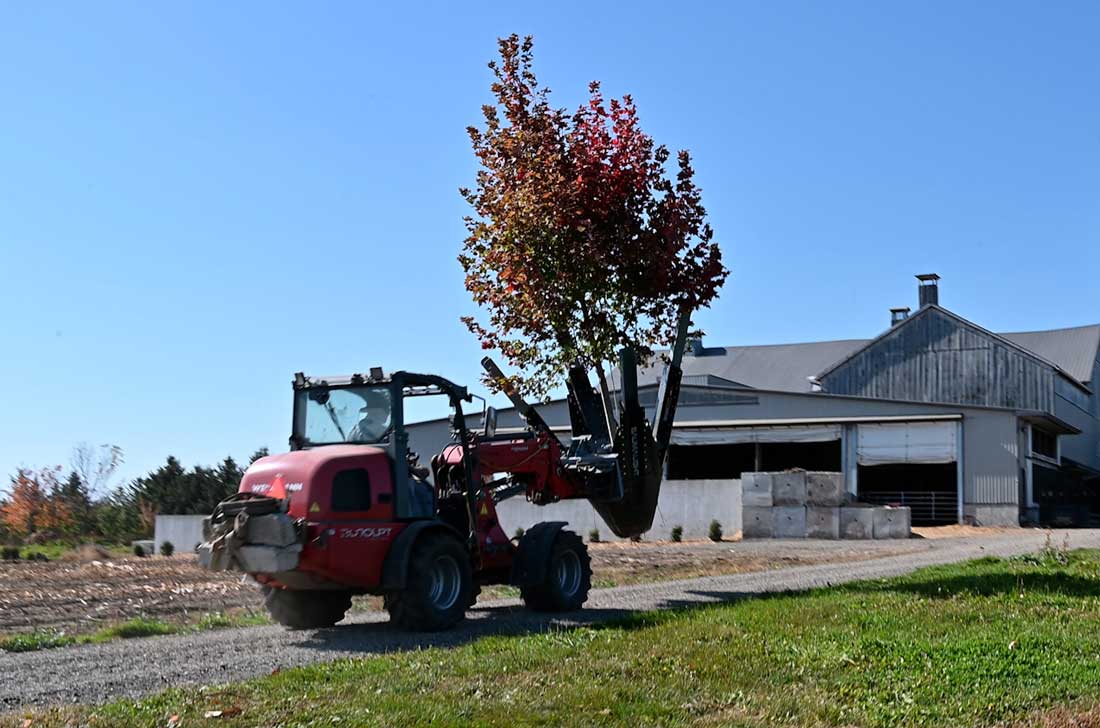

| Powder Coat Finish | Heavy-duty construction with a durable powder-coated finish for longevity. |  |
| Lockable Latch | Hands-free lockable latch ensures a sturdier frame while spading trees. |  |

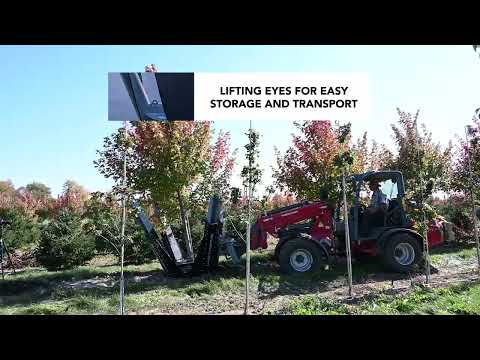

| Lifting Eye | Integrated lifting eyes for easy storage and transport. |  |

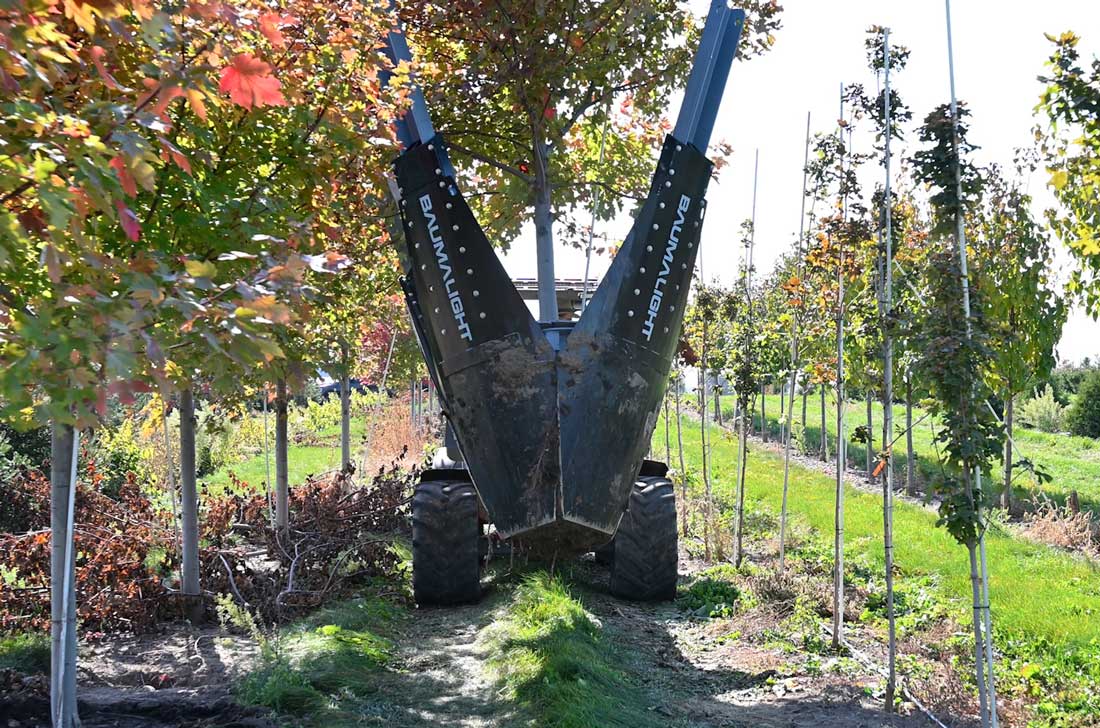

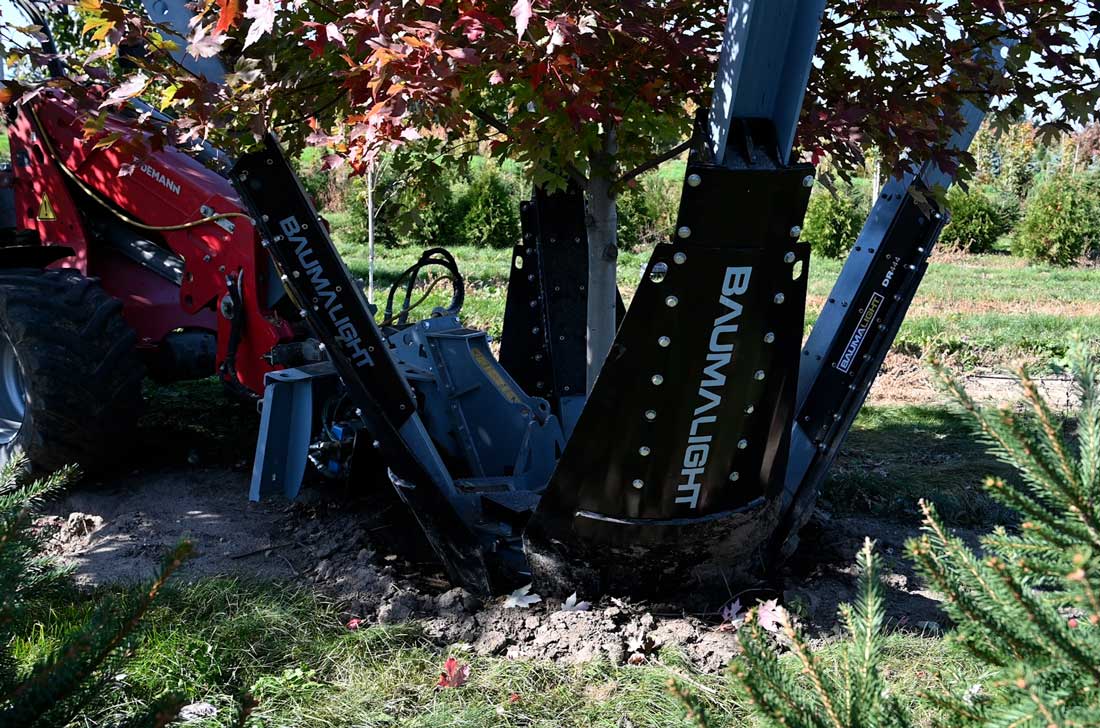

| Truncated Blades | Provide narrower bottom cuts for better soil penetration and compression in clay and sand. |  |
| Nylon Sliders | Long-life nylon sliders cover all 4 sides of the towers, requiring no grease and allowing smooth blade movement. |  |

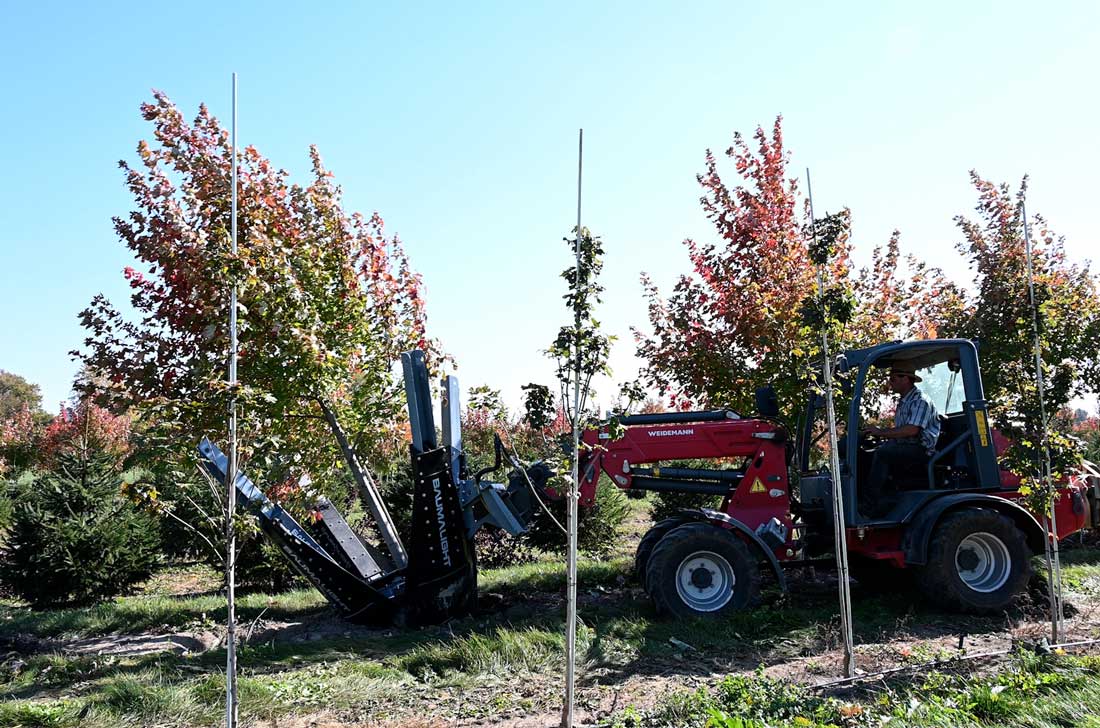

| Universal Skidsteer Adapter | Compatible with various skid steer models for easy attachment. |  |
| Bolt-in Tractor Loader Adapter | Optional feature (not included in the spade price). |  |
| Wide Range of Control Options | Baumalight remote control options improve tree spade efficiency. |  |
| Hardened Steel Bushings | Spring bushings made from chrome-vanadium AISI 6150 steel, ensuring durability at pivot points. |  |
| Greaseable Pins | Zinc-plated pins prevent corrosion for smooth operation over time. |  |
Detailed Specifications
Tree Spade Control Options |
|||
|---|---|---|---|
Feature |
Electric Controls |
Aux Connection |
Wireless Controls |
| Control Type | Wired Electric | Hydraulic Aux | Wireless Remote |
| Wire Length | 20 ft | Requires Harness | 20 ft |
| Live Pin Requirement | N/A | N/A | 1 Pin |
| Tree Size (Evergreen) | Up-to 5" | Up-to 5" | Up-to 5" |
| Tree Size (Hardwood) | Up-to 4" | Up-to 4" | Up-to 4" |
| Minimum Equipment Weight | 7,000-10,000 lbs (varies by equipment type) | 7,000-10,000 lbs (varies by equipment type) | 7,000-10,000 lbs (varies by equipment type) |
Comparison Chart
DR Series Tree Spade Specifications |
||||
|---|---|---|---|---|
Feature |
DR434 |
DR438 |
DR444 |
DR448 |
| Tree Size (Evergreen) | 3.5" | 4" | 5" | 6" |
| Tree Size (Hardwood) | 3" | 3.5" | 4" | 5" |
| Root Ball Diameter (inches) | 34" | 38" | 44" | 48" |
| Root Ball Depth | 23" | 27" | 31" | 38" |
| Opening (Width) | 10" | 17" | 27" | 30" |
| Hydraulic Flow (GPM) | 5-20 | 5-20 | 5-20 | 5-20 |
| Blade Truncation | Semi | Semi | Semi | Full |
| Weight | 2480 | 2500 | 2950 | 3785 |
| Weight with Root Ball (lbs) | 2865 | 3410 | 4150 | 6020 |
