Baumalight | Log Grapple | LMH316G | 39.65" Opening | Hydraulic Flow 5-20 GPM | For Mini Skid Steers
Baumalight | Log Grapple | LMH316G | 39.65" Opening | Hydraulic Flow 5-20 GPM | For Mini Skid Steers
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight | Horizontal Tree Shear | ISH918G | Limb Size 18" | Weight Class 7,000–18,000 lb. | Hydraulic Flow 20–70 GPM | For Skid Steers
DESCRIPTION

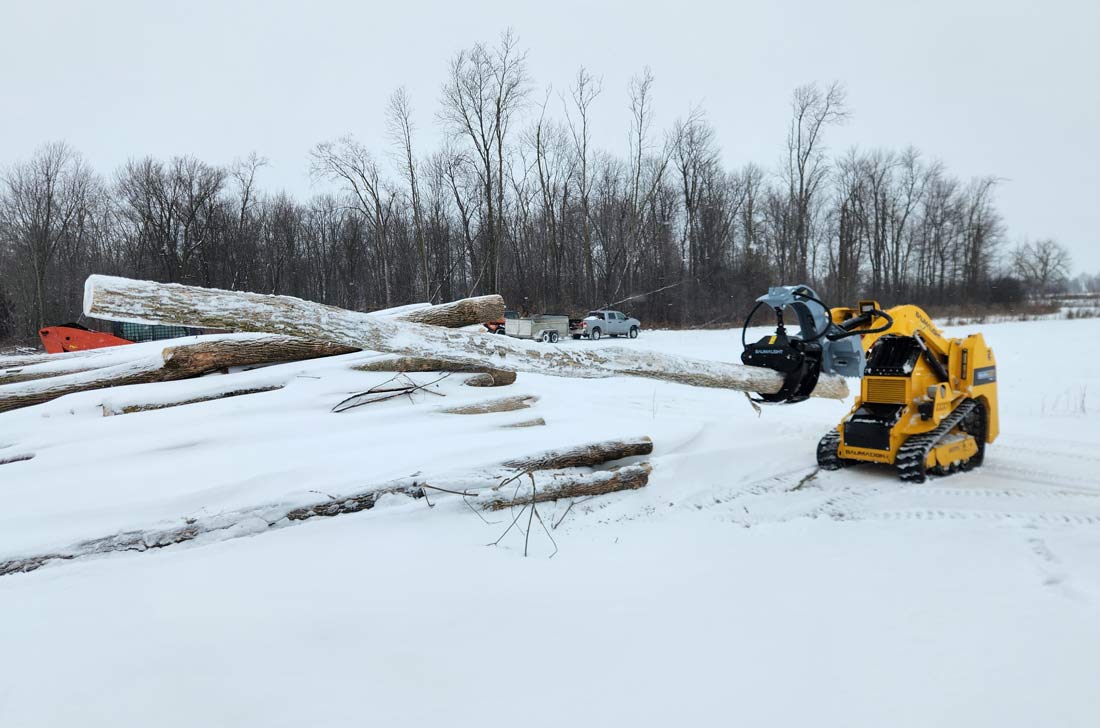

Introducing the Baumalight Log Grapple, the perfect attachment for mini skid steers designed to enhance your material handling capabilities. Engineered for efficiency and strength, this log grapple is ideal for lifting, moving, and securing logs and debris with ease. With a generous grapple opening of 39.65 inches and a powerful clamp force of 19,792 lbs at 2800 psi, you can confidently tackle a variety of tasks, from landscaping to forestry.
The Log Grapple features a robust chain rotation system that ensures smooth and reliable operation, allowing you to maneuver logs with precision. Its compact design, combined with a total weight of 377.3 lbs, makes it a versatile addition to your equipment lineup. Whether you're clearing land, managing woodlots, or handling firewood, the Baumalight Log Grapple is your go-to tool for efficient log handling.
Key Features
- Powerful Clamp Force: With a clamp force of 19,792 lbs at 2800 psi, this grapple can securely hold and transport logs of varying sizes.
- Wide Grapple Opening: The 39.65-inch opening allows for easy handling of logs and debris, making it suitable for a range of applications.
- Chain Rotation System: The chain rotation mechanism provides smooth and reliable operation, enhancing your control over the grapple.
- Versatile Log Holding Size: Capable of holding logs ranging from 4 inches to 16 inches in diameter, making it adaptable for different tasks.
- Lightweight Design: Weighing in at 377.3 lbs, this grapple is designed for mini skid steers, ensuring compatibility without compromising performance.
- Common Mini Skid Steer Interface: The mounting system is designed to fit most mini skid steers, making it easy to attach and detach as needed.
- Recommended Hydraulic Flow: Optimized for hydraulic flow rates of 5-20 GPM, ensuring efficient operation with a variety of machines.
- Engine HP Range: Suitable for engines with horsepower ranging from 12 to 45, making it versatile for different mini skid steer models.
Detailed Specifications
|
Specification |
Details |
|---|---|
|
Model |
LMH316G |
|
Grapple Opening |
39.65” |
|
Grapple Rotation |
Chain |
|
Clamp Force |
19,792 lbs at 2800 psi |
|
Total Weight |
377.3 lbs (171.14 kg) |
|
Dimensions (LxWxH) |
29” x 34.1” x 45” |
|
Mounting System |
Common Mini Skid Steer Interface |
|
Min/Max Log Holding Size |
4” - 16” |
|
Recommended Hydraulic Flow |
5-20 GPM |
|
Engine HP Range |
12-45 HP |
