Product Description
Baumalight Log Splitter | Model RSX380 & RSX580 | Width 16" & 18" | Machine Size 5-10 Tons | For Excavators
DESCRIPTION

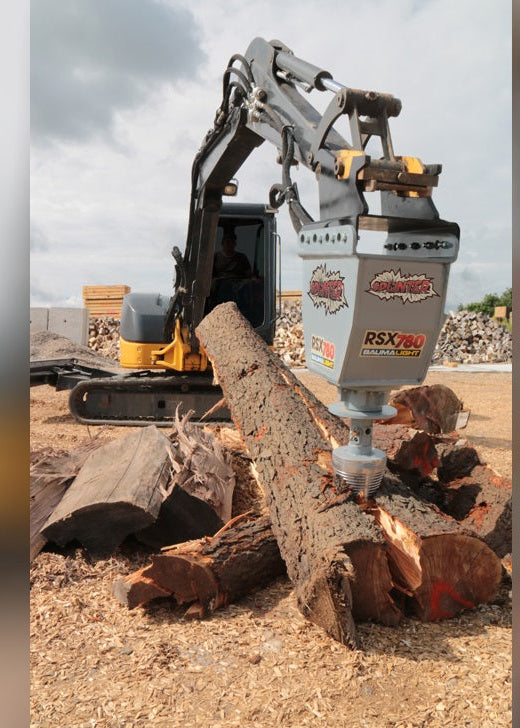

The Baumalight RSX Series wood splitters are designed for high-output log splitting and stump planing using compact to mid-size excavators and tractors. These rugged, hydraulically powered attachments use a planetary drive system to deliver up to 3,800 ft/lbs of torque, efficiently driving into logs or stumps to split or grind with minimal vibration and clean, chip-free operation.
Perfect for urban applications, rental yards, and forestry, the Splinter Screw system excels in debris-sensitive environments, producing large, manageable chips with low RPM rotation, reducing flying debris. Each unit features a hardened, replaceable splitter tip, powder-coated finish, and rubber mounts to reduce vibration and extend drive life.
No electrical wiring is required, streamlining installation. Thanks to the bolt-on excavator adaptors, these splitters can be swapped between machines, enhancing fleet utility and resale value. Each RSX model supports fast tool changes between splitter cones and stump planer bits, offering both versatility and cost efficiency on the jobsite.
Key Features
- High Splitting Force: Provides 20 tons of splitting force, capable of handling large logs.
- Efficient Operation: Hydraulic flow rate of 12 - 25 GPM for powerful performance.
- Robust Construction: Built with high-grade steel for durability and long-lasting use.
- Versatile Mounting: Quick attach mount for easy and fast installation on excavators.
- Adjustable Splitting Length: Can handle logs up to 30 inches in length.
- User-Friendly Control: Manual or hydraulic control options for ease of operation.
- Wide Application: Ideal for forestry and land management tasks.
Splinter Screw Wood Splitter – Key Features & Attachments |
|
|---|---|
| Heavy Duty Build | Encased structure locks in for durability under high load applications. |
| Protective Powder Coat | Rugged powder coated finish resists corrosion and wear. |
| Planetary Drive | Hydraulically powered, delivering up to 3,800 ft/lbs of torque. |
| No 12V Required | Simple installation without electrical wiring makes setup easier. |
| Main Shaft Seal Protection | Flanged design shields bearing seals from chip and dust intrusion. |
| No Flying Chips | Low RPM operation minimizes airborne debris—ideal for clean worksites. |
| Urban-Friendly Design | Perfect for enclosed environments where debris containment is critical. |
| Larger Chips | Faster grinding of large stumps; mulch output helps nourish nearby trees. |

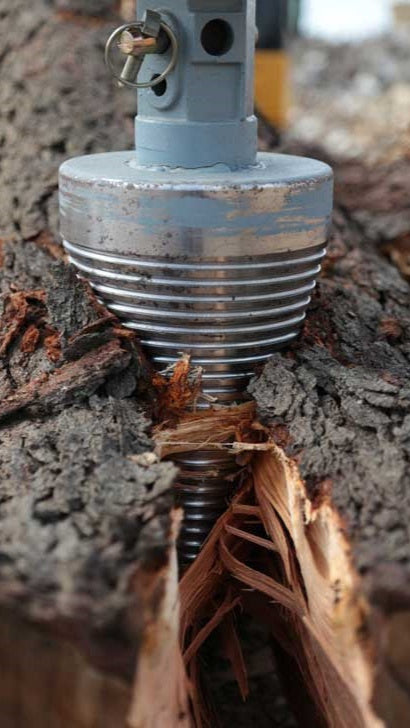

| Hardened Replaceable Tip | Long-wear hardened tip boosts lifespan and is field-replaceable. |
| Sharpenable Blades | AR500 and AR400 blades can be sharpened to reduce long-term costs. |
| Bolt-On Excavator Adaptor | Allows swapping between carriers for greater utility and resale value. |
| Easy to Change Bits | Convert between splitting and grinding configurations quickly. |
| Rubber Mounts | Absorb vibration and reduce stress on drive components. |
| Auger Attachment | Pengo's 40/50 dual-angle bit with Tri-Flow pilot boosts cutting precision in hard-packed soils. |
| Log Splitter Attachment | Helically machined spiral drives through logs up to 12–20 ft long for high-output splitting. |
Detailed Specifications
RSX Series Splitter & Planer Specifications |
|||
|---|---|---|---|
Feature |
RSX380 |
RSX580 |
RSX780 |
| Baumalight Connection Code | A02 | A02 | A03 |

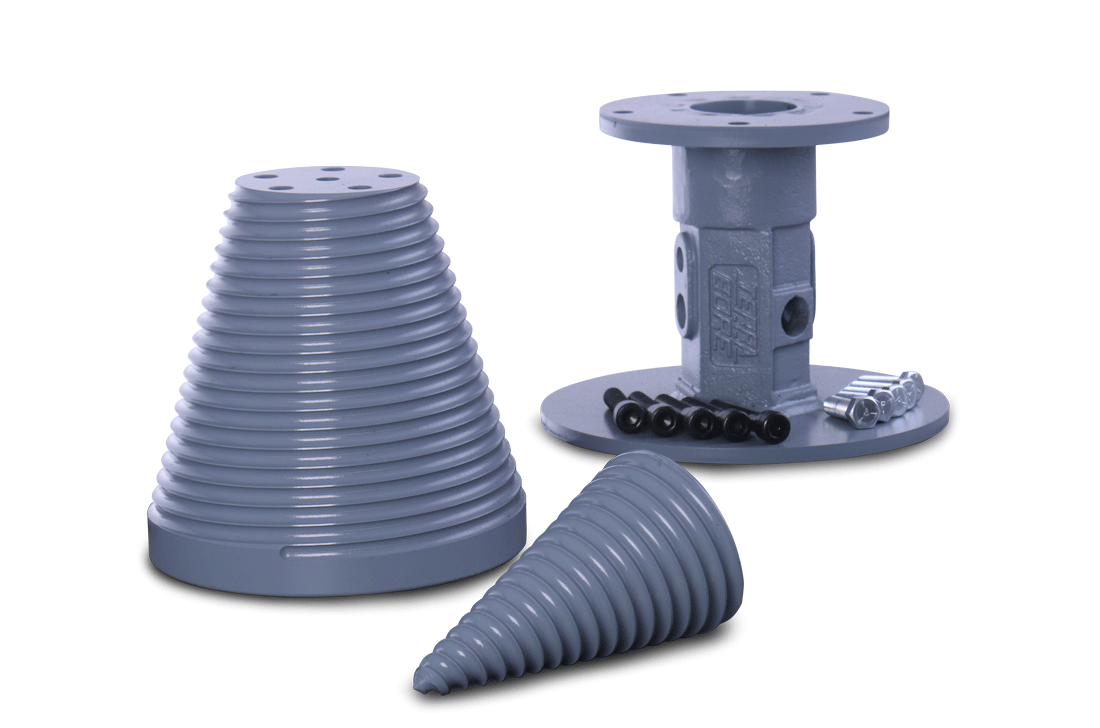

| Splitter Tools | 2" Hex 14x8 splitter cone (D002193) | 2" Hex 14x8 splitter cone (D002193) | 8-bolt flange mount 14x8 splitter cone (D003935) |
| Adaptor | Bolt-on | Bolt-on | Bolt-on |
| Carrier Weight for Planer | 5 ton (Max lbs) | 8 ton (Max lbs) | 18 ton (Max lbs) |
| Carrier Weight for Splitter | 10 ton (Max lbs) | 10 ton (Max lbs) | 20 ton (Max lbs) |
| Recommended GPM | 20–40 | 20–45 | 20–55 |
| Max. GPM | 45 | 45 | 65 |
| Recommended PSI | 2500–3000 | 2500–3000 | 2500–4500 |
| Max. PSI | 3500 | 3500 | 5000 |
| Drive Size | 2" Hex | 2" Hex | 8 Bolt Flange |
| Drive Type | Planetary | Planetary | Planetary |
| Hoses Included | No | No | No |
