Baumalight

Baumalight Heavy Duty Fixed Tooth Mulcher | Model 960/MS1160 | 60" Cutting Width | For Skid Steer

Baumalight Heavy Duty Fixed Tooth Mulcher | Model 960/MS1160 | 60" Cutting Width | For Skid Steer

Regular price $30,536.00
Regular price Sale price $30,536.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Efficient Cutting Path: 75" mulching width for high-efficiency brush clearing.
  • Powerful Motor: Equipped with a bent-axis piston motor and 2-speed options.
  • Fixed Tooth System: 31 sharpenable planer teeth for superior mulching performance.
  • Enhanced Visibility & Control: Open front with directional felling hook and push bar.
  • High Compatibility: Suited for skid steers with a minimum weight of 7,000 lbs and high-flow hydraulics.
View full details

Product Description

Baumalight Mulcher High Flow 2 Speed Motor Option | Model 960/MS1160 | 60" Cutting Width | For Skid Steer

DESCRIPTION

MS1160/D117X2

MS1160 Heavy Duty Fixed Tooth Bit Limiting Ring Mulcher for Skidsteer **CASE DRAIN REQUIRED**2 SPEED MOTOR OPTION

MS1160 Heavy Duty Fixed Tooth Mulcher for Skidsteer The Baumalight MS1160 Brush Mulcher has a 75” mulching path and is designed for skidsteers with a 7,000 lb minimum weight. The MS1160 comes with unique performance boosting mulcher rings (licensed by Denis Cimaf) and is powered by a bent axis piston motor. The MS1160 uses a fixed tooth holder and comes with 31 sharpenable planer teeth (R1100), as you will see in the brush cutting size charts this allow mulching of much larger material with an average skidsteer. The carbide ripper R9000 teeth also can be put in for mulching with lots of ground contact. The MS1160 skidsteer mulcher also come with a large pressure gauges which is very handy to watch and see how close you are to maximum pressure; ensuring that you maintain an optimal flow. See our brush cutting size chart to see what limb size this heavy duty skidsteer mounted forestry mulcher can handle.

 MS1160/C1150

MS1160 Heavy Duty Fixed Tooth Bit Limiting Ring Mulcher for Skidsteer **CASE DRAIN REQUIRED**

MS1160 Heavy Duty Fixed Tooth Mulcher for Skidsteer The Baumalight MS1160 Brush Mulcher has a 75” mulching path and is designed for skidsteers with a 7,000 lb minimum weight. The MS1160 comes with unique performance boosting mulcher rings (licensed by Denis Cimaf) and is powered by a bent axis piston motor. The MS1160 uses a fixed tooth holder and comes with 31 sharpenable planer teeth (R1100), as you will see in the brush cutting size charts this allow mulching of much larger material with an average skidsteer. The carbide ripper R9000 teeth also can be put in for mulching with lots of ground contact. The MS1160 skidsteer mulcher also come with a large pressure gauges which is very handy to watch and see how close you are to maximum pressure; ensuring that you maintain an optimal flow. See our brush cutting size chart to see what limb size this heavy duty skidsteer mounted forestry mulcher can handle.

MS960/C950

MS960 Heavy Duty Fixed Tooth Mulcher for Skidsteer**CASE DRAIN REQUIRED** NO COUPLERS SUPPLIED

The 900 series Baumalight Brush Fire brush mulchers are a new heavier duty bush mulcher that we started developing in 2018 The 900 Series teeth are available in either Double Carbit Tipped Ripper or Single Blade Planer style. The carbide Ripper tooth is the good general use tooth for mulching with lots of ground contact, if there are not many stones then the Planer tooth is a little bit more efficient. The 900 series skidsteer mulchers also come with pressure gauges which is very handy to watch and see how close you are to maximum pressure; once you start blowing over relief the mulcher becomes very unproductive. Operating a Brush Mulcher from a skid steer is probably the most comfortable way for vegetation management as your work is directly in front of you and new skidsteers are very operator comfort focused. See our brush cutting size chart to see what limb size this heavy duty skidsteer mounted forestry mulcher can handle.

MS960/D97X2

MS960 Heavy Duty Fixed Tooth Mulcher for Skidsteer**CASE DRAIN REQUIRED** NO COUPLERS SUPPLIED 2 SPEED MOTOR OPTION

The 900 series Baumalight Brush Fire brush mulchers are a new heavier duty bush mulcher that we started developing in 2018 The 900 Series teeth are available in either Double Carbit Tipped Ripper or Single Blade Planer style. The carbide Ripper tooth is the good general use tooth for mulching with lots of ground contact, if there are not many stones then the Planer tooth is a little bit more efficient. The 900 series skidsteer mulchers also come with pressure gauges which is very handy to watch and see how close you are to maximum pressure; once you start blowing over relief the mulcher becomes very unproductive. Operating a Brush Mulcher from a skid steer is probably the most comfortable way for vegetation management as your work is directly in front of you and new skidsteers are very operator comfort focused. See our brush cutting size chart to see what limb size this heavy duty skidsteer mounted forestry mulcher can handle.

Key Features

  • Replaceable Bolt-in Liner: AR400 steel wear plates ensure durability and easy maintenance.
  • Integrated Push Bar: Adds control for felling larger brush and trees.
  • Directional Felling Hook: Guides the mulching of wayward branches and dense vegetation.
  • Adjustable Skid Shoes: Customize cutting height for optimal performance.
  • Spring-Loaded Hose Support: Protects hydraulic hoses during operation for extended durability.
  • Bent Axis Piston Motor: Delivers maximum hydraulic efficiency for heavy-duty brush clearing.
  • REPLACEABLE BOLT-IN LINER

    Save time by easily replacing the AR400 steel wear plates on the MS1160 without needing to remove the rotor.

  • INTEGRATED PUSH BAR

    When push comes to shove, the integrated push bar helps control

  • DIRECTIONAL FELLING HOOK

    Built into the pusher bar, the directional felling hook will directionally control wayward trees, sprawling clumps and low hanging limbs.

  • ADJUSTABLE SKID SHOES

    The two replaceable skid shoes allow the operator to adjust the cutting height for optimal clearing performance.

  • ROLL BACK TO FELL STANDING TREES

    The MS1160’s frame is angled so that you can roll back the Brushy Mulcher, pulling back the pusher bar so that you can fully engage the mulching head. This allows the operator to use the mulching head to fell standing trees.

  • SPRING LOADED HOSE SUPPORT

    Take full advantage of the forward curl and roll back of the MS1160 without risking expensive damage to the hoses. Unique to the Baumalight Brush Mulcher, the spring loaded hose support prevents the hoses from falling into harm’s way during forward curl.

  • ADJUSTABLE BELT TENSIONER

    The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.

  • ENHANCED OPERATOR VISIBILITY

    The improved design of the MS1160 mulcher head now allows the operator better visibility to the area you are mulching.

  • BENT AXIS PISTON MOTORS ARE A STANDARD OPTION

    Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

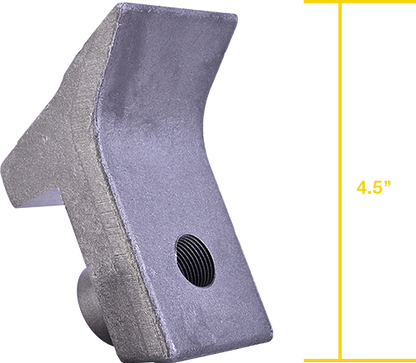

  •  11000 SERIES MULCHER TOOTH

  • CASE DRAIN – VENT TO ATMOSPHERE

    To prevent pressure relief activation on the motor seal, the MS1160 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank.

Down ArrowUp ArrowLeft ArrowRight ArrowHide

HOST MACHINERight Arrow

MS1160/D117X2

HideLeft Arrow

ASV RT120 HIGH FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T870 HIGH FLOW

CASE TV370 HIGH FLOW

CASE TV450 ENHANCED HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

JOHN DEERE 333G HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

MUSTANG 3200VT HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

WACKER NUESON ST45 HIGH FLOW

WACKER NUESON ST50 HIGH FLOW

NEW HOLLAND C332 HIGH FLOW

NEW HOLLAND C334 HIGH FLOW

NEW HOLLAND C362 HIGH FLOW


MS1160/C1150

HideLeft Arrow



CASE TV450 ENHANCED HIGH FLOW

ASV RT120 HIGH FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T870 HIGH FLOW

CASE TV370 HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

JOHN DEERE 333G HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

MUSTANG 2550RT STANDARD FLOW

MUSTANG 3200VT HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

WACKER NUESON ST45 HIGH FLOW

WACKER NUESON ST50 HIGH FLOW

NEW HOLLAND C332 HIGH FLOW

NEW HOLLAND C334 HIGH FLOW

NEW HOLLAND C362 HIGH FLOW

Down Arrow

MS960/C950HideLeft Arrow

JOHN DEERE 333G HIGH FLOW

ASV RT120 HIGH FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T870 HIGH FLOW

CASE TV370 HIGH FLOW

CASE TV370 HIGH FLOW

CASE TV450 ENHANCED HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

MUSTANG 2550RT STANDARD FLOW

MUSTANG 3200VT HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

KUBOTA SVL95 HIGH FLOW


Detailed Specifications

Model No. MS960 MS1160
Mount Universal Skidsteer Universal Skidsteer
Path Width 75" 75"
Rotor Width 60" 60"
Minimum Carrier Weight 7,000 lbs 7,000 lbs
Cutting Depth 1.5" Above to 2" Below Grade 1.125" Above to 2.375" Below Grade
Holder Style Fixed Fixed
Tool Style Double Tipped Sharpenable Planer
Tooth Part Number R9000 P11000
Number of Cutters 38 31
Rotor Diameter (Tool Tips) 18.5" 19.3"
Rotor Weight (With Tools) 860 lbs 860 lbs
Case Drain Critical Critical
Hydraulic Couplers Not Included Not Included
Unit Shipping Weight 2,975 lbs 2,800 lbs



Comparison Chart

Model No. Mount Path Width Rotor Width Minimum Carrier Weight Cutting Depth Holder Style Tool Style Tooth Part Number Number of Cutters Rotor Diameter (Tool Tips) Rotor Weight (With Tools) Case Drain Hydraulic Couplers Unit Shipping Weight
MS348 Universal Skidsteer 60" 48" 3,000 lbs Level Fixed High-Speed Teeth H3000 60 15" 230 lbs Not Important Included 950 lbs
MS530M Standard Mini Skidsteer 42" 30" 2,000 lbs 1.5" Above to Level Fixed Carbide Tipped Bolt In P5000 44 15" 300 lbs Critical Not Included 715 lbs
MS548 Universal Skidsteer 62" 48" 4,000 lbs 1.5" Above to Level Fixed Carbide Tipped Bolt In P5000 72 15" 480 lbs See Motor Options Not Included 1,491 lbs
MS560 Universal Skidsteer 75" 60" 5,500 lbs 1.5" Above to 1" Below Grade Fixed Carbide Tipped Bolt In P5000 92 15" 575 lbs Critical Not Included 2,266 lbs
MS572 Universal Skidsteer 87" 72" 6,000 lbs 1.5" Above to 1" Below Grade Fixed Carbide Tipped Bolt In P5000 112 15" 700 lbs Critical Not Included 2,975 lbs
MS960 Universal Skidsteer 75" 60" 7,000 lbs 1.5" Above to 2" Below Grade Fixed Double Tipped R9000 38 18.5" 860 lbs Critical Not Included 2,975 lbs
MS972 Universal Skidsteer 84" 72" 7,500 lbs 1.5" Above to 2" Below Grade Fixed Double Tipped R9000 43 18.5" 1,105 lbs Critical Not Included 3,115 lbs
MS1160 Universal Skidsteer 75" 60" 7,000 lbs 1.125" Above to 2.375" Below Grade Fixed Sharpenable Planer P11000 31 19.3" 860 lbs Critical Not Included 2,800 lbs




Manuals & Documents

The Product Manual

 General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos





SERVICE AND INSTRUCTIONAL VIDEOS


Why Breaking in a Replacement Hydraulic Motor is Important



What Can Cause Excessive Case Drain Back-Pressure on Skidsteers?



Testing Skidsteer Case Drain Back-Pressure Using Pressure Gauge



Testing Case Drain Back-Pressure Using Open Case Drain Coupler



How to Install Belt Assembly on 900/1100 Series Brush Mulcher



How to Replace Rotor Bearing on 900/1100 Series Brush Mulcher



How to Replace Rotor Shaft on 900/1100 Series Brush Mulcher



2 Speed Motor Trip Point Adjustments on Brush Mulcher



2 Speed Motor Speed Adjustments on Brush Mulcher

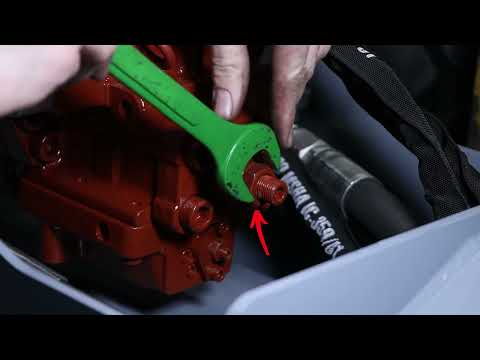

How to Replace the Motor Shaft Seal



How to Remove Seal on Hydraulic Motor or Load Adapter



Demonstrating and Troubleshooting Zero-Leak Relief Valve



Troubleshooting Vibration on Brush Mulcher
