Baumalight Rotary Brush Cutter | Model CXC-530 | Cutting Width 30" | Machine Size 3-11 Tons | For Excavators
Baumalight Rotary Brush Cutter | Model CXC-530 | Cutting Width 30" | Machine Size 3-11 Tons | For Excavators
Regular price
$9,770.00
Regular price
Sale price
$9,770.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Rotary Brush Cutter | Model CXC-530 | Cutting Width 30" | Machine Size 3-11 Tons | For Excavators
Description

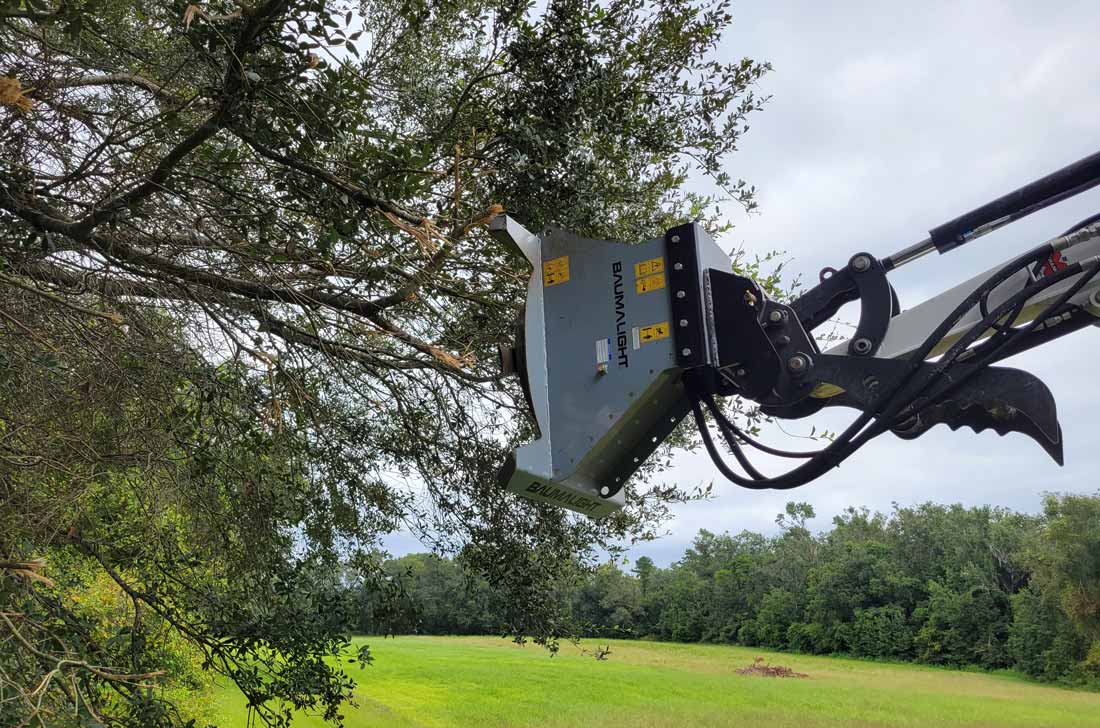

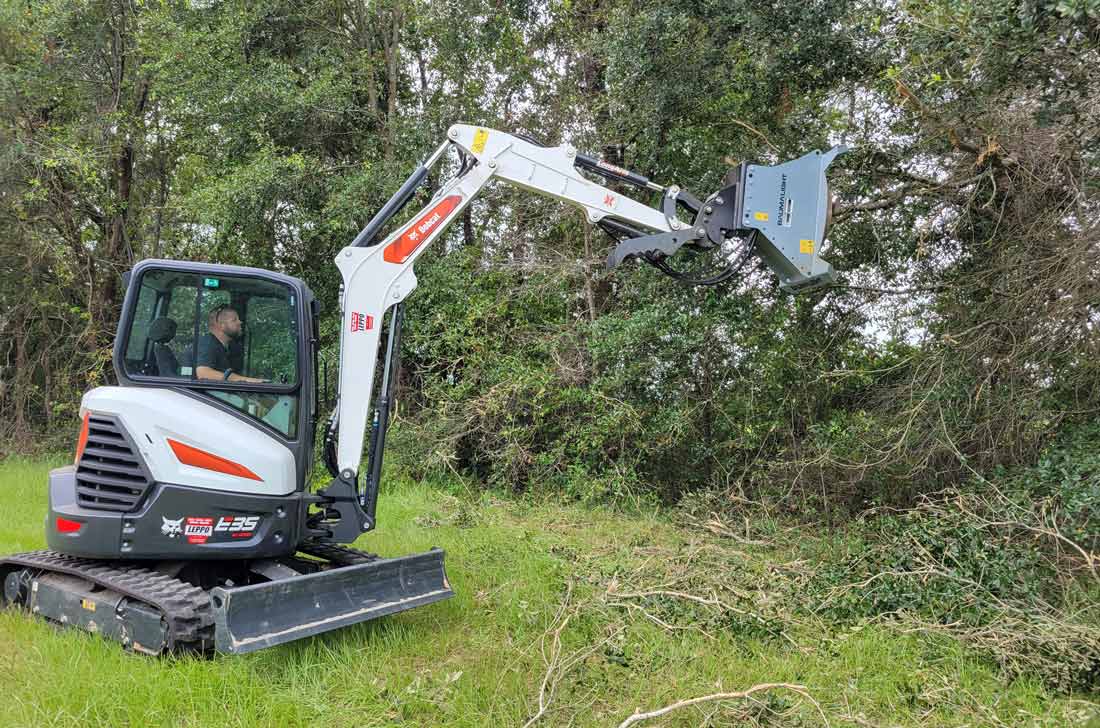

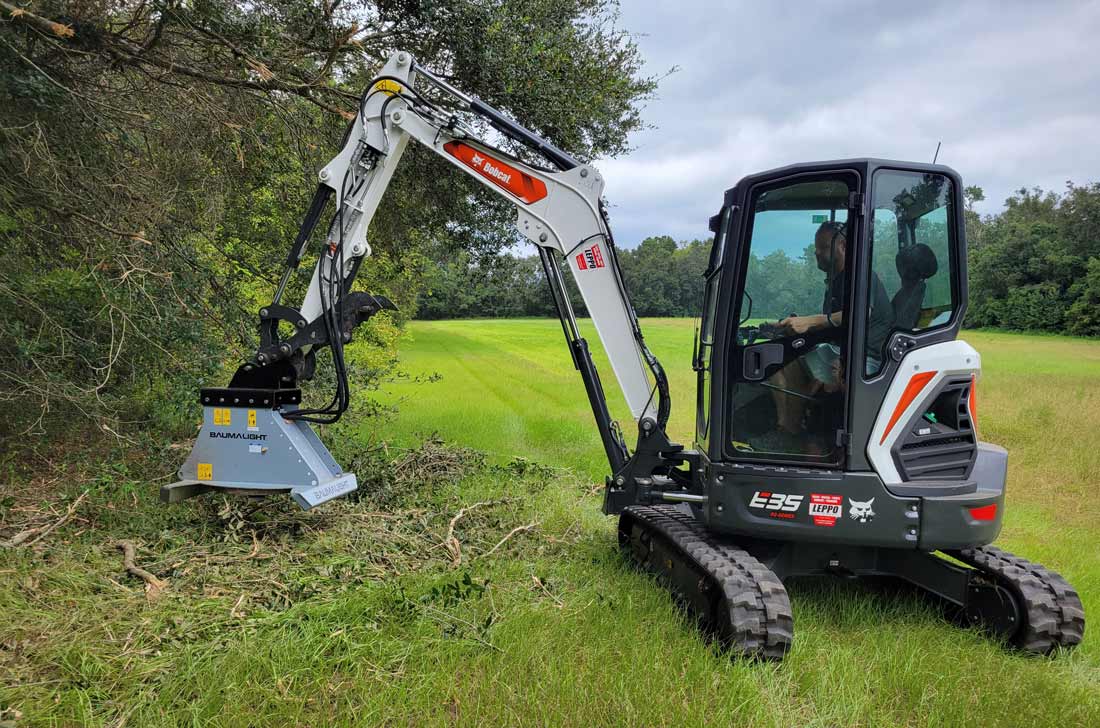

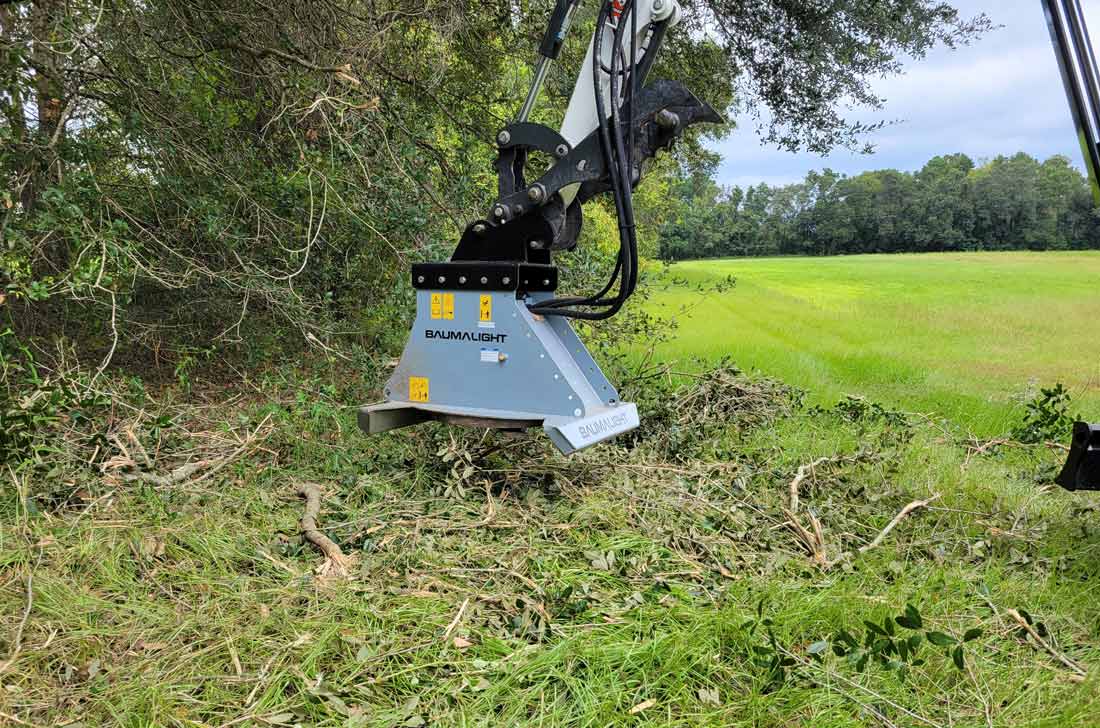

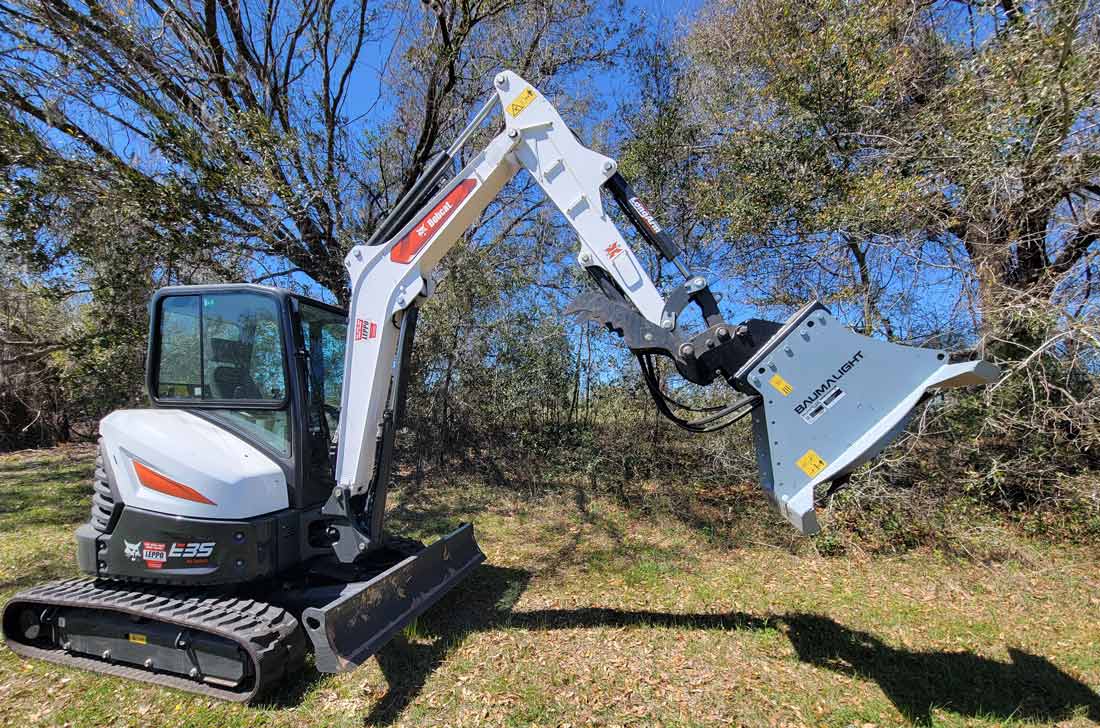

Taking the Rotary Brush Cutter to new heights is the 30” compact CXC530 model for mini-excavators. Built to help you tackle the areas with limited access, the CXC530’s unique blade design attacks and cuts thick brush, reducing it to mulch. The reversible blades provide long performance before requiring sharpening or replacement. The tri-swing blades chop and mulch all the way to the ground, allowing operators to mulch whole trees. Giving bite to the blade is an industry-leading bent axis piston motor, making the best possible use of this Rotary Brush Cutter’s hydraulic flow and pressure.
We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.
Key Features
- 30" Cutting Width: Compact profile ideal for trimming tight areas, fence lines, and roadside brush
- Excavator Compatibility: Suited for machines ranging from 3 to 11 tons, offering versatility across mini and mid-size carriers
- Rotary Blade System: Dual heavy-duty blades deliver fast, efficient cutting of grass, small trees, and dense undergrowth
- Hydraulic Driven: Direct drive planetary motor maximizes torque and cutting consistency from available flow
- Protective Skid Plate: Reinforced skid shoes improve ground floatation and shield underbody components
- Heavy-Duty Construction: Rugged steel frame built for professional land clearing and vegetation management
- Powder-Coated Finish: Durable finish resists corrosion and wear in demanding environments
- Case Drain Required: Ensures safe and efficient operation under high hydraulic pressure
- Compact Mount Design: Provides excellent visibility and maneuverability on urban or forested terrain
- Safety Chain Curtain: Minimizes flying debris for safer operation near sensitive areas
CXC Rotary Brush Cutter – Feature Highlights |
|
|---|---|
| Three Cuts per Pass | Rotor mass throws slasher blades forward, leading tip followed by second tip, producing up to 100 slashes per second on small trees. |

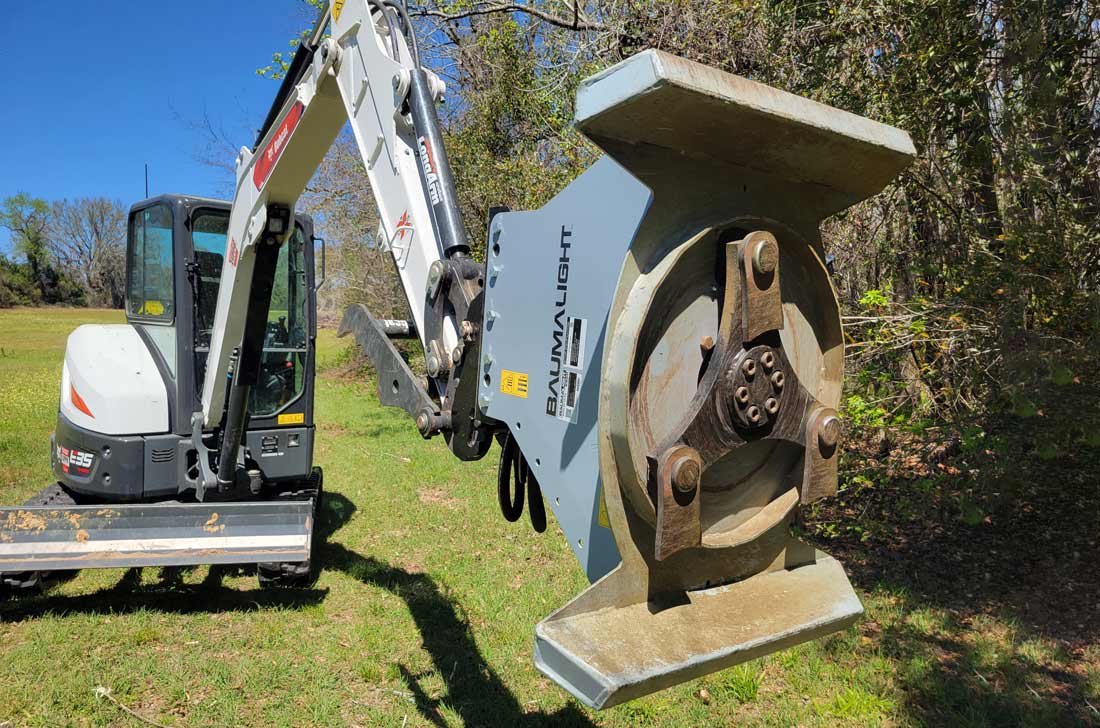

| Reversible/Replaceable Blades | Crafted from ½" AR400 steel for long wear life and easy maintenance. |
| Large Bearing Support | Features 2.95" carburized alloy steel shafts and ISO external locknut system with double-lip oil seals. |
| Blade Mount System | Gr. 8 bolts with castle nuts and cotter pins securely fasten blades to the rotor. |
| 3-Way Rotor Configuration | Heavy-duty rotor with three fixed extensions, each with a blade—achieving up to 100 slashes/sec. |
| Free Blade Set | New purchases include a free set of blades, packaged securely on the wooden shipping skid. |
| Reinforced Deck | 1/4" steel deck supported with additional reinforcement channels for rugged operation. |
| Bent Axis Piston Motor | Delivers optimized hydraulic performance for brush clearing efficiency. |
| Rotor Design | Built with a 1" top and bottom plate to securely hold the blade assembly. |
| Pack Wing PTO Compatibility | Optional PTO power packs extend carrier compatibility for CXC series cutters. |
Detailed Specifications
CXC Series Excavator Brush Cutter Comparison |
|||
|---|---|---|---|
Feature |
CXC530 |
CXC542 |
CXC550 |
| Baumalight Connection Code | A02 | A02 | A03 |
| Available Motor Options | HX508, HX510, HX530 | HX530, HX550, HX570 | HX550, HX570, HX590 |
| Recommended GPM | Check Motor Options Chart | ||
| Maximum Brush Size | 3.5" | 5" | 6" |
| Discharge Protection | Open Front & Back | Open Front & Back | Open Front & Back |
| Path Width | 40" | 50" | 67" |
| Cutting Width | 30" | 42" | 50" |
| Low Cutting Height | 2.5" | 2.5" | 2.5" |
| Number of Blades | 3 | 3 | 3 |
| Slashes per Second | 80 | 80 | 90 |
| Attachment Type | Bolt-On | Bolt-On | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier | ||
| Case Drain | Critical | Critical | Critical |
| Min Tracked Excavator Size | 2 ton | 3 ton | 8 ton |
| Min Wheeled Excavator Size | 3 ton | 4.5 ton | 10 ton |
| Max Tracked Excavator Size | 10 ton | 15 ton | 20 ton |
| Max Wheeled Excavator Size | 11 ton | 17 ton | 24 ton |
| Deck Structure | 1/4" AR400 steel | 1/4" AR400 steel | 3/8" AR400 steel |
| Unit Weight | 550 lbs | 640 lbs | 1,380 lbs |
