Baumalight Tree Spade | Model SS330/D001565 | Capacity 30" Root Ball | For Telehandler

Baumalight Tree Spade | Model SS330/D001565 | Capacity 30" Root Ball | For Telehandler

Regular price $12,120.00
Regular price Sale price $12,120.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Root Ball Capacity: 30 inches, ideal for small to medium tree transplants
  • Control Options: Available in manual, wired, wireless, and aux-controlled versions for versatility
  • Construction: High-strength steel for long-lasting durability in tough conditions
  • Compatibility: Designed for telehandlers with a machine size of 5,200-12,000 lbs
  • Hydraulic Flow Requirement: Operates efficiently with 10-50 GPM hydraulic flow
View full details

Product Description

Baumalight Tree Spade | Model  SS330/D001565 | Capacity 30" Root Ball | For Telehandler

DESCRIPTION

 The Baumalight SS330/D001565 Tree Spade is versatile and efficient attachment designed for telehandlers. It features 30" root ball capacity, making it perfect for transplanting small to medium-sized trees with precision and ease. The tree spade is built with durable materials and offers precise control options, ensuring successful and efficient tree transplants for landscaping, forestry, and agricultural operations.

ELECTRIC CONTROLS WITH 20' OF WIRE

TREE SPADE (ELECTRIC CONTROLS WITH 20' OF WIRE) Needs 12V wire to spadeMUST SPECIFY MOUNT

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.

AUX CONNECTIONS

TREE SPADE (AUX CONNECTIONS) REQUIRED 3 LIVE PINSMUST SPECIFY MOUNT

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.

WIRELESS HAND CONTROLS WITH 20' OF WIRE

TREE SPADE (WIRELESS HAND CONTROLS WITH 20' OF WIRE)MUST SPECIFY MOUNT

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.

MANUAL CONTROLS

TREE SPADE (MANUAL CONTROLS)MUST SPECIFY MOUNT

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.

Key Features

  • Efficient Root Ball Handling: Capable of handling root balls up to 30 inches in diameter.
  • Durable Construction: Made of high-strength steel for durability and long-lasting performance.
  • Versatile Control Options: Offers manual, hydraulic, and wireless control options for precise operation.
  • Powerful Hydraulic System: Operates with a hydraulic flow of 10 - 50 GPM for powerful performance.
  • Adjustable Arm: Provides user comfort and better control over the transplanting process.
  • Wide Application: Suitable for landscaping, forestry, and agricultural operations.
  • Four-Blade Design: Ensures efficient digging and compacting of root balls for  cleaner and more viable transplants.

CONTROL OPTIONS

AUXILIARY ELECTRICAL CONNECTION

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

WIRED CONTROL

Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

MANUAL CONTROL

Manual hydraulic valves with a dual position mounting stand.

Manual hydraulic valves with a dual position mounting stand.



HOW IT WORKS:

How it Works Step 1

Step 1

Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.

How it Works Step 2

Step 2

Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.

How it Works Step 3

Step 3

Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.

How it Works Step 4

Step 4

Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.

TREE MOVING BEST PRACTICES

When to Move

Trees can be planted any time of year, watering becomes more important if moved in a dry season. Although moving trees in the spring or fall has previously been seen as the optimal time, this is only because it is typically cooler and wetter during these times. When moving a tree outside of this, simply be sure the tree is well watered for several days before hand.

Preparation

Tree

Make sure the trees are well watered 2-3 days before moving.

Mark the trees orientation so it may be transplanted in the same direction reducing the risk of sunscalding.

Secure any low hanging branches that may be damaged during transplant.

Trunk size

The trunk size helps estimate the size of the root ball underground, as roots typically extend as far as the tree's branches. For softwood trees, it is generally acceptable to trim about half of the roots. Increased watering may be necessary when moving softwoods larger than recommended and selecting shady or moist locations will also help insure survivability when trimming large amounts of root. In contrast, for hardwood trees, only about one-third of the roots should be trimmed, as they are more sensitive to root loss and excessive watering will only lower chances of survival.

Hole

Location - find a suitable location that meets the environmental requirements of the specimen.

Create the hole in which the specimen will be relocated.

Prepare the hole based on the soil condition. If the soil has a large clay content rough up the sides for easier root penetration. If the soil is sandy add appropriate nourishment, and if the soil is dry water the hole.

Aftercare

Keep well watered to help establish roots.

Apply mechanical supports if required to help stabilize the tree for one to two years while the specimen re-establishes.

Tips

Keep your tree spade in good operating condition and wellmaintained. Sharp blades will reduce damage to root systems.

Try to replant your specimen within two hours. This will help reduce shock.

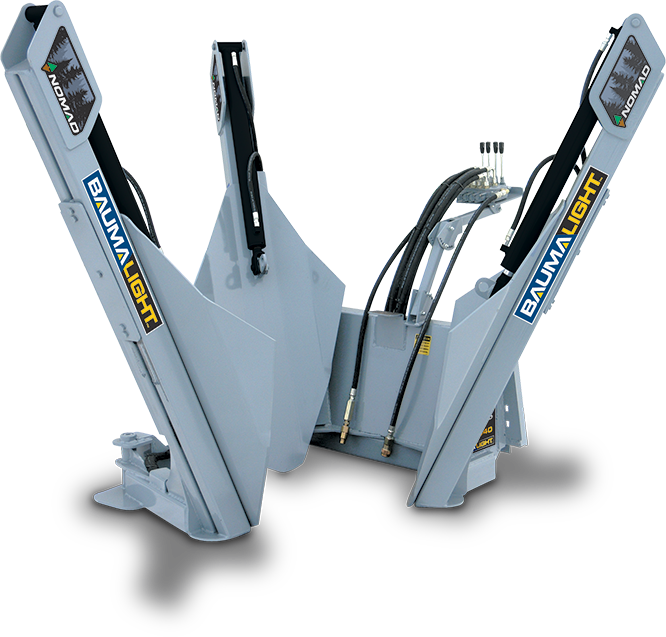

Nomad Action Image


Spade School:

Position the tree spade around the tree to be moved ensuring it is resting on the ground and that the spades are spaced evenly around the tree. Failure to accurately position the spade may result in unnecessary trauma to the tree.

Depth Illustration

Dig in with each spade 3 inches down then 2 inches back until frame rests on ground. Move to the next spade working around the tree. This keeps the spades aligned with less disruption to the roots and keeps the tree straight. Keep working the spades in until they are fully extended.

Note: Frame must remain on ground or root ball size will be decreased.

When all spades are fully extended, wiggle the root ball in the hole slightly increasing the pocket sides and releasing additional root mass. Raise the unit, lifting the tree out of the hole. Depending on the extent of the root growth some manual root pruning may be required to free the tree.

Place the tree in the hole and reverse the process by raising the spades around the tree a little at a time until the tree is resting comfortably in its new home.

Depth Illustration



HOW TO BASKET:

How it Works Step 1

Step 1

Prepare root ball.

Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.

How it Works Step 2

Step 2

Get basket ready.

Place your burlap liner in the wire basket and place the basket on level ground.

How it Works Step 3

Step 3

Place in Basket

Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.

How it Works Step 4

Step 4

Tie tree in place.

Fold in burlap and basket and tie tree into place.

Tree Baskets

Tree Baskets

Detailed Specifications

Specification Details
Model SS330/D001565
Root Ball Capacity 30 inches
Blade Count 4
Blade Material High-strength steel
Control Options Manual, Hydraulic, Wireless
Hydraulic Flow 10 - 50 GPM
Weight Approx. 1350 lbs
Usage Landscaping, Forestry, Agricultural
Mounting Type Telehandler
Adjustable Arm Yes
Color Gray

ELECTRIC CONTROLS WITH 20' OF WIRE

Part # SS330/D001261
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 30" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 5,200LBS-12,000LBS
Attachment Size: 30" ROOT BALL

AUX CONNECTIONS

Part #: SS330/D003428
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 30" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 5,200LBS-12,000LBS
Attachment Size: 30" ROOT BALL

WIRELESS HAND CONTROLS WITH 20' OF WIRE

Part #: SS330/D001565
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 30" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 5,200LBS-12,000LBS
Attachment Size: 30" ROOT BALL

MANUAL CONTROLS

Part #: SS330/D003444
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 30" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 5,200LBS-12,000LBS
Attachment Size: 30" ROOT BALL



Comparison Chart

Model ST324 ST330 SS330 ST440 ST650
Standard Mount Universal skidsteer Universal skidsteer Universal skidsteer Universal skidsteer Universal skidsteer
Extension Kit Check Check Check Check Not needed
Tree Size (Evergreen) 3" 3" 3" 4" 5"
Tree Size (Hardwood) 1.5" 2.5" 2.5" 3" 4"
Root Ball Diameter 24" 30" 30" 40" 50"
Root Ball Depth 23" 29" 29" 30" 43"
Opening (Width) 20" 23" 60" 52" 47"
Blade Angle (Degrees) 25° 25° 25° 25° 25°
Number of Blades 3 3 3 4 6
Blade Thickness 1/4" Mild Steel 3/8" Mild Steel 3/8" Mild Steel 1/4" AR400 1/4" AR400
Slides Steel Steel Steel Steel Steel
Blade Truncation Semi Semi Semi Full Semi
Towers Swing Hinge No No Yes Yes Yes
Hydraulic Flow (GPM) 5-20 5-20 5-20 5-20 5-20
Hydraulic Pressure (PSI) 2900-4000 2900-4000 2900-4000 2900-4000 2900-4000
Weight 1100 1356 1550 1934 3238
Weight with Root Ball 1400 1865 2050 3134 5785



Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos


SERVICE AND INSTRUCTIONAL VIDEOS

Installing Outside Blade Assembly on Tree Spade

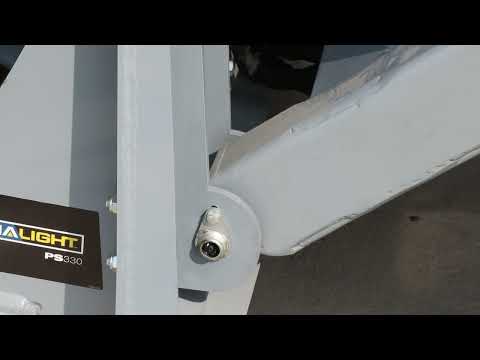

Greasing Tree Spade Pins

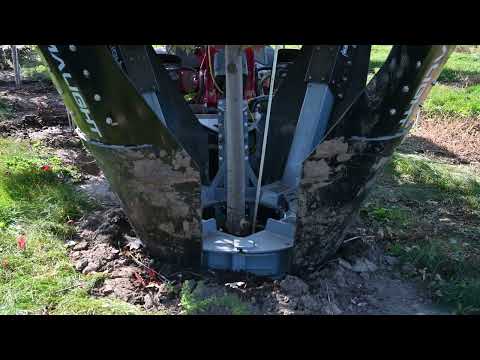

How to Keep Tree Spade Frame Down in Tough Digging Conditions

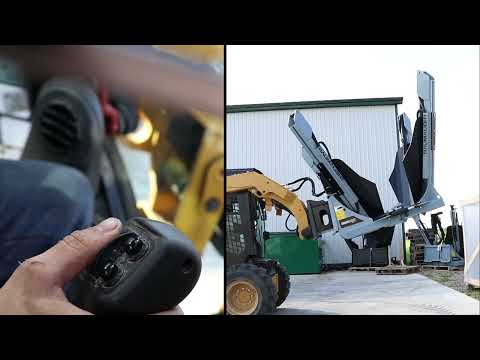

 How to Operate Baumalight Tree Spade with AUX Controls

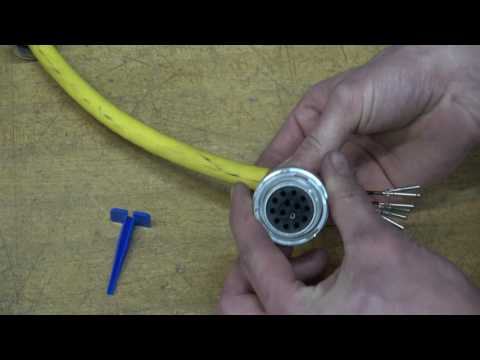

Inserting a pin in a 8 and 14 pin connector
