Product Description
Baumalight | Stump Grinder | S22 | 24" Rotor | 12V Swing Actuator | 12–25 GPM | For Skidsteer
DESCRIPTION

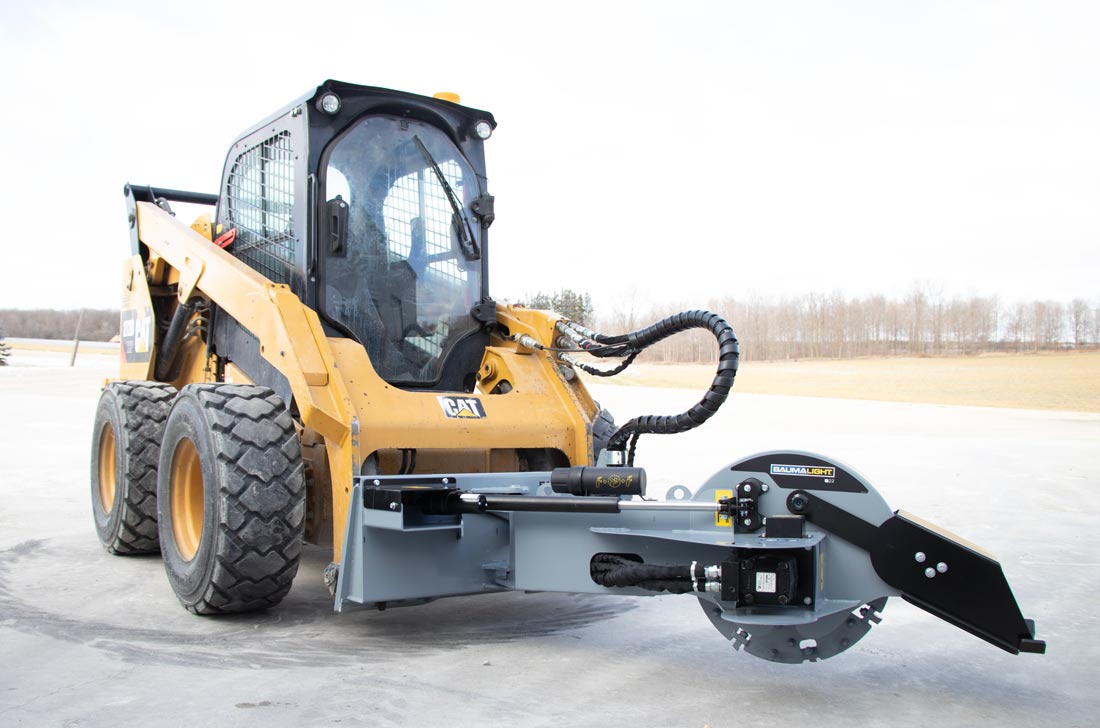

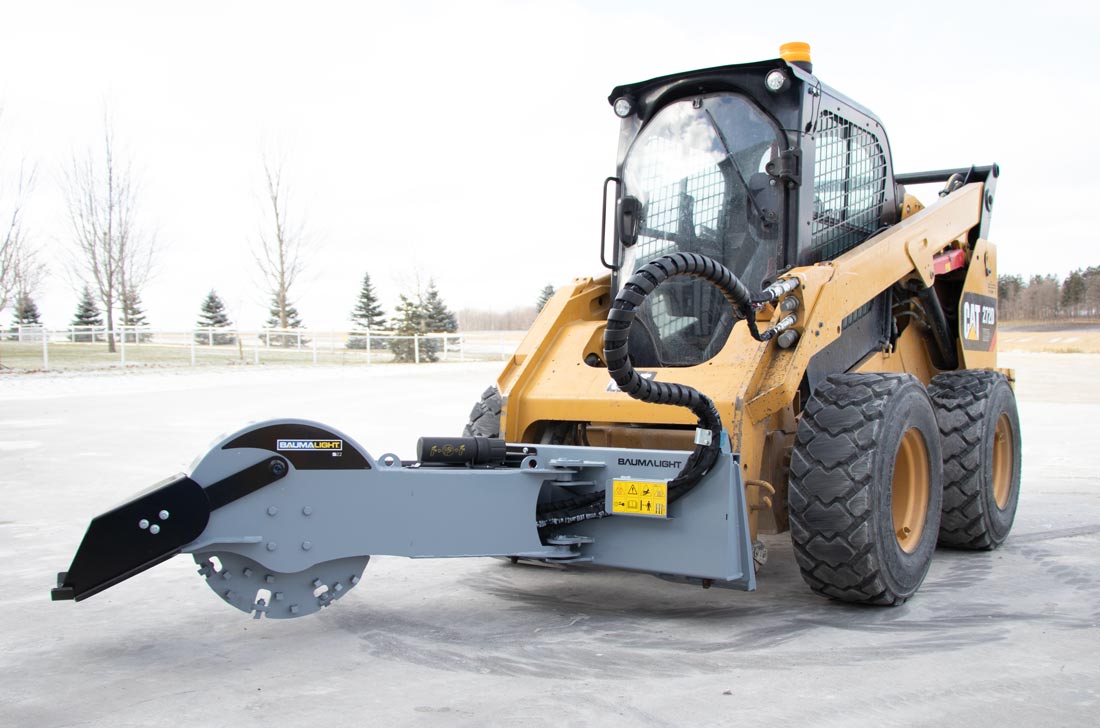

The Baumalight S22 Skidsteer Stump Grinder is engineered for efficiency, power, and productivity. Featuring a 12V electric linear actuator, it replaces traditional hydraulic swing cylinders, ensuring maximum torque and faster grind times. This innovative design directs all hydraulic power to the rotor, optimizing grinding performance.

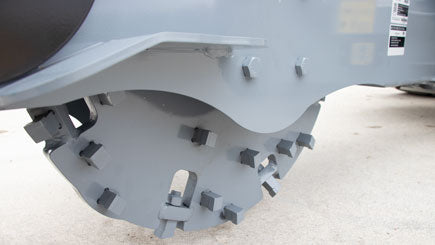

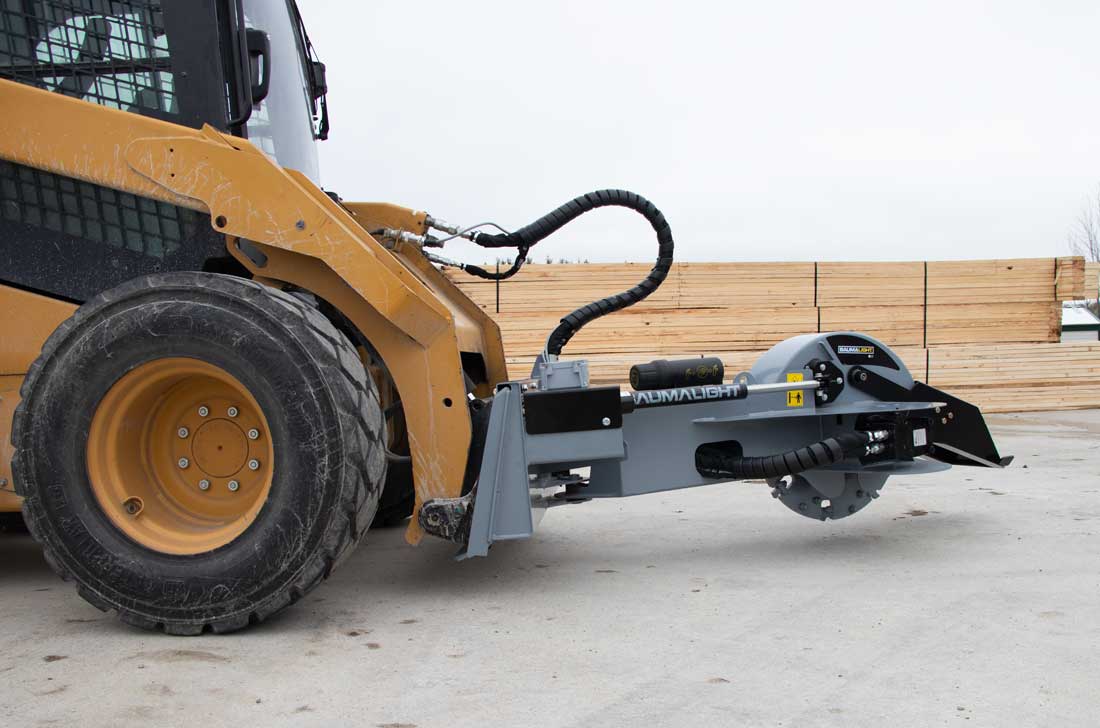

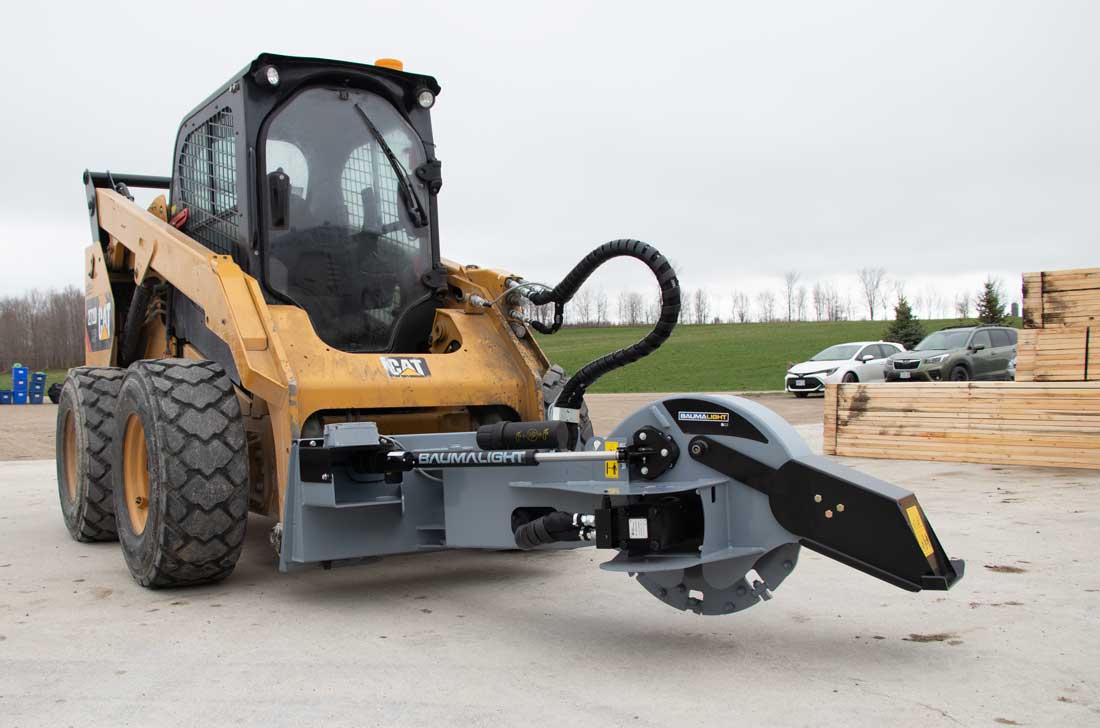

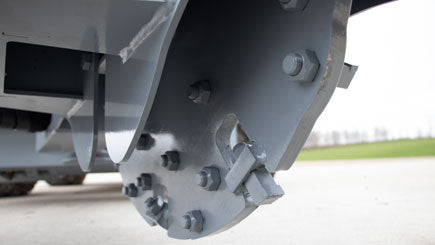

Designed for full-sized skidsteers, the S22 mounts seamlessly using a universal skidsteer adapter. It comes with six complimentary replacement teeth, ensuring hassle-free maintenance. The carbide teeth extend 1-¼ inches from the rotor, providing superior clearance and preventing debris buildup.
Ideal for Owner-Operators
The S22 is a lighter, cost-effective alternative to the S24, making it an excellent choice for owner-operators. It grinds faster than the S24, as all hydraulic oil is directed to the drive motor. The swing actuator is powered by the skidsteer battery, which conveniently recharges while moving between stumps.
For larger companies or rental businesses, the S24 or larger models may be preferable due to their heavier build and hydraulic cylinders. If durability is a concern, upgrading to a larger stump grinder ensures longevity and resilience.
Key Features

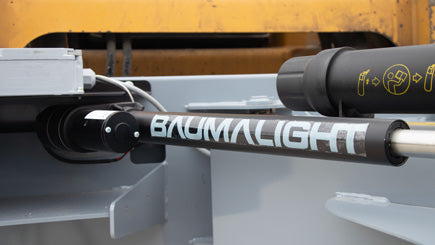

- Electric Actuator: The 12V electric actuator enhances productivity by directing all hydraulic flow and pressure to the motor.

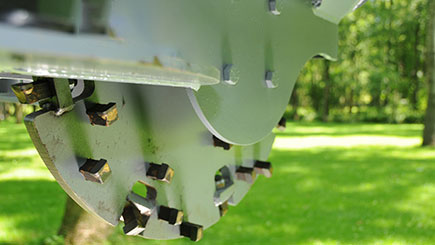

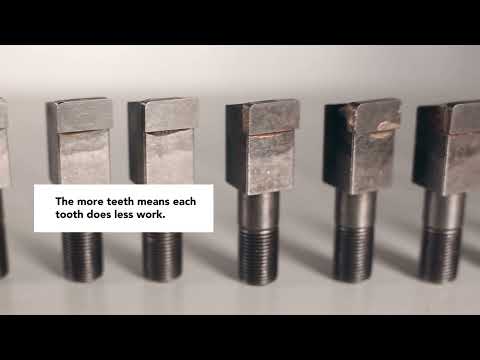

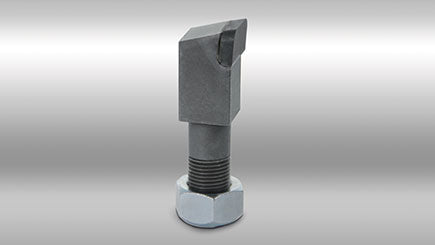

- Carbide Tipped Teeth: Durable carbide-tipped teeth ensure reliable cutting performance, even against buried hazards like gravel and metal.

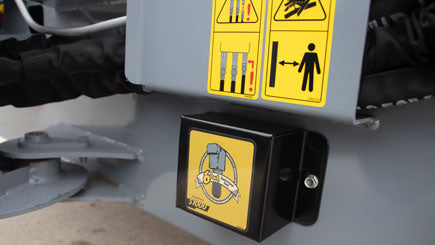

- Free Replacement Teeth: Each S22 comes with six free replacement teeth, conveniently stored in the owner's manual tub.

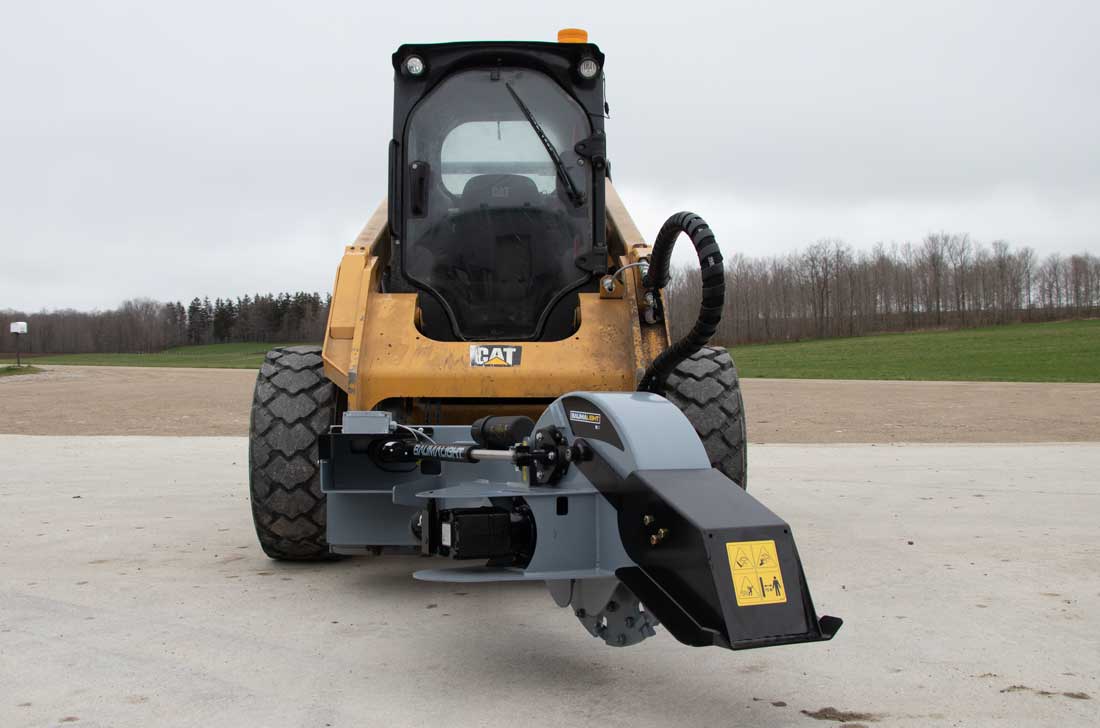

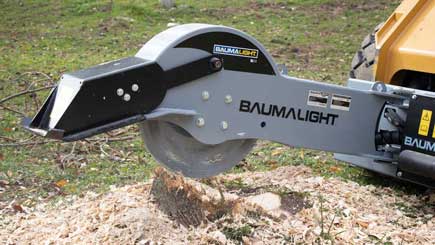

- Floating Deflector: The deflector adjusts as you grind, providing effective chip and debris control without obstructing your work.

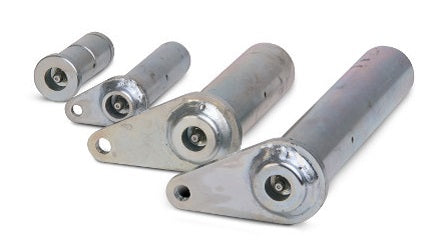

- Greaseable Pins: Zinc-plated grease pins prevent corrosion, ensuring smooth operation over the unit's lifetime.

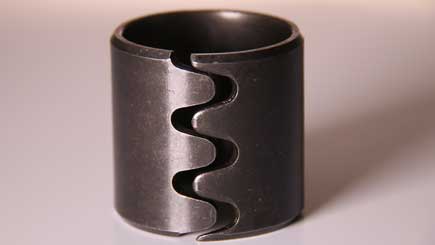

- Hardened Steel Bushings: High-grade chrome-vanadium spring steel bushings enhance durability at all main pivot points.

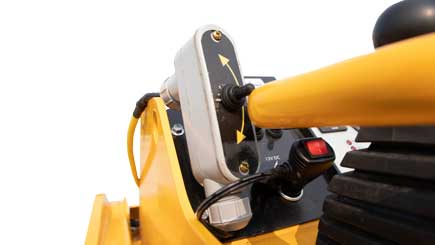

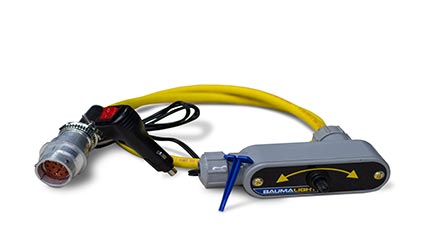

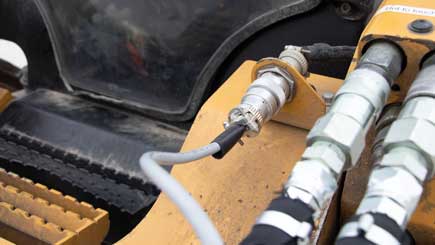

- Optional Hand Control: For older skidsteers lacking an auxiliary electrical connection, an in-cab adapter is available for easy operation.
Detailed Specifications
| Category | Details |
|---|---|
| Model Name | S22 |
| Mounting Compatibility | Full-Size Skidsteer (Universal Quick Attach) |

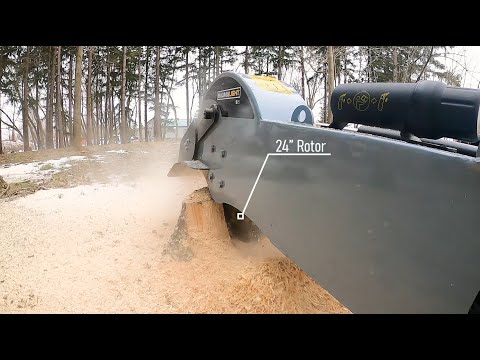

| Rotor Size | 24" |

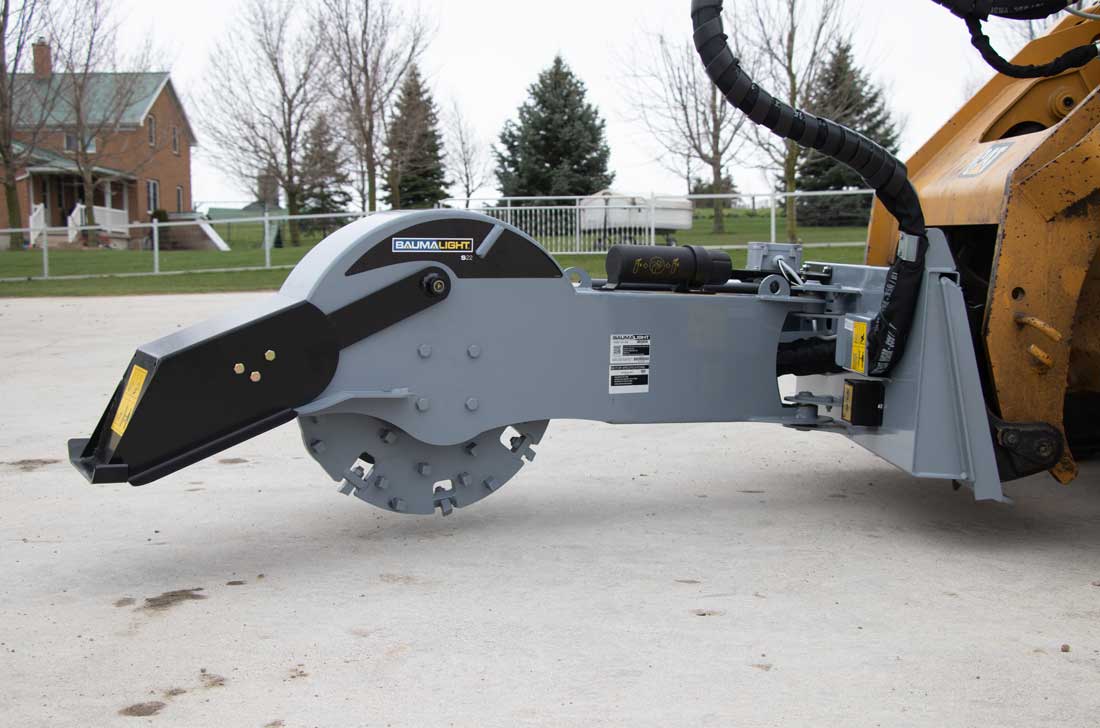

| Number of Teeth | 34 |
| Tooth Type | Carbide Tipped Planer Teeth (S1000) |
| Swing Control | 12V Electric Actuator |
| Swing Arc | 60° |
| Cutting Height (Above Ground) | No Limit |
| Cutting Depth (Below Ground) | 10" |
| Max Depth per Pass | 6" |
| Max Horizontal Cut | 22" |

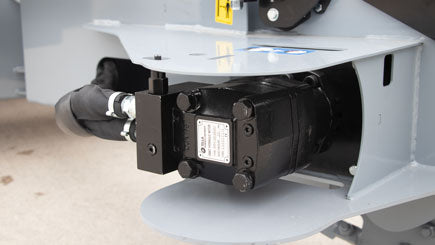

| Hydraulic Motor | Gerotor |
| Required Flow Range | 12–25 GPM (Check Motor Chart) |
| Recommended HP | 25–65 HP |
| Hydraulic Couplers | Not Supplied |

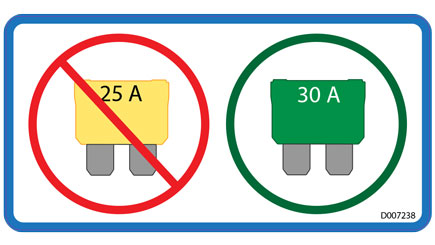

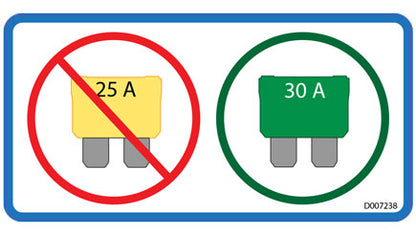

| Electrical Requirement | 12 Volt DC / 30 Amp Fuse |
| Weight (Shipping) | 760 lbs |
| Over Torque Protection | Relief Valve |
| Rotor Thickness | ¾" Steel Plate |
| Teeth Extension from Rotor | 1¼" |
| Bushings | Chrome-Vanadium AISI 6150 Hardened Steel |
| Pins | Greaseable Zinc-Plated |
| Included Accessories | 6 Replacement Teeth, Owner’s Manual Tub |
| Optional Add-on | Hand Control for Older Skidsteers |
Comparision Chart
| Model No. | S14 | S16 | S18 | S22 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 25-65 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Hydraulic Couplers | Included | Included | Not Supplied | Not Supplied | Not Supplied | Not Supplied | Not Supplied |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 34 | 12 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 6" | 2" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 60° | 63° | 85° |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | Mini Plate | 1" pivot pins | Quick Attach | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes | Yes |
| Minimum Required Amps | - | 30 amps | - | 30 amps | 10 amps | 10 amps | 10 amps |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | 760 | 995 | 995 | 1,200 |
