Baumalight | Tree Spade | ST330 | 30" Root Ball | Hydraulic Flow 5-20 GPM | For Skid Steer

Product Description

Baumalight | Tree Spade | ST330 | 30" Root Ball | Hydraulic Flow 5-20 GPM | For Skid Steer

DESCRIPTION

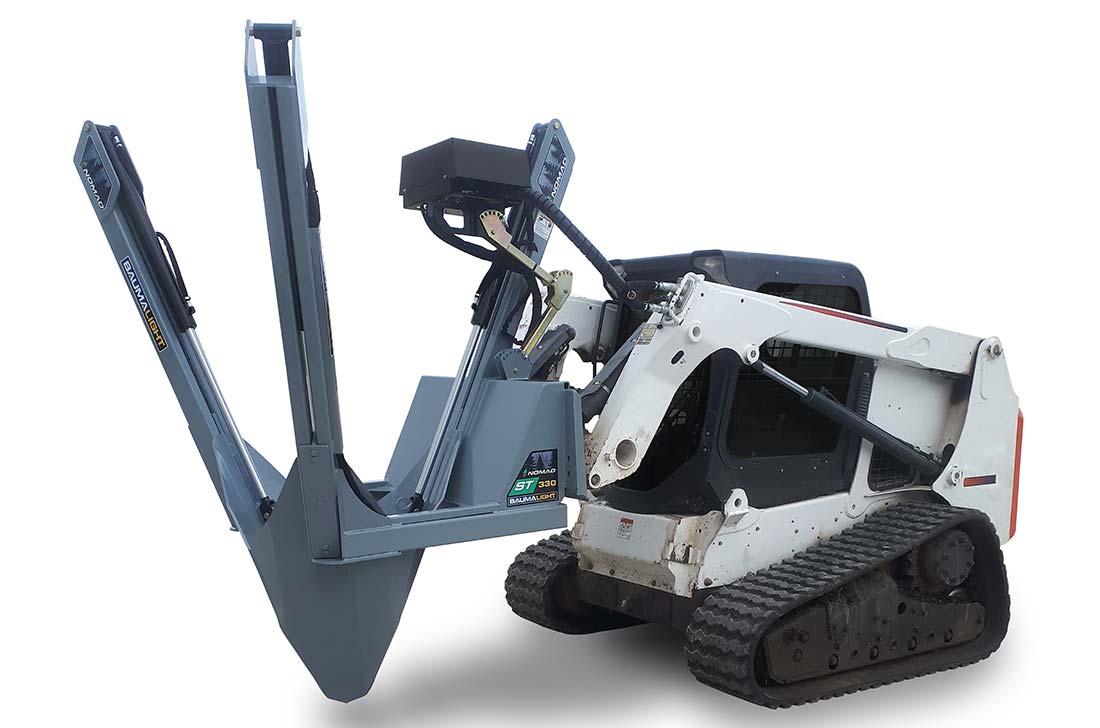

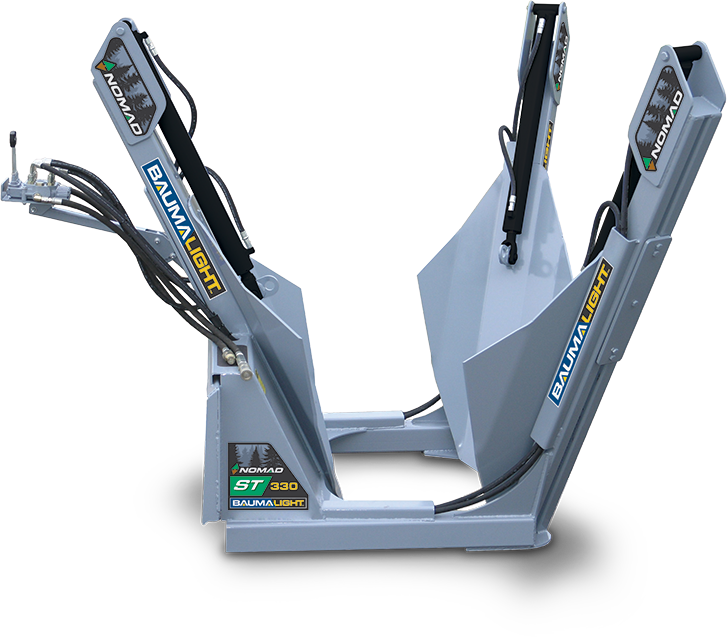

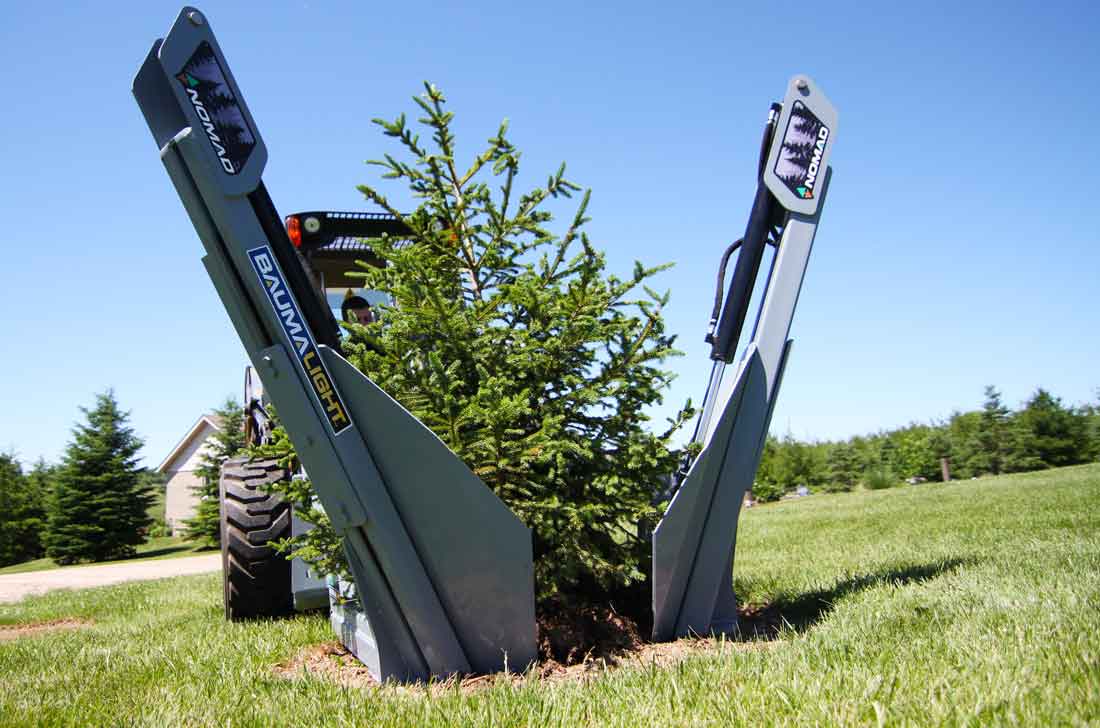

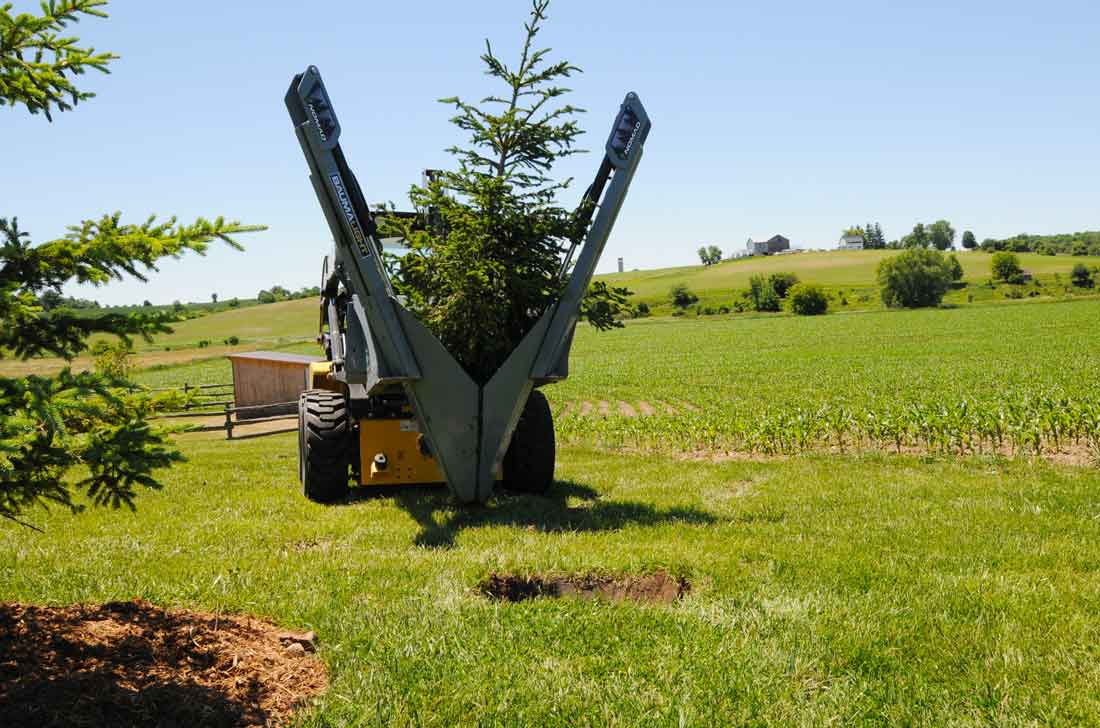

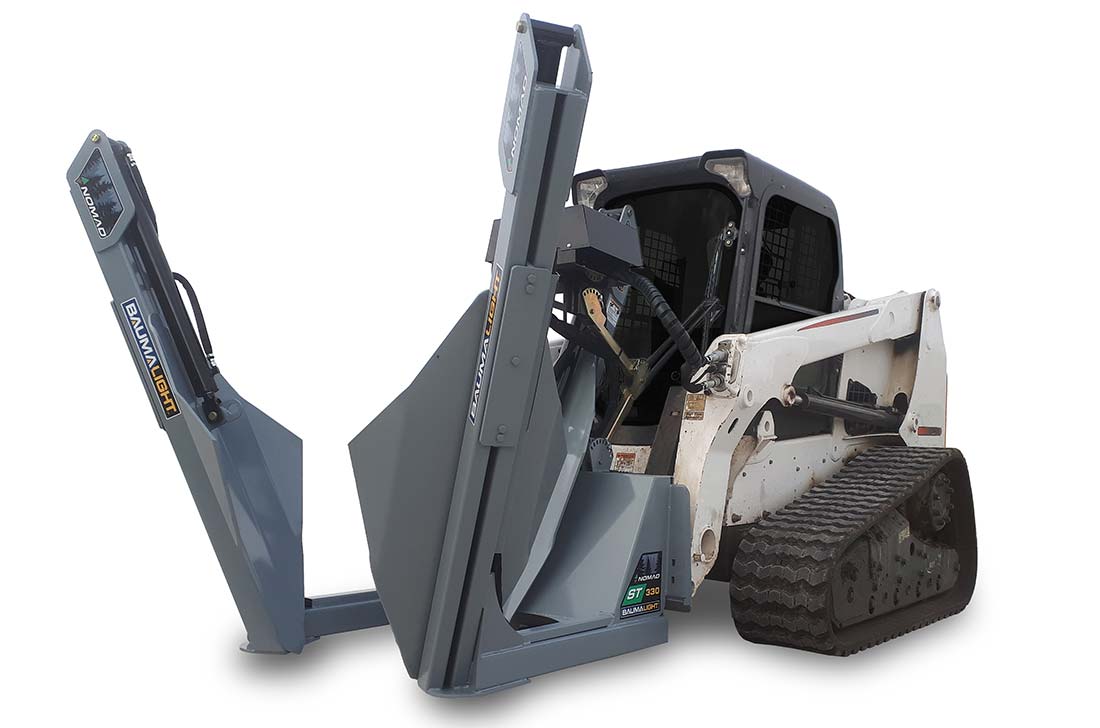

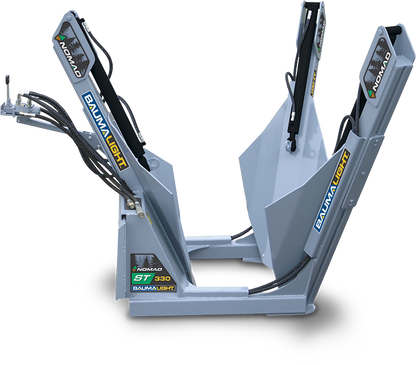

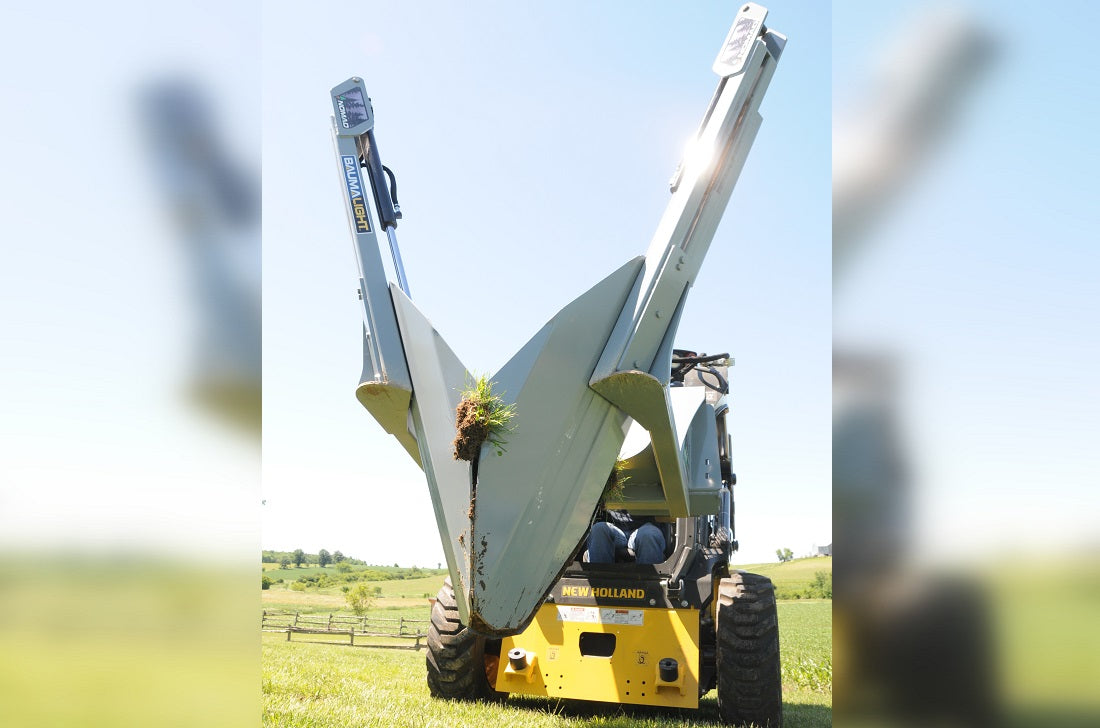

The Baumalight ST330 Tree Spade is a versatile and rugged tool designed for tree transplanting, making the job easier and more efficient. Built with a robust 3-blade fixed frame, this tree spade provides the power and precision needed to move trees and saplings quickly, while minimizing root damage. With a maximum root ball diameter of 30" and a depth of 28", the ST330 is engineered to handle trees with trunk diameters up to 3" for evergreens and 2.5" for hardwoods.

Whether you’re a landscaper, contractor, or forestry professional, the ST330 tree spade is designed for maximum efficiency and durability. Equipped with high-quality semi-truncated blades, it ensures superior soil penetration and easy maneuverability in a wide range of soil types, from sandy to clay-heavy soils. The ST330 is designed to be used with various equipment including skidsteers, tractor loaders, and telehandlers, offering you flexibility in your equipment choices.

This tree spade is a must-have for any serious tree transplanting job. The robust construction, combined with an easy-to-use hydraulic system, ensures that your trees are moved smoothly with minimal effort, allowing you to focus on the task at hand.

Key Features

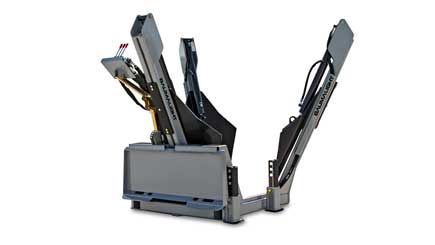

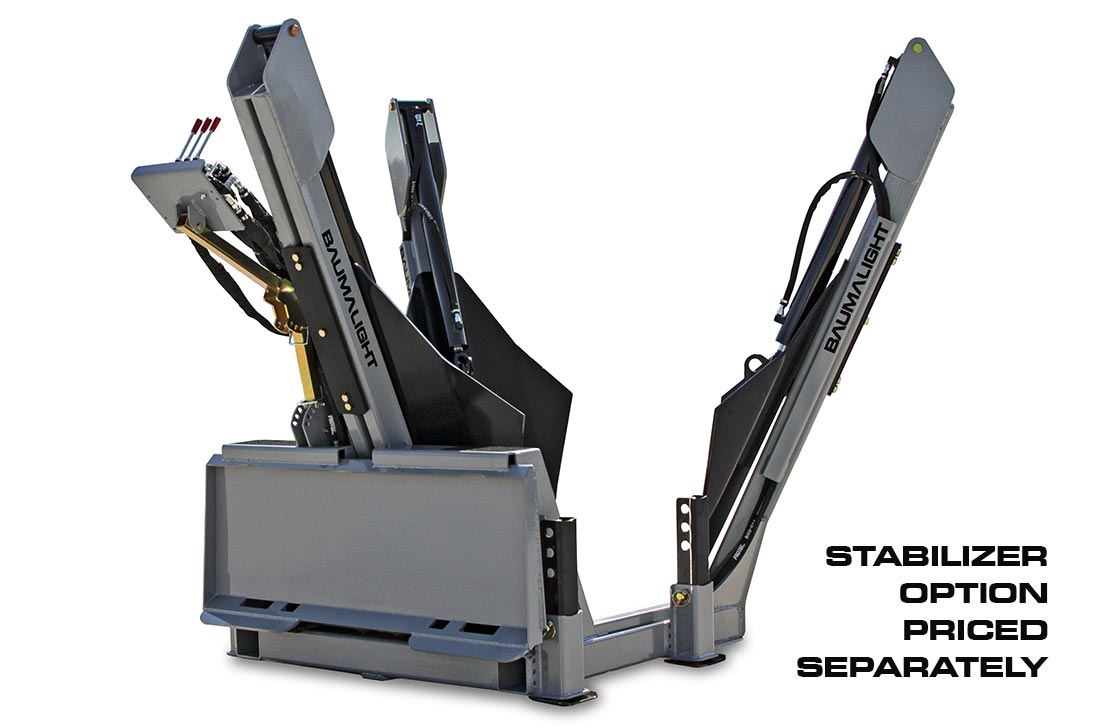

• 3-Blade Fixed Frame: Designed for efficient tree transplanting with a rugged, reliable construction.
• Maximum Root Ball Diameter: Capable of handling up to 30" root balls, with a depth of 28".

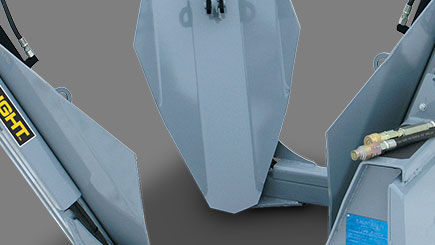

• Blades: Semi-truncated blades for excellent soil penetration and root ball containment.

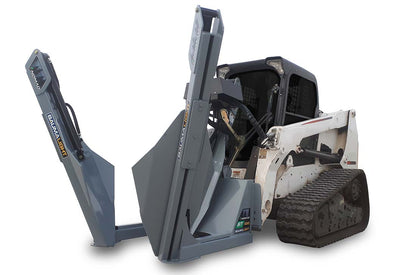

• Versatile Compatibility: Compatible with a variety of machines including skidsteers, tracked skidsteers, tractor loaders, telehandlers, and more.
• Hydraulic Efficiency: Requires a hydraulic flow of 5-20 GPM and hydraulic pressure of 2900-4000 PSI for optimal performance.

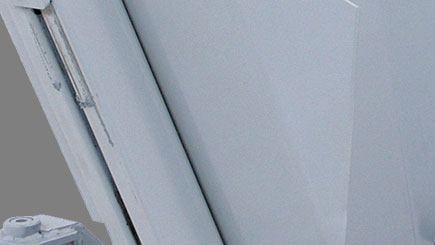

• Durable Powder Coat Finish: Ensures longevity and protection against wear and tear in harsh working conditions.

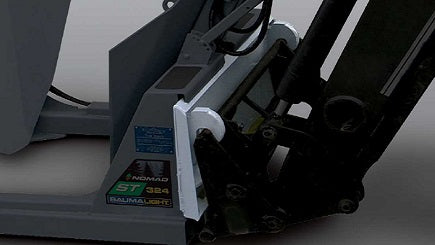

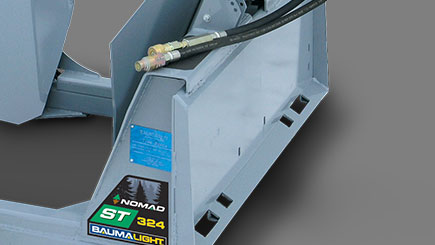

• Universal Skidsteer Adapter: Designed to fit most skidsteers for easy setup.

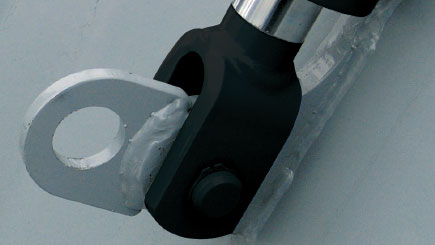

• Lifting Eyes: For easy storage and transport of the unit.

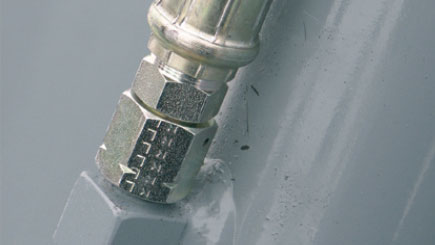

• Sleeved Hoses and JIC Fittings: For enhanced protection and durability.

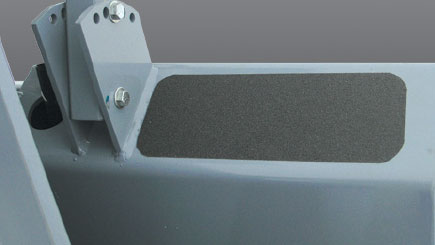

• Anti-Slip Step Pads: Easy and safe entry for operators.
• Wide Range of Control Options: Enhance your operation with a variety of remote control options available.

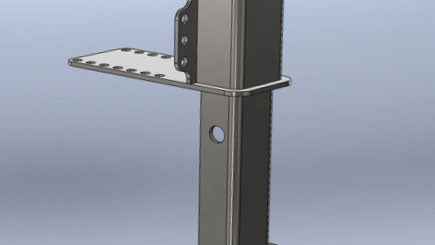

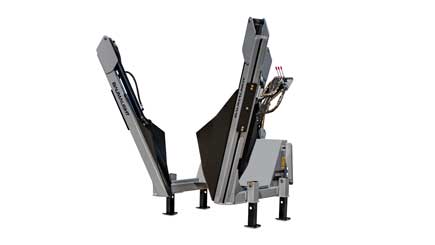

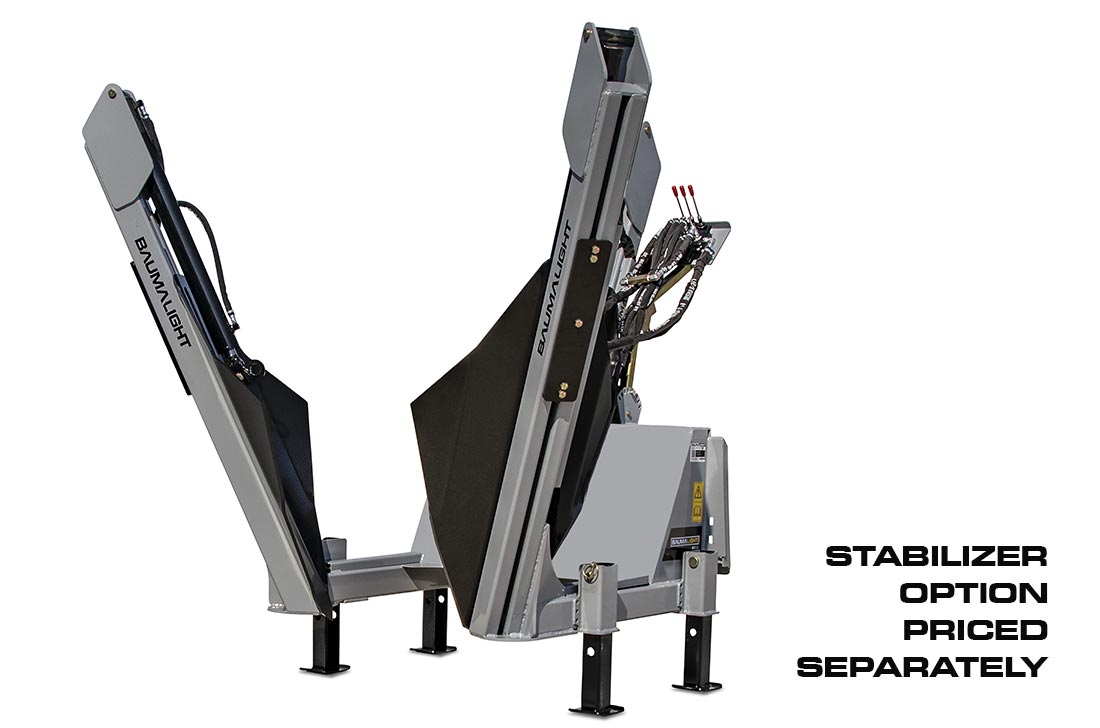

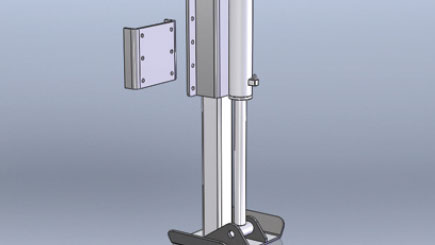

• Optional Stabilizers and Outriggers: Adjustable stabilizers (for varying root ball sizes) and optional outriggers for added stability during operation.

Control Options

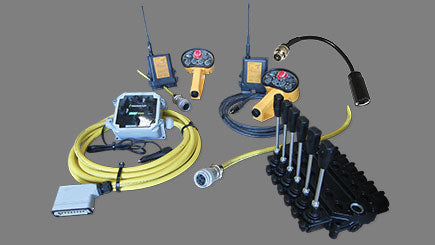

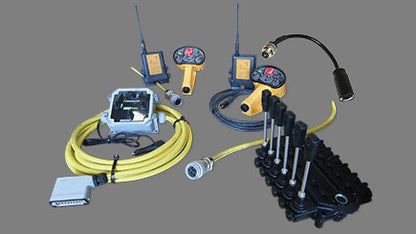

With multiple choices available, the Controls line from Baumalight gives you both the power and freedom to control your tree spade. Whether you choose a fixed manual control solution, wired, wireless or AUX Baumalight has you covered. We also can custom connect to your existing electrical plug on your boom to connect to your build in cab controls.

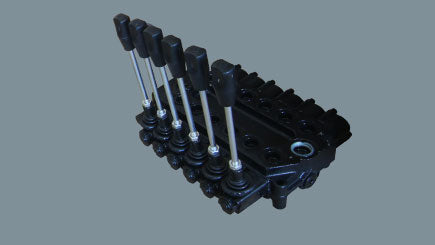

Manual Control Manual hydraulic valves with a dual position mounting stand.

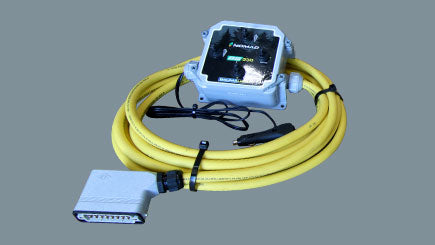

Wired Control Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

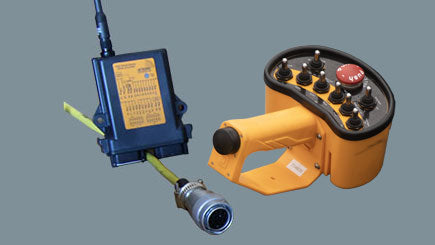

Wireless Control For the ultimate in convenience, the wireless controller option gives you the ability to move freely around the spading operation for the most precise insertion and extraction points available.

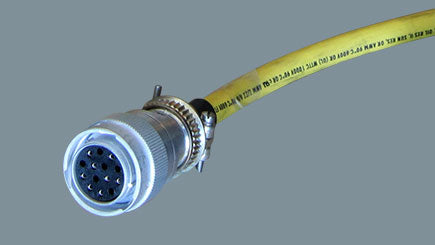

Auxiliary Electrical Connection Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.
Model	For Use With	Connection Type	Required Live Pins
D003427	ST324 & ST330	AUX	Live-2
D003428	SS330	AUX	Live-3
D003429	ST440, DR434, DR438, DR444 & DR448	AUX	Live-5
D003449	ST650	AUX	Live-7

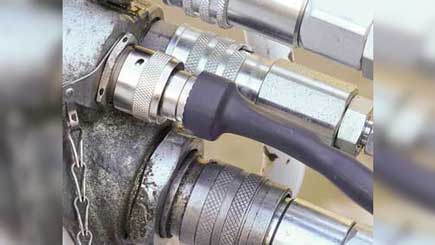

Bobcat 7-pin CANBUS plug D006408 : Bobcat 7-pin CANBUS plug for two directional valves or four selector valves. Note: D006386, D006408 & D007070 Greentronics controllers are incompatible with Bobcat Telehandlers.

Detailed Specifications

Comparison Chart

Manuals & Documents
