Baumalight Trencher | Model TN-236 | Trencher Depth 36" | Hydraulic Flow Range 12-25 GPM | For Mini Skid Steers
DESCRIPTION

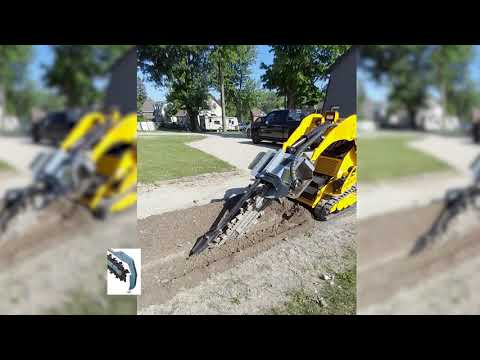

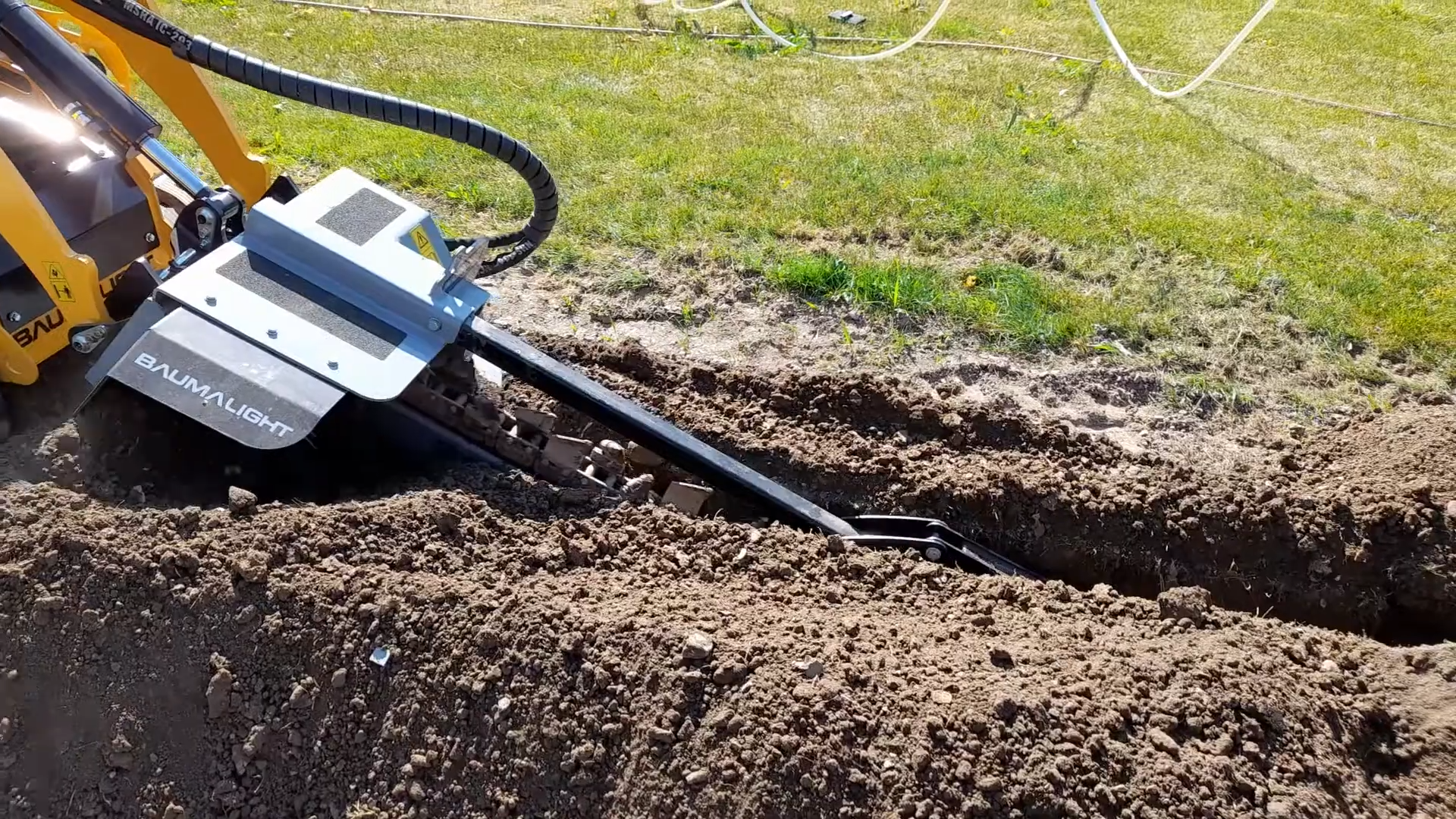

The ideal solution when you need to cut a trench in a tight space, the TN236 Trencher is small but aggressive. A great tool for landscapers, the TN236 Trencher is trencher for mini-skidsteers and mini track loaders between 1500 - 4000 lbs. The TN236 will cut trenches up to 36” deep and between 4” to 6” wide, depending on the chain option. The TN236 Trencher is powered by a hydraulic drive system. With no roller chain to worry about, the motor drive unit delivers hydraulic power directly to the sprocket of the digging chain for optimal trenching performance.
Key Features
| Feature | Description | Image |
|---|---|---|
| Side Auger | Keeps dirt clear from the trenching action but nearby for backfilling, improving efficiency. |  |
| Crumb Scraper Bar | Sweeps extra dirt and debris into the chain for removal, ensuring a clean trench at any depth. |  |
| Solid Steel Nose | Heavy-duty steel construction, running freely on dual tapered roller bearings for enhanced durability. |  |
| Bearing Protection | A precision-machined washer and rubber seal safeguard bearings from dirt and debris, extending lifespan. |  |
Detailed Specifications
TN Series Trencher Specifications |
||||||
|---|---|---|---|---|---|---|
Feature |
TN236 |
TNM336B |
TNS336 |
TN548 |
TN560 |
TN760 |
| Trench width | 4" To 6" | 4" To 6" | 4" To 6" | 6" To 10" | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 36" | 36" | 36" | 48" | 60" | 60" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 |
| Main shaft size | 1:10 Taper | 1:10 Taper | 1:10 Taper | 2-9/16" Solid | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 | 10 To 20 | 15 To 25 | 12 To 25 | 20 To 42 |
| Weight (lbs) | 470 | 675 | 850 | 1,250 | 1,500 | 1,800 |
