Baumalight Trencher | Model TN-548 | Width 6" - 10" | Horsepower 40-100 HP | For Tractors
DESCRIPTION
When it comes to tough trenching tasks, the Baumalight TN548 Trencher is built to perform with strength, efficiency, and reliability. Designed for universal skid steers (3,000 – 7,000 lbs) and compatible with tractors via an optional 3-point hitch mount, this trencher makes light work of burying cables, utility lines, and irrigation systems.
With the ability to cut trenches up to 48 inches deep and 6 to 10 inches wide, depending on your chain selection, the TN548 delivers consistent results across a variety of soil conditions. It’s equipped with a sealed planetary drive system that maximizes torque and eliminates roller chains resulting in smoother, more dependable operation. Whether you're tackling soft ground or rocky terrain, the TN548 offers customization through multiple chain options, including standard cup tooth and mixed rock-tooth styles.
This trencher isn’t just muscle it’s smart too. The TN548 is engineered with serviceability and control in mind, offering features like an adjustable chain tensioner, side auger for clean trenching, and an integrated crumb scraper bar for efficient dirt removal. Its solid steel nose ensures durability where it counts, while optional control kits allow operation even with tractors that have only one hydraulic remote.
Whether you're a contractor, landowner, or utility professional, the Baumalight TN548 gives you professional-grade trenching in a rugged, operator-friendly package.
Key Features
- Versatile Mounting Options: Compatible with universal skid steers (3000-7000 lbs) and tractors (with optional 3PH mount).
- High-Performance Planetary Drive System: Delivers direct hydraulic power for optimal trenching force and reduced maintenance.
- Impressive 48" Trench Depth: Allows for deeper trenching for various utility and construction needs.
- Adjustable 6" to 10" Trench Width: Offers flexibility to suit different project requirements (dependent on chain option).
- Efficient Side Auger: Clears loose soil from the trench while keeping it readily accessible for backfilling.
- Standard Crumb Scraper Bar: Helps to create a clean and consistent trench by removing excess dirt and debris.
- Robust Solid Steel Nose: Precision machined and runs on durable dual tapered roller bearings for smooth operation and longevity.
- Adjustable Chain Tension: Allows for quick and easy chain adjustments using a standard grease gun.
- Optional 3PH Tractor Mount (D001393 CAT 1 / D003074 CAT 2): Enables easy attachment to tractors with hydrostatic drive and requires two hydraulic remotes.
- Optional 3PH External Control Kit (S1050): Facilitates operation with tractors having limited hydraulic remotes.
- Hardened and Reinforced Cup Style Cutting Teeth (Included Chain): Provides effective digging in various soil conditions.

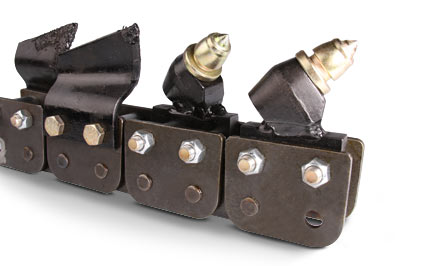

- Optional Chain and Tooth Styles Available: Including 6", 8", and 10" widths and bullet-style teeth for rocky soil.
Feature |
Description |
Image |
|
D001393 OR D003074 - 3 POINT HITCH TRENCHER ADAPTOR (BOLT ON - DOES NOT INCLUDE S1050) (OPTIONAL) |

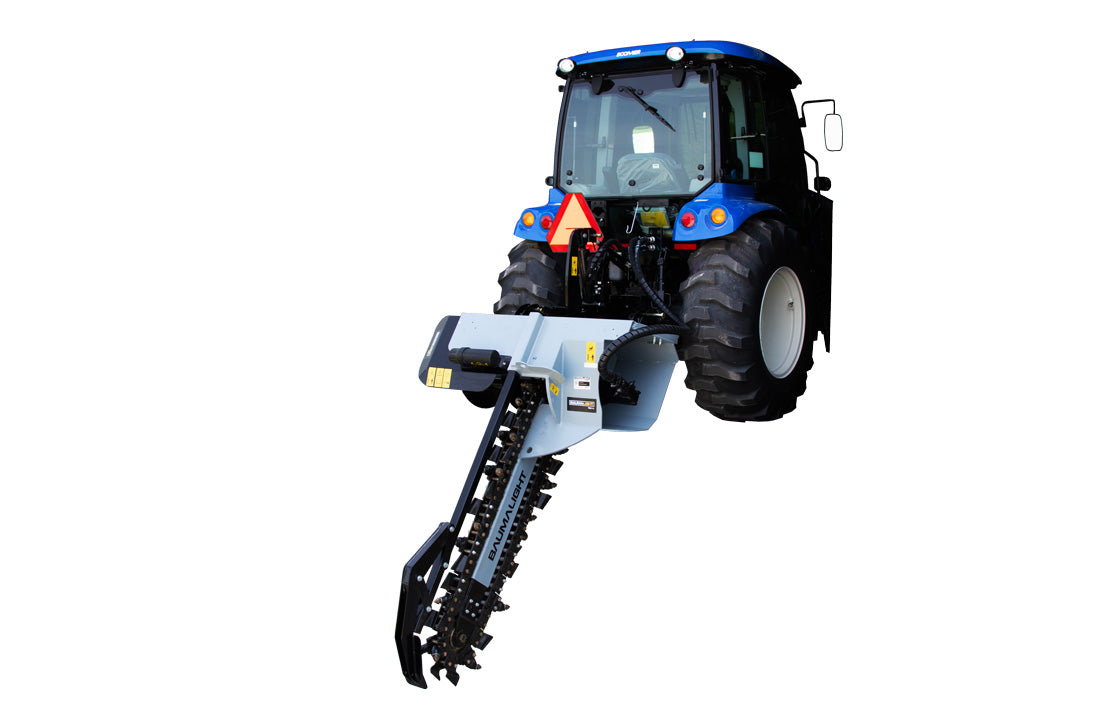

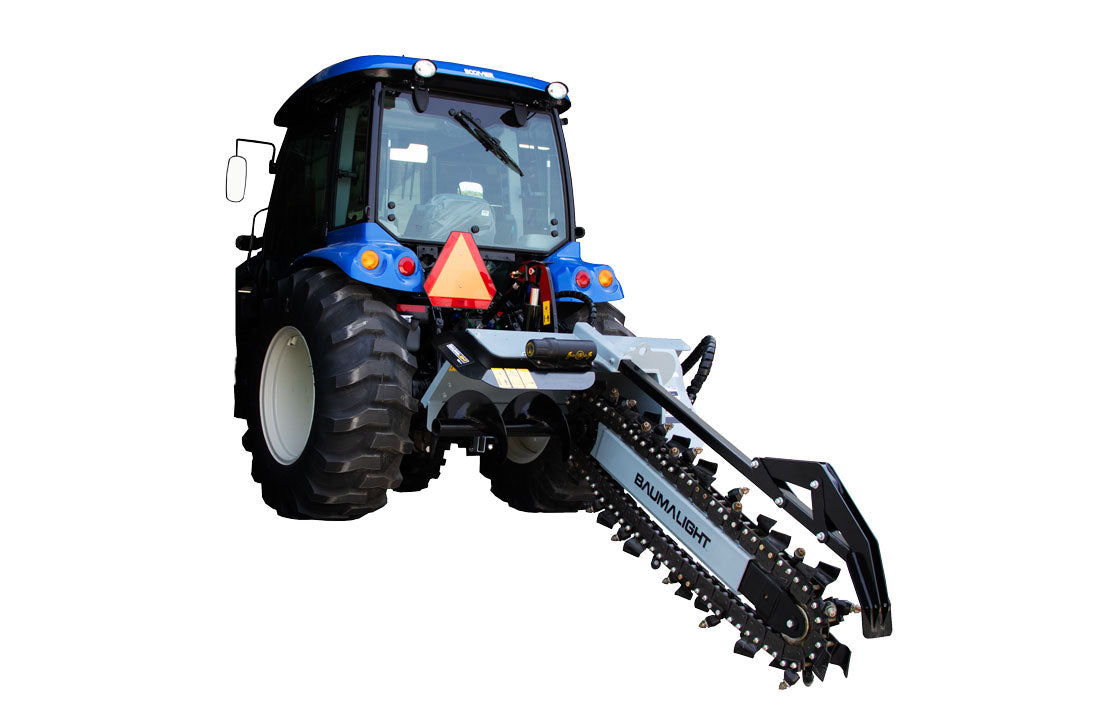

This Baumalight Trencher can also be mounted to a tractor. The optional 3-point hitch tractor mount has a cylinder that provides angle and depth control. To use this 3PH adapter, your tractor must have a hydro-static drive. Two hydraulic remotes are required, kits are available for tractors with only one set of external hydraulic connections. |
|
|

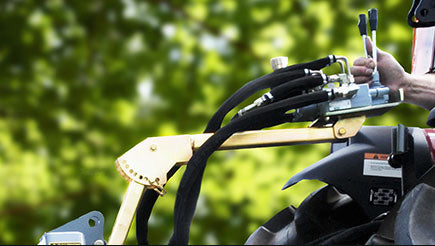

S1050 - 3PH EXTERNAL CONTROL (OPTIONAL) |
This optional external control kit is mounted on an adjustable arm. The control is great for smaller tractors with limited HP and for tractors with only one hydraulic remote. Part number S1050 - Valve kit for tractors with one remote (add $550 if shipping for field install). |
|
|

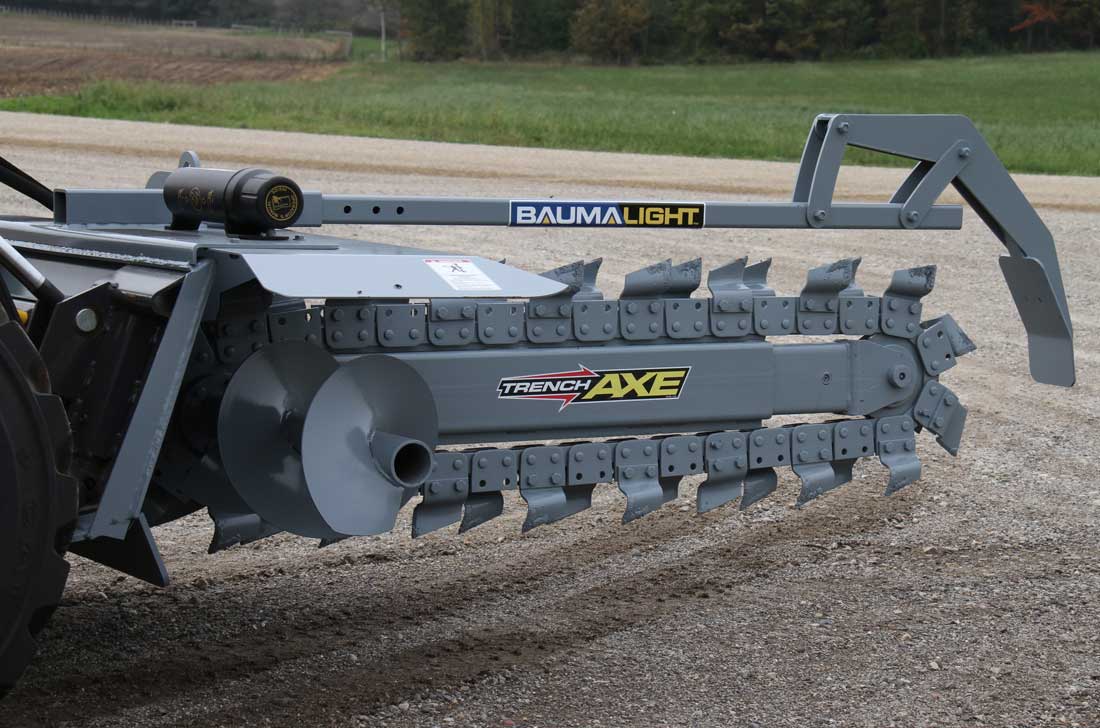

SIDE AUGER |
Baumalight Trenchers are designed with a convenient side auger. The side auger keeps the dirt clear from the trenching action but still near the trench when it’s time for back filling. |  |
|

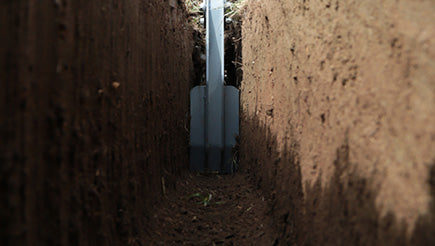

CRUMB SCRAPER BAR |
The Trencher has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging. |  |
|

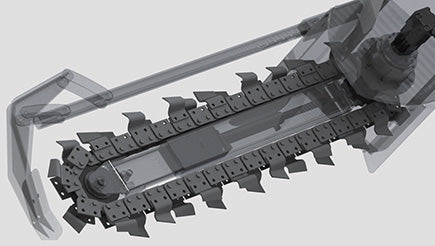

PLANETARY DRIVE SYSTEM |
The sealed drive keeps the dirt out and the trencher going. The compact and stron g planetary drive unit delivers the hydraulic power directly to the sprocket of the digging chain for good digging performance. There are no roller chains that jump or stretch. Maximum torque transfer. The motor is mounted directly in-line with the main sprocket. |  |
|

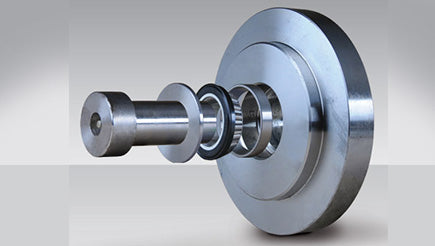

SOLID STEEL NOSE |
The Baumalight Trencher’s heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching. Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely. |  |
|

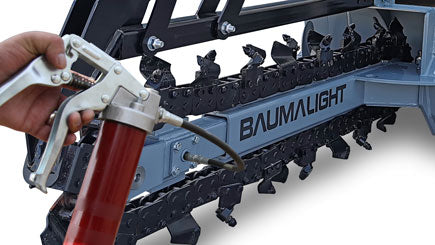

ADJUSTABLE CHAIN TENSION |
Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps. |  |
Detailed Specifications
| Specification | TN548 |
|---|---|
| Mount Compatibility | Universal Skid Steer / Tractor (optional 3PH mount) |
| Trench Depth | Up to 48 inches |
| Trench Width | 6", 8", or 10" (based on chain) |
| Drive Type | Sealed Planetary Drive |
| Main Shaft | 2-9/16" Solid Hardened Steel |
| Chain Torque at 3,000 PSI | 21,856 lbs-in |
| Over Torque Protection | Hydraulic Relief Valve |
| Horsepower Requirement | 40 – 100 HP |
| Carrier Weight | 3,000 – 7,000 lbs |
| Hydraulic Flow (Skid Steer) | 15 – 25 GPM |
| Hydraulic Flow (Tractor) | 15 – 25 GPM |
| Weight (Approx.) | 1,250 lbs |

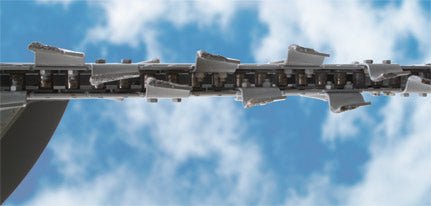

Chain Options for Every Job
| Chain Option | Description | Weight (lbs) |
|---|---|---|
| S4806 | 48" x 6" Standard Cup Tooth | 1250 |
| S4808 | 48" x 8" Standard Cup Tooth | 1260 |
| S4810 | 48" x 10" Standard Cup Tooth | 1270 |
| M4806 | 48" x 6" 50/50 Rock & Cup Tooth | 1284 |
| M4808 | 48" x 8" 50/50 Rock & Cup Tooth | 1290 |
| M4810 | 48" x 10" 50/50 Rock & Cup Tooth | 1310 |
Comparison Chart
TN Series Trencher Specifications |
||||||
|---|---|---|---|---|---|---|
Feature |
TN236 |
TNM336B |
TNS336 |
TN548 |
TN560 |
TN760 |
| Trench width | 4" To 6" | 4" To 6" | 4" To 6" | 6" To 10" | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 36" | 36" | 36" | 48" | 60" | 60" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 |
| Main shaft size | 1:10 Taper | 1:10 Taper | 1:10 Taper | 2-9/16" Solid | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 | 10 To 20 | 15 To 25 | 12 To 25 | 20 To 42 |
| Weight (lbs) | 470 | 675 | 850 | 1,250 | 1,500 | 1,800 |
