Baumalight Trencher | Model TN-760 | Width 6" - 10" | Hydraulic Flow Range 20-42 GPM | For Skid Steers
DESCRIPTION

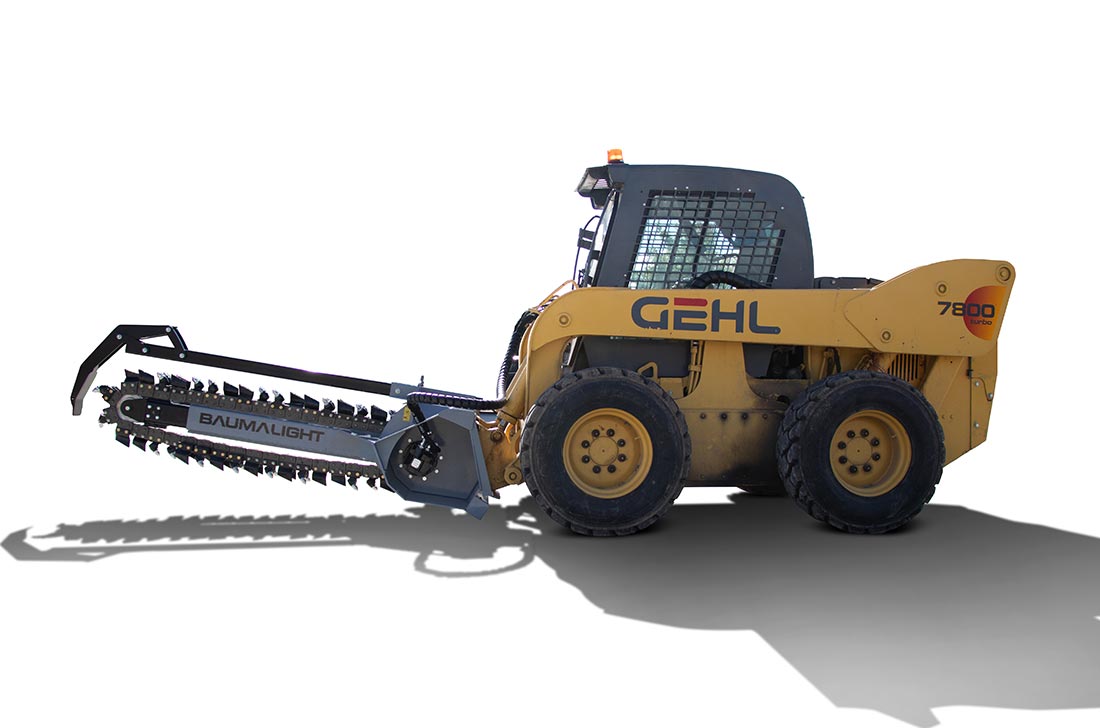

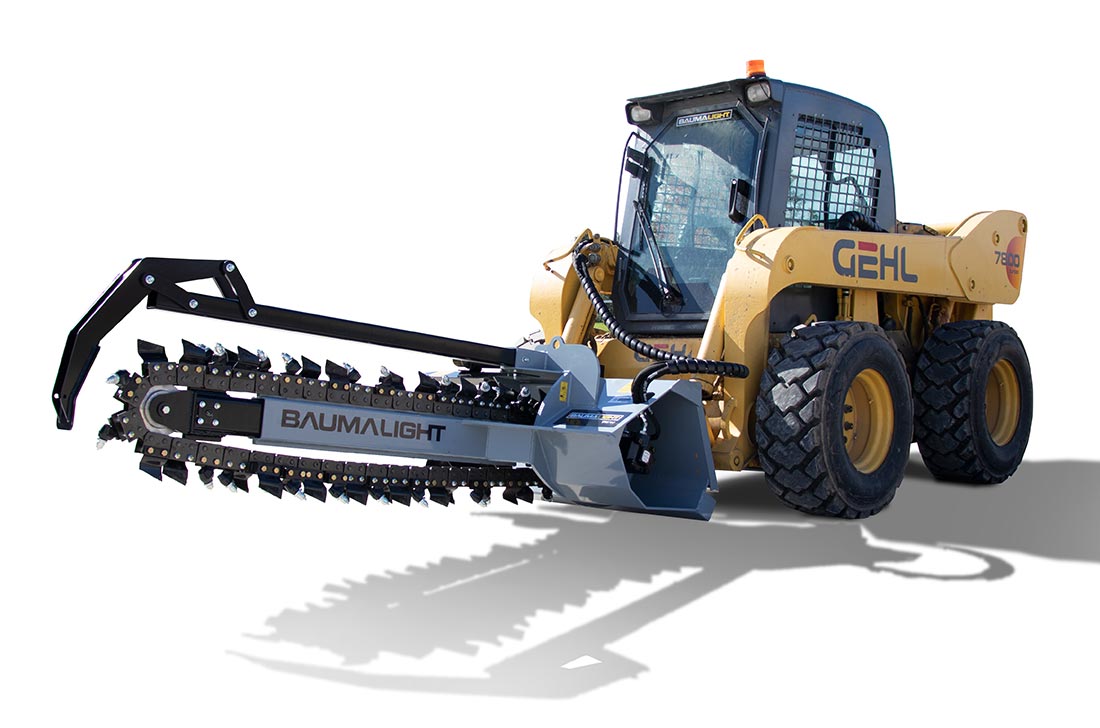

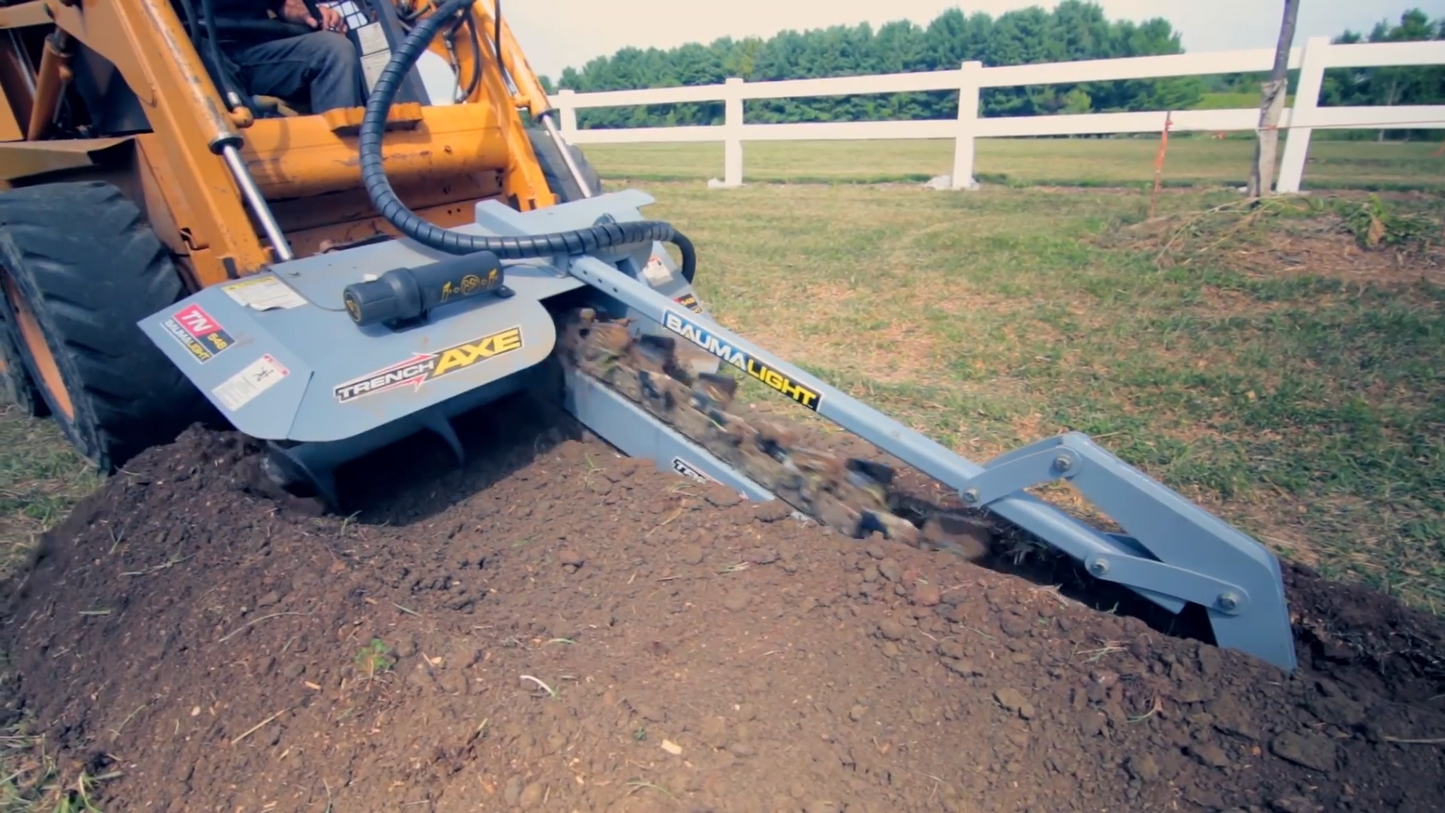

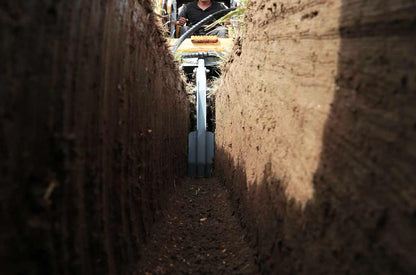

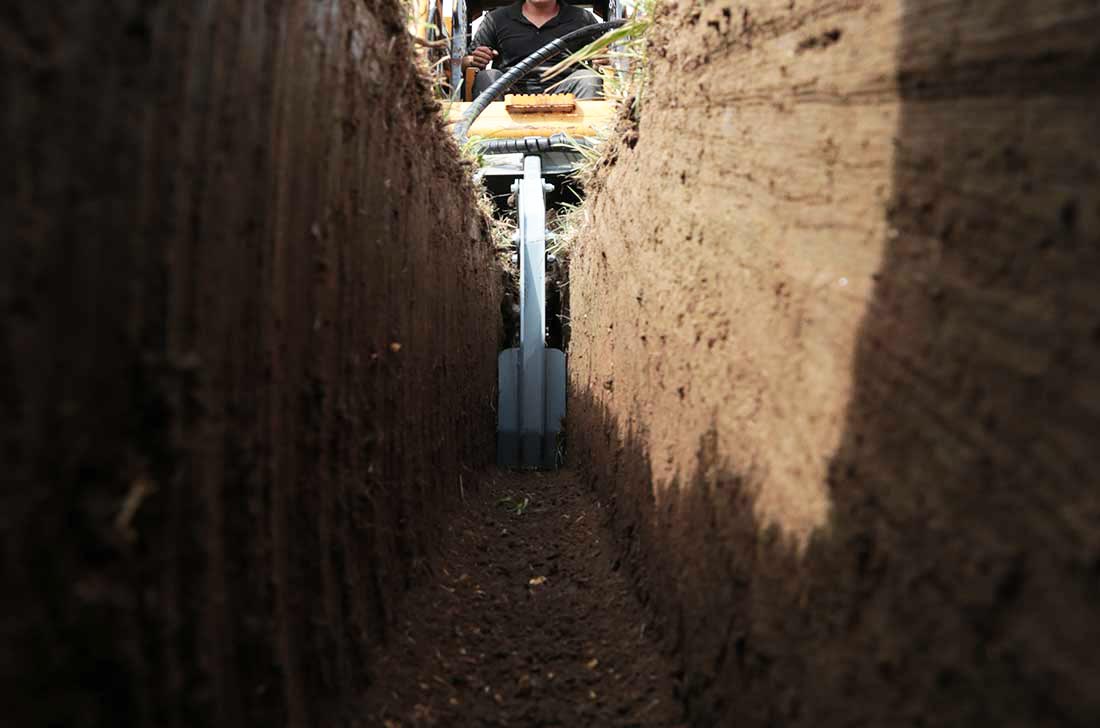

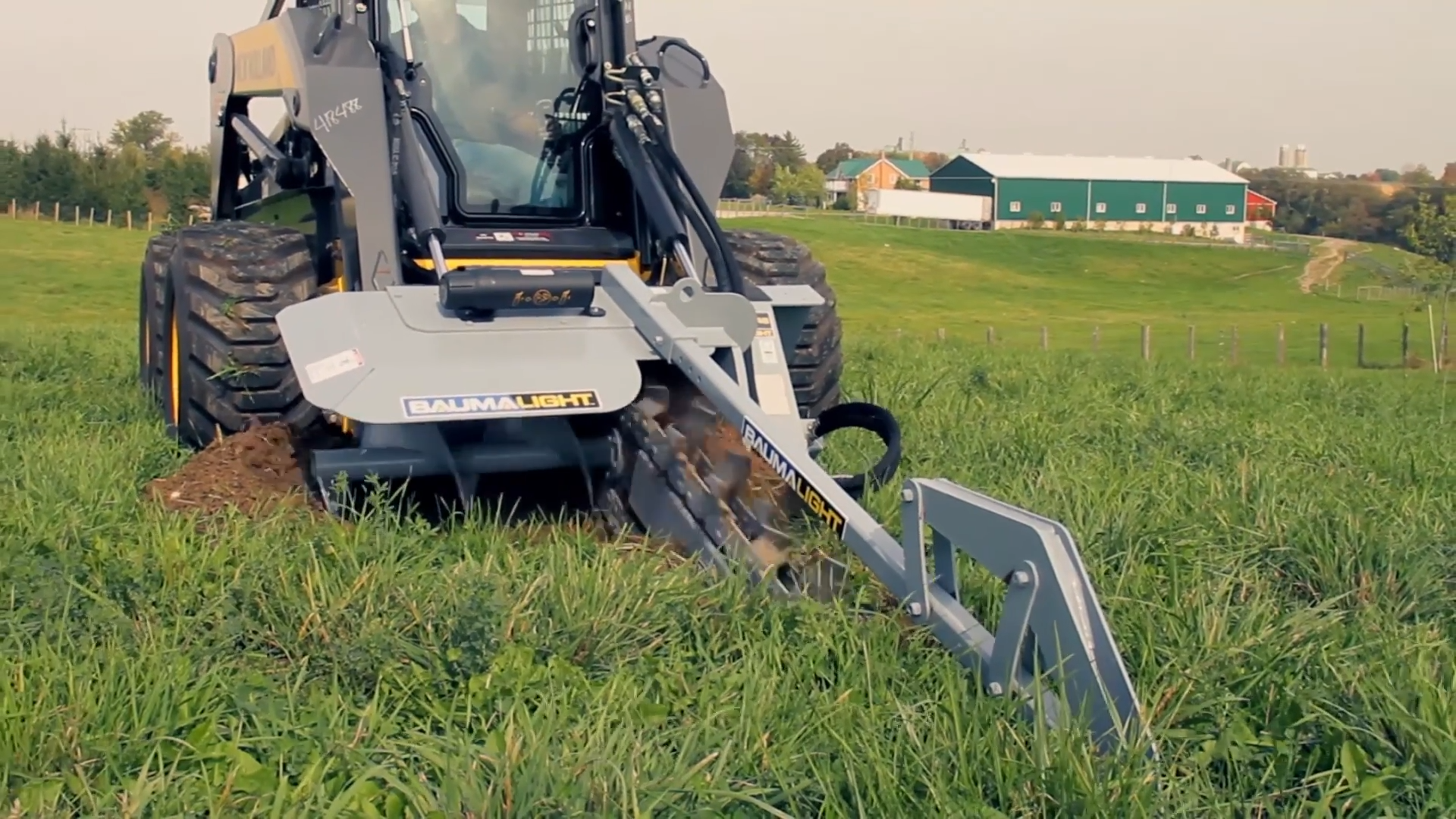

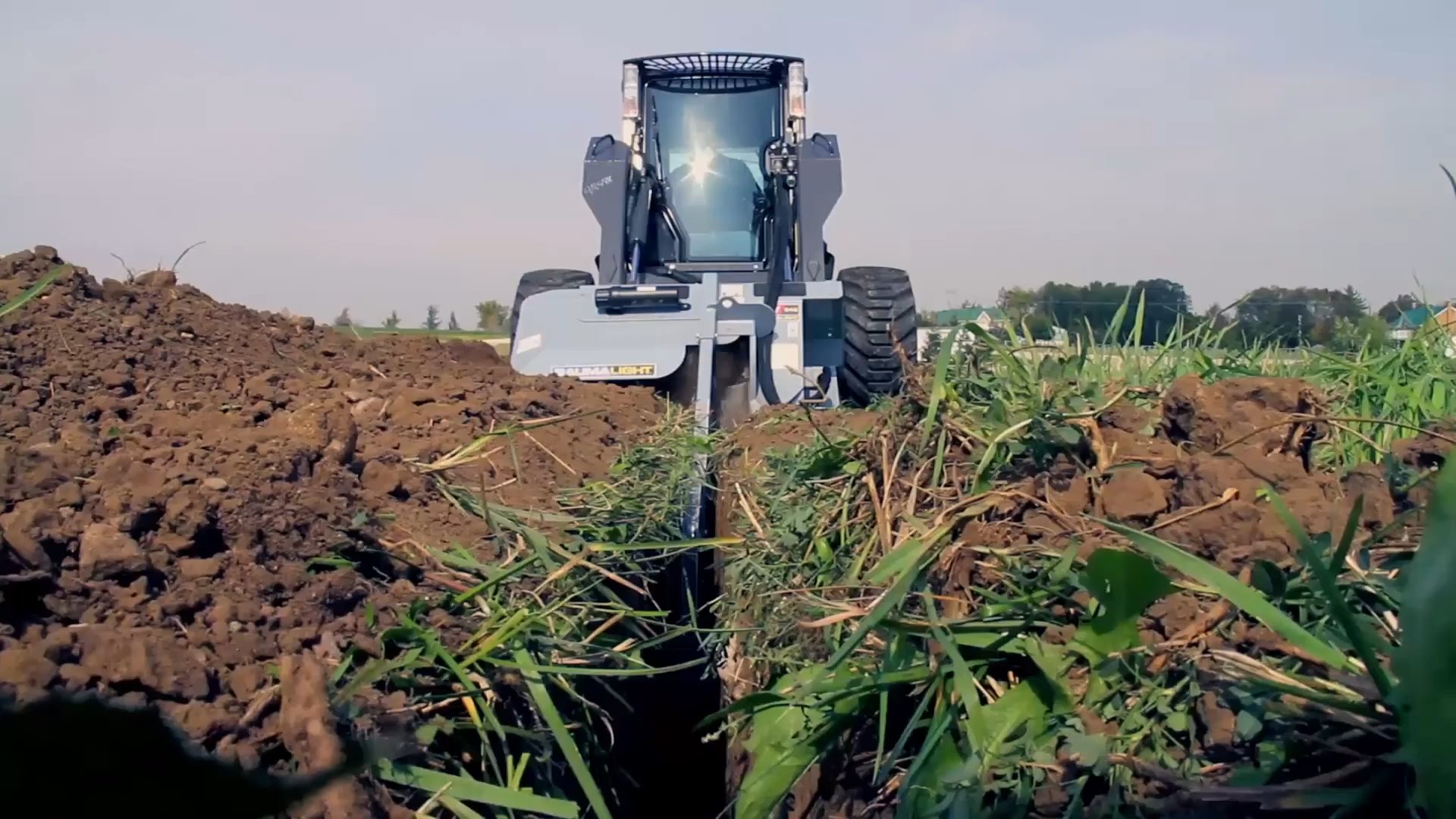

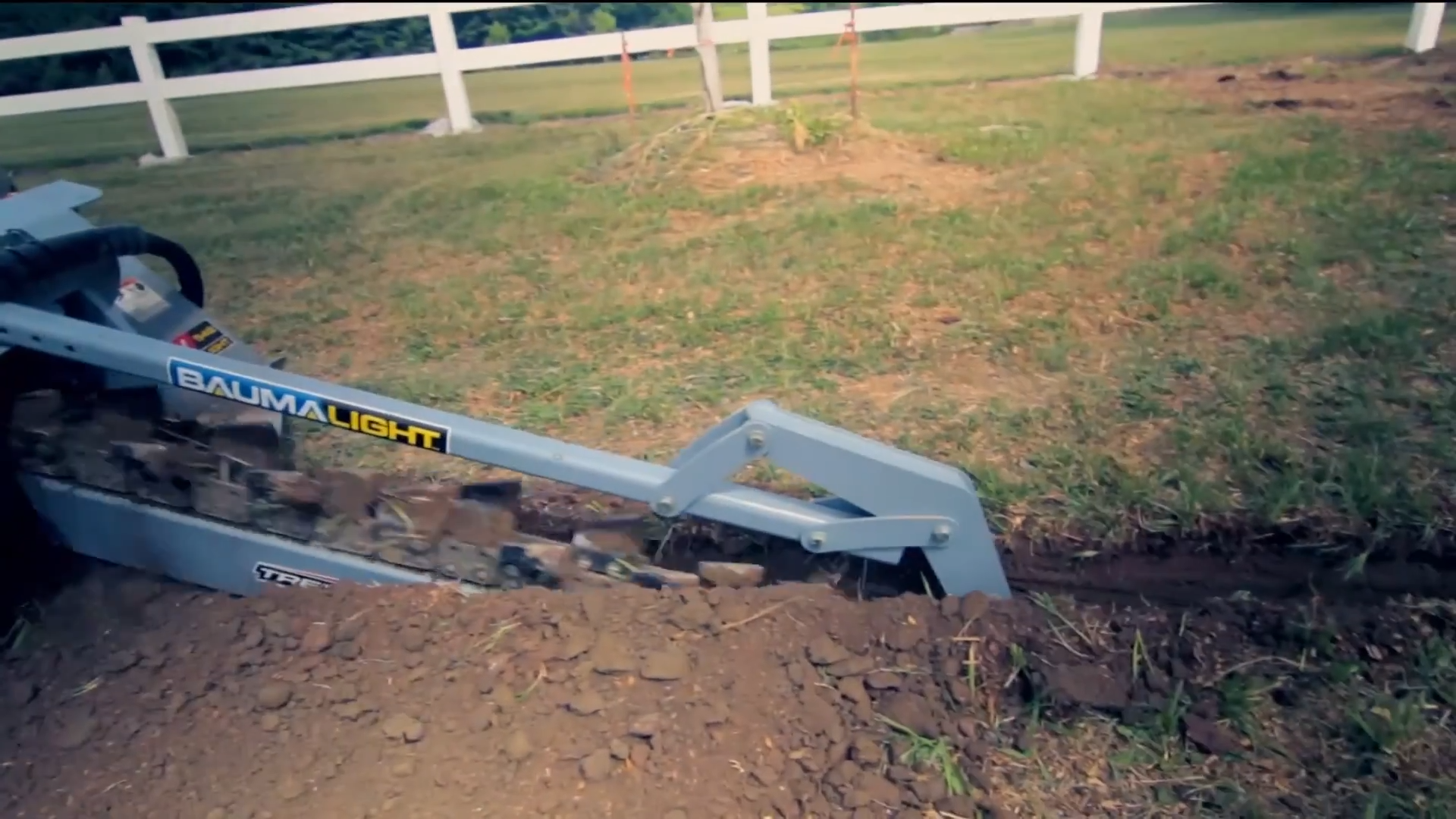

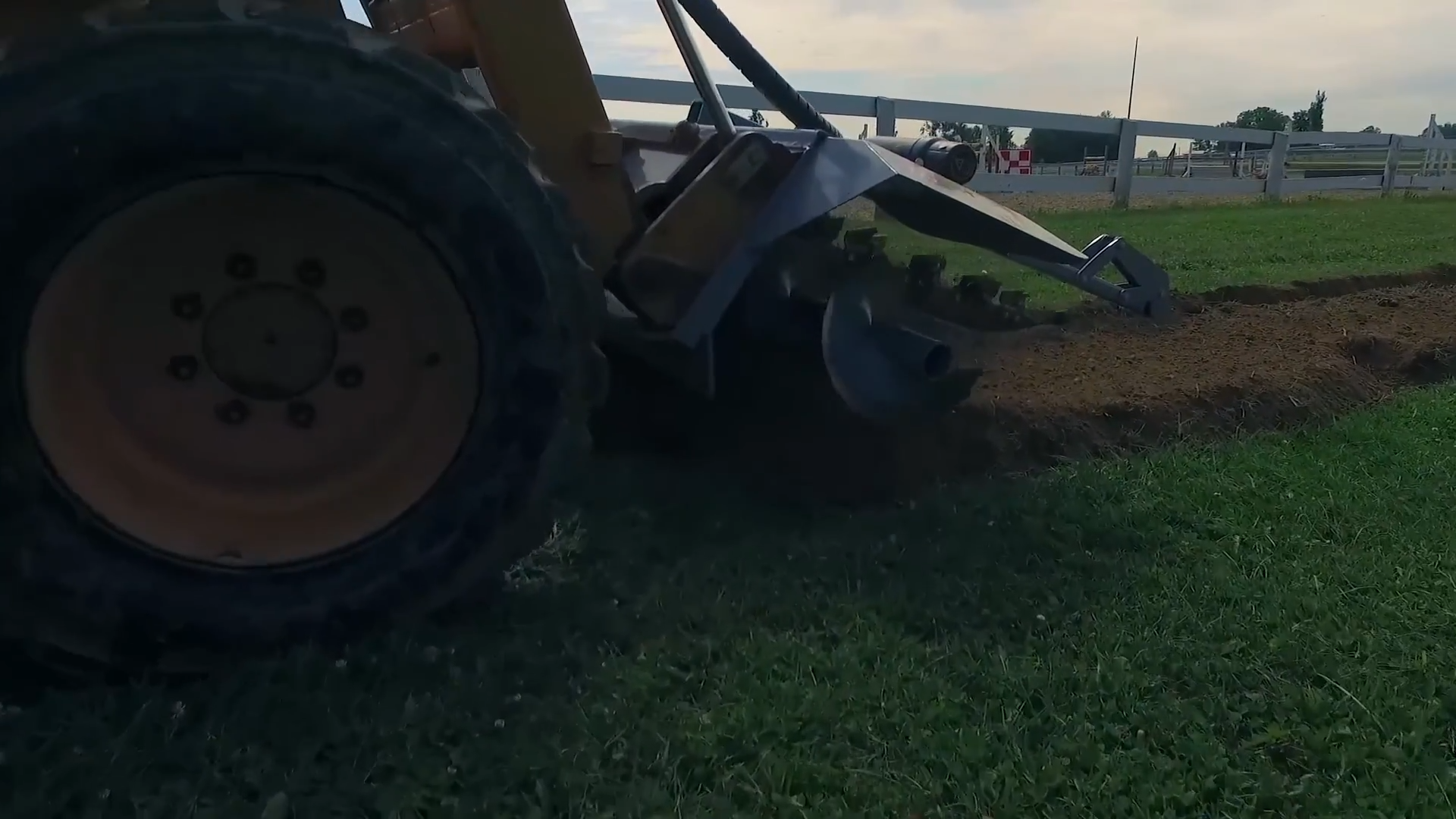

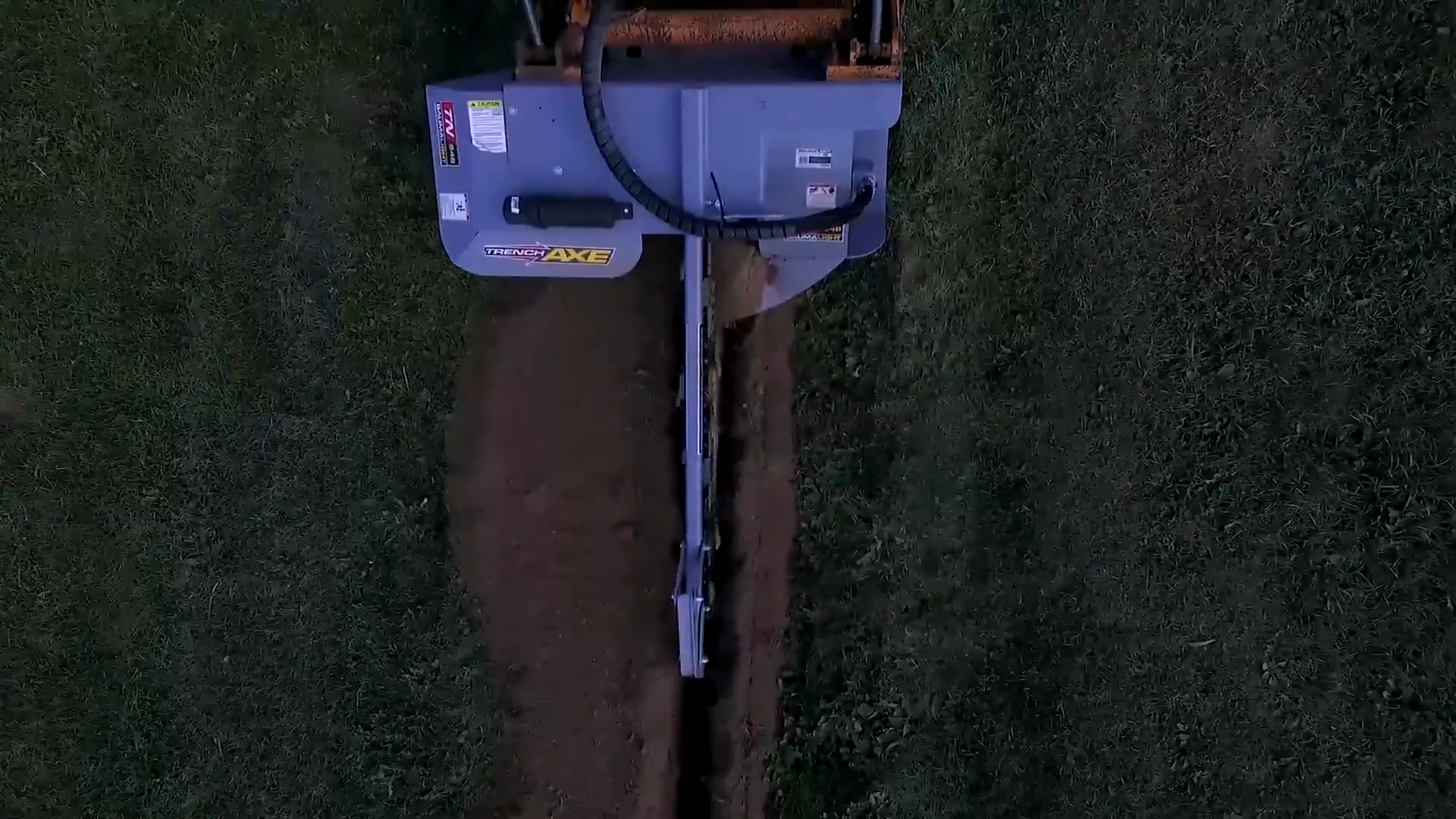

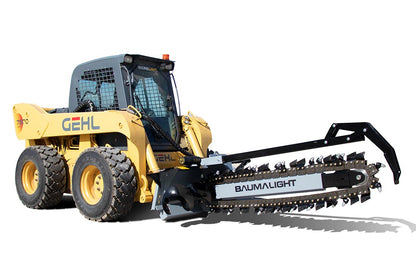

Introducing the Baumalight TN760 Trencher, the most powerful trencher designed specifically for skidsteers with high flow hydraulics. This robust machine is perfect for farmers, landscapers, and contractors who need to efficiently and safely bury water lines, gas lines, drainage pipes, or electrical lines. With the capability to cut trenches up to an impressive 60 inches deep and between 6 to 10 inches wide, the TN760 ensures you can reach below the frost line with ease.
Powered by a high flow motor capable of handling up to 40 GPM, the TN760 utilizes a planetary drive system that eliminates the need for a roller chain. This innovative design delivers hydraulic power directly to the sprocket of the digging chain, ensuring optimal trenching performance and reliability.

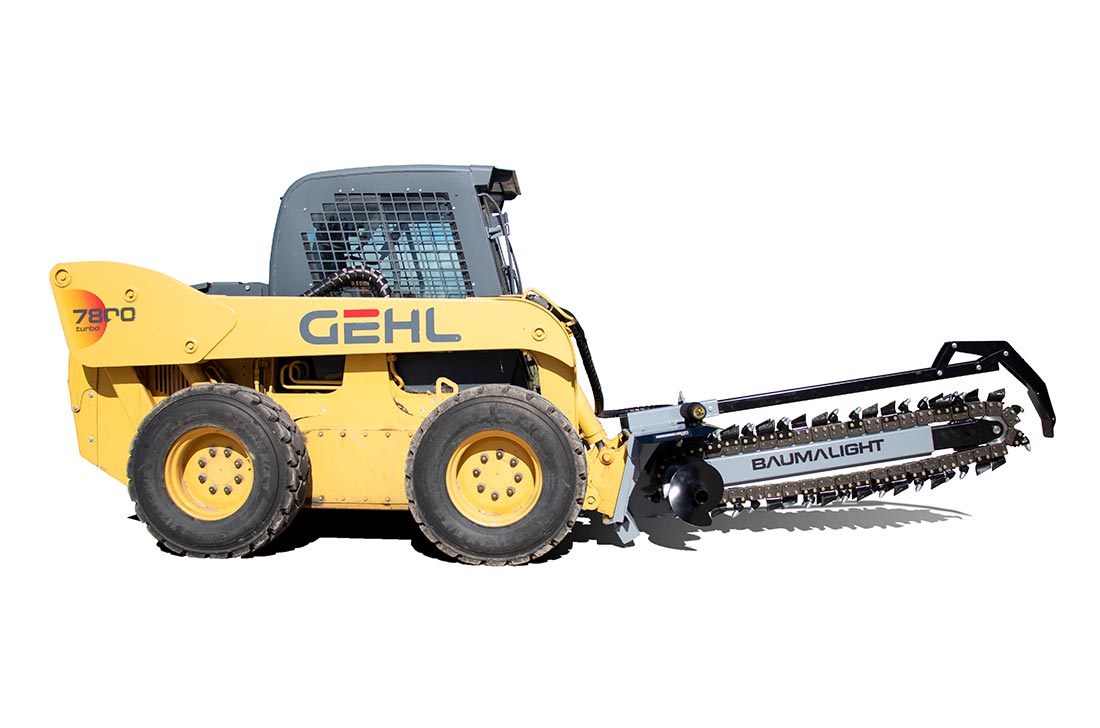

The TN760 is compatible with skidsteers weighing between 4,000 and 11,000 lbs, making it a versatile choice for various job sites.
Key Features
- Deep Trenching Capability Cuts trenches up to 5 feet deep and 6” to 10” wide, making it perfect for large-scale projects.
- Planetary Drive System Delivers maximum torque directly to the digging chain, eliminating roller chain issues.
- Side Auger Keeps dirt clear from the trenching action while ensuring easy backfilling.
- Crumb Scraper Bar Sweeps extra dirt and debris into the chain for efficient removal.
- Solid Steel Nose Precision-machined for durability, running freely on dual tapered roller bearings.
- Adjustable Chain Tension Quick and easy tension adjustments using a grease cylinder tensioner.
- Heavy-Duty Construction Built to withstand extreme trenching forces, ensuring long-term reliability.
Feature |
Description |
Image |
|

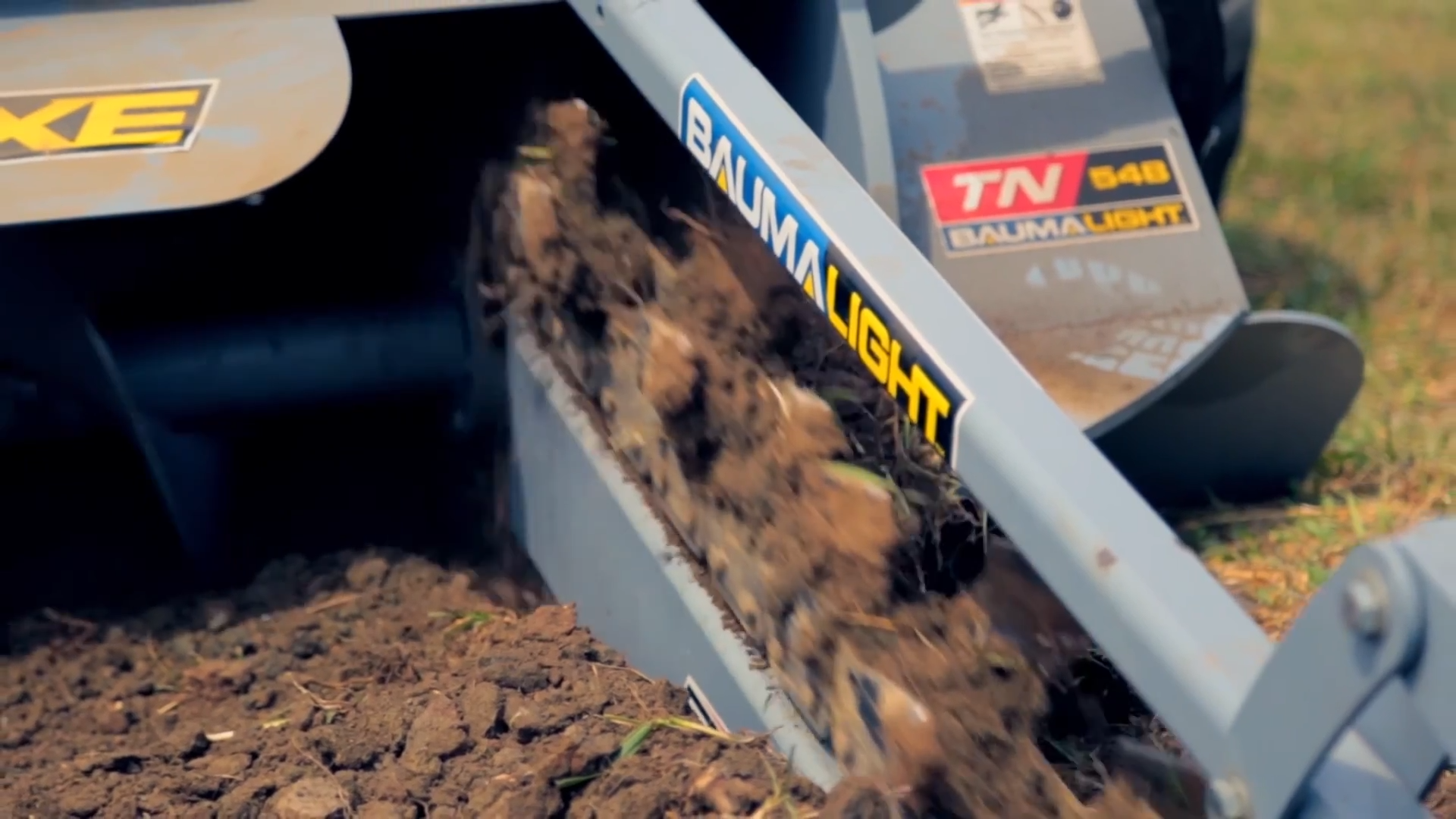

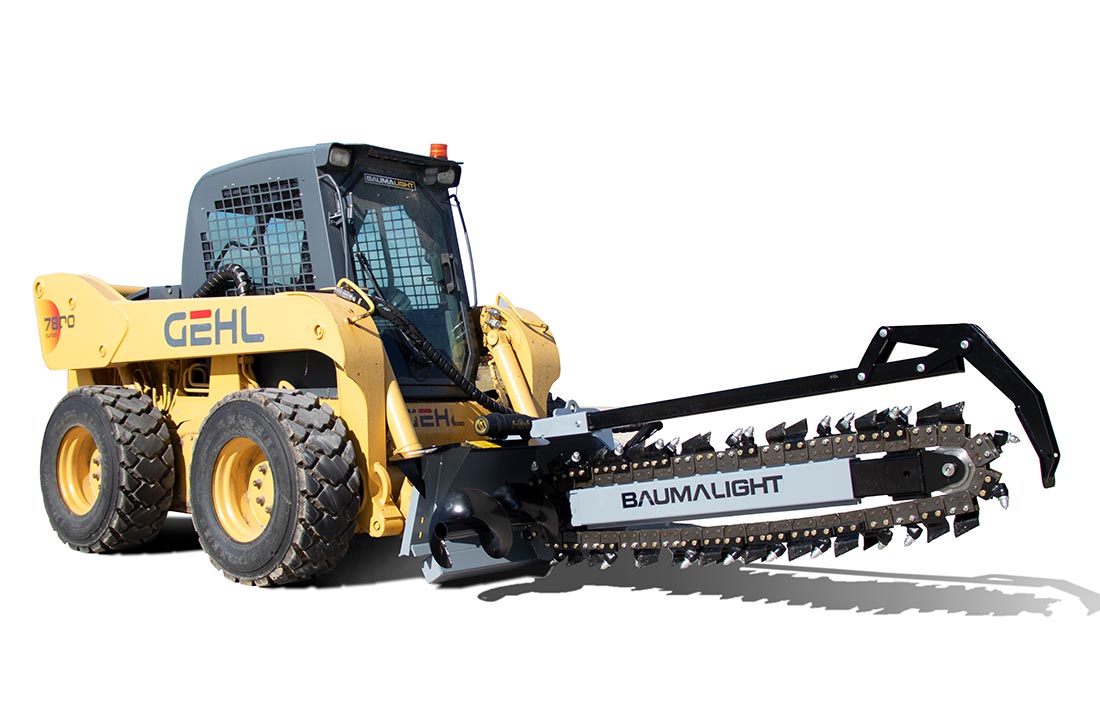

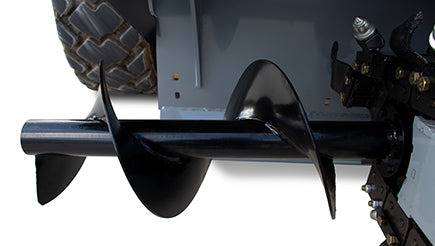

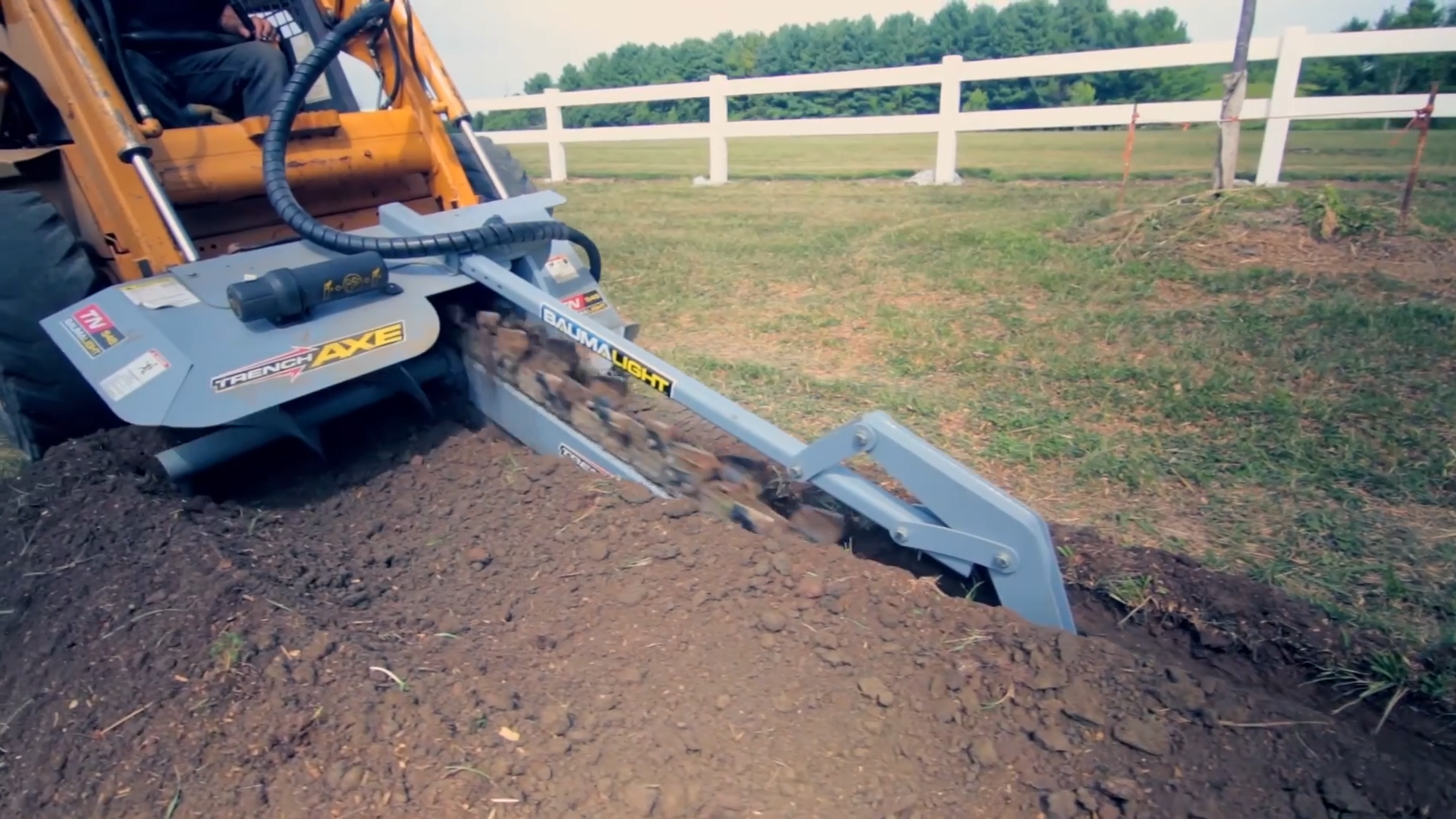

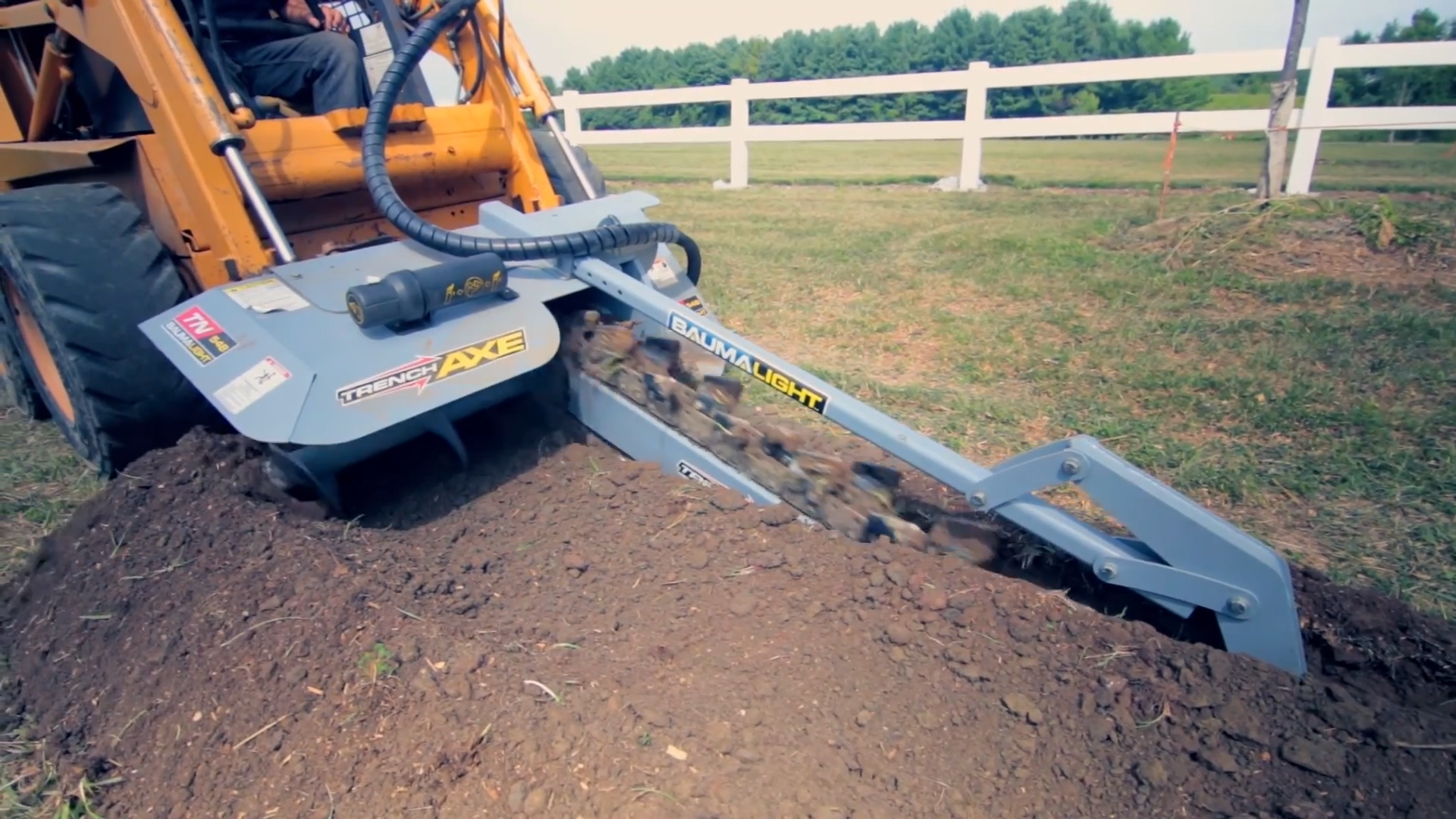

SIDE AUGER |
Baumalight Trenchers are designed with a convenient side auger. The side auger keeps the dirt clear from the trenching action but still near the trench when it’s time for back filling. |  |
|

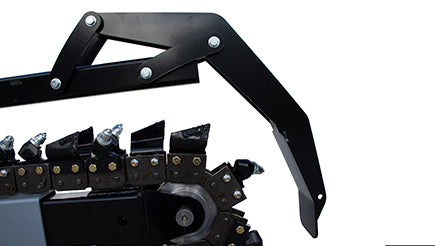

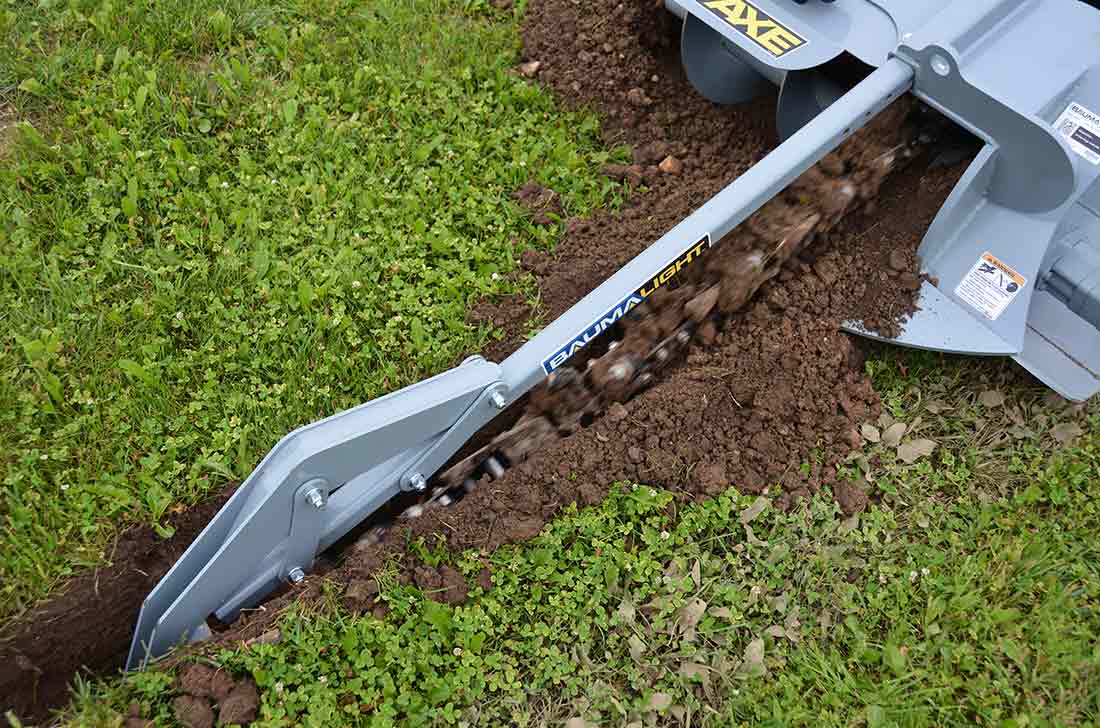

CRUMB SCRAPER BAR |
The Trencher has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging. |  |
|

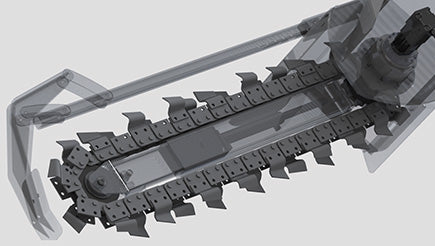

PLANETARY DRIVE SYSTEM |
The sealed drive keeps the dirt out and the trencher going. The compact and stron g planetary drive unit delivers the hydraulic power directly to the sprocket of the digging chain for good digging performance. There are no roller chains that jump or stretch. Maximum torque transfer. The motor is mounted directly in-line with the main sprocket. |  |
|

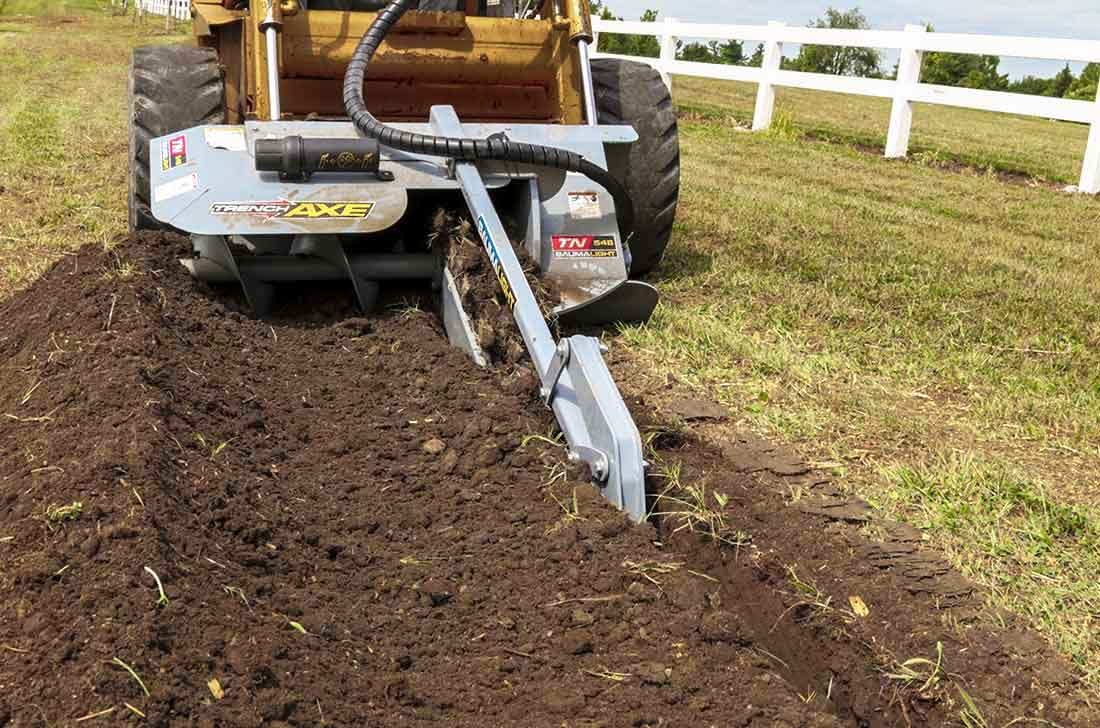

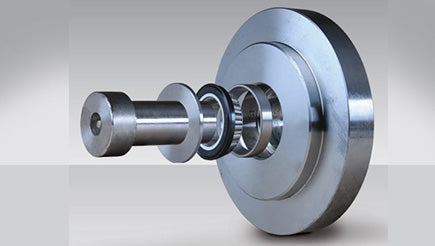

SOLID STEEL NOSE |
The Baumalight Trencher’s heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching. Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely. |  |
|

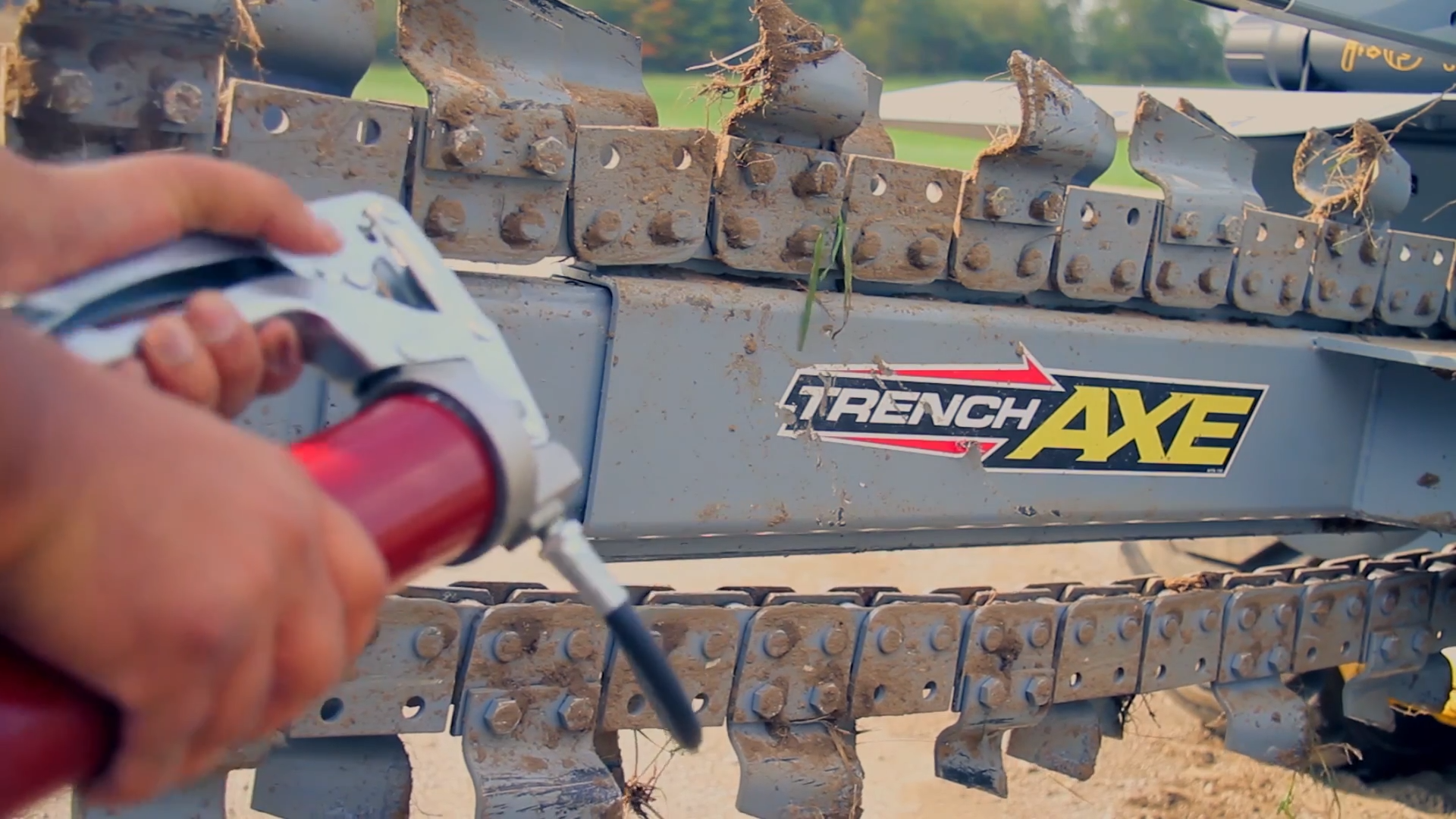

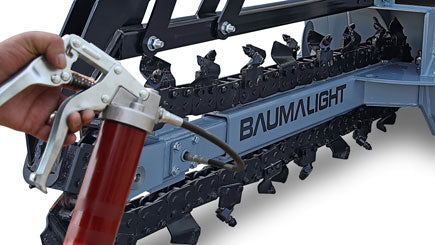

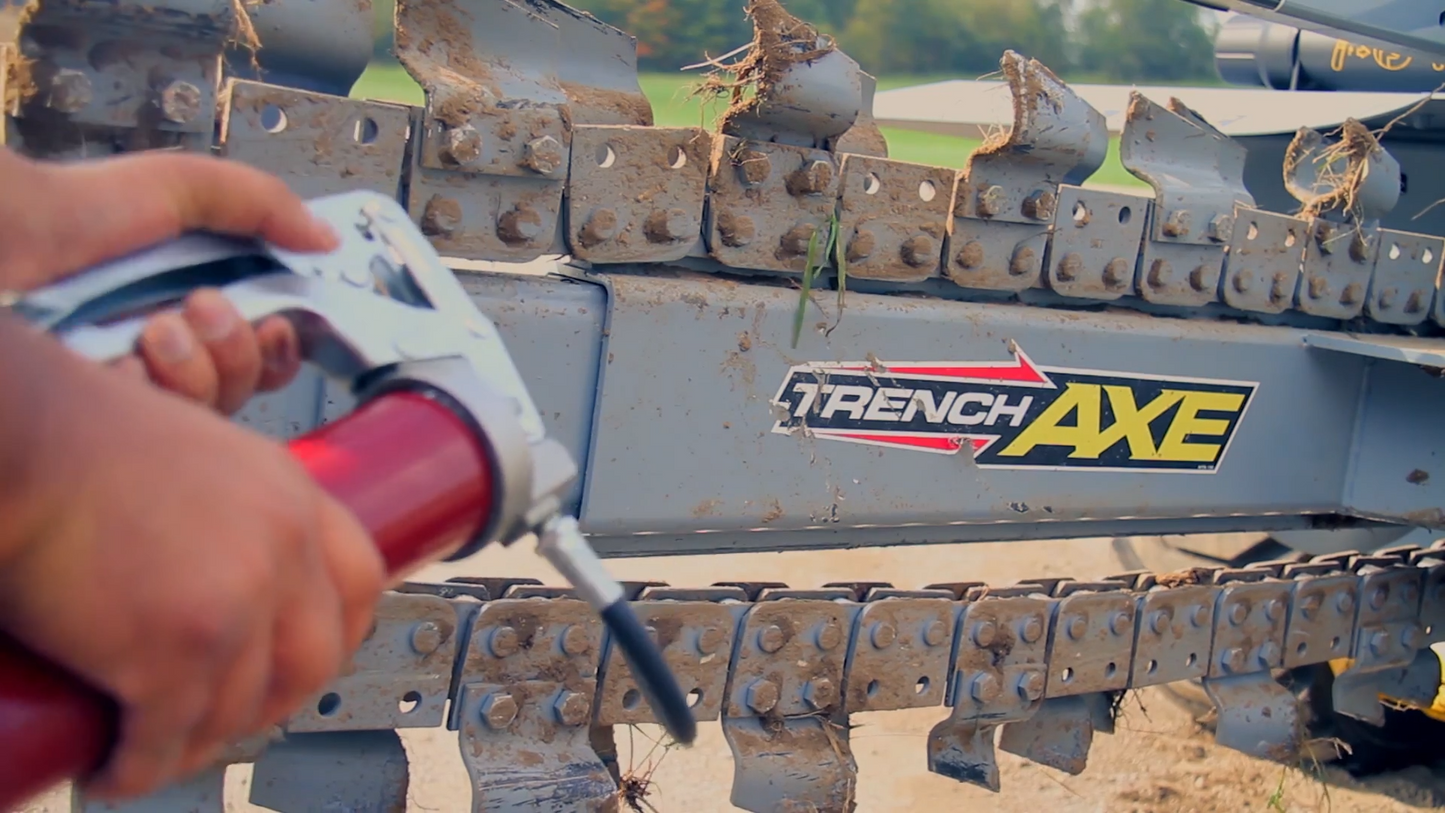

ADJUSTABLE CHAIN TENSION |
Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps. |  |
Detailed Specifications
| Model | TN760 |
|---|---|
| Mount Type | Universal Skid Steer |
| Trench Depth | 60" |
| Trench Width | 6" to 10" |
| Drive Type | Planetary |
| Main Shaft Size | 2-9/16" Solid Hardened Steel |
| Chain Torque @ 3,000 PSI | 33,877 lbs-in |
| Over Torque Protection | Hydraulic Relief |
| Horsepower Range | 40 – 100 HP |
| Carrier Weight Range | 4,000 – 12,000 lbs |
| Min / Max GPM | 20 – 42 GPM |
| Weight | 1,800 lbs |

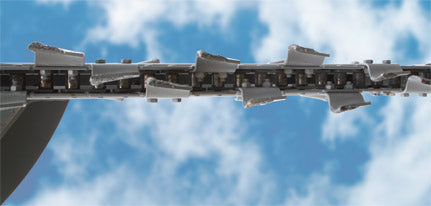

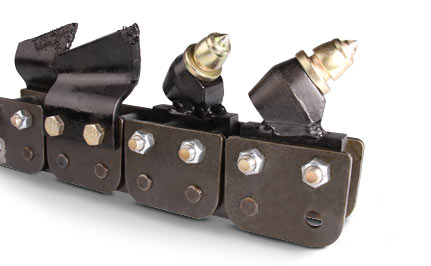

Chain Options for Every Job
| Size | Chain Type | Model | Weight (lbs) |
|---|---|---|---|
| 60” x 6" | Standard Cup Tooth | S6006 | 1,675 |
| 60” x 8" | Standard Cup Tooth | S6008 | 1,686 |
| 60” x 10" | Standard Cup Tooth | S6010 | 1,697 |
| 60” x 6" | 50/50 Rock & Cup Tooth | M6006 | 1,712 |
| 60” x 8" | 50/50 Rock & Cup Tooth | M6008 | 1,719 |
| 60” x 10" | 50/50 Rock & Cup Tooth | M6010 | 1,741 |
Comparison Chart
TN Series Trencher Specifications |
||||||
|---|---|---|---|---|---|---|
Feature |
TN236 |
TNM336B |
TNS336 |
TN548 |
TN560 |
TN760 |
| Trench width | 4" To 6" | 4" To 6" | 4" To 6" | 6" To 10" | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 36" | 36" | 36" | 48" | 60" | 60" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 |
| Main shaft size | 1:10 Taper | 1:10 Taper | 1:10 Taper | 2-9/16" Solid | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 | 10 To 20 | 15 To 25 | 12 To 25 | 20 To 42 |
| Weight (lbs) | 470 | 675 | 850 | 1,250 | 1,500 | 1,800 |
