Product Description
Baumalight Trencher | Model TNS-336 | Trench Depth 36" | Width 4" - 6" | Hydraulic Flow Range 10–22 GPM | For Skid Steers
DESCRIPTION

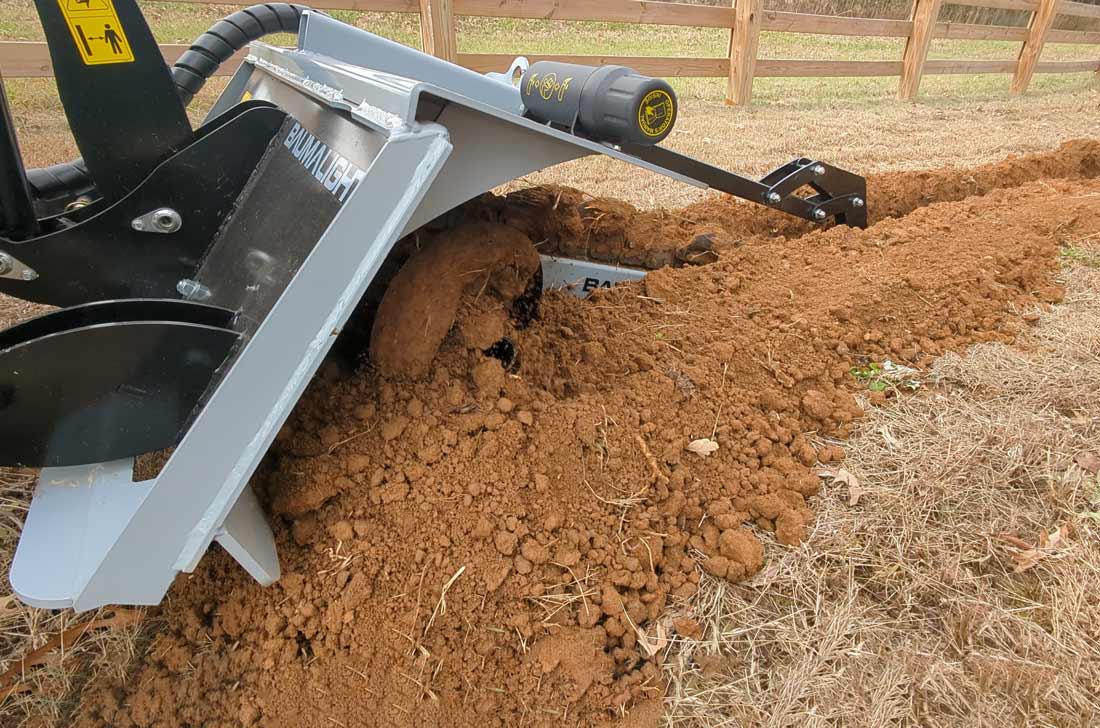

The Baumalight TNS336 Trencher is the ultimate solution for efficiently cutting trenches while keeping your cables and lines protected. Ideal for rural property owners, landscapers, and professional contractors, this trencher allows you to quickly cut trenches up to 36 inches deep and between 4 to 6 inches wide, depending on the chain option selected.
Powered by a robust planetary drive system, the TNS336 eliminates the need for a roller chain, delivering hydraulic power directly to the sprocket of the digging chain. This design ensures optimal trenching performance, making it a reliable choice for various applications.

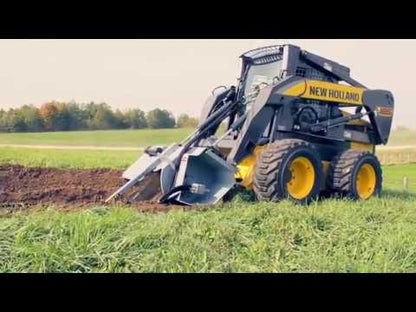

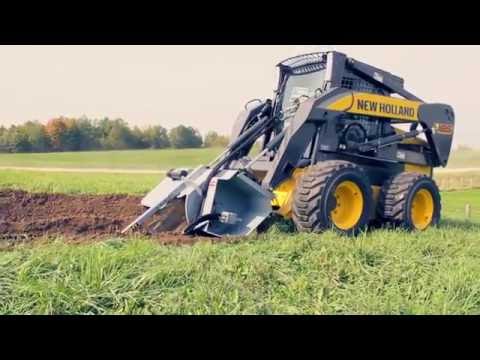

Versatility is a key feature of the TNS336, as it can be mounted on skidsteers weighing between 2,000 - 5,000 lbs or on a tractor with the optional 3-point hitch mount. This adaptability makes it an excellent tool for any job site, ensuring you have the right equipment for your specific needs.
Key Features
- Versatile Mounting Options: Compatible with universal skid steers (2000-5000 lbs) and tractors (with optional 3PH mount).
- Powerful Planetary Drive System: Delivers direct hydraulic power to the digging chain for optimal performance and reduced maintenance.
- Up to 36" Trench Depth: Provides substantial digging depth for various applications.
- Adjustable 4" to 6" Trench Width: Offers flexibility to suit different project requirements (dependent on chain option).
- Convenient Side Auger: Clears loose soil from the trench while keeping it readily accessible for backfilling.
- Standard Crumb Scraper Bar: Helps to create a clean and consistent trench by removing excess dirt and debris.
- Robust Solid Steel Nose: Precision machined and runs on durable dual tapered roller bearings for smooth operation and longevity.
- Adjustable Chain Tension: Allows for quick and easy chain adjustments using a standard grease gun.
- Optional 3PH Tractor Mount (D001393): Enables easy attachment to tractors with hydrostatic drive and requires two hydraulic remotes.
- Optional 3PH External Control Kit (S1050): Facilitates operation with smaller tractors or those with only one hydraulic remote.
- Hardened and Reinforced Cup Style Cutting Teeth (Included Chain): Provides effective digging in various soil conditions.
- Optional Chain and Tooth Styles Available: Including 4" and 6" widths and bullet-style teeth for rocky soil.
Feature |
Description |
Image |
|
D001393 OR D003074 - 3 POINT HITCH TRENCHER ADAPTOR (BOLT ON - DOES NOT INCLUDE S1050) (OPTIONAL) |
This Baumalight Trencher can also be mounted to a tractor. The optional 3-point hitch tractor mount has a cylinder that provides angle and depth control. To use this 3PH adapter, your tractor must have a hydro-static drive. Two hydraulic remotes are required, kits are available for tractors with only one set of external hydraulic connections. |
|
|

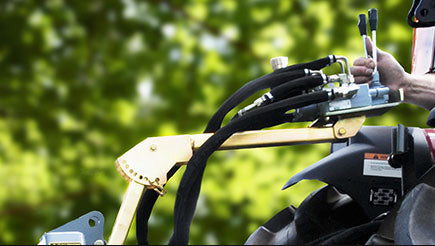

S1050 - 3PH EXTERNAL CONTROL (OPTIONAL) |
This optional external control kit is mounted on an adjustable arm. The control is great for smaller tractors with limited HP and for tractors with only one hydraulic remote. Part number S1050 - Valve kit for tractors with one remote (add $550 if shipping for field install). |
|
|

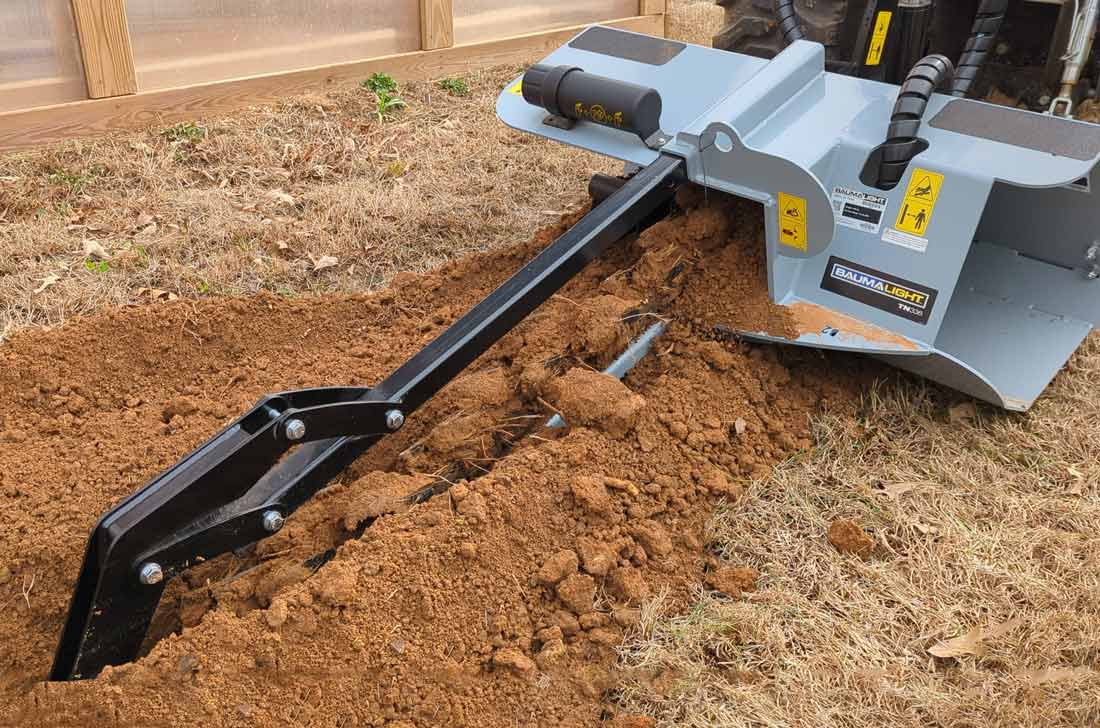

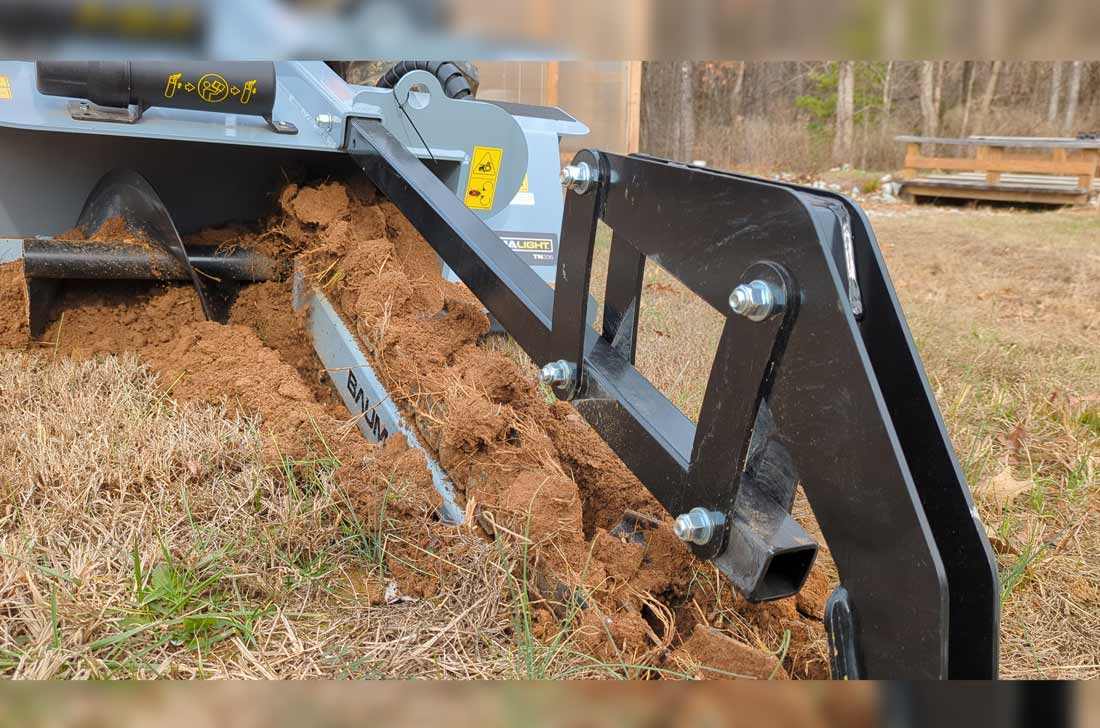

SIDE AUGER |
Baumalight Trenchers are designed with a convenient side auger. The side auger keeps the dirt clear from the trenching action but still near the trench when it’s time for back filling. |  |
|

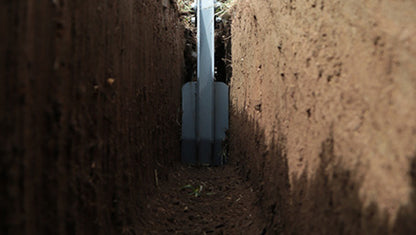

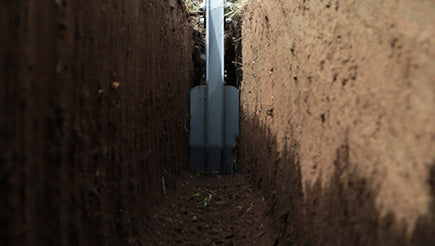

CRUMB SCRAPER BAR |
The Trencher has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging. |  |
|
PLANETARY DRIVE SYSTEM |
The sealed drive keeps the dirt out and the trencher going. The compact and stron g planetary drive unit delivers the hydraulic power directly to the sprocket of the digging chain for good digging performance. There are no roller chains that jump or stretch. Maximum torque transfer. The motor is mounted directly in-line with the main sprocket. |  |
|

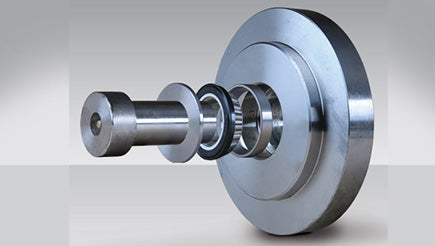

SOLID STEEL NOSE |
The Baumalight Trencher’s heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching. Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely. |  |
|

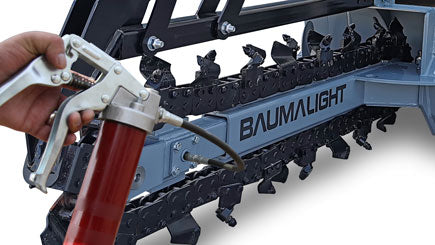

ADJUSTABLE CHAIN TENSION |
Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps. |  |
Detailed Specifications
| Specification | TNS336 |
|---|---|
| Mount | Universal Skid Steer or Tractor (optional 3PH) |
| Trench Depth | Up to 36" |
| Trench Width | 4" to 6" (depending on chain) |
| Drive Type | Planetary Drive |
| Main Shaft Size | 1:10 Taper Hardened Shaft |
| Trencher Chain Torque @ 3,000 PSI | 14,571 lbs-in |
| Over Torque Protection | Hydraulic Relief |
| Horsepower Requirement | 30 – 55 HP |
| Carrier Weight | 2,000 – 5,000 lbs |
| Hydraulic Flow (Skid Steer) | 10 – 20 GPM |
| Hydraulic Flow (Tractor) | 14 – 22 GPM |
| Weight | 850 lbs (standard chain setup) |

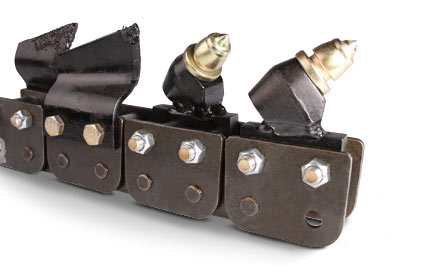

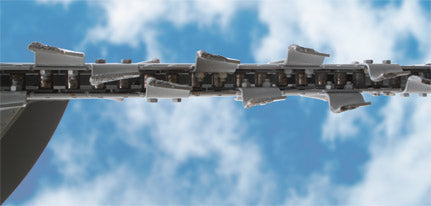

Chain Options for Every Job
| Chain Type | Width | Tooth Style | Best For |
|---|---|---|---|
| S3604 (Standard) | 4" | Cup Tooth | General trenching in soil & clay |
| S3606 (Standard) | 6" | Cup Tooth | Wider trenches in softer ground |
| M3604 (Rock Mix) | 4" | 50% Rock Teeth | Rocky or mixed soil conditions |
| M3606 (Rock Mix) | 6" | 50% Rock Teeth | Wider trenches in tough terrain |
Comparison Chart
TN Series Trencher Specifications |
||||||
|---|---|---|---|---|---|---|
Feature |
TN236 |
TNM336B |
TNS336 |
TN548 |
TN560 |
TN760 |
| Trench width | 4" To 6" | 4" To 6" | 4" To 6" | 6" To 10" | 6" To 10" | 6" To 10" |
| Trench Depth (inches) | 36" | 36" | 36" | 48" | 60" | 60" |
| Drive Type | Direct drive | Direct drive | Planetary | Planetary | Planetary | Planetary |
| Horse Power (HP) | 10 - 25 | 10 - 25 | 30 - 55 | 40 - 100 | 40 - 100 | 40 - 100 |
| Main shaft size | 1:10 Taper | 1:10 Taper | 1:10 Taper | 2-9/16" Solid | 2-9/16" Solid | 2-9/16" Solid |
| Trencher chain torque at 3,000 PSI | 6,703 lbs-in | 6,703 lbs-in | 14,571 lbs-in | 21,856 lbs-in | 21,856 lbs-in | 33,877 lbs-in |
| Carrier weight (lb) | 1,500 - 4,000 | 1,500 - 4,000 | 2,000 - 5,000 | 3,000 - 7,000 | 3,000 - 7,000 | 4,000 - 12,000 |
| Min. / Max. GPM Skidsteer | 7 To 18 | 7 To 18 | 10 To 20 | 15 To 25 | 12 To 25 | 20 To 42 |
| Weight (lbs) | 470 | 675 | 850 | 1,250 | 1,500 | 1,800 |
