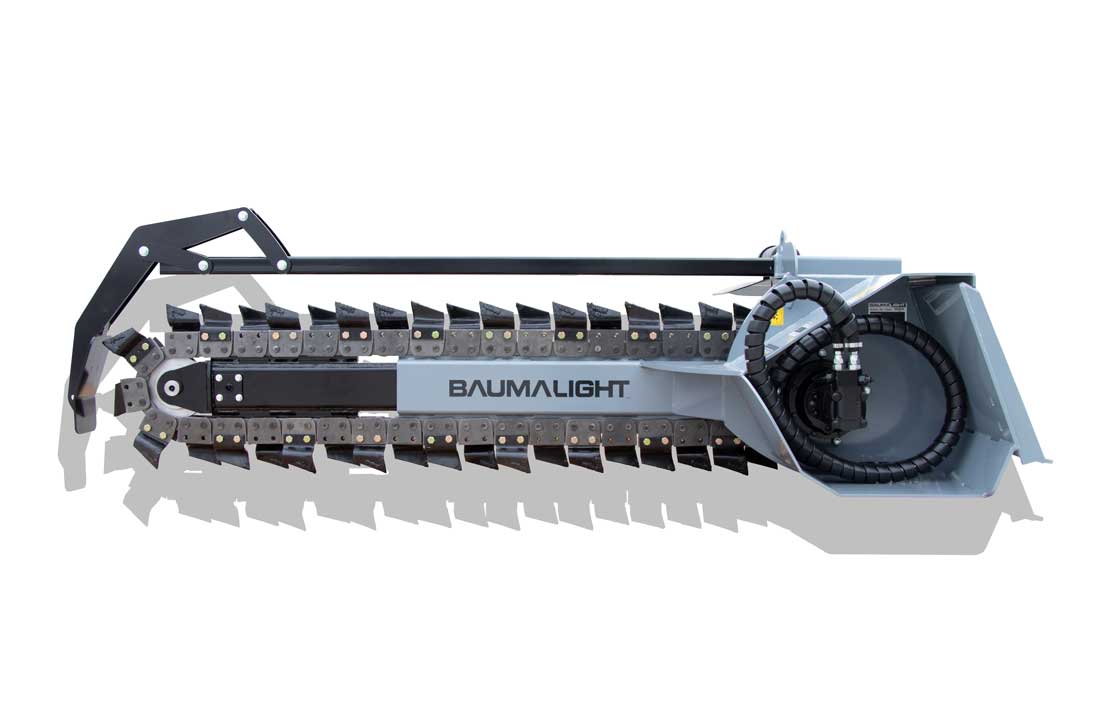

Baumalight Trencher | Model TN-560 | Width 6 - 10" | Trench Depth 60" | Hydraulic Flow Range 15-25 GPM | For Skid Steers

Product Description

Baumalight Trencher | Model TN-560 | Width 6 - 10" | Trench Depth 60" | Hydraulic Flow Range 15-25 GPM | For Skid Steers

DESCRIPTION

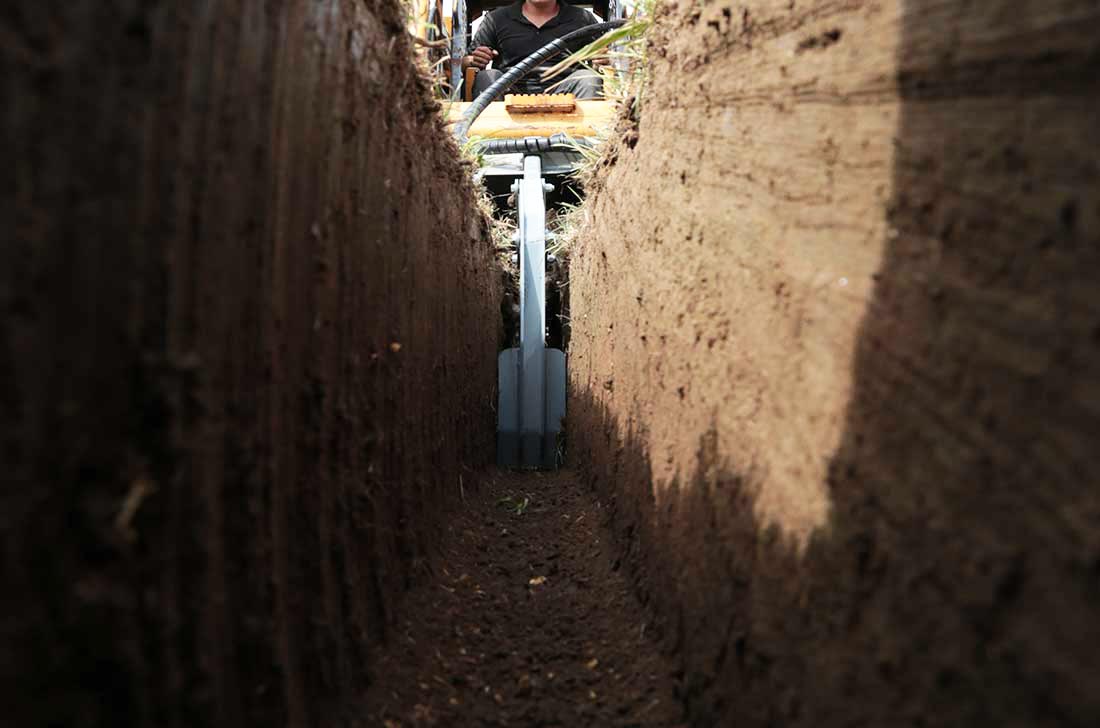

Introducing the Baumalight TN560 Trencher, a powerful tool designed to meet the demands of landscapers and contractors alike. This trencher allows you to dig deep—up to an impressive 60 inches—making it ideal for safely burying gas lines, electrical lines, plumbing, or drainage systems well below the frost line. With the ability to cut trenches between 6 to 10 inches wide, the TN560 is versatile enough to handle a variety of trenching tasks.

Powered by a robust planetary drive system, the TN560 eliminates the need for a roller chain, delivering hydraulic power directly to the sprocket of the digging chain. This design ensures optimal trenching performance, allowing you to work efficiently and effectively.

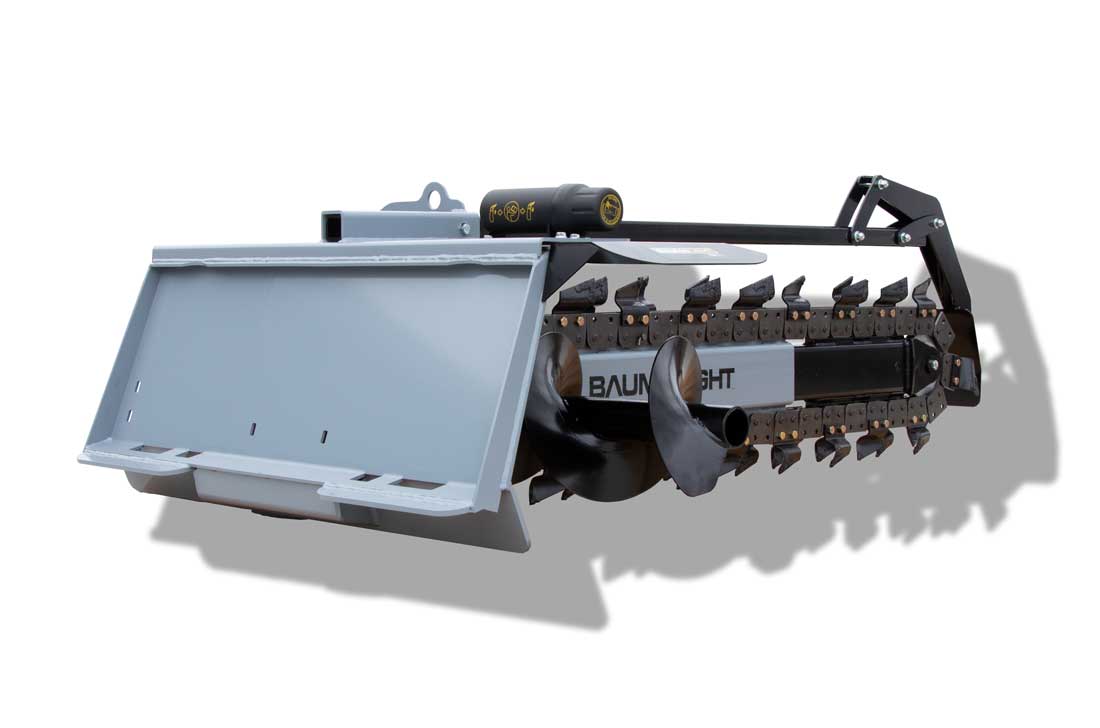

The TN560 is compatible with skidsteers weighing between 3,000 and 7,000 lbs, making it a flexible choice for various job sites.

Key Features

• Impressive 60" Maximum Trench Depth: Allows for deep burial of utilities and lines below the frost line.
• Adjustable 6" to 10" Trench Width: Offers flexibility to suit different project requirements (dependent on chain option).
• Powerful Planetary Drive System: Delivers direct hydraulic power for optimal trenching force and reduced maintenance.
• Designed for Full-Sized Skid Steers: Compatible with skid steers weighing between 3000 and 7000 lbs.
• Convenient Side Auger: Clears loose soil from the trench while keeping it readily accessible for backfilling.
• Standard Crumb Scraper Bar: Helps to create a clean and consistent trench by removing excess dirt and debris.
• Robust Solid Steel Nose: Precision machined and runs on durable dual tapered roller bearings for smooth operation and longevity.
• Adjustable Chain Tension: Allows for quick and easy chain adjustments using a standard grease gun.
• Protective Powder Coat Finish: Provides excellent resistance to wear and corrosion, ensuring long-term durability.
• Hardened and Reinforced Cup Style Cutting Teeth (Included Chain): Provides effective digging in various soil conditions.

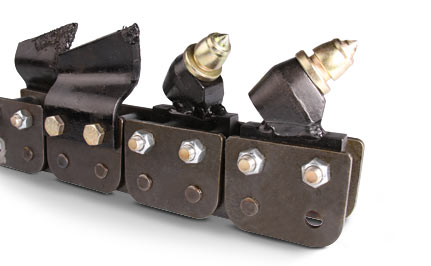

• Optional Chain and Tooth Styles Available: Including 6", 8", and 10" widths and bullet-style teeth for rocky soil.

• Impressive 60" Maximum Trench Depth: Allows for deep burial of utilities and lines below the frost line.
• Adjustable 6" to 10" Trench Width: Offers flexibility to suit different project requirements (dependent on chain option).
• Powerful Planetary Drive System: Delivers direct hydraulic power for optimal trenching force and reduced maintenance.
• Designed for Full-Sized Skid Steers: Compatible with skid steers weighing between 3000 and 7000 lbs.
• Convenient Side Auger: Clears loose soil from the trench while keeping it readily accessible for backfilling.
• Standard Crumb Scraper Bar: Helps to create a clean and consistent trench by removing excess dirt and debris.
• Robust Solid Steel Nose: Precision machined and runs on durable dual tapered roller bearings for smooth operation and longevity.
• Adjustable Chain Tension: Allows for quick and easy chain adjustments using a standard grease gun.
• Protective Powder Coat Finish: Provides excellent resistance to wear and corrosion, ensuring long-term durability.
• Hardened and Reinforced Cup Style Cutting Teeth (Included Chain): Provides effective digging in various soil conditions.
• Optional Chain and Tooth Styles Available: Including 6", 8", and 10" widths and bullet-style teeth for rocky soil.

Feature	Description	Image

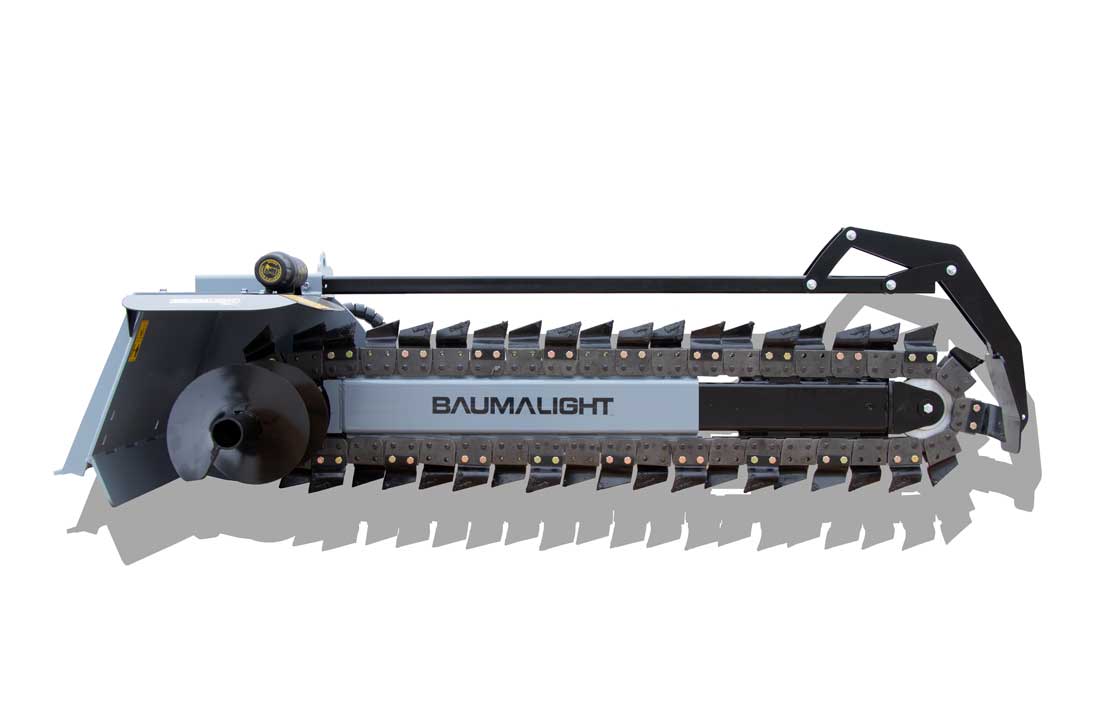

SIDE AUGER	Baumalight Trenchers are designed with a convenient side auger. The side auger keeps the dirt clear from the trenching action but still near the trench when it’s time for back filling.

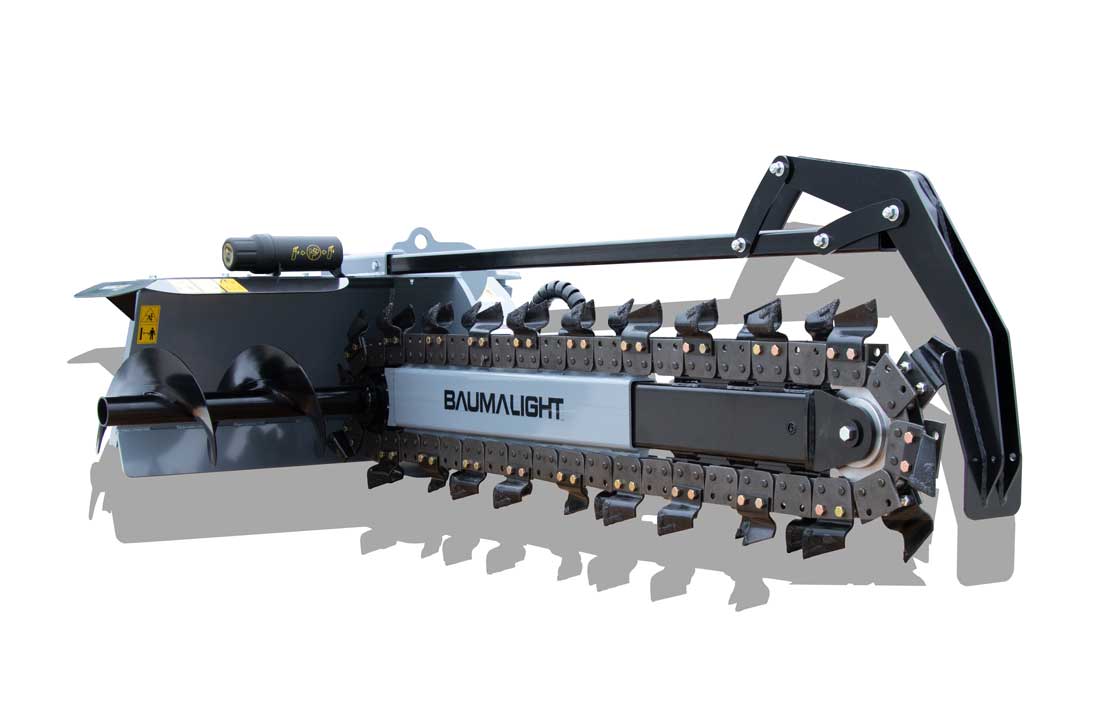

CRUMB SCRAPER BAR	The Trencher has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging.
PLANETARY DRIVE SYSTEM	The sealed drive keeps the dirt out and the trencher going. The compact and stron g planetary drive unit delivers the hydraulic power directly to the sprocket of the digging chain for good digging performance. There are no roller chains that jump or stretch. Maximum torque transfer. The motor is mounted directly in-line with the main sprocket.
SOLID STEEL NOSE	The Baumalight Trencher’s heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching. Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely.

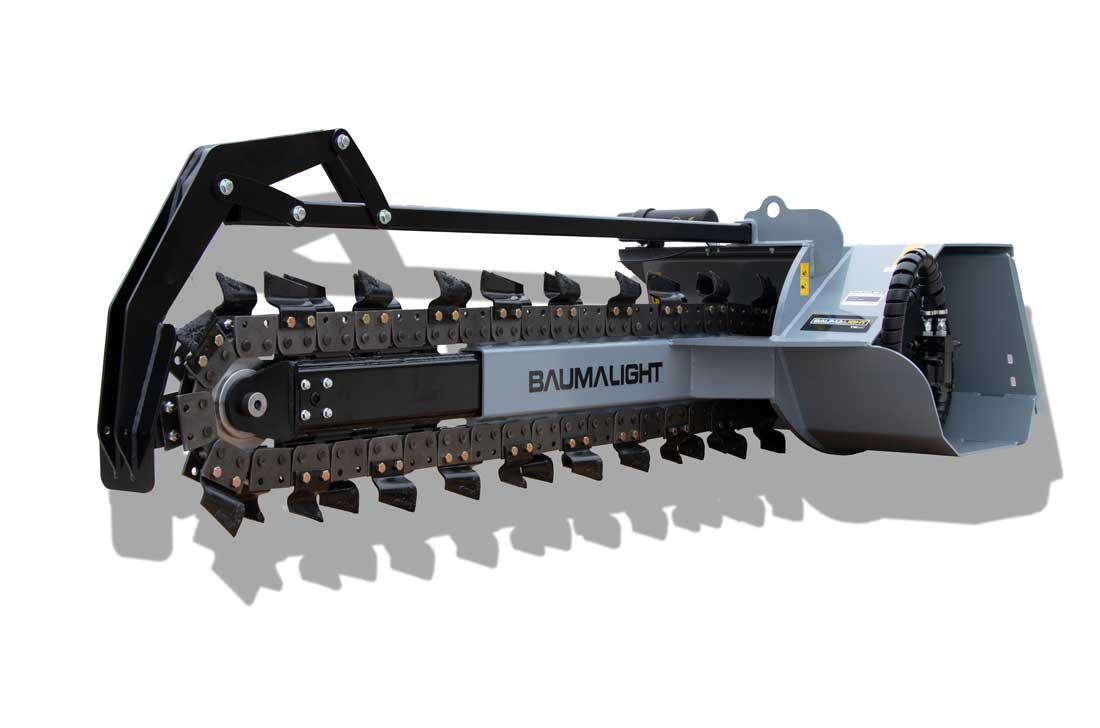

ADJUSTABLE CHAIN TENSION	Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps.

Detailed Specifications

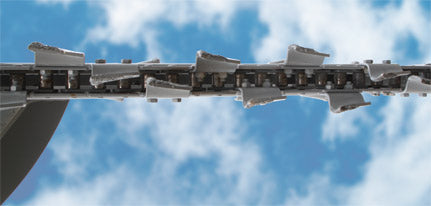

Chain Options for Every Job

Comparison Chart

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

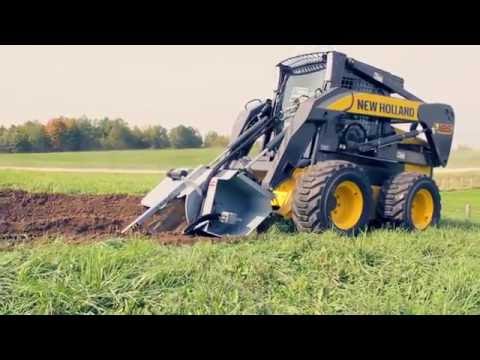

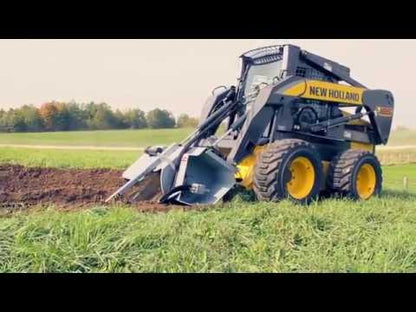

Videos
