Brown BDH-1400-4222 Tandem 11' to 14'6" Cutting Width 3PT Hitch Disk Harrow For Tractor

Product Description

Brown BDH-1400-4222 Tandem 11' to 14'6" Cutting Width 3PT Hitch Disk Harrow For Tractor

DESCRIPTION

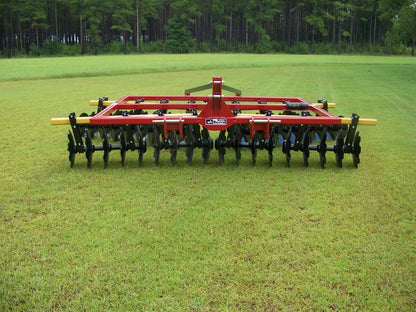

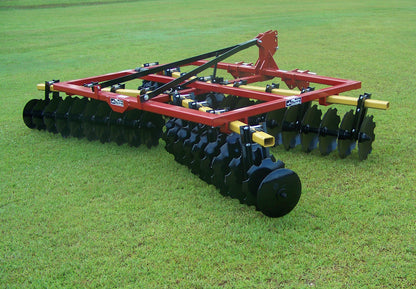

The Brown Tandem Gang Disc Harrow is a robust, heavy-duty implement built to handle intensive agricultural applications, including soil breaking and cultivation. Engineered with a welded tube frame and seven-gauge notched disc blades, this harrow effectively manages soil preparation in even the toughest conditions. Each unit features a user-friendly Easy-Lever gang adjustment and trunnion-mounted, triple-lipped sealed steel ball bearings, ensuring durability and smooth operation.

Available in multiple sizes, from 11' to 14'6" cutting widths, and requiring a minimum 4WD tractor horsepower of 95 to 125, this harrow is compatible with various field sizes and soil conditions. It’s equipped with high-strength forged gang axles and furrow fillers as standard, making it an essential tool for serious farming operations.

Key Features

• Heavy-Duty Frame: Welded tube frame for durability and longevity
• Notched Disc Blades: 22" seven-gauge blades ideal for soil breaking and cultivation
• Quick Hitch Compatible: Designed for ease of attachment
• Easy Lever Adjustment: Adjust gang angles effortlessly for customized soil prep
• Trunnion Mounted Bearings: Triple-lipped sealed steel ball bearings for smooth operation
• High-Strength Axles: Forged 1-1/8" gang axles for added resilience
• Varied Cutting Widths: Available in 11', 12'8", 13'2", 13'11", and 14'6" options
• Lift-Type Design: Ideal for 3-point hitch systems, providing stability and ease of use
• Furrow Fillers Included: Standard on all models for efficient soil leveling
• Multiple Sizes: Suitable for a range of tractor horsepower and applications

Detailed Specifications

In Package

• Brown Tandem Gang Disc Harrow (size as selected)
• User Manual
• Required assembly hardware

Available Options

• Furrow Fillers
• Extra-Heavy Gauge Disc Blades
