Product Description
Brown Pull-Type Disc Harrow ( Heavy-Duty Agricultural Attachment ) | Cutting Widths 8'11" to 14'6" | Horsepower 85–130HP | For Tractor
DESCRIPTION

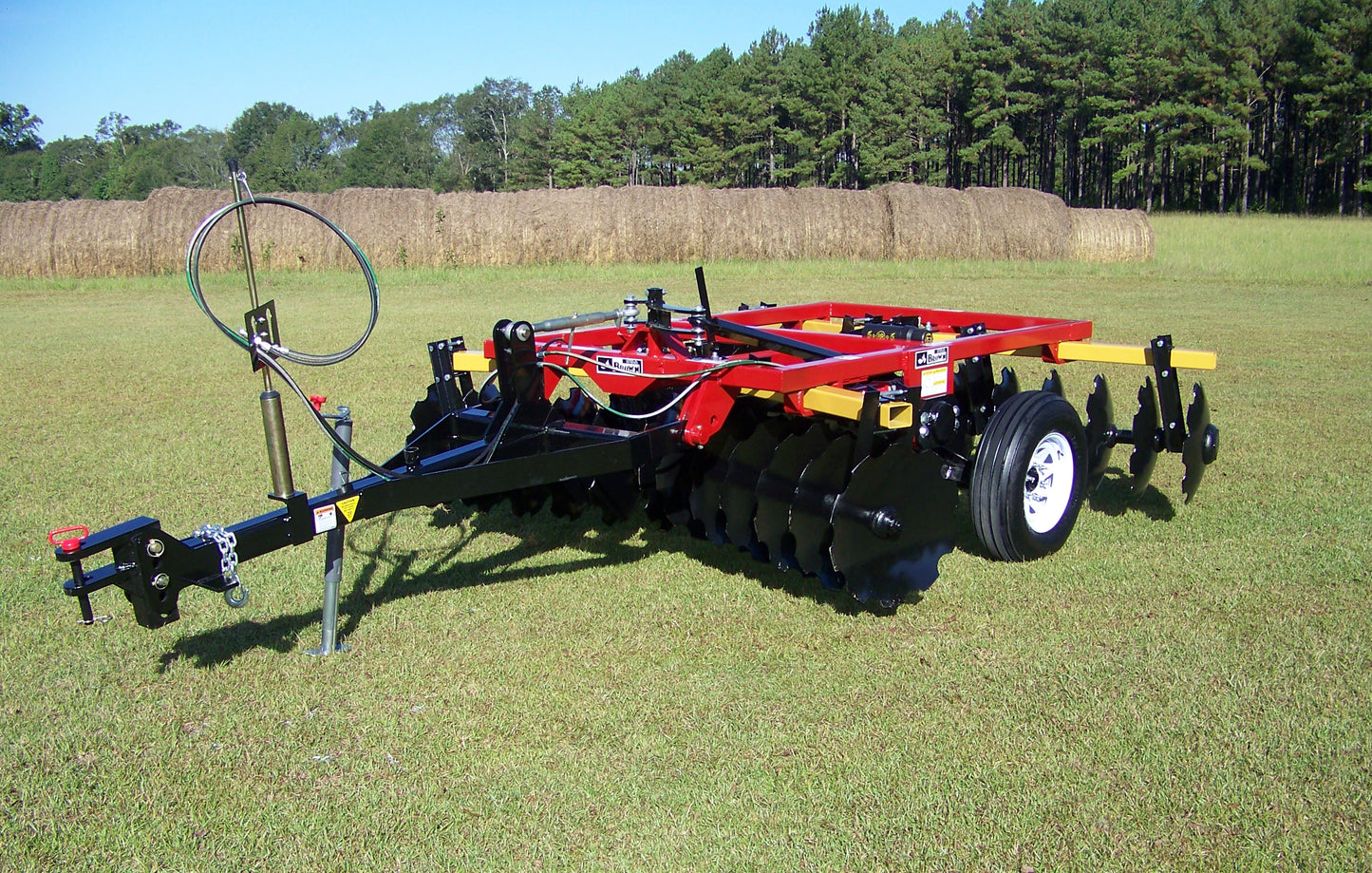

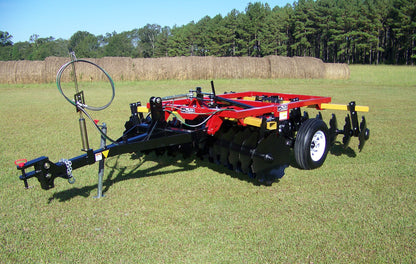

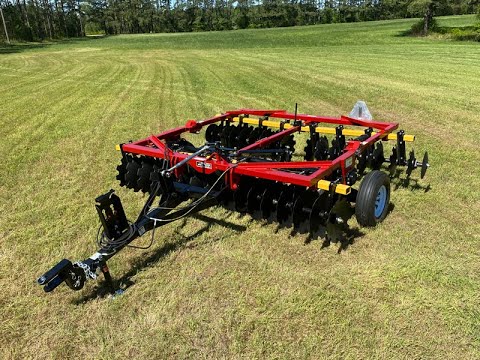

The Brown Pull-Type Disc Harrow is engineered for intensive agricultural applications, delivering robust performance across various terrains. With a welded tube frame, Easy-Lever gang adjustment, and triple-lipped sealed steel ball bearings, it’s crafted to withstand the rigors of large-scale farming. Featuring seven-gauge (0.177", 4.5MM) notched disc blades and a 22" blade diameter, this harrow excels in breaking, turning, and leveling soil, making it ideal for crop preparation. Each model includes high-strength, forged gang axles and furrow fillers for optimal soil handling and is compatible with quick hitch attachments, ensuring ease of use.
Available in multiple cutting widths ranging from 8'11" to 14'6", the Brown Pull-Type Disc Harrow is equipped to meet various farm requirements, allowing you to choose the perfect fit for your operation’s horsepower and acreage needs.
Key Features
- Heavy Duty Frame: Welded tube frame construction for added durability
- Gang Adjustment: Easy-Lever system for precise adjustments
- Triple-Lipped Bearings: Trunnion-mounted, sealed steel ball bearings for longevity
- Forged Axles: 1-1/8" gang axles ensure durability under heavy loads
- Notched Blades: 7-gauge, 22" blades provide efficient soil cutting and turning
- Furrow Fillers: Standard for smoother soil preparation
- Quick Hitch Compatible: Allows for easy attachment and detachment
- Multiple Width Options: Ranging from 8'11" to 14'6" for versatile applications
- Heavy-Duty Build: Designed to endure challenging field conditions
Detailed Specifications
| Model | Description | Cutting Width | Minimum HP Requirement |
|---|---|---|---|
| BDHP-1100-3022 | Pull Type 9/9 Pull Disc Harrow with Furrow Fillers | 11'9" | 85HP Minimum |
| BDHP-1100-3422 | Pull Type 9/7 Pull Disc Harrow with Furrow Fillers | 11' | 85HP Minimum |
| BDHP-1250-3422 | Pull Type 9/9 Pull Disc Harrow with Furrow Fillers | 13'2" | 120HP Minimum |
| BDHP-1250-3822 | Pull Type 9/7 Pull Disc Harrow with Furrow Fillers | 12'8" | 120HP Minimum |
| BDHP-1400-3822 | Pull Type 9/9 Pull Disc Harrow with Furrow Fillers | 14'6" | 130HP Minimum |
| BDHP-1400-4222 | Pull Type 9/7 Pull Disc Harrow with Furrow Fillers | 13'11" | 130HP Minimum |
| BDHP-900-2422 | Pull Type 9/9 Pull Disc Harrow | 9'1" | 85HP Minimum |
| BDHP-900-2622 | Pull Type 9/7 Pull Disc Harrow | 8'11" | 85HP Minimum |
