Product Description
CL Fabrication EZ Bale Spears | Width 60"-102" inches | Oil Flow Range 15-25 GPM | For Skid Steer Loaders
DESCRIPTION

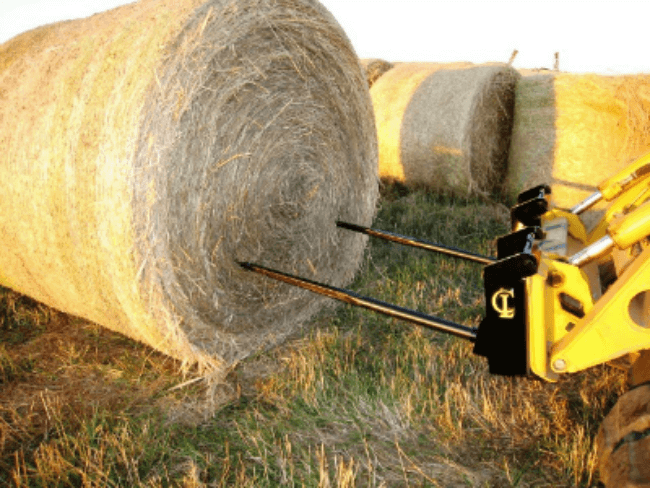

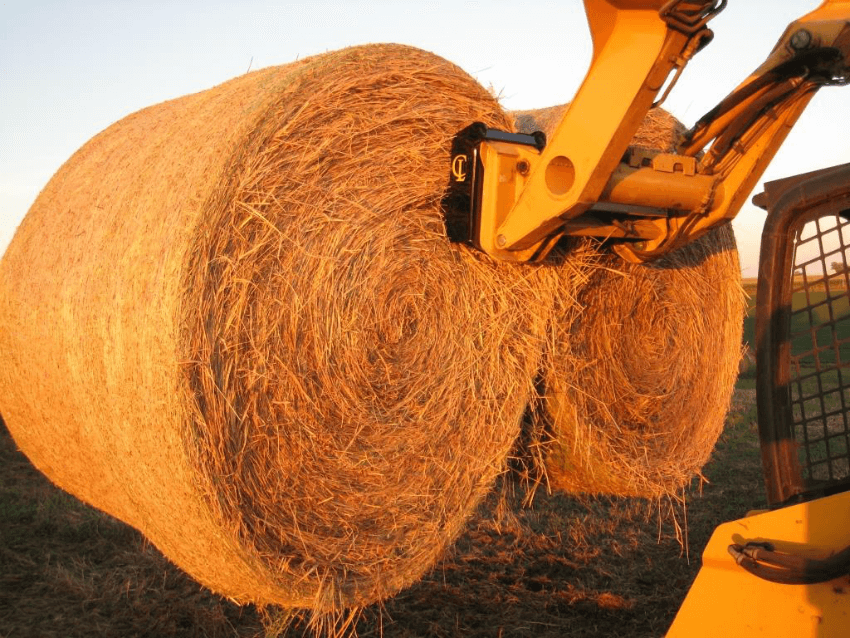

The Skid Steer Bale Spears from CL Fabrication are designed for efficient bale handling, featuring a patent-pending heavy-duty frame, high-strength forged spears, and universal skid steer mounting compatibility. These bale spears provide optimal stability, durability, and performance, making them ideal for handling big square and round bales with ease.
Key Features
- Patent-Pending Frame Design :– Rigid and high-strength structure for maximum durability.
- Heavy-Wall Steel Tube Frame :– 4"x4"x3/8" thick tubing provides superior rigidity and load-bearing capacity.

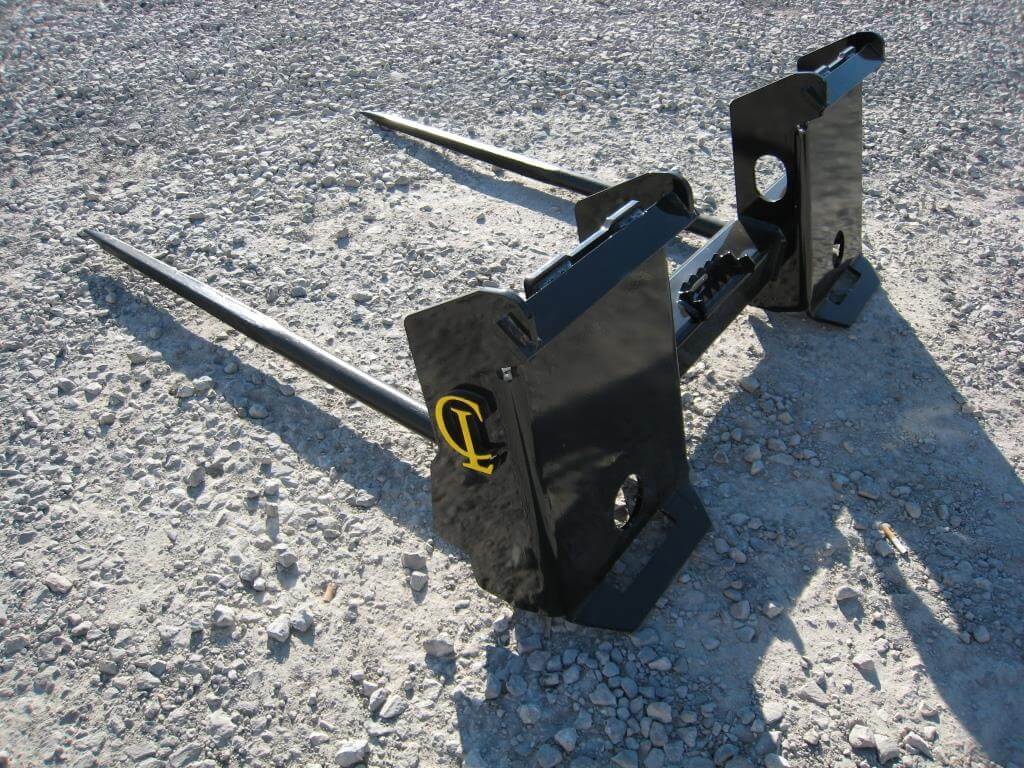

- High-Strength Formed Mount Plates :– 3/8" thick plates welded to frame, ensuring secure attachment and long-term durability.

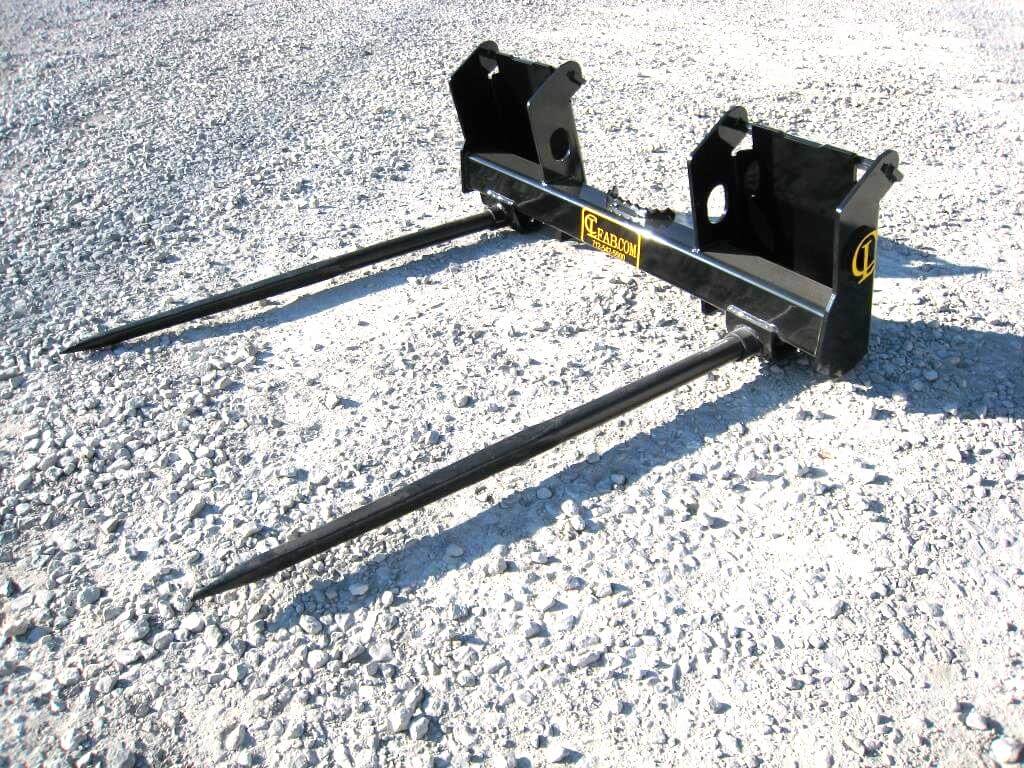

- Dual 49" Forged Tapered Spears :– Rated at 3,500 lbs each, allowing strong and efficient bale handling.
- Spear Usable Length :– 43 inches of functional spear length for secure bale penetration and handling.
- Upper Skid Steer Hook Bars :– 1/2" thick x 1.50" wide, providing reinforced stability during operation.
- Abrasive Blasted & Powder-Coated Finish :– Protects against corrosion, wear, and environmental damage.
Detailed Specifications

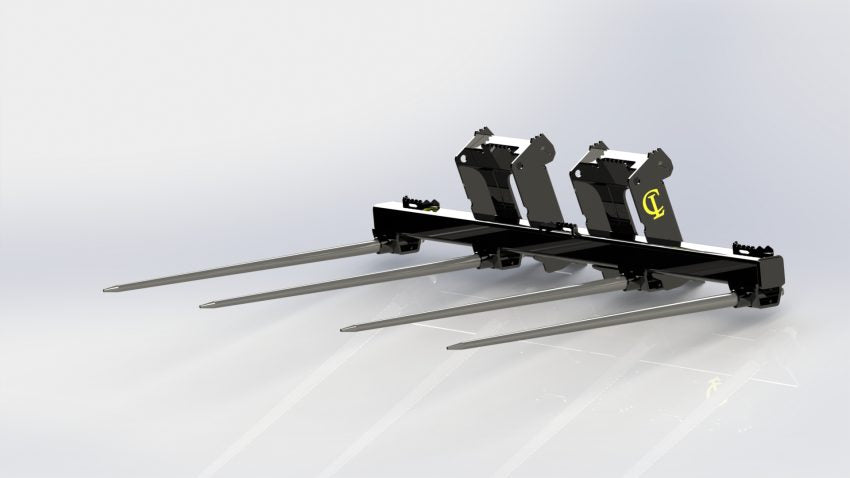

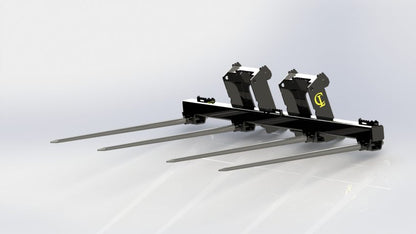

| Feature | Skid Steer 3 Spike (60" Wide) | Skid Steer 4 Spike (102" Wide) |
|---|---|---|
| Width (in) | 60 | 102 |
| Frame Tube Dimensions | 4"x4"x3/8" Heavy-Wall Steel | 4"x4"x3/8" Heavy-Wall Steel |
| Mount Plate Thickness (in) | 3/8" Formed Steel | 3/8" Formed Steel |
| Spears Count | 3 | 4 |
| Spear Length (in) | 49" (Usable Length: 43") | 49" (Usable Length: 43") |
| Spear Load Rating (lbs each) | 3,500 | 3,500 |
| Upper Skid Steer Hook Bars (in) | 1/2" Thick x 1.50" Wide | 1/2" Thick x 1.50" Wide |
| Finish | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated |
| Oil Flow Range (GPM) | 15-25 | 15-25 |
