Product Description
CL Fabrication EZ Puller Grapple/Guard | Width 48" inches | Oil Flow Range 15-25 GPM | For Skid Steer
DESCRIPTION

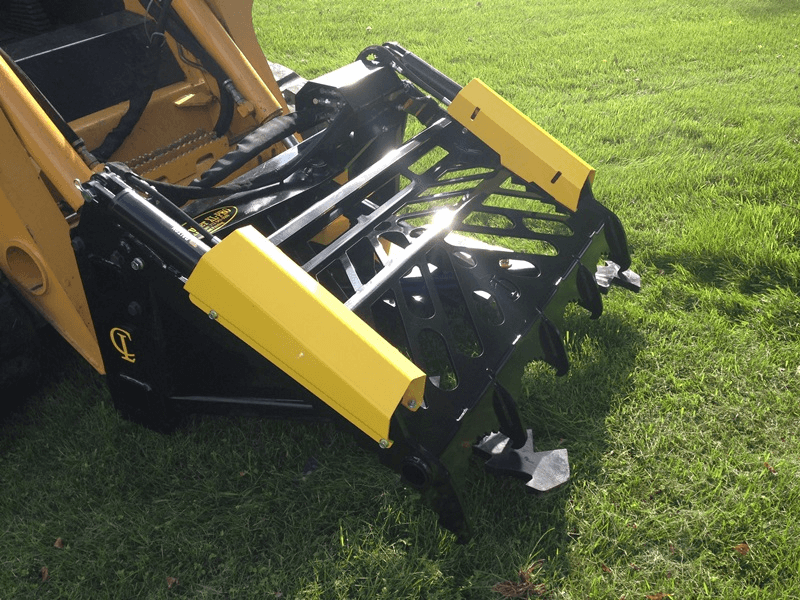

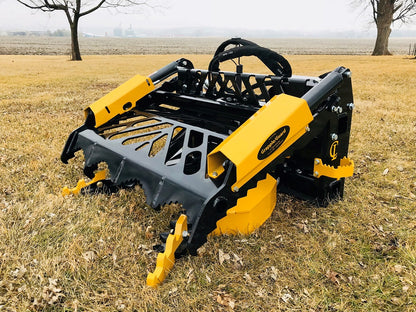

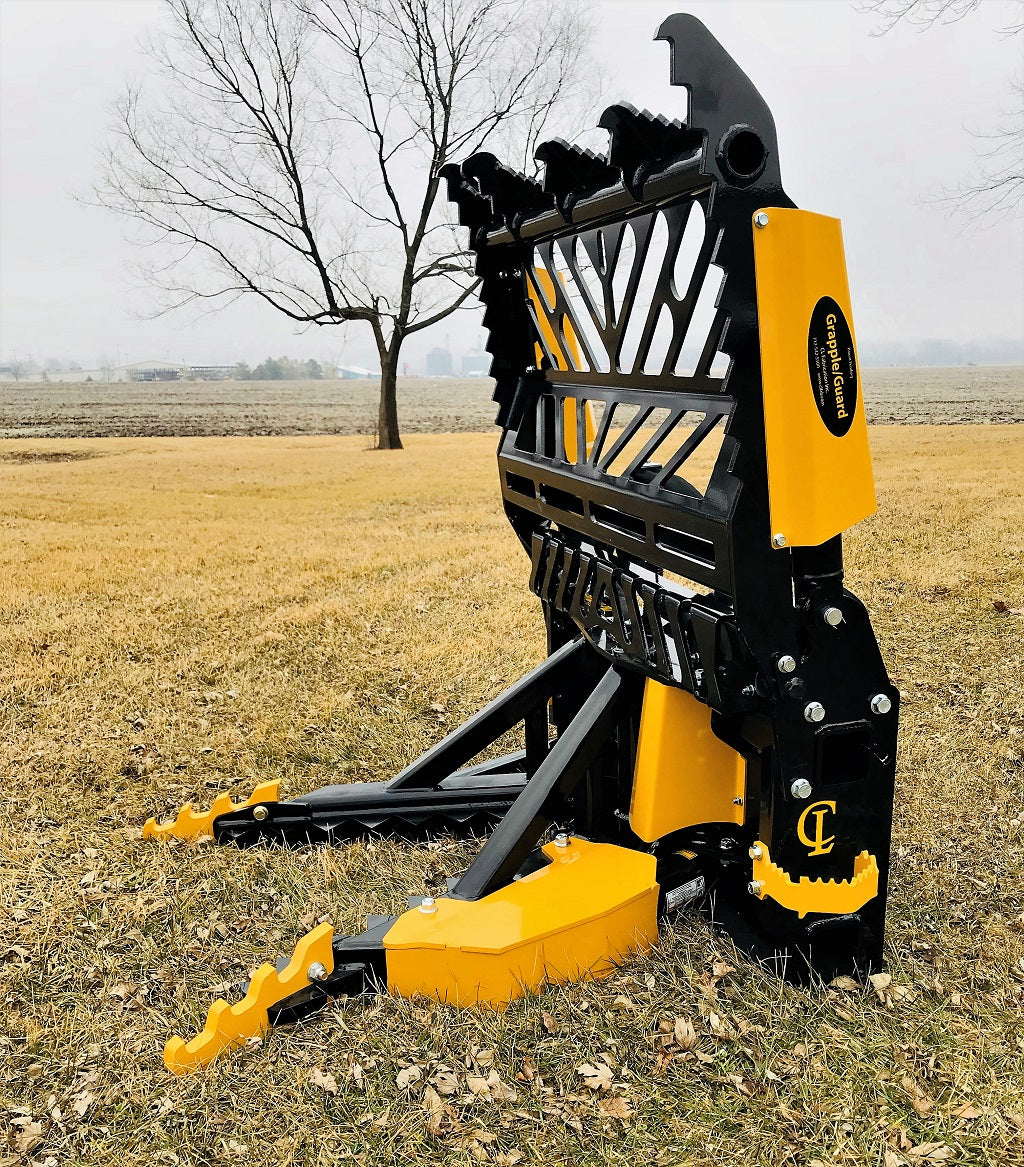

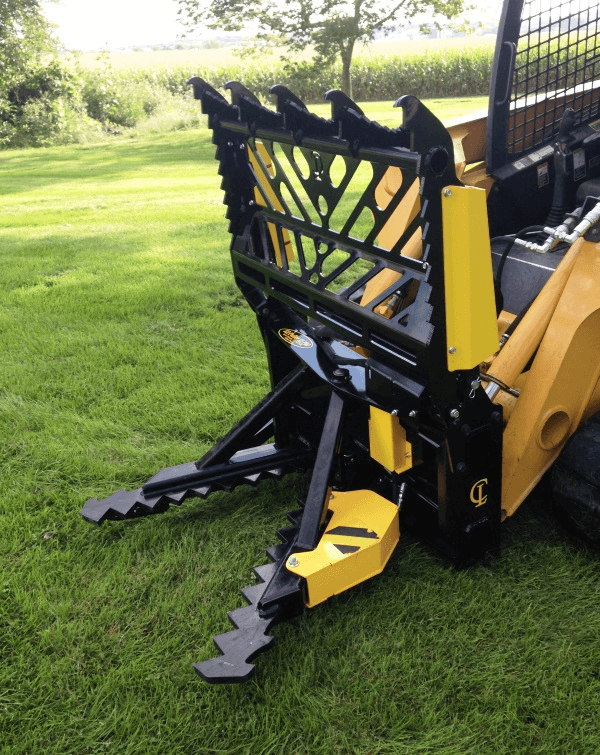

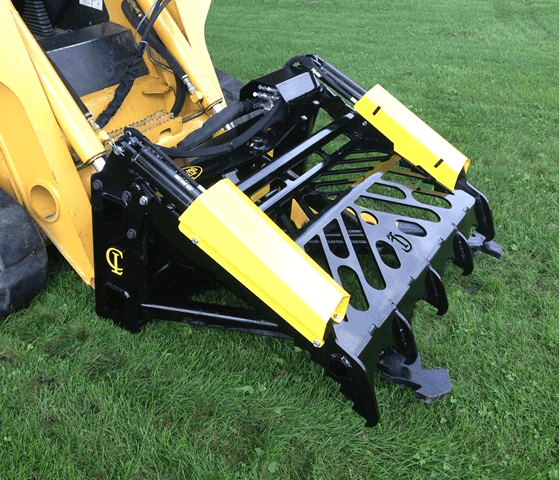

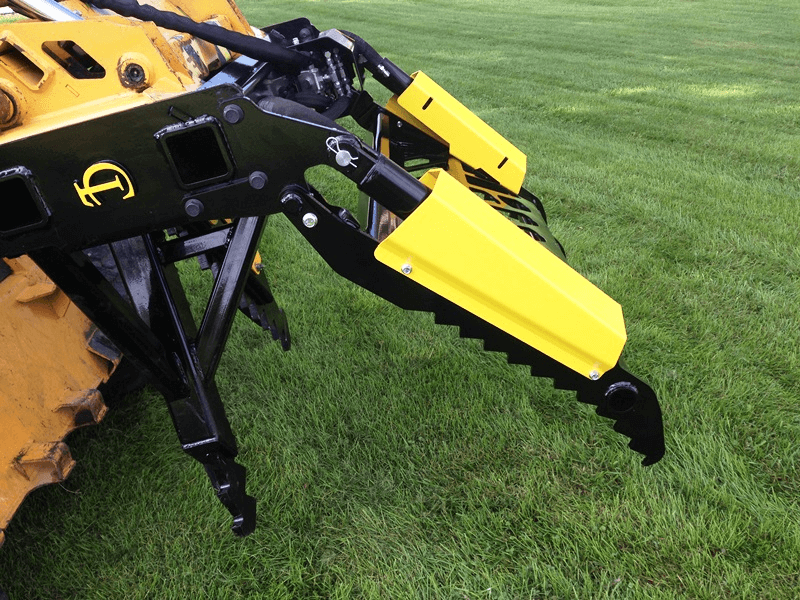

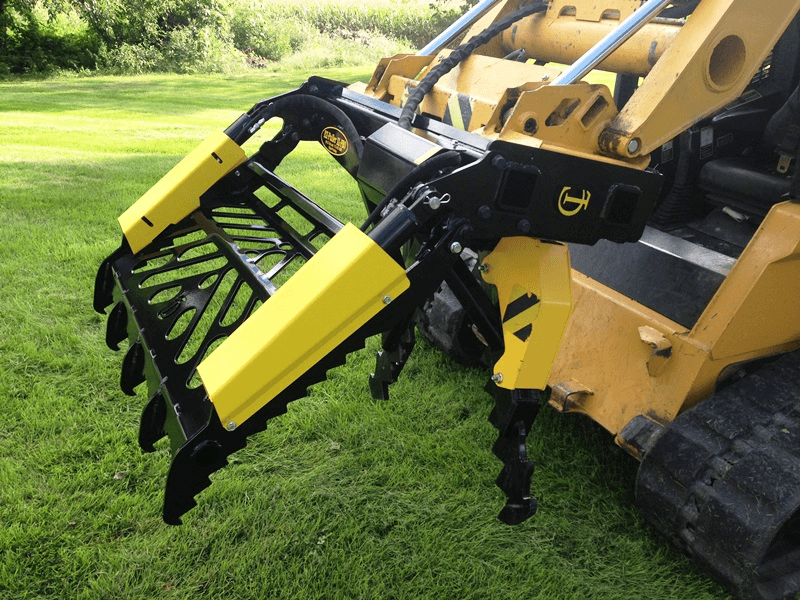

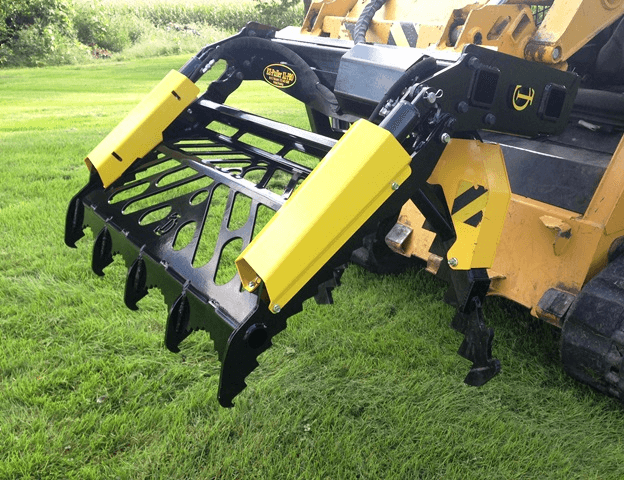

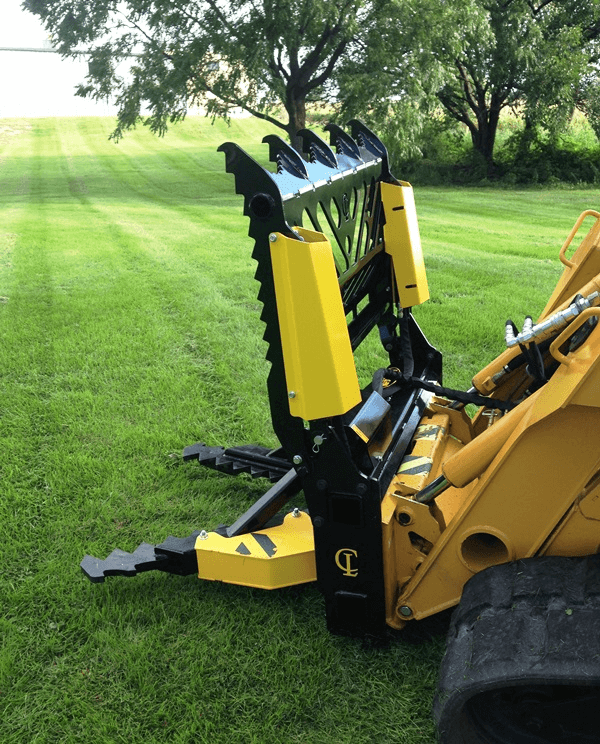

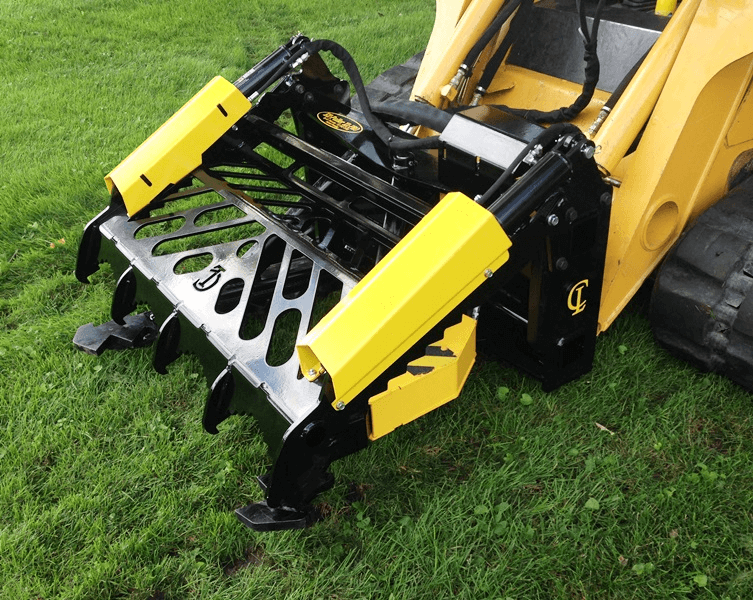

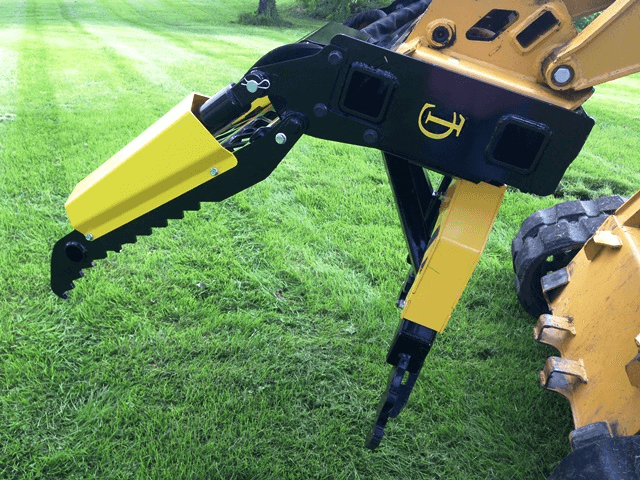

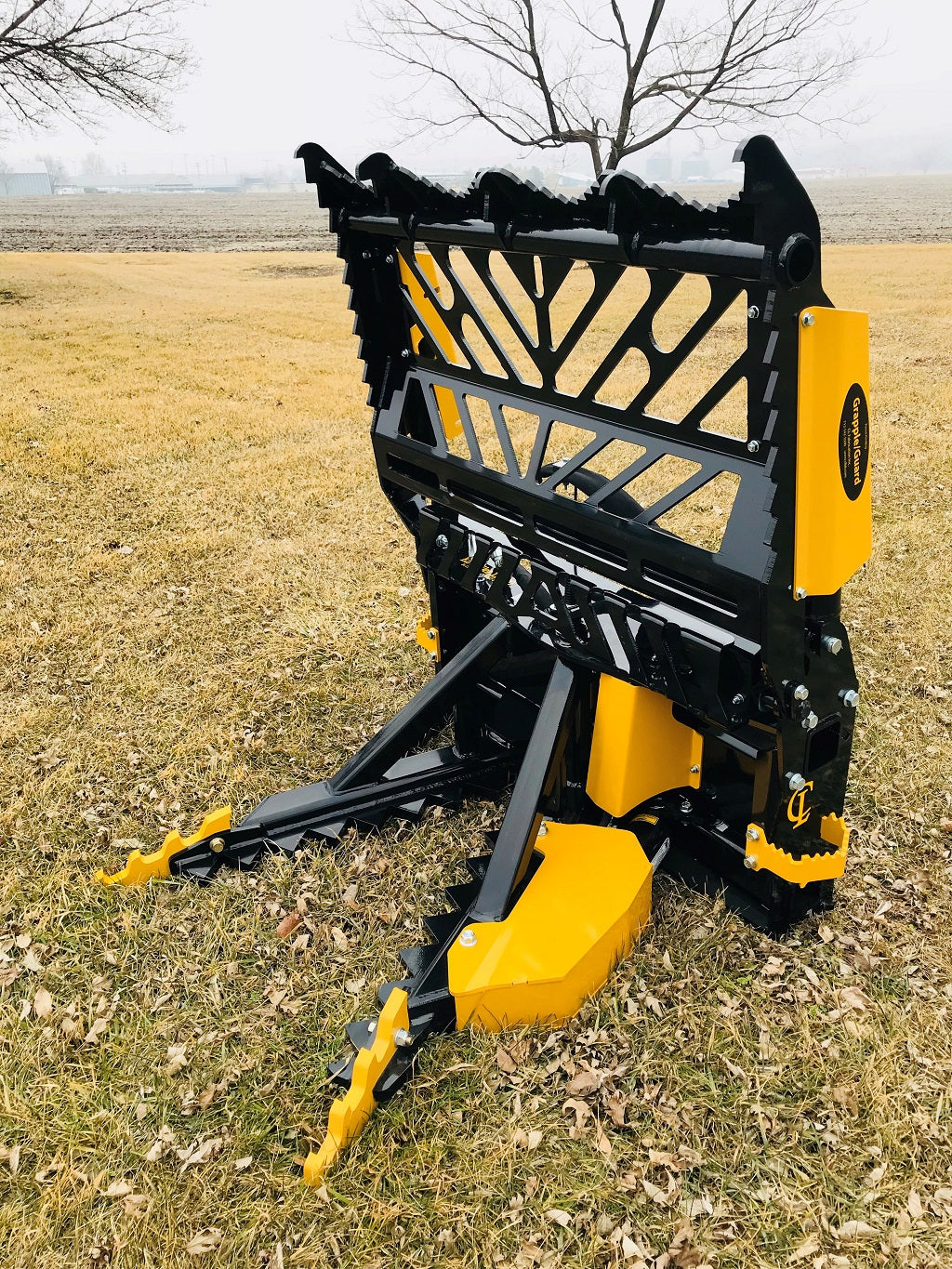

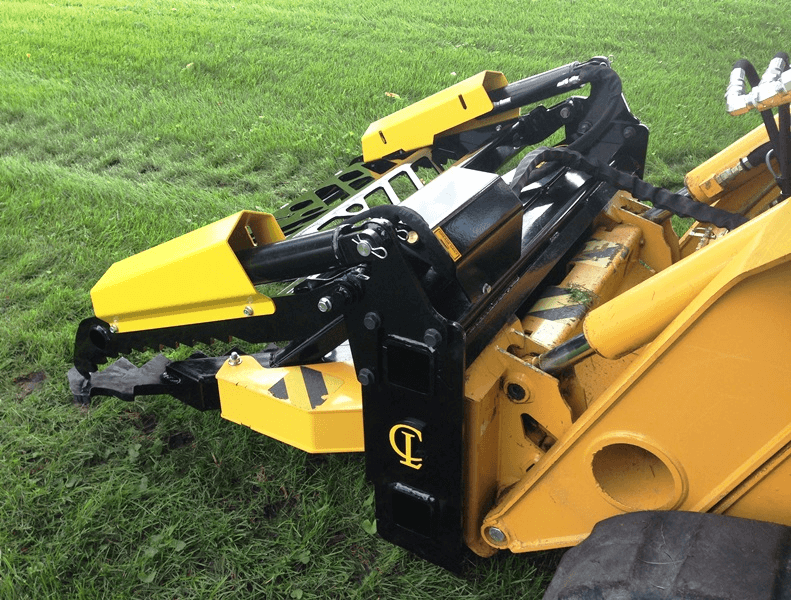

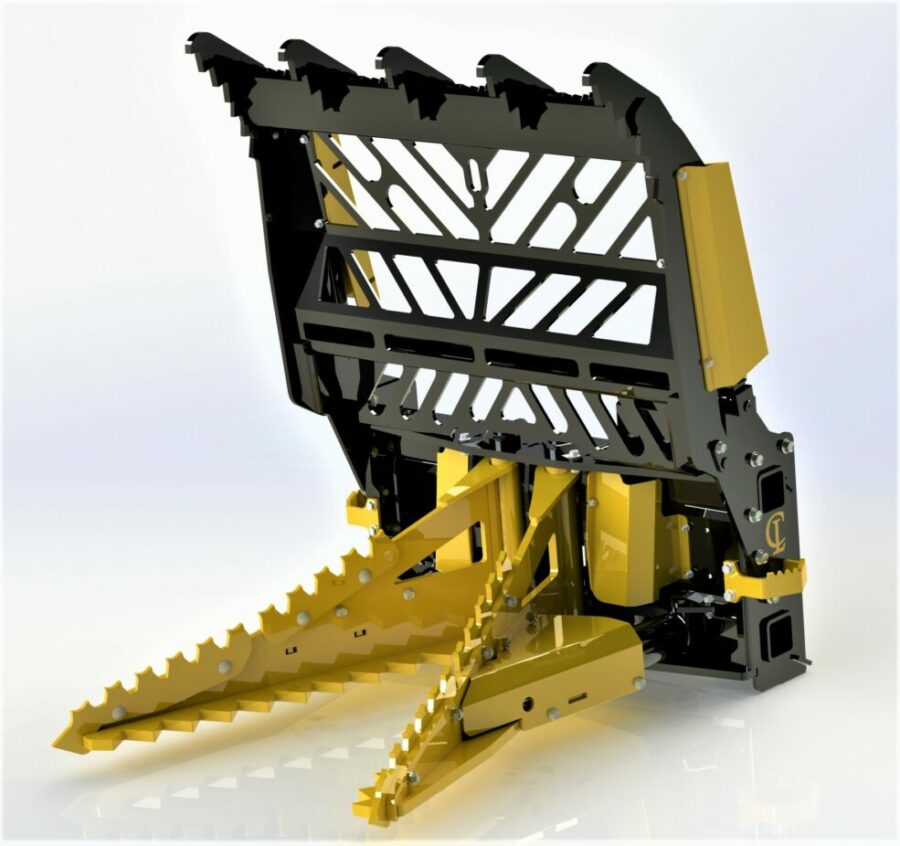

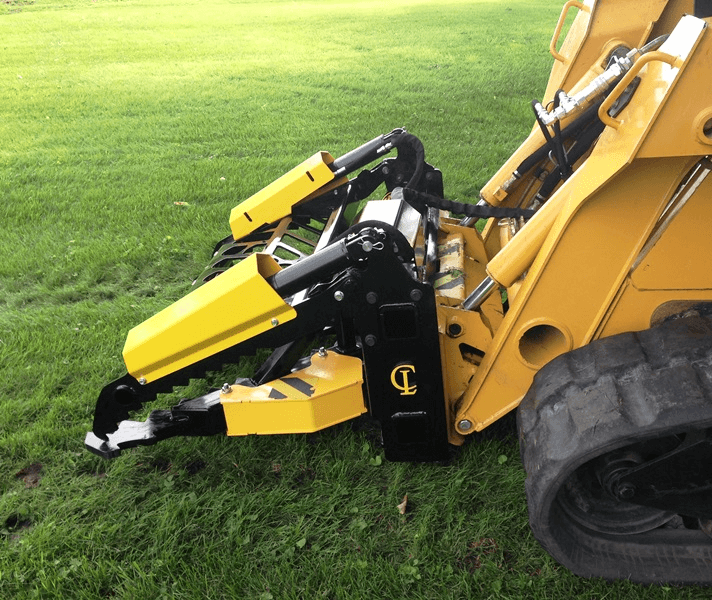

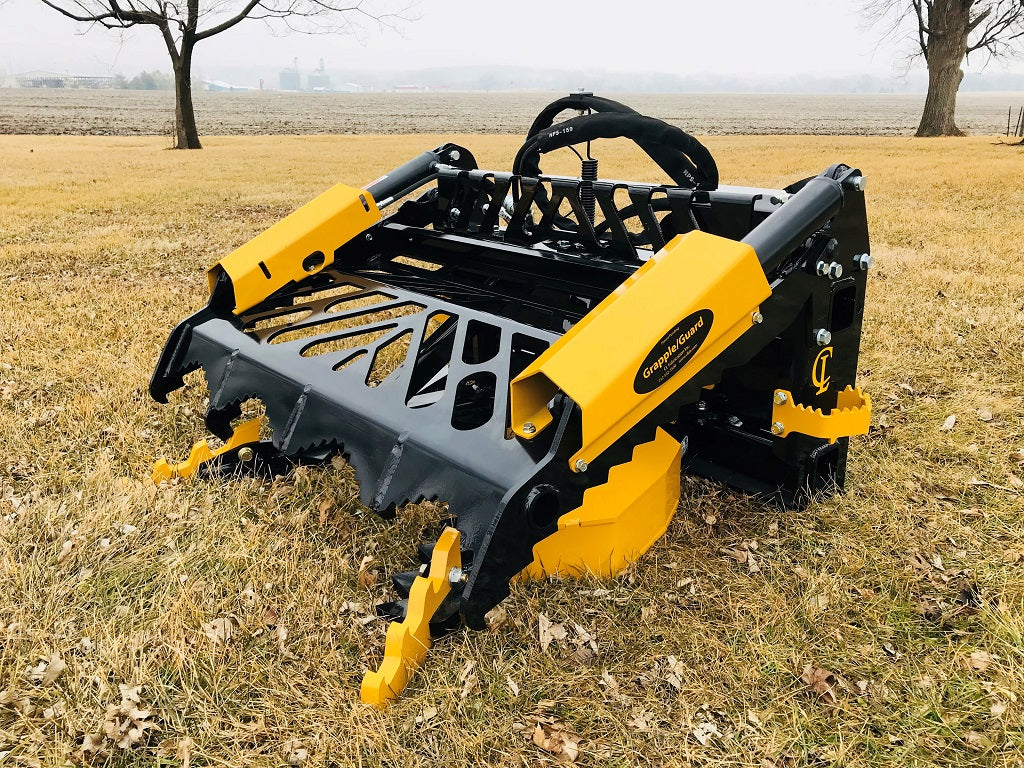

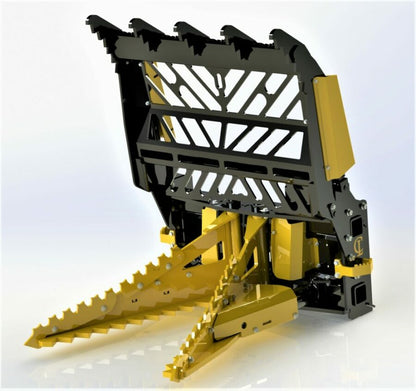

The EZ Puller Grapple/Guard is a versatile combination hydraulic grapple and cab guard designed for CL Fab EZ-Puller tree pullers. This patented tool serves a dual purpose, functioning as a cab protector when upright and a powerful hydraulic grapple for handling trees and brush with a simple switch activation. With heavy-duty steel construction, high-performance hydraulic cylinders, and precision pivot points, it ensures maximum durability and efficiency in demanding applications.
Key Features
- Dual-Purpose Cab Guard & Grapple :– Functions as a protective cab guard while quickly converting into a high-strength grapple for tree and brush handling.

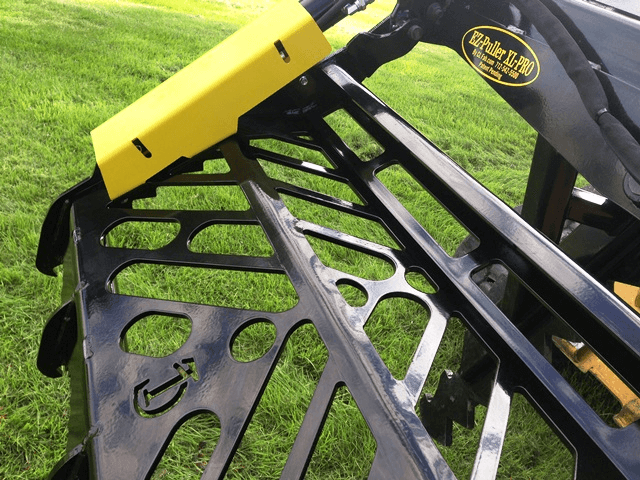

- Heavy-Duty Construction :– 3/4" thick teeth and 3/8" one-piece guard panel provide exceptional durability and impact resistance.
- Dual 2.5” Bore Hydraulic Cylinders :– Powerful clamping force ensures secure gripping of brush, limbs, and tree debris.
- Precision Pivot Points :– 1" CF1045 pivot pins, housed in greasable thick-wall bushings, reduce wear and extend service life.
- Complete Hydraulic Integration :– Includes 12V solenoid valve, control switch, and wire harness kit for easy installation.
- Flat Face Couplers Included :– Ensures compatibility with hydraulic systems for seamless operation.
- Powder-Coated & Abrasive Blasted Finish :– Provides long-term resistance to wear, corrosion, and environmental exposure.
- Retrofits to Older CL Fab Pullers :– Can easily be installed on previous EZ-Puller models, making it a versatile attachment upgrade.
Detailed Specifications
| Feature | Specification |
|---|---|
| Compatible Equipment | CL Fab EZ-Puller |
| Teeth Thickness (in) | 3/4" Steel |
| Guard Panel Thickness (in) | 3/8" One-Piece Steel |
| Hydraulic Cylinder | Dual 2.5"x8" Welded |
| Solenoid Valve & Switch | Included (12V) |
| Flat Face Couplers | Included |
| Pivot Pin Diameter (in) | 1" CF1045 |
| Pivot Point Design | Greasable Thick-Wall Bushings |
| Finish | Abrasive Blasted & Powder-Coated |
| Weight (lbs) | 360 |
| Oil Flow Range (GPM) | 15-25 |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

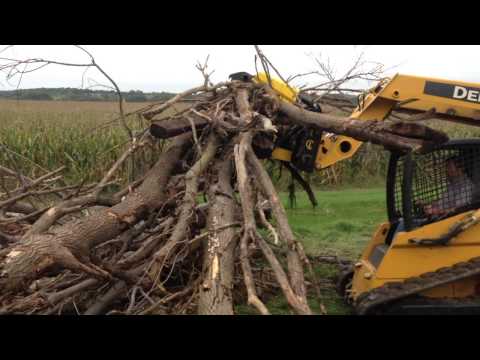

Videos
