Product Description
CL Fabrication Grapple For Trees, Brush & Roots | Model EZ | Width 72"-90" inches | Oil Flow Range 15-25 GPM | For Skid Steer
DESCRIPTION

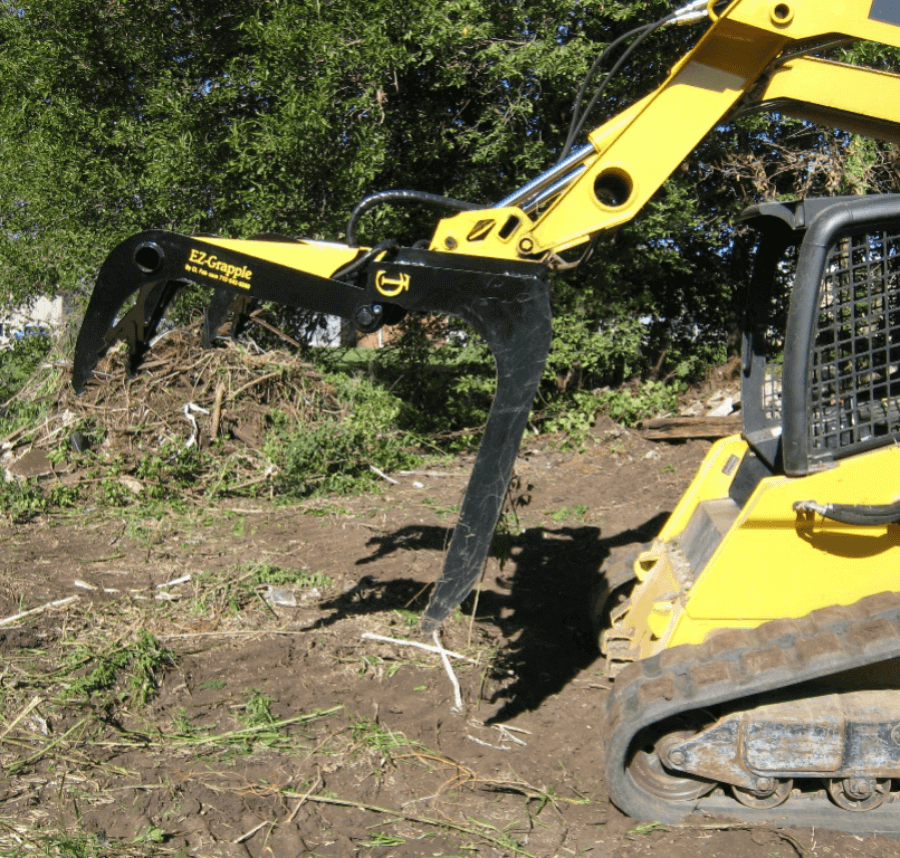

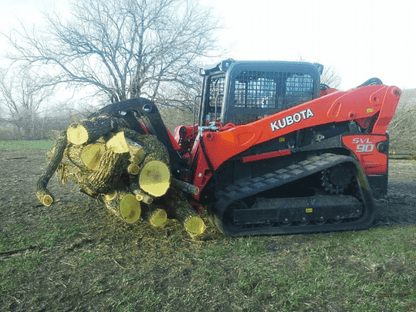

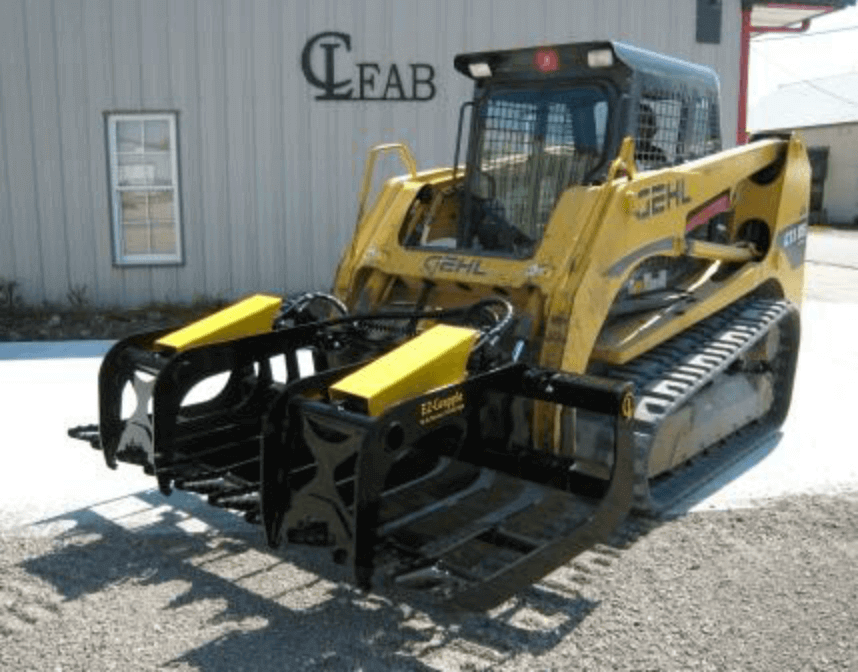

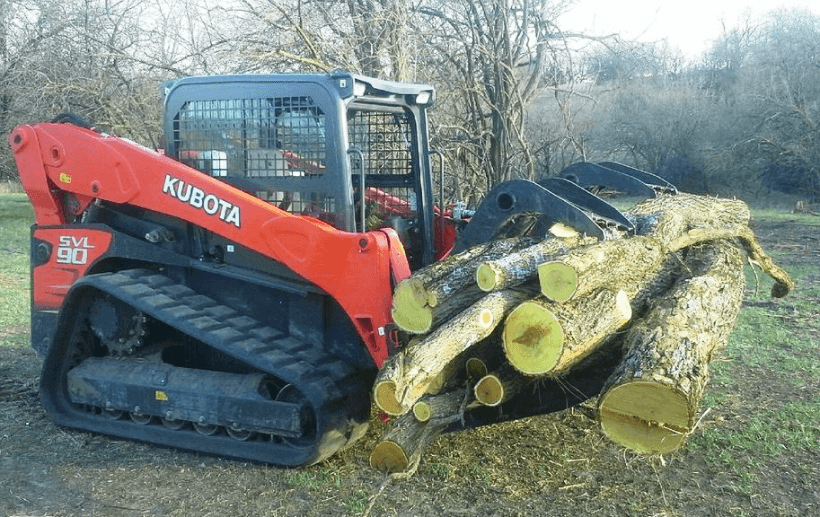

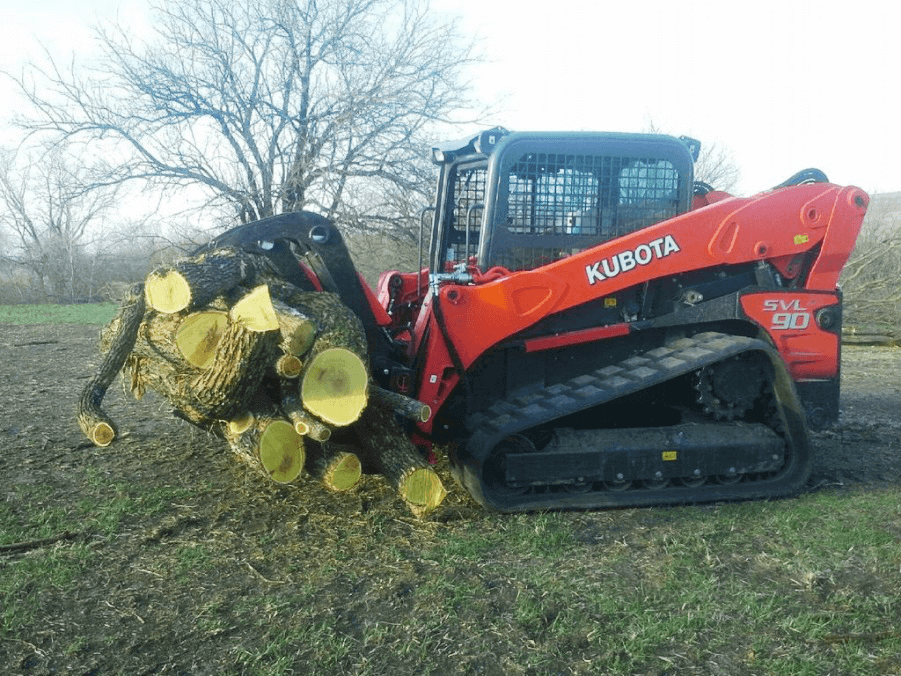

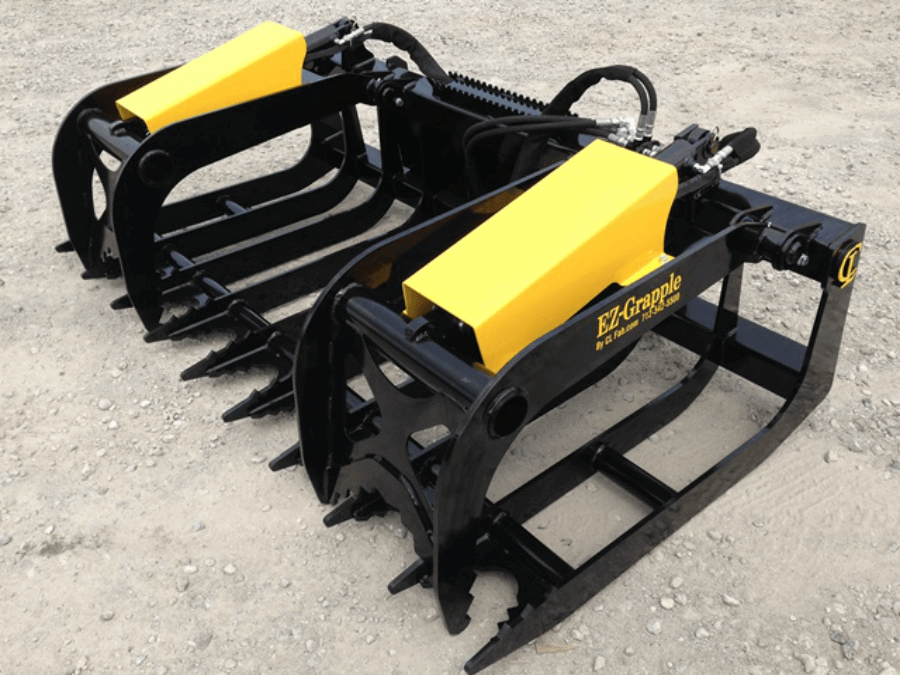

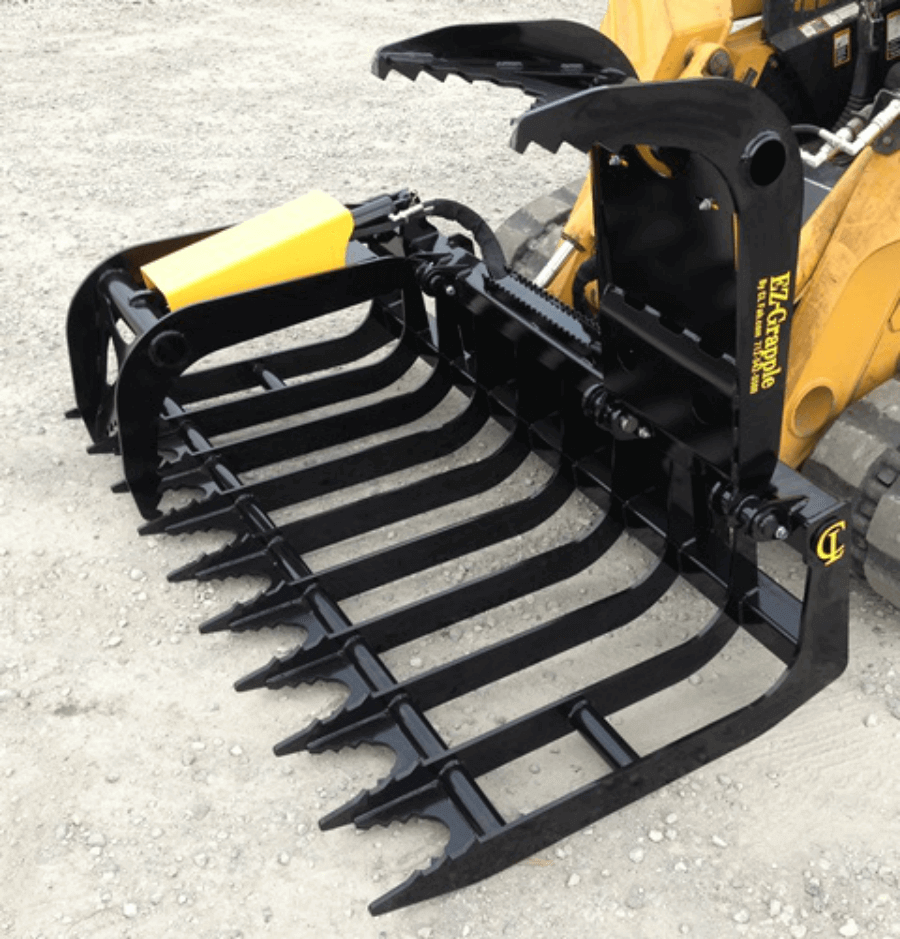

The EZ Grapple is a high-strength grasping tool built for handling trees, brush, and roots with reinforced AR400 steel construction. Featuring a wide 50” opening, durable tines, and guarded hydraulic cylinders, this attachment is designed for maximum durability, gripping power, and efficiency in land clearing and debris removal.
Key Features
- Heavy-Duty AR400 Steel Construction – High-strength AR400 steel ensures extended longevity in demanding environments.
- Wide 50" Opening – Allows efficient grasping of large objects, improving productivity in forestry and brush clearing.

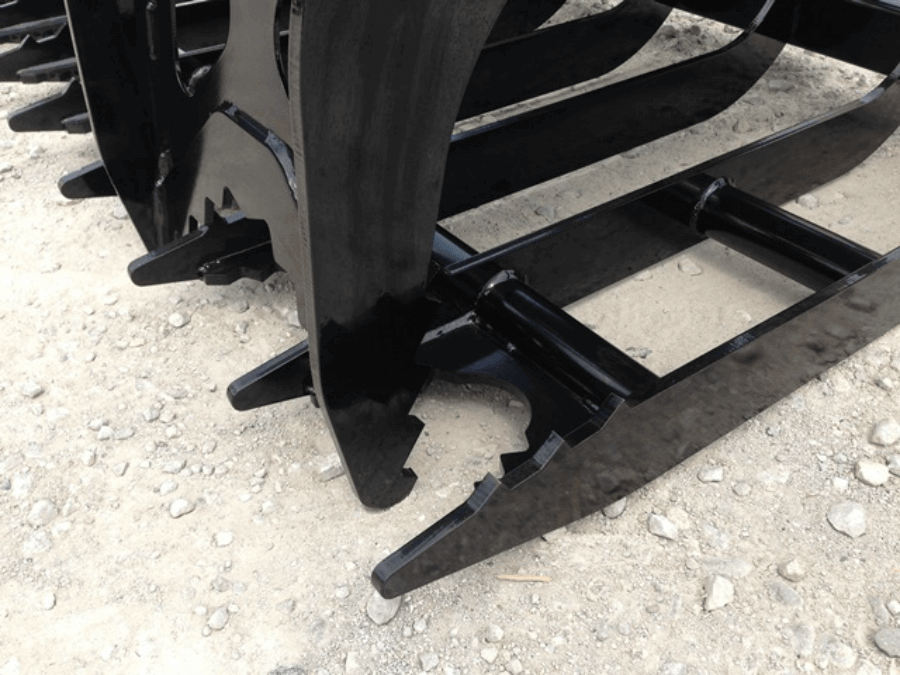

- Upper & Lower Tines – 1/2" thick AR400 steel tines provide reinforced gripping strength for handling varied materials.

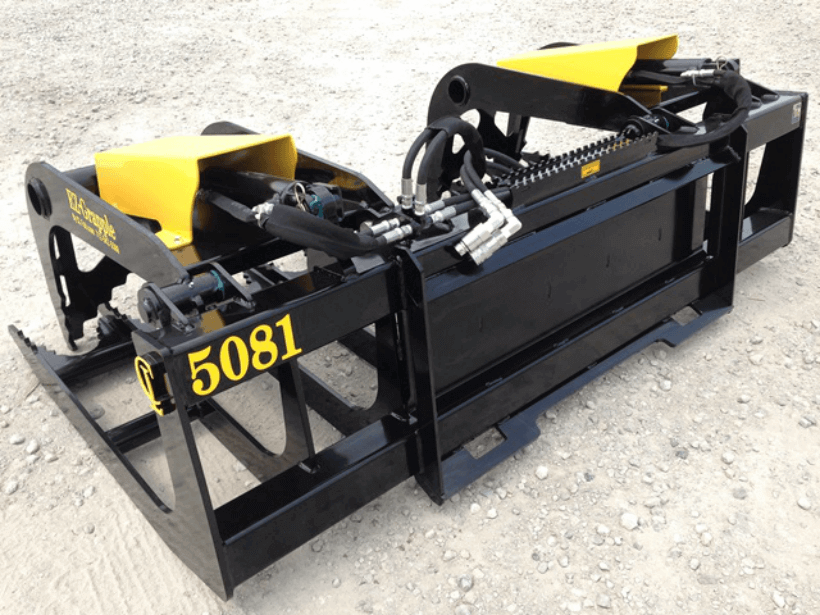

- Guarded Hydraulic Cylinders – 2.5"x8" welded hydraulic cylinders, protected by cylinder rod guards, ensure smooth operation and long-term reliability.

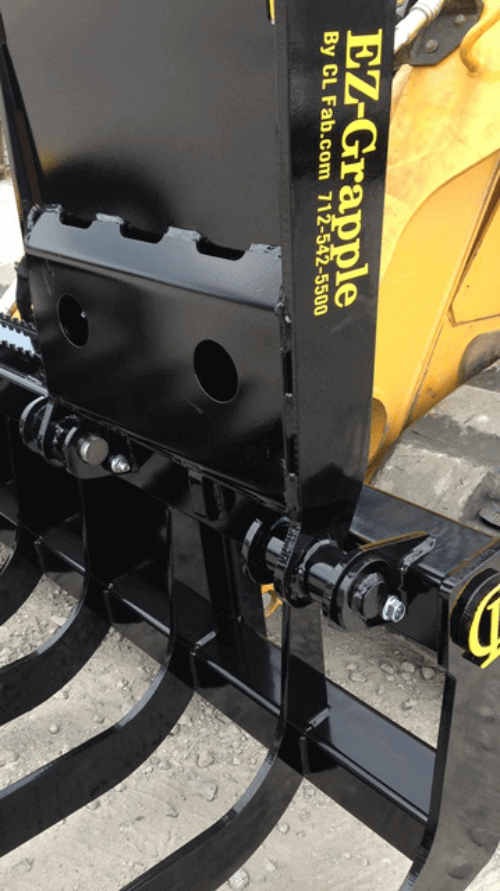

- Precision Pivot Points – 1.5" diameter CF 1045 pivot pins housed in greasable thick-wall bushings enhance lifespan and performance.
- Abrasive Blasted & Powder-Coated Finish – Provides long-term protection against corrosion and environmental wear.
- Optional Hydraulic Hose Saver – Adds extra protection for hydraulic hoses, extending their durability.
- Narrow Spacing Option – Available 4” lower tine spacing for more precise material control.
Detailed Specifications
| Feature | EZ Grapple 72" | EZ Grapple 81" | EZ Grapple 90" |
|---|---|---|---|
| Width (in) | 72 | 81 | 90 |
| Weight (lbs) | 960 | 1,030 | 1,060 |
| Max Opening (in) | 50 | 50 | 50 |
| Tine Thickness (in) | 1/2" AR400 Steel | 1/2" AR400 Steel | 1/2" AR400 Steel |
| Frame Tube Dimensions | 4"x4"x1/4" Steel | 4"x4"x1/4" Steel | 4"x4"x1/4" Steel |
| Hydraulic Cylinder | 2.5"x8" Welded | 2.5"x8" Welded | 2.5"x8" Welded |
| Cylinder Guards | Yes | Yes | Yes |
| Pivot Pin Diameter (in) | 1.5" CF 1045 | 1.5" CF 1045 | 1.5" CF 1045 |
| Pivot Point Design | Greasable Thick-Wall Bushings | Greasable Thick-Wall Bushings | Greasable Thick-Wall Bushings |
| Finish | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated |
| Height (in) (Grapple Open) | 57 | 57 | 57 |
| Depth (in) (Front to Rear) | 47.5 | 47.5 | 47.5 |
| Oil Flow Range (GPM) | 15-25 | 15-25 | 15-25 |
Steel Strength Comparison
| Grade | Tensile Strength (ksi) | Yield Strength (ksi) | Hardness (BHN) |
|---|---|---|---|
| AR400 | 180 | 140 | 364–444 |
| T1 | 110–130 | 100 | 235–293 |
| Grade 50 | 65 | 50 | 135 |
| A36 Mild Steel | 58–80 | 36 | 119–159 |
