Demco Heavy Duty Combine Header Transport Trailers | Model HT48HD | Dimension 58’6” | GVW 20,000 lbs. | For Tractors

Product Description

Demco Heavy Duty Combine Header Transport Trailers | Model HT48HD | Dimension 58’6” | GVW 20,000 lbs. | For Tractors

DESCRIPTION

Reliable Heavy-Duty Transport for Large Combine Headers

The Demco HT48HD Header Transport Trailer is designed to move large, valuable combine headers safely and efficiently. Available in sizes up to 48', it features a tricycle front end and robust torsion axles for stability and smooth towing. Constructed for both durability and ease of use, this trailer can tackle the heaviest loads, making it ideal for storage or long-distance transportation.

Built to Last with Superior Safety and Performance Features

The HT48HD model provides flexibility for large and small-scale field operations. With a GVW of 20,000 lbs, 7K torsion flex axles, and brakes on dual rear axles, this transport trailer offers the reliability needed for demanding agricultural tasks. The black rubberized undercoating, DOT lighting, and adjustable tie downs provide enhanced safety, while the telescoping tongue and sturdy construction ensure long-lasting performance.

Key Features

• Heavy-Duty Axles: 7K Torsion Flex Tricycle Front Axle and Tandem Rear Axle for smooth transport
• Dual Rear Brakes: Equipped with brakes on both rear axles for secure control
• DOT Lighting: 7-pole RV plug with DOT-approved lighting for road safety
• Rugged Tires: 16" ST 235/80R16 Load Range E tires on an 8-bolt hub for enhanced stability
• Durable Finish: Black rubberized undercoating for long-term corrosion resistance
• Secure Tie Downs: Adjustable tie downs (Qty. 2) for reliable header transport
• Telescoping Tongue: Features a 2-5/16" ball hitch for flexible attachment options
• Adjustable Slider Brackets: Four slider brackets for versatile loading
• High GVW Capacity: 20,000 lbs load capacity for heavy headers
• Ground Clearance: 16.5" from the center of the frame for safe clearance

Detailed Specifications

In Package

• Demco HT48HD Header Transport Trailer
• DOT-compliant lighting with 7-pole RV plug
• Telescoping Tongue with 2-5/16" Ball Hitch
• 16" Load Range E Tires on 8-Bolt Hub

Available Options

• Electric Brakes: Optional braking for added safety
• Front Braking Upgrade: Additional front axle braking option
• Telescoping Tongues: Custom lengths for specific needs
• Spare Tires and Brackets: Extra mounting options for tires

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

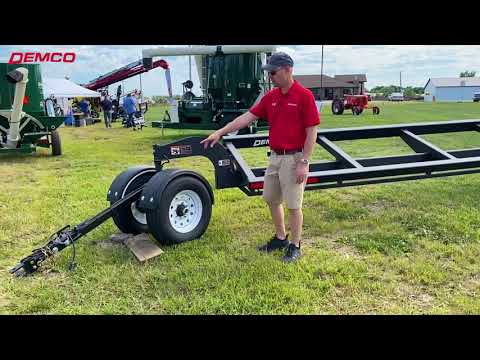

Videos
