Demco Tandem Axle Drop Deck Trailers + 5' Beaver Tail with Twin Ramps | Model DD40-5 & DD45-5 | Length 40ft To 45ft | For Tractors
Demco Tandem Axle Drop Deck Trailers + 5' Beaver Tail with Twin Ramps | Model DD40-5 & DD45-5 | Length 40ft To 45ft | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Demco Tandem Axle Drop Deck Trailers + 5' Beaver Tail with Twin Ramps | Model DD40-5 & DD45-5 | Length 40ft To 45ft | For Tractors
DESCRIPTION
Demco’s Beaver Tail Drop Deck Trailers are engineered for easy loading and unloading of heavy equipment and vehicles. Available in lengths from 40' to 45', these trailers feature a 5-foot beaver tail ramp extension with twin spring-assist ramps, plus an optional third ramp for increased loading flexibility. The sloped beaver tail allows for smoother transitions on and off the trailer, reducing the risk of damage and enhancing safety for both operators and equipment.
Constructed with a durable frame, including high-grade steel main beams and cross members, the Demco trailers are designed to handle heavy loads with ease. Key features such as 3-leaf SAF Holland spring suspension, Arvin Meritor 22.5K axles with ABS brakes, and midship turn signals enhance stability and road safety. Additional safety elements, including rubber-mounted LED lights and DOT-compliant conspicuity tape, make this trailer a reliable choice for demanding transport needs.
Key Features

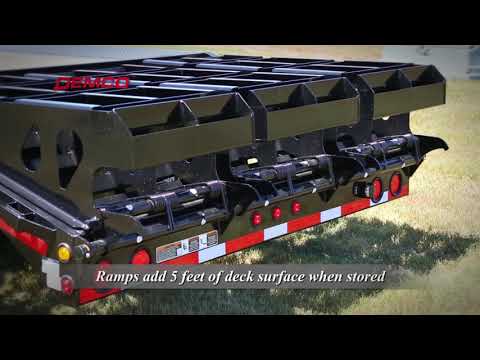

- Twin Ramps: 5' beaver tail with twin spring-assist ramps for easy loading
- Heavy-Duty Suspension: 3-leaf SAF Holland spring suspension
- Robust Axles: 22.5K Arvin Meritor axles with Wabco ABS brakes
- Strong Construction: High-grade steel main beams with camber
- Protective Finish: Steel hand-sanded, phosphate washed, with Diamond Vogel primer and paint
- Safety Lighting: DOT-approved rubber-mounted LED lights and midship turn signals
- Ample Load Support: Stake pockets and pipe spooling at 9” intervals
- Secure Rub Rail: 2” x 3/8” flat steel rub rail for added safety
- Non-Slip Decking: 1-1/8” x 7” Apitong hardwood flooring
- Convenient Accessory Mounting: Driver-side winch track for secure load handling
Detailed Specifications
| Specification | Details |
|---|---|
| Model | DD40-5 (40'), DD45-5 (45') |
| Tare Weight | DD40-5: 11,980 lbs, DD45-5: 12,640 lbs |
| Main Beams | Designed with camber, built in Spencer |
| Web | 1/4" high-grade 100,000 yield steel |
| Flange | 3/8" x 5" high-grade 100,000 yield steel |
| Cross Members | 4" x 3.2# Jr. I-beam on 16" centers |
| Side Rails | 6" x 8.2# structural C channel |
| Brake Size | 16.5" x 7" |
| Upper Deck Length | 11' |
| Lower Deck Height | 40-3/4" |
| Transition Drop | 19.5" from Upper to Lower Deck |
| Overall Width | 102" |
| Gross Vehicle Weight Rating (GVWR) | 68K - 83.5K (depends on axle configuration) |
In Package
- Demco Beaver Tail Drop Deck Trailer (Model DD40-5 or DD45-5)
- Twin Spring-Assist Ramps (Optional 3rd Ramp Available)
- DOT-Compliant LED Lighting and Midship Turn Signals
- Driver-Side Winch Track
Available Options
- Additional Third Ramp for Beaver Tail
- Air Ride Suspension Upgrade
- Custom Black Diamond Vogel Paint Finish
- Heavy-Duty Mudflaps with Demco Logo
