Product Description
Dirt Dog Light Duty 3-Point Box Blade | CBX Series | Overall Width 48" and 60" inches | Horsepower 20-24 HP | For Tractor
Included Options:
DESCRIPTION
The CBX Series was engineered to be a heavy duty option for compact tractor owners. This tough box has the strength and durability you need, in a compact size you can handle.
A 3-Point Box Blade is a simple tractor tool for scraping and moving earth. Dirt Dog makes them from 48″ a d for compact tractors, up to 96″ for larger utility tractors, with four series ranging from light duty to heavy dut
Drive in reverse, using the rear cutting edge and box wall like a dozer to push material where you need it. Use the interior cutting edge as you drive forward to scrape and level your surface, trapping material in the box to relocate it. Or lower the ripper shanks to scarify hard ground and rip through shallow roots. Shanks are standard on every box blade, with adjustable depth and the ability to lock them up and out of the way. Both cutting edges are bolt-on and reversible, for double the life.
All Dirt Dog 3-Point Box Blades are Made in the USA, down in Commerce, GA.
Key Features
- Category I Quick Hitch Compatibility: Designed for quick and hassle-free attachment, saving time and effort.
- Fully Welded A-Frame: Constructed with 3/16” side plates for added strength and longevity.
- Adjustable and Replaceable Ripper Shanks: Effectively breaks compacted soil, improving efficiency and reducing maintenance costs.
- Bolt-on, Reversible & Replaceable Cutting Edges: Two 3/8" x 6" edges are included, ensuring extended usage and versatile functionality.
- Stability-Enhancing Bolt-on A-Frame: Provides increased stability for safer and more reliable performance.
- Compact and Durable Design: Specially tailored for small tractors (up to 25 horsepower), offering a reliable and manageable solution.
- Multiple Size Options: Available in 4-foot and 5-foot widths to suit different operational needs.

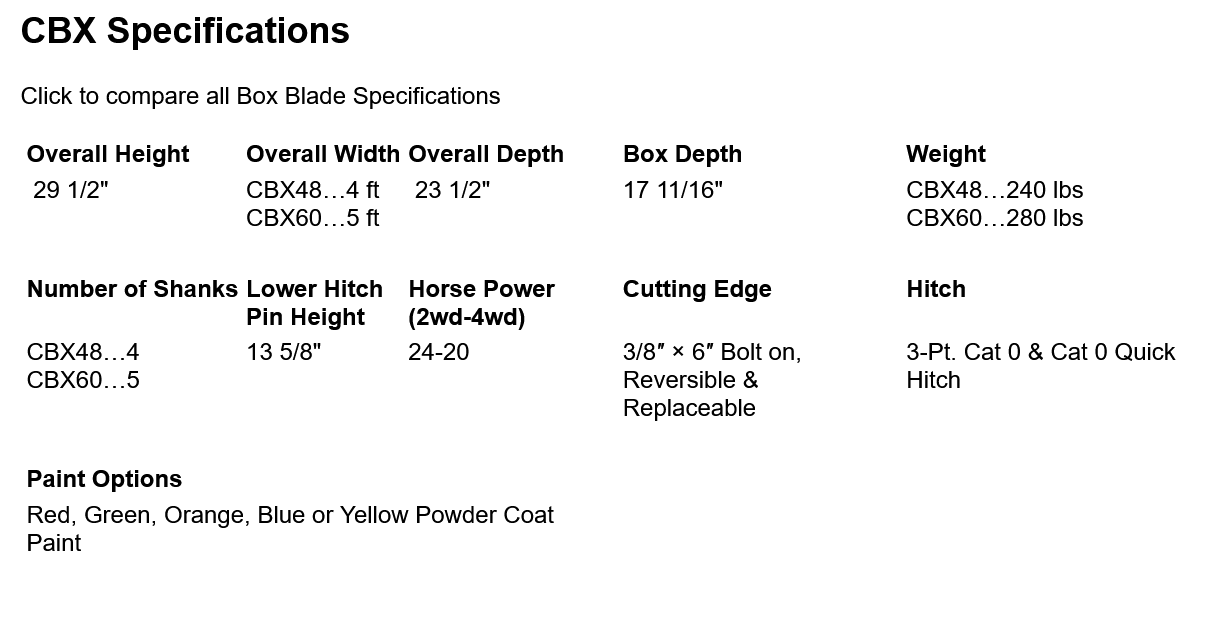

Detailed Specifications
| Feature | CBX48 | CBX60 |
|---|---|---|
| Overall Height | 29 1/2" | 29 1/2" |
| Overall Width | 4 ft | 5 ft |
| Overall Depth | 23 1/2" | 23 1/2" |
| Box Depth | 17 11/16" | 17 11/16" |
| Weight | 240 lbs | 280 lbs |
| Number of Shanks | 4 | 5 |
| Lower Hitch Pin Height | 13 5/8" | 13 5/8" |
| Horsepower (2WD-4WD) | 24-20 HP | 24-20 HP |
| Cutting Edge | 3/8" × 6" Bolt-on, Reversible & Replaceable | 3/8" × 6" Bolt-on, Reversible & Replaceable |
| Hitch | 3-Pt. Cat 0 & Cat 0 Quick Hitch | 3-Pt. Cat 0 & Cat 0 Quick Hitch |
| Paint Options | Red, Green, Orange, Blue, or Yellow Powder Coat Paint | Red, Green, Orange, Blue, or Yellow Powder Coat Paint |
