Product Description
Dirt Dog Xtreme Duty Box Blade | SBX Series | Working Width 48" To 84" inches | Horsepower 40-50 HP | For Tractor
Included Options:
DESCRIPTION

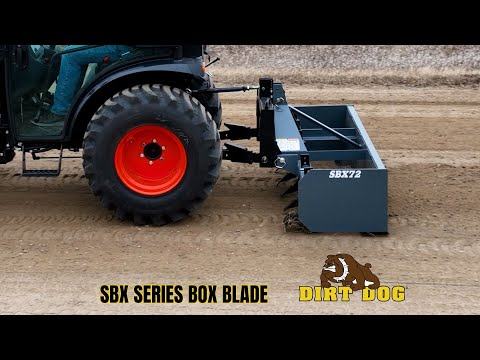

The Dirt Dog SBX Series Box Blade is built for heavy-duty performance, making it the ultimate choice for land grading, leveling, and material relocation. Designed with tough construction and an engineered reinforced frame, this box blade provides maximum durability and superior functionality in demanding applications.
Equipped with two 1/2” x 6” reversible, bolt-on cutting edges, the SBX series delivers precision cutting, smoothing, and material control. The 4” × 4” × 5/16” scarifier box and 5/8” shanks with replaceable plow points ensure superior ground penetration, making it ideal for breaking compacted soil and scarifying hard ground.
Manufactured in Commerce, GA, USA, the Dirt Dog SBX Series Box Blade is available in multiple sizes, accommodating tractors with 40-50 HP. It is Cat I Quick Hitch compatible, allowing for easy and fast attachment to your tractor.
Key Features
- Category I Quick Hitch Compatible A-Frame: Ensures seamless and efficient attachment to tractors for convenience.
- Heavy-Duty Welded A-Frame with Double Strap Hitch: Provides extra strength and durability for demanding tasks.
- 3/8" Thick End Plates: Enhances structural integrity, ensuring long-lasting performance.
- 4” × 4” × 5/16” Scarifier Box: Delivers improved ground-breaking capabilities for efficient soil engagement.
- Two 1/2” x 6” Bolt-On, Reversible & Replaceable Cutting Edges: Maximizes efficiency and allows for easy maintenance and extended usability.
- Available Width Options: Offered in 48", 60", 65", 72", 78", and 84" models to cater to varying operational requirements.

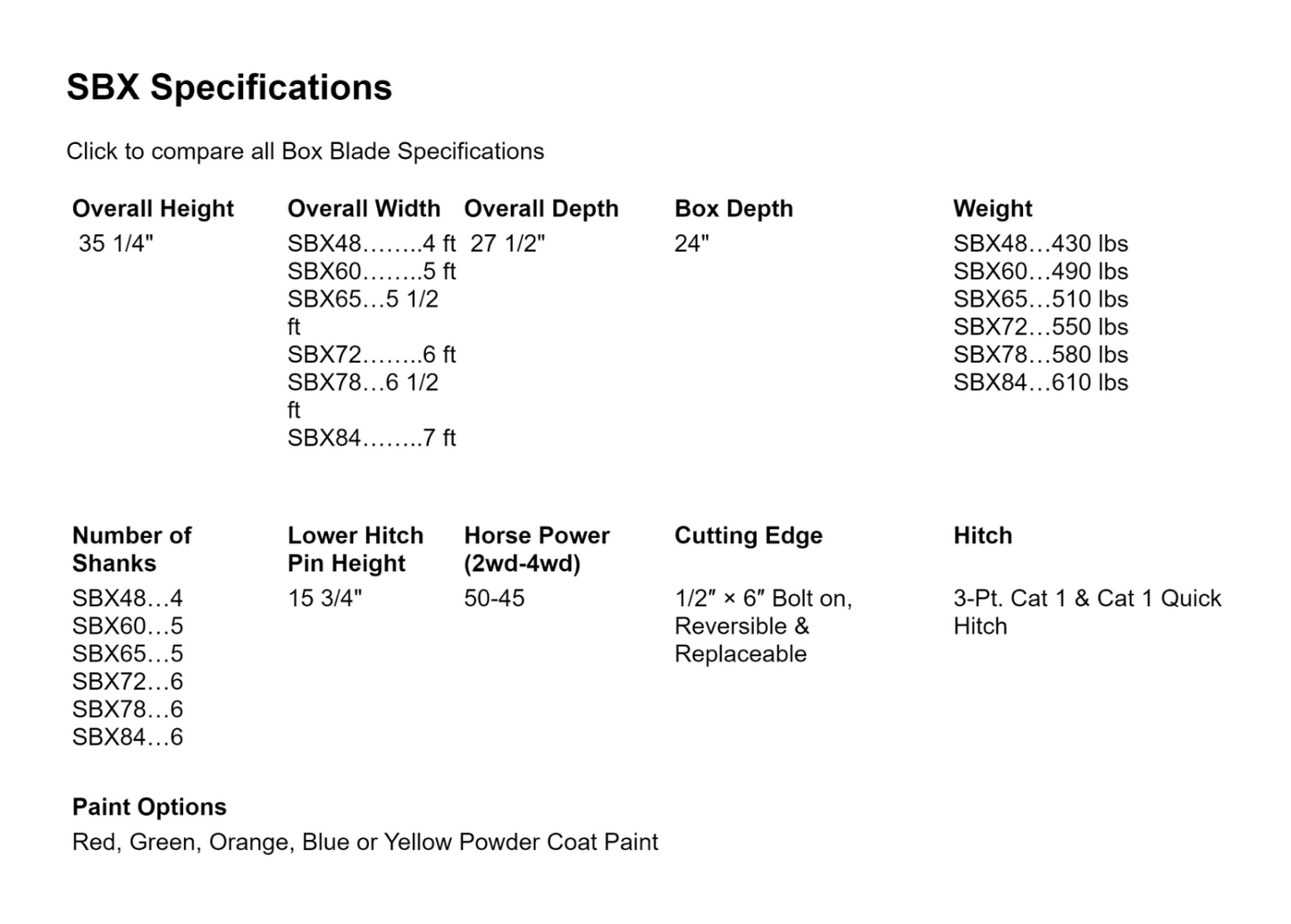

Detailed Specifications
| Specification | SBX Box Blade 48" | SBX Box Blade 60" | SBX Box Blade 65" | SBX Box Blade 72" | SBX Box Blade 78" | SBX Box Blade 84" |
|---|---|---|---|---|---|---|
| Overall Height | 35 1/4″ | 35 1/4″ | 35 1/4″ | 35 1/4″ | 35 1/4″ | 35 1/4″ |
| Overall Width | 4′ (48") | 5′ (60") | 5.5′ (65") | 6′ (72") | 6.5′ (78") | 7′ (84") |
| Overall Depth | 27 1/2″ | 27 1/2″ | 27 1/2″ | 27 1/2″ | 27 1/2″ | 27 1/2″ |
| Box Depth | 24″ | 24″ | 24″ | 24″ | 24″ | 24″ |
| Weight | 430 lbs | 490 lbs | 510 lbs | 550 lbs | 580 lbs | 610 lbs |
| Number of Shanks | 4 | 5 | 5 | 6 | 6 | 6 |
| Lower Hitch Pin Height | 15 3/4″ | 15 3/4″ | 15 3/4″ | 15 3/4″ | 15 3/4″ | 15 3/4″ |
| Horsepower (2WD-4WD) | 50-40 | 50-40 | 50-40 | 50-40 | 50-40 | 50-40 |
