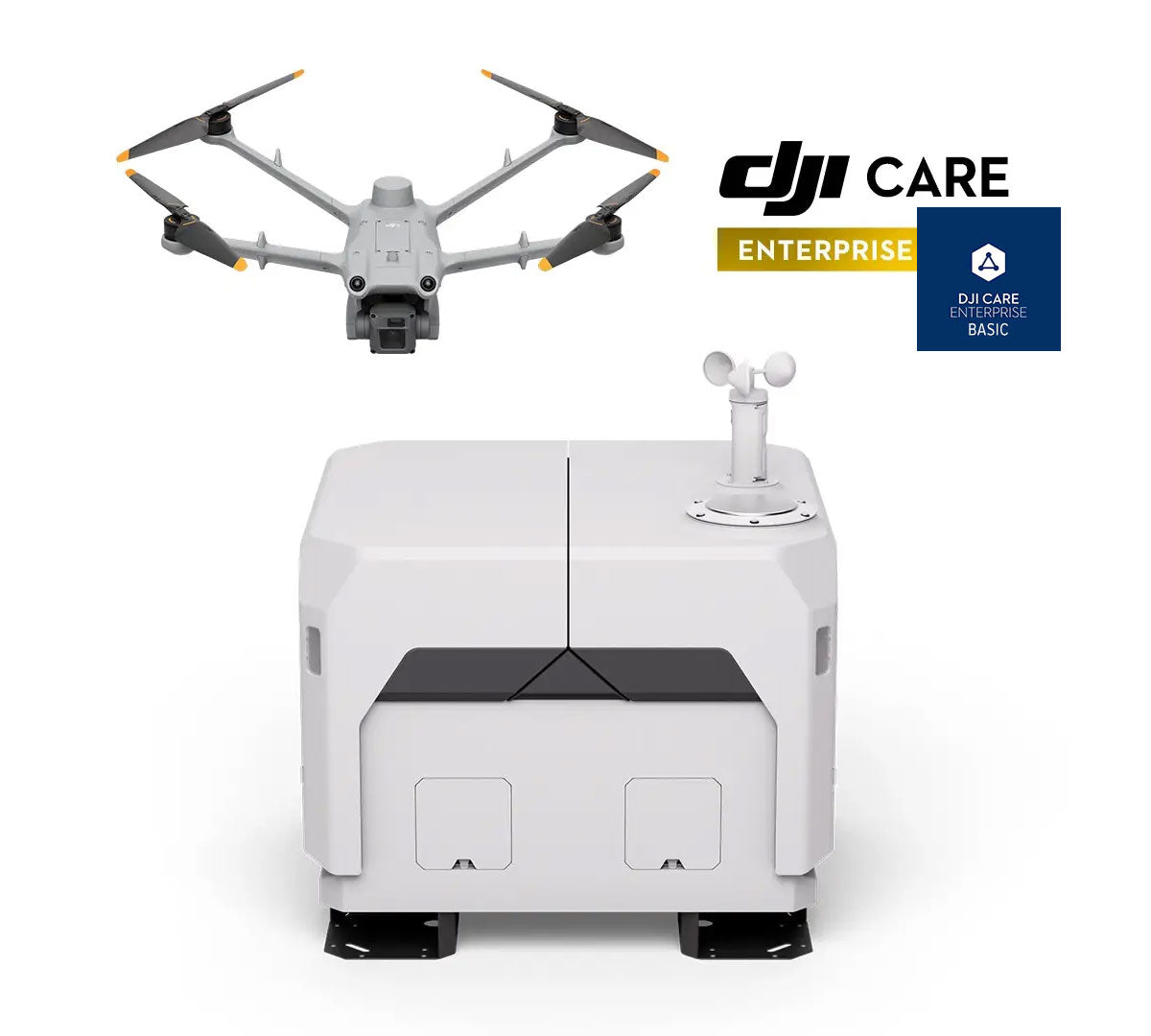

DJI Dock 2 for Matrice 3D and 3DT Series Drone

DJI Dock 2 for Matrice 3D and 3DT Series Drone

$9,000.00
$9,000.00
Sale Sold out
Customizable
Fast
24/7 Support

DJI Dock 2 for Matrice 3D and 3DT Series Drone

DESCRIPTION

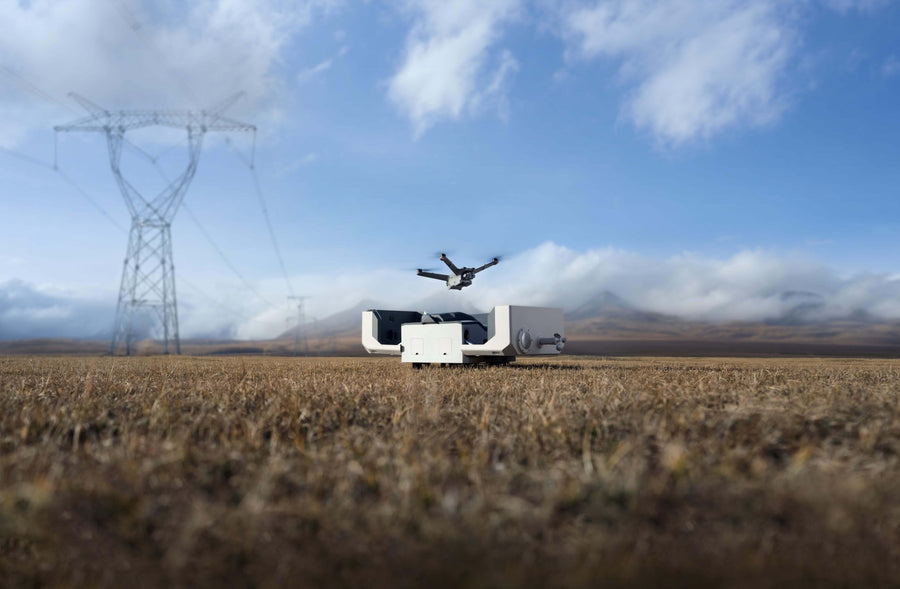

Remotely conduct autonomous drone missions with DJI Dock 2, tailored for diverse environments and weather conditions, ensuring operational excellence anytime, anywhere.

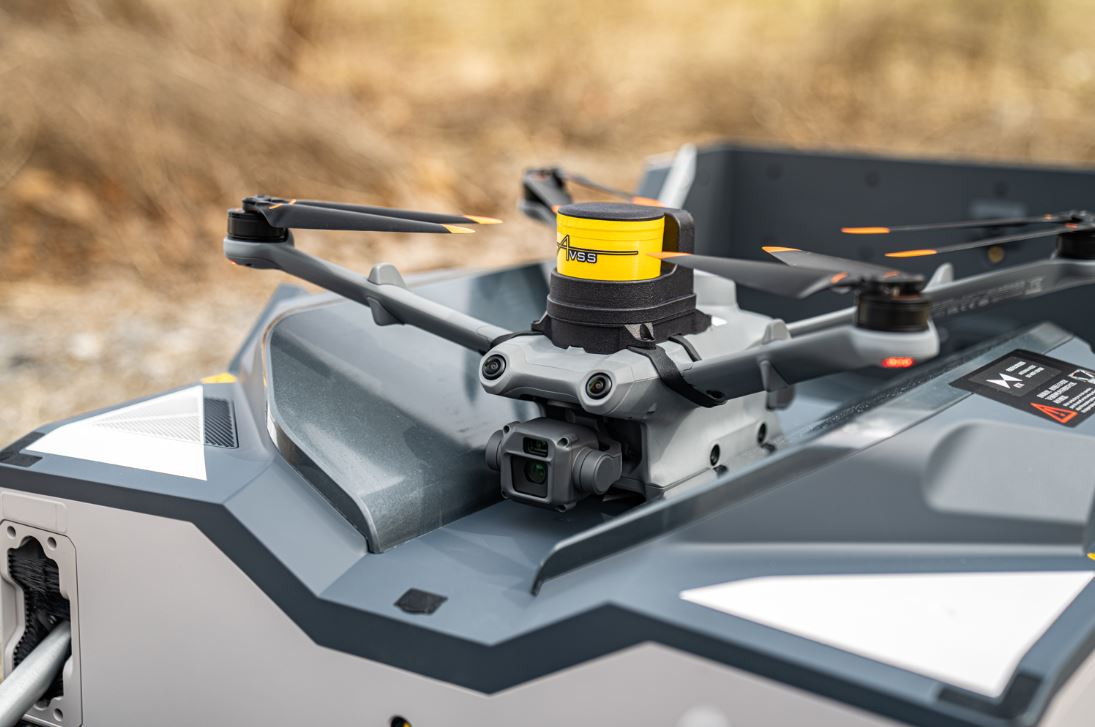

The DJI Dock 2, designed for the Matrice 3D and 3DT series, is a groundbreaking advancement in autonomous drone ops. This charging station is fully integrated with FlytBase, and facilitates automated and scheduled missions with remarkable efficiency.
‍

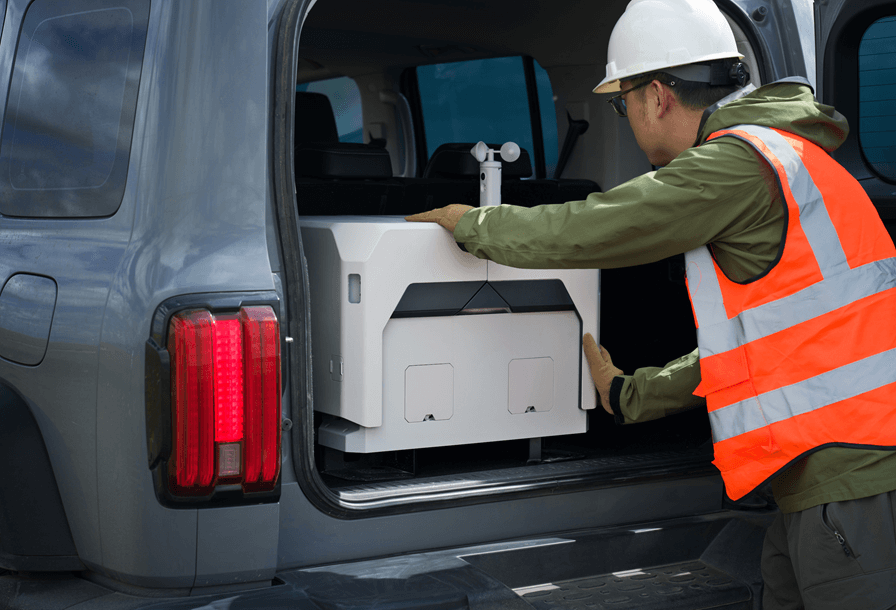

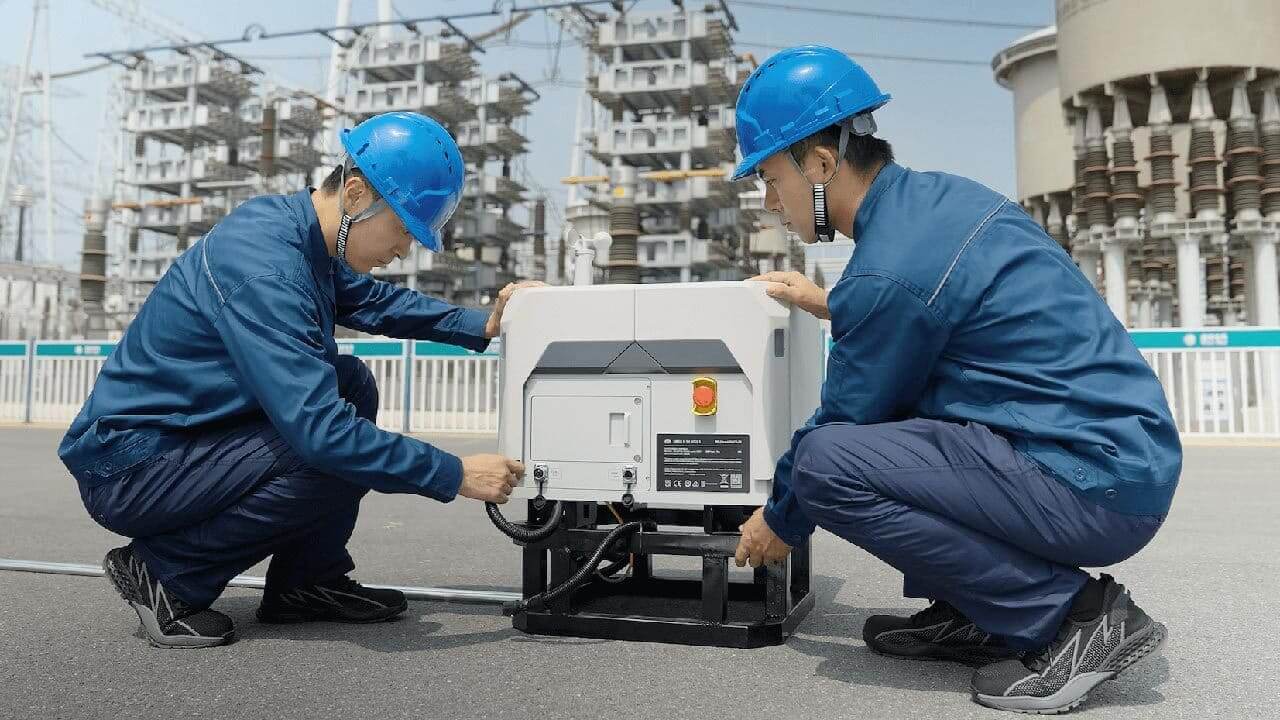

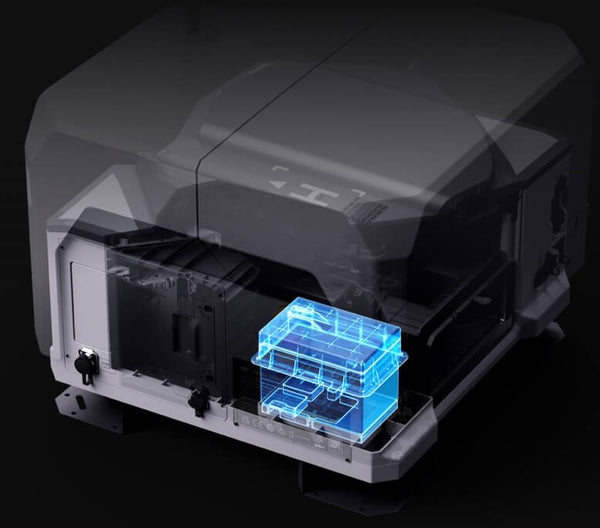

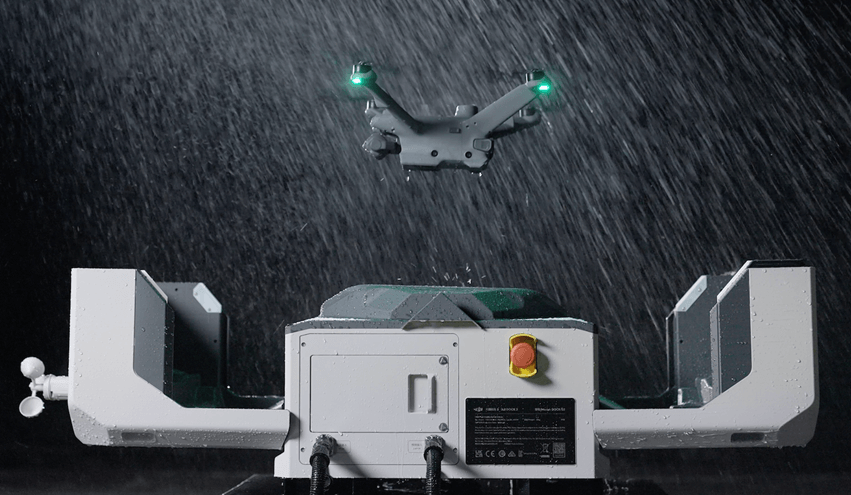

With its compact and lightweight structure, weighing only 34 kg and being significantly smaller and lighter than its predecessor, the Dock 2 ensures easy transport and quick setup. It possesses an IP55 rating, guaranteeing resilience in adverse weather conditions, and is equipped with a durable backup battery capable of 5+ hours of operation during power failures.
‍
Operational across a wide temperature range (-25°C to 45°C), the dock supports continuous 24/7 use. Compatible with drones having up to 50 minutes of flight time and a 10 km range, the Dock 2's RTK module further enhances precision landing. This makes it an essential asset for industries like surveying, security, and inspections.

FEATURES

  • Ingress Protection: IP55
  • Weight: 34 kg
  • Backup Battery: 5 Hours
  • Operating Temperature: -25°C to 45°C
  • Maintenance Interval: 6 Months

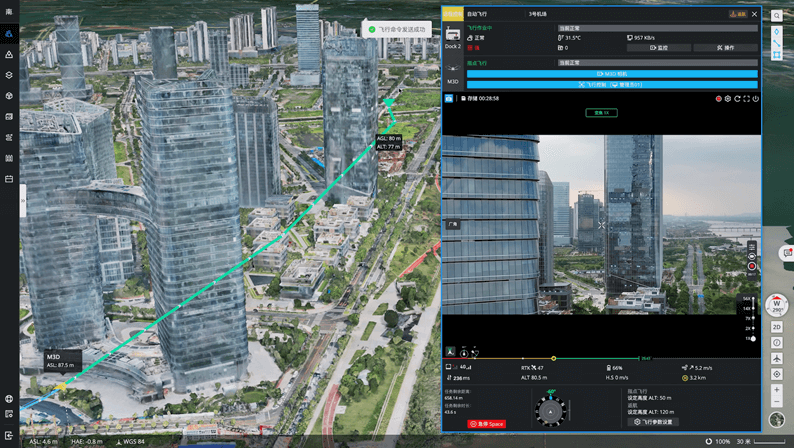

  • Compatible Software: FlytBase, DJI FlightHub 2

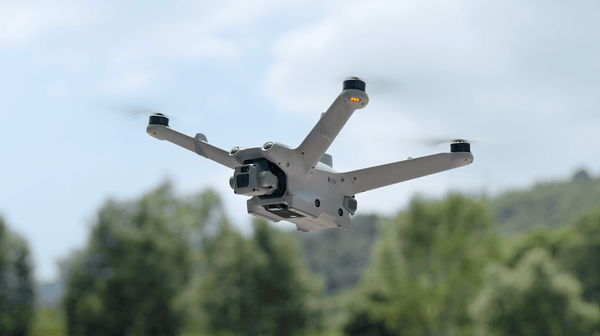

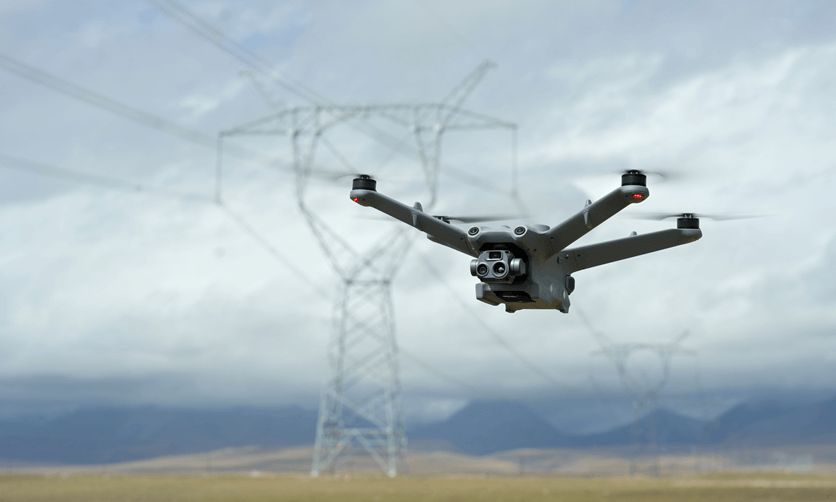

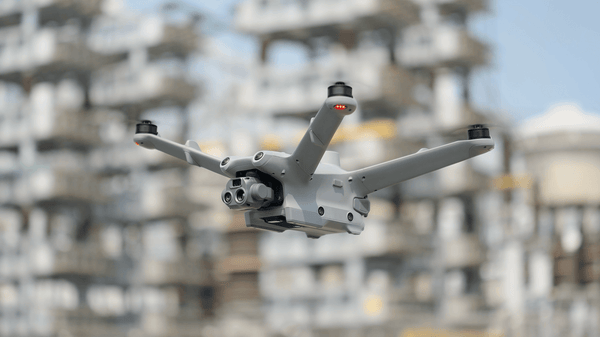

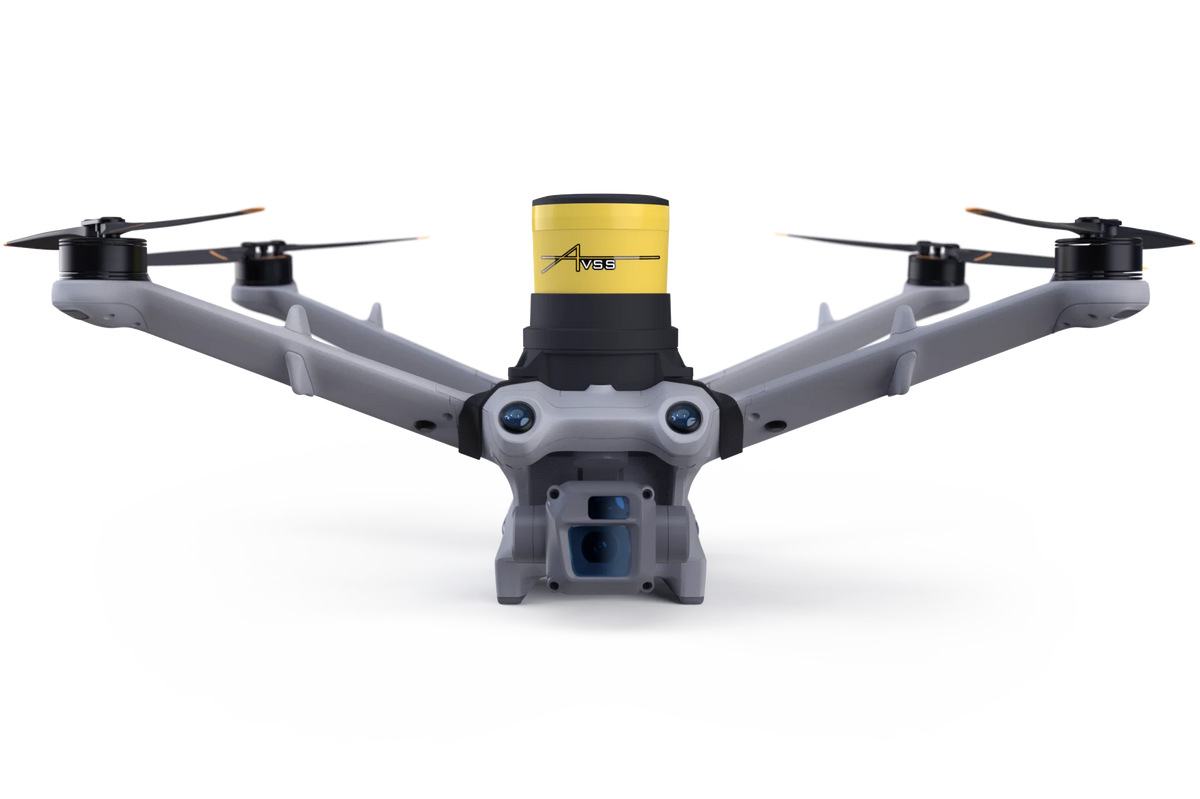

 DJI Matrice 3D
 DJI Matrice 3TD
Wide-angle Camera
  • 4/3 CMOS;
  • Equivalent focal length 24 mm;
  • 20MP;
  • Mechanical shutter
  • 1/1.32 inch CMOS;
  • Equivalent focal length 24 mm;
  • 48MP
Telephoto Camera
  • 1/2-inch CMOS;
  • Equivalent focal length 161 mm;
  • 12MP
  • 1/2-inch CMOS;
  • Equivalent focal length 161 mm;
  • 12MP
Thermal Camera

  • N/A
  • Equivalent focal length 40 mm;
  • Normal mode: 640 x 512@30fps;
  • Super-resolution mode: 1280 x 1024@30fps;
  • 28x digital zoom



SPECIFICATION

Ingress Protection: IP55



Backup Battery: 5 Hours

Weight: 34 kg

Charge time: 25 mins

Surge Protection: 20kA

Operating Temperature: -25°C to 45°C

Maintenance Interval: 6 Months

Operating Compatible Software: FlytBase, FlightHub 2
Total weight, excluding drone 75 lbs.
Dimensions Hatch cover open: length 50", width 23", height 16.2" Hatch cover closed: length 22.4", width 23", height 18.3" mm
Input voltage 100V to 240V (AC), 50/60 Hz
Input power Maximum 1000 watts
Charging output 28 volts DC
Charging time 20% to 90% in 32 minutes
Working temperature -25°C to 45°C
IP rating IP55
Drones in use at a single time 1
Max wind speed for landing 8m/s
Max operating altitude 8,202 ft.
RTK base station frequency GPS: L1 C/A, L2BeiDou2: B1l, B2l, B3lBeiDou3: B1l, B3lGLONASS: L1, L2Galileo: E1, E5B
RTK base station accuracy Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Image transmission O3 Enterprise Edition
Image transmission frequency 2.4000 GHz to 2.4835 GHz
5.725 GHz to 5.850 GHz
Antenna Four antennas, two transmitters, and four receivers, support intelligent switching
Air conditioning TEC air conditioner at 28 volts DC
Backup battery 12Ah, 12-volt lead-acid battery
Backup battery life 5 hours
Network connectivity 1GB ethernet, 4G
Sensors Wind speedRainAmbient temperatureWater immersionCabin temperatureCabin humidity
Security camera 2x 1080p 151° camera with spotlight. One external and one internal
Lightning protection AC power: 20 kA protection (rated value), meeting Type 2 of EN 61643-11 and Class II protection level of IEC 61643-1Ethernet: 10 kA protection (total current value), meeting the Category C protection level of EN/IEC 61643-21
Compatible software DJI Pilot 2 (with RC Pro Enterprise) DJI FlightHub 2DJI Cloud API
Drone Weight 3.1 lbs.
Maximum take-off weight 3.54 lbs.
Drone Dimensions 13.2" long,15.6" wide, 6" height (excluding propellers)
Max ascent speed 13.4 mph (normal mode)
17.8 mph (sport mode)
Max descent speed 13.4 mph (normal mode)
13.4 mph (sport mode)
Max flight speed Normal mode, obstacle avoidance turned on: forward flight 33.5 mph, backward flight 26.8 mph side flight 22.3 mph. Sports mode: forward flight 47 mph, backward flight 40.2 mph, side flight 35.7 mph.
Max wind resistance Wind resistance during operation: 26.8 mph
Wind resistance during takeoff and landing: 17.9 mph.
Max take-off altitude 1.55 mi.
Max flight time 50 minutes
Max operational range 6.21 mi.
