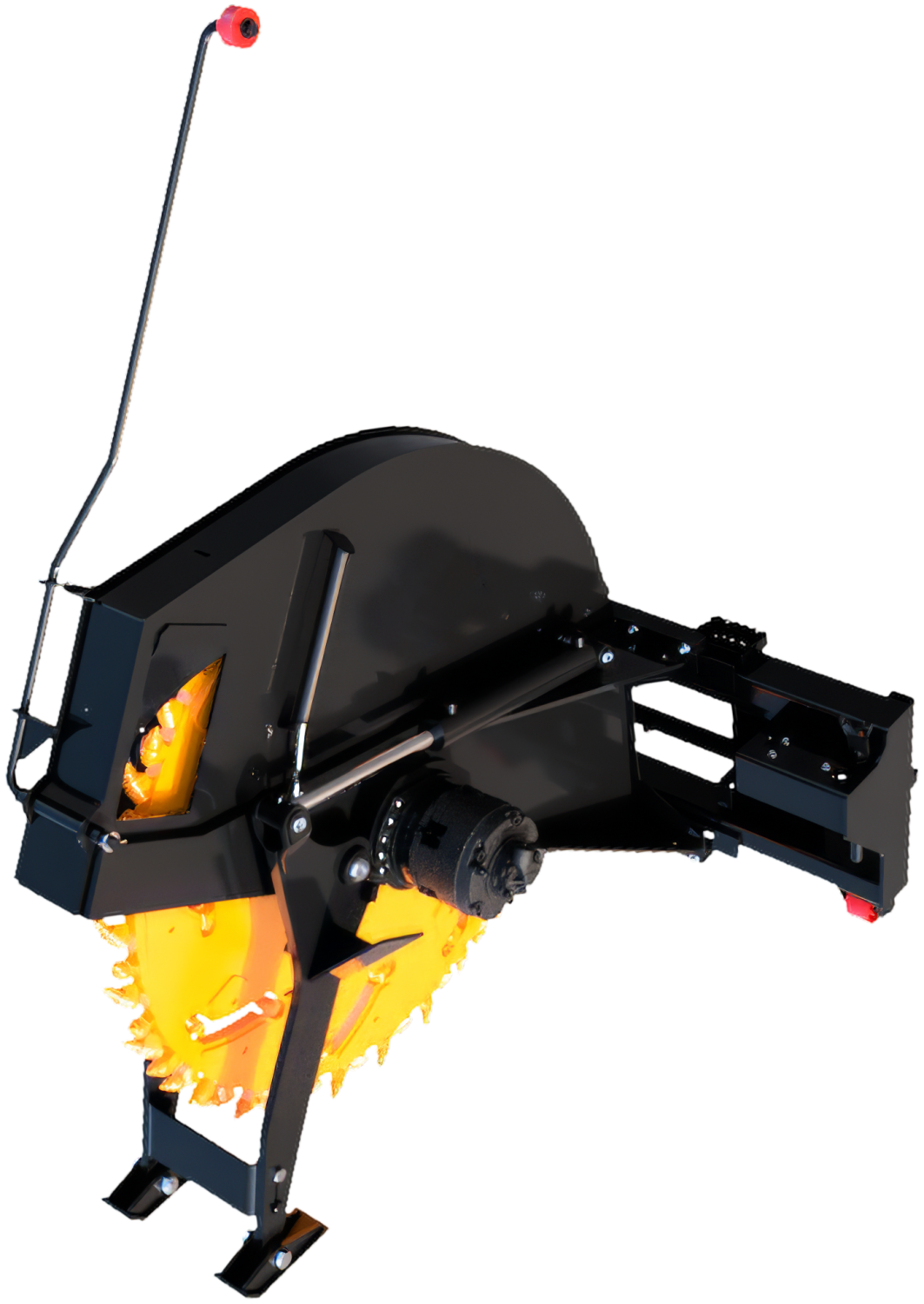

ERSKINE HEAVY DUTY ROCK SAW | HDRS-18 & HDRS-24 MODEL | WITH PISTOL GRIP CONTROL HARNESS | FOR SKID STEER

ERSKINE HEAVY DUTY ROCK SAW | HDRS-18 & HDRS-24 MODEL | WITH PISTOL GRIP CONTROL HARNESS | FOR SKID STEER

$27,495.00
$27,495.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Up to 20 feet per minute (FPM).
  • Hydraulic Side-Shift and Depth Control
  • Cut up to 18 inches or 24 inches deep.
View full details

DESCRIPTION

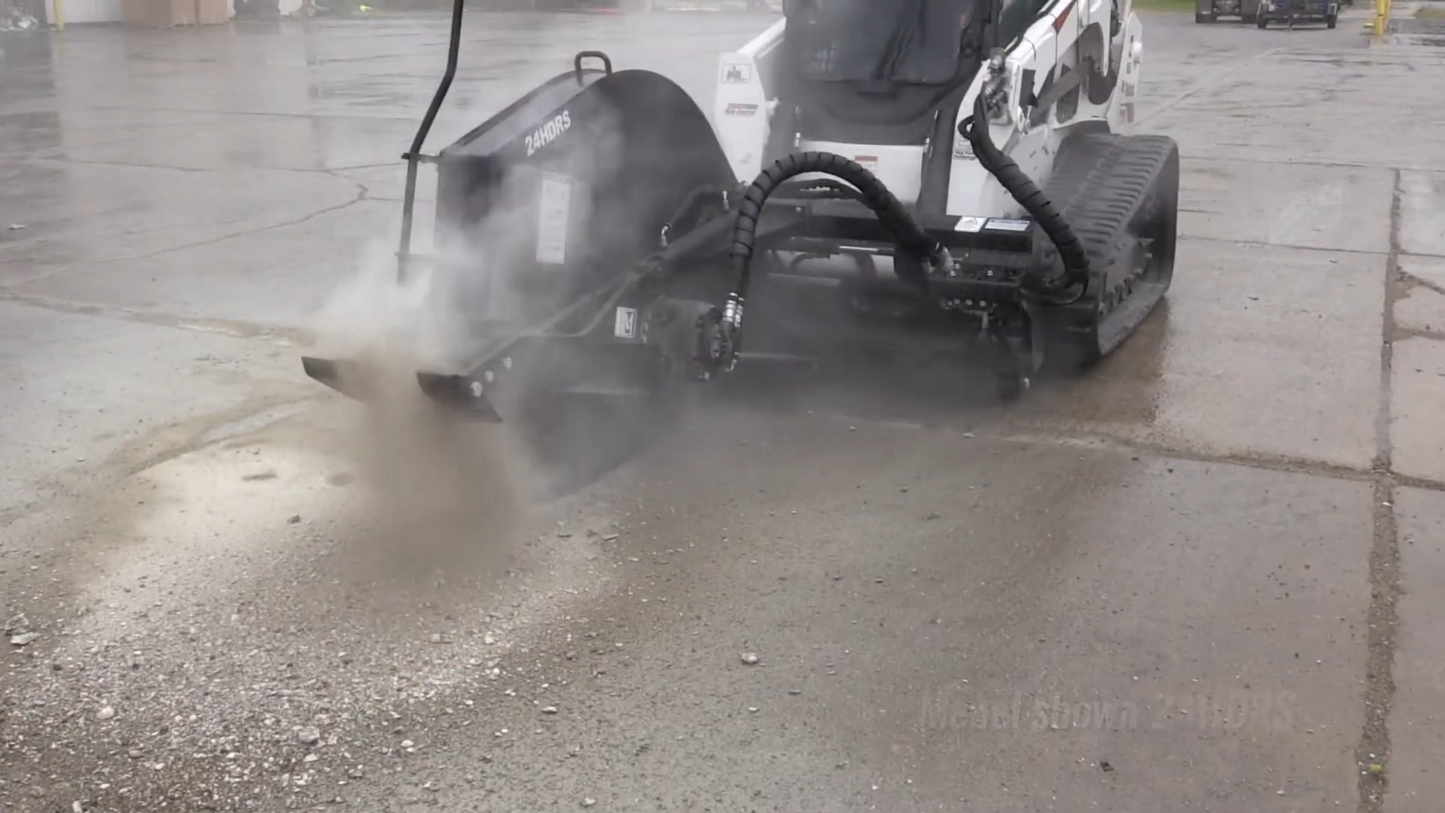

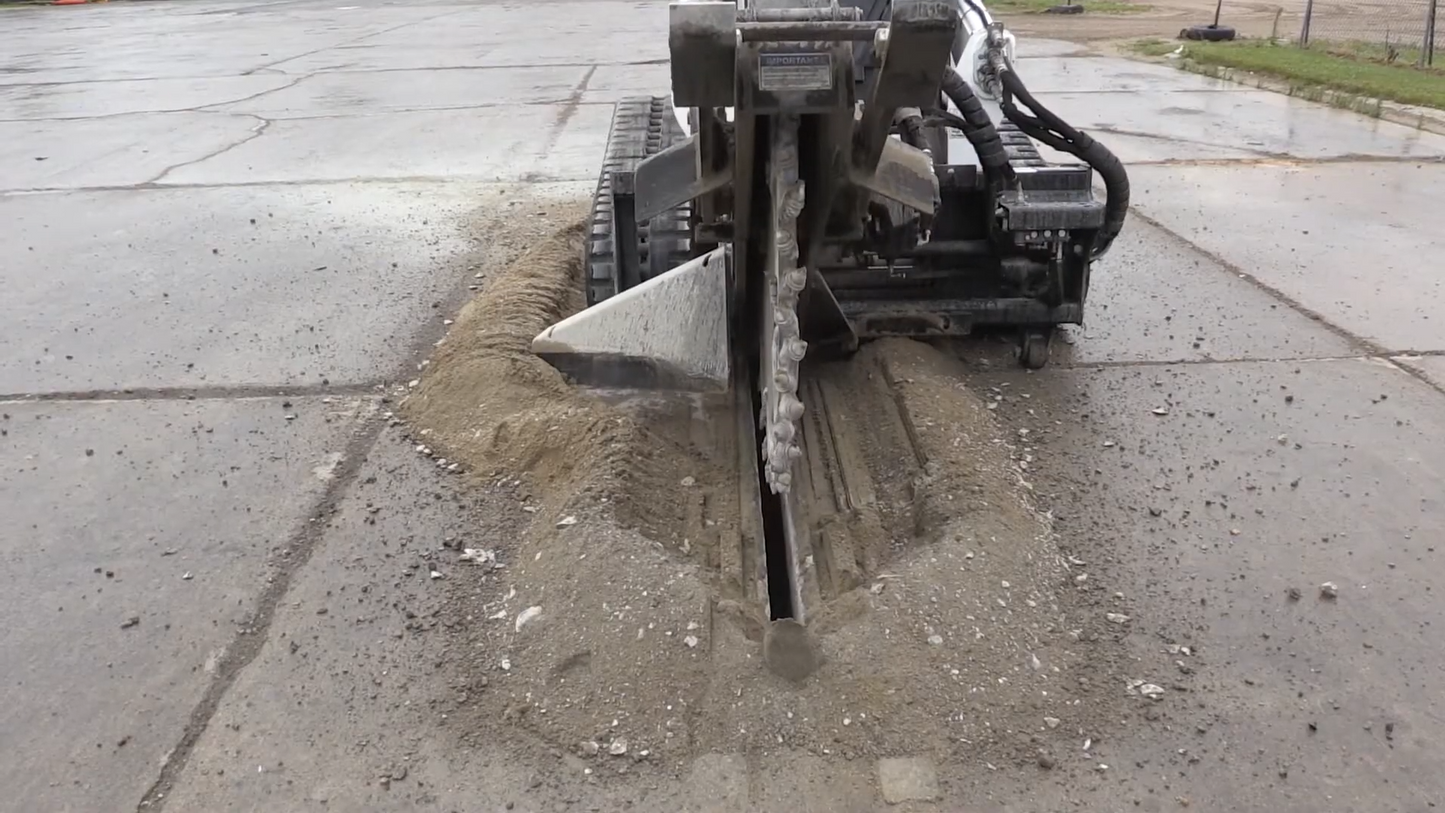

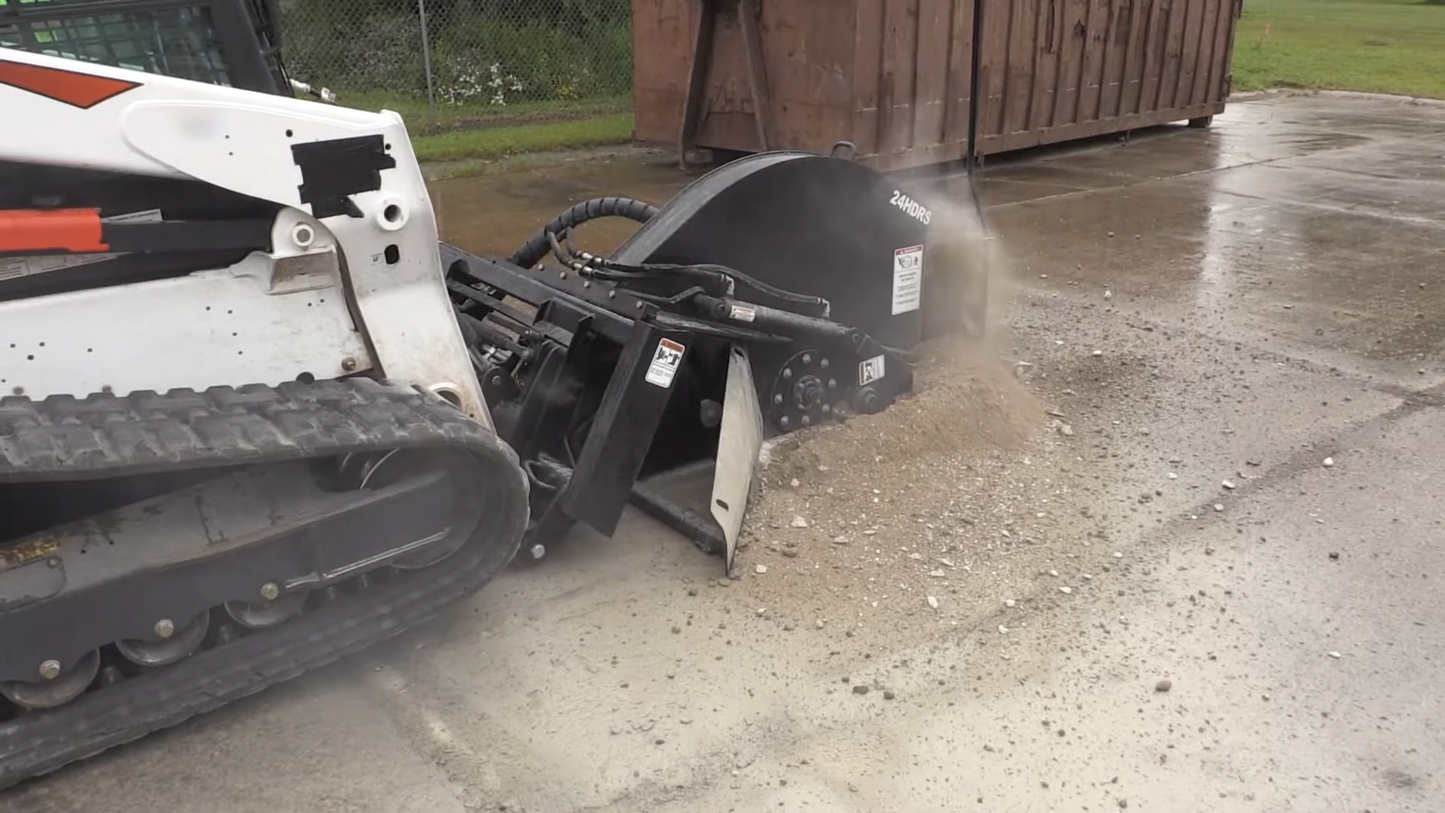

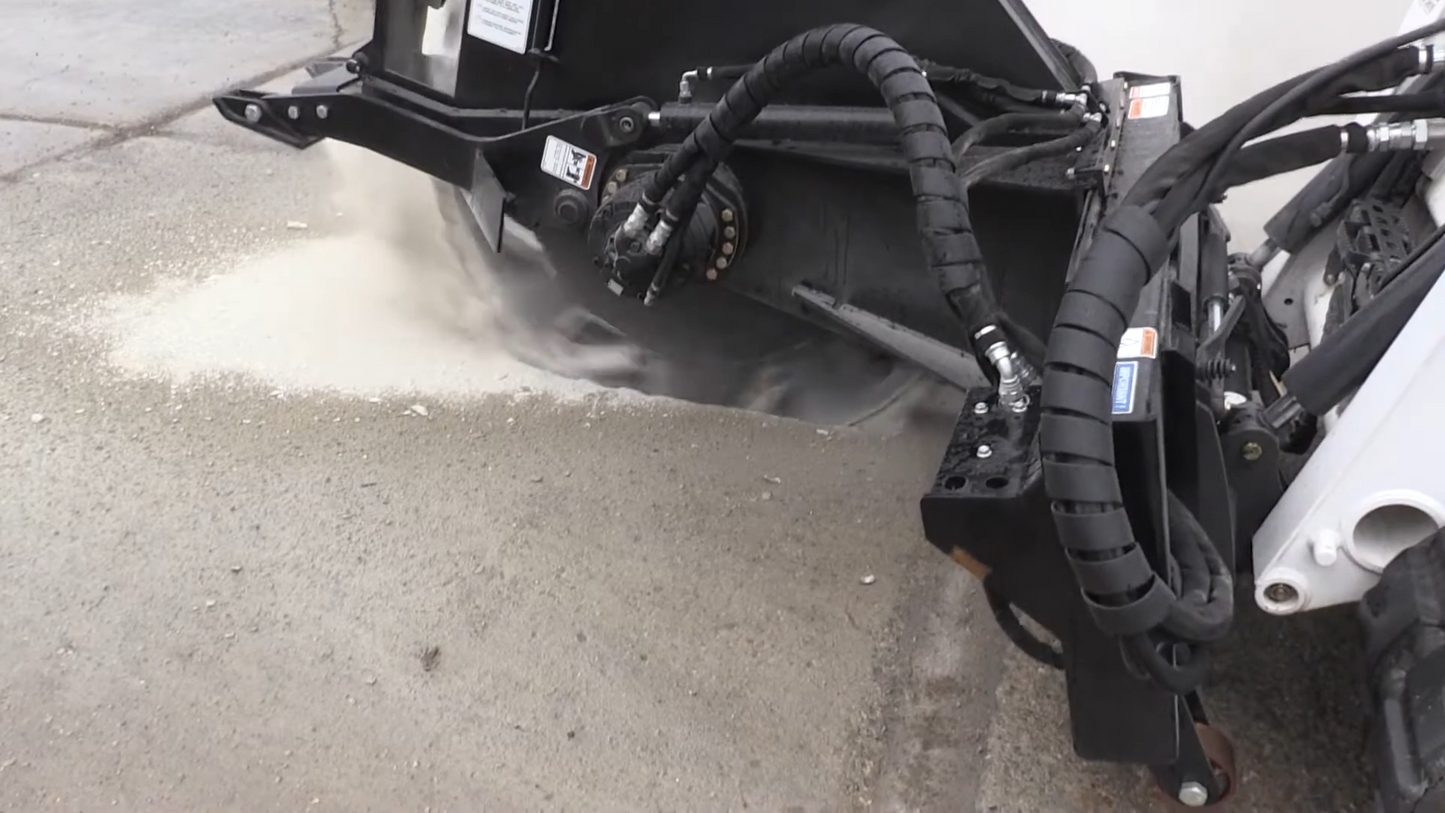

The Heavy-Duty Rock Saw sounds like a fantastic piece of equipment for cutting through asphalt and concrete efficiently! Here are some key features based on what you’ve shared and additional details:

  • Cutting Speed: Up to 20 feet per minute (FPM).
  • Hydraulic Side-Shift and Depth Control: Allows operators to shift the saw up to 24 inches for better maneuverability near buildings and obstacles.
  • Cutting Depth: Can cut up to 18 inches or 24 inches deep.

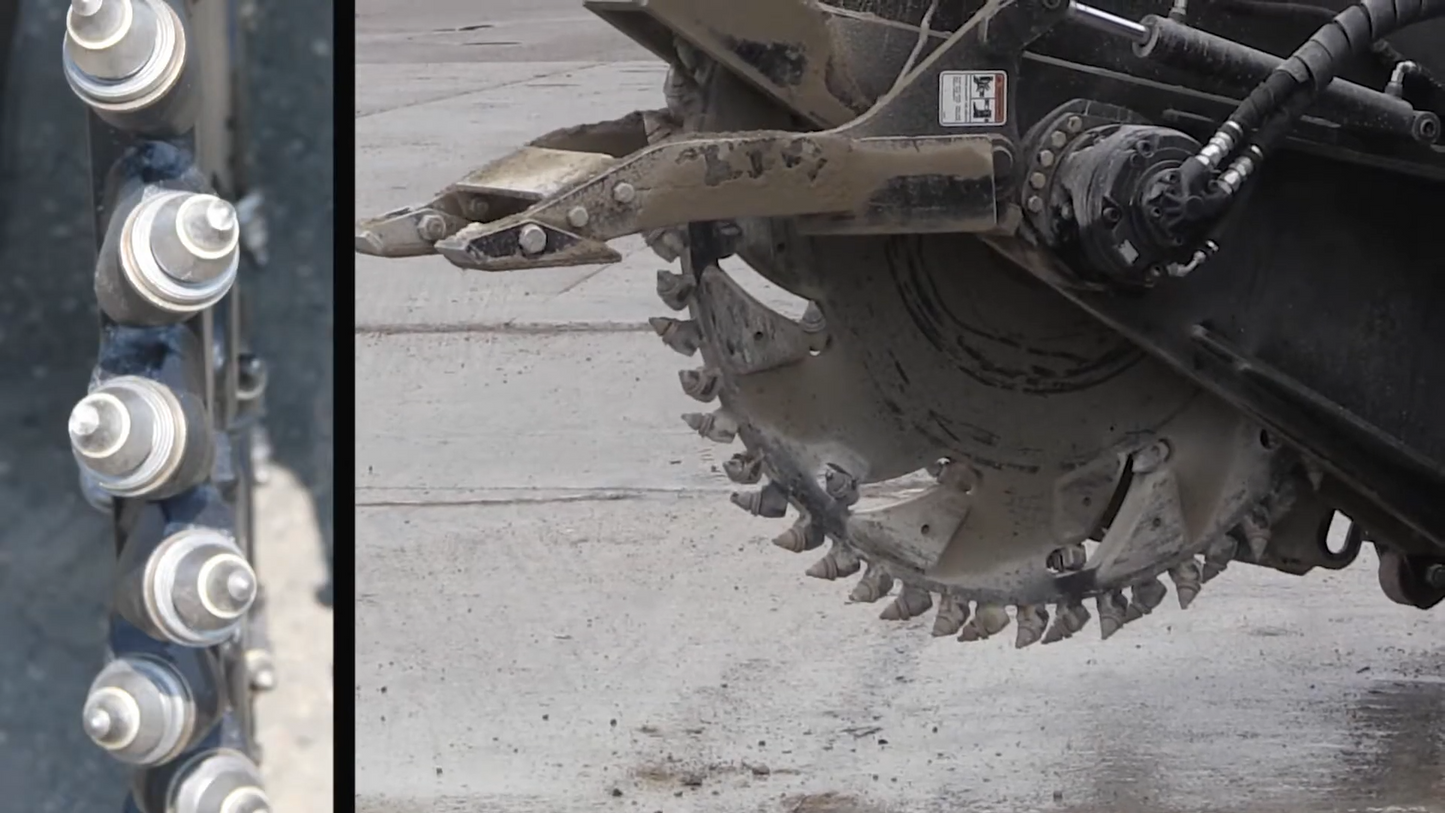

  • Standard Features: Includes side cutting teeth, a side motor protection blade, and a floating spoil deflector for enhanced performance and protection.

This tool is designed to make precise and efficient cuts, making it ideal for various construction and demolition tasks.

  • Highly visible depth gauge allows for more precise control over cutting depth
  • Large spindle & support bearing improves cutting effciency by stabilizing the cutter head
  • Side cutter head teeth minimize any cutter head binding while cutting full depth trenches
  • Dual depth control legs improve stability while cutting

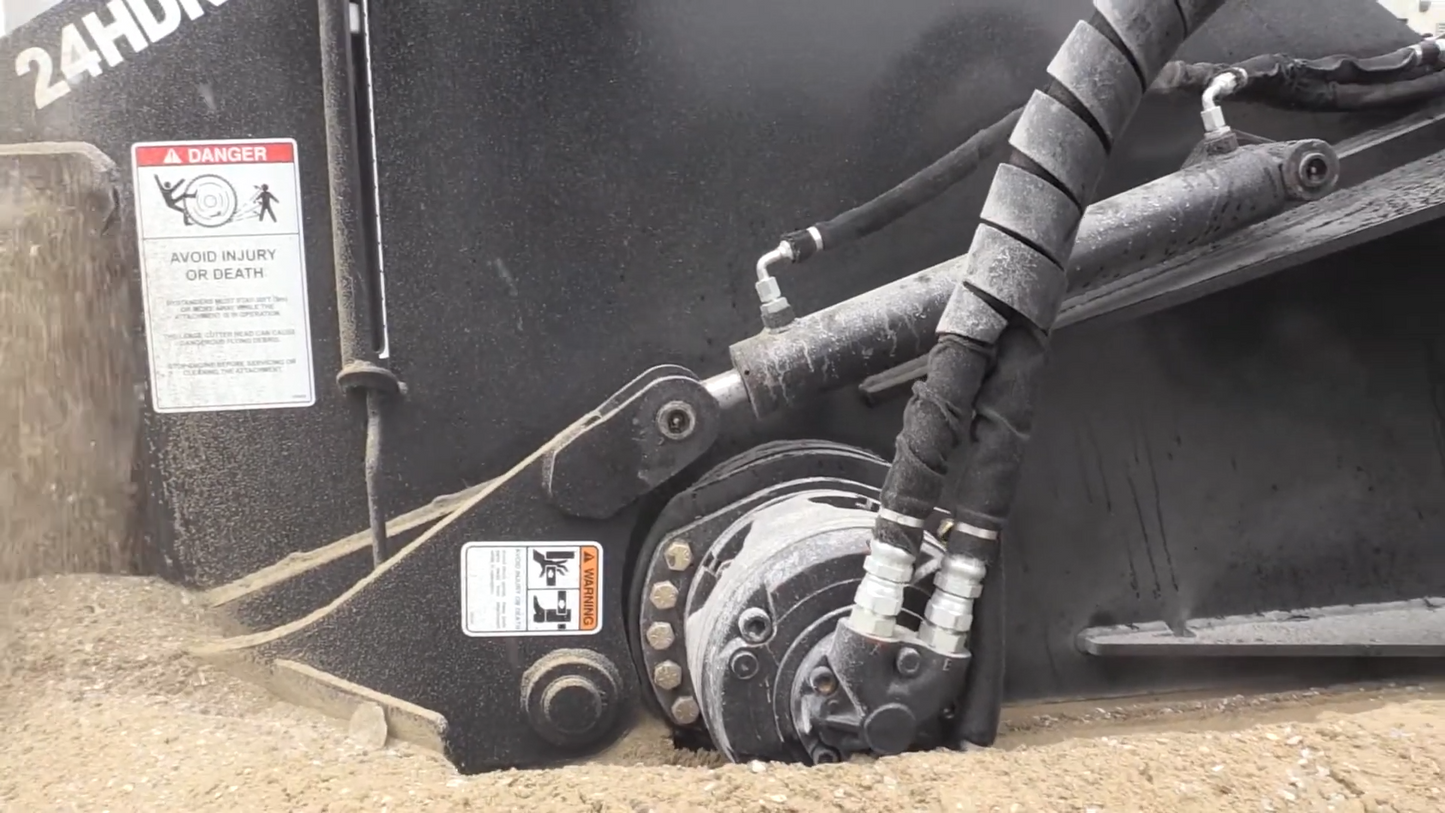

  • New motor & gearbox provides 33% more available torque than the standard Rock Saw

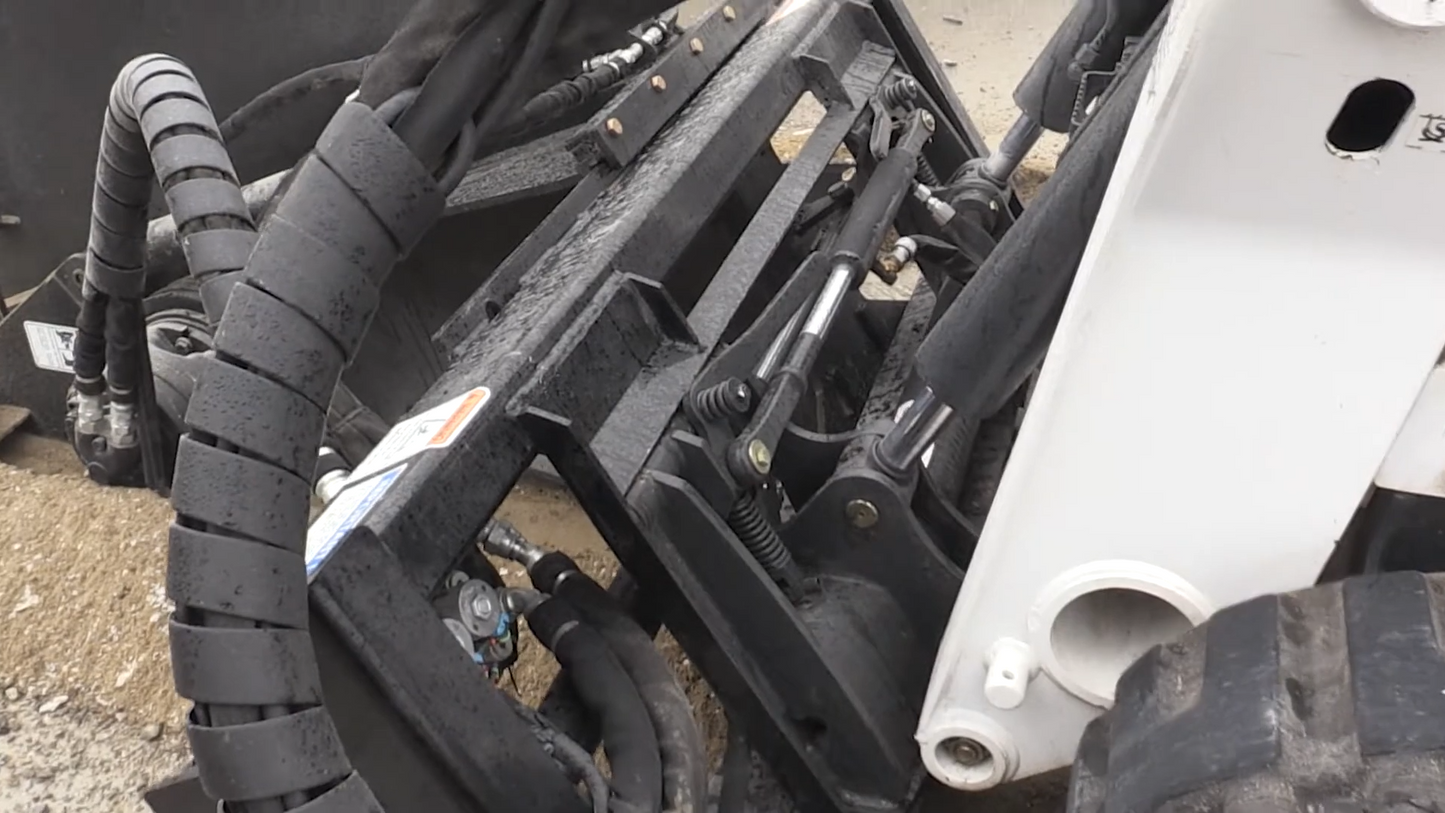

  • Our universal quick attach plates fit most skid steers

Model: 18HDRS

  • Part Number: 901306
  • Minimum Flow Rate: 25 GPM
  • Maximum Flow Rate: 45 GPM
  • Maximum Speed: 130 RPM
  • Minimum Operating Pressure: 2,200 psi
  • Maximum Pressure: 4,800 psi
  • Maximum Power Output: 80 HP
  • Maximum Torque: 6,640 lb-ft
  • Hydraulic Flow Classification: High Flow
  • Number of Teeth: 54
  • Width of Cut: 2.75"
  • Depth of Cut: 18"
  • Depth Control: Hydraulic
  • Side-Shift Distance: 24"
  • Side-Shift Control: Hydraulic
  • Overall Width: 66.5"
  • Overall Length: 69.5"
  • Overall Height: 53"
  • Weight: 2,550 lb.
  • Cutting Speed: Up to 20 FPM

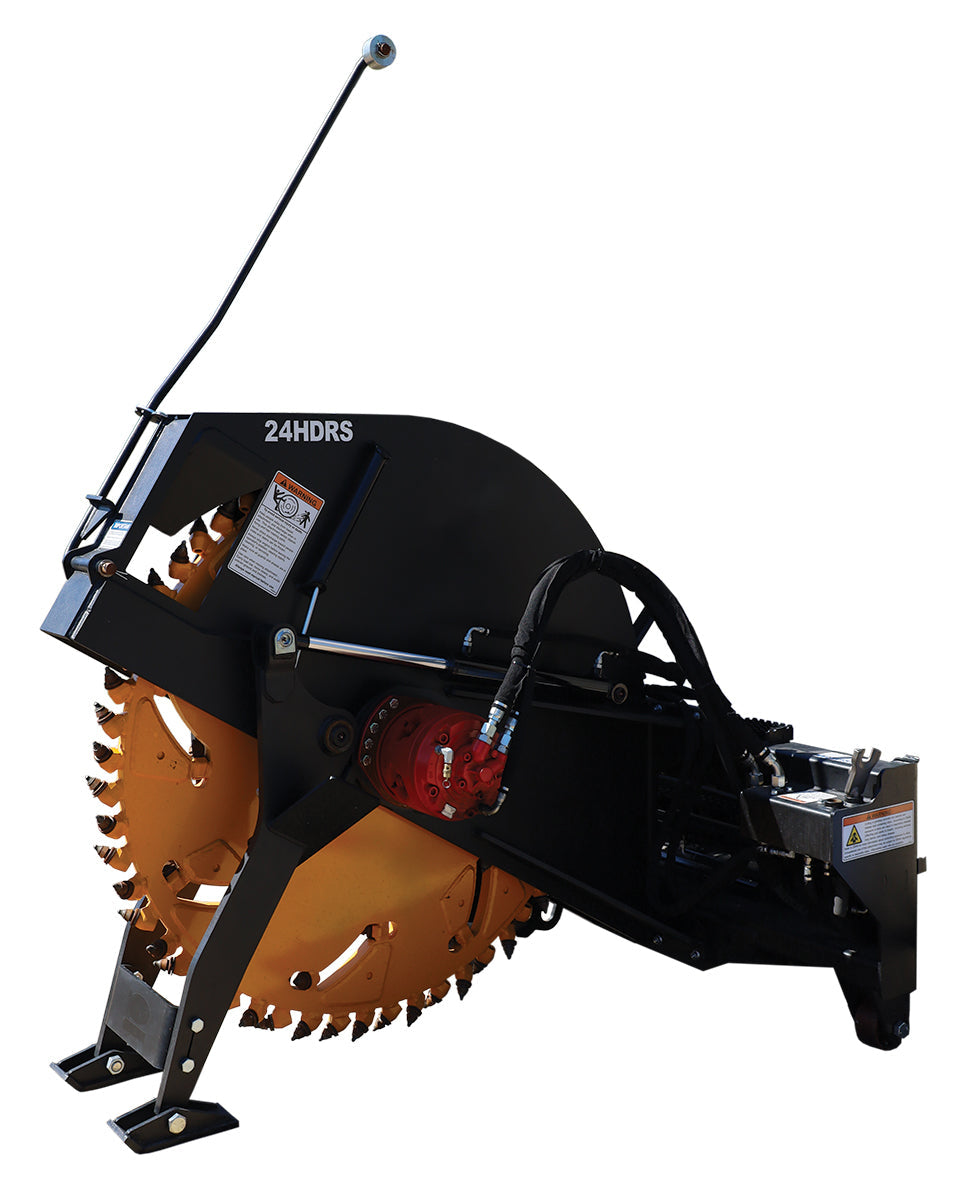

Model: 24HDRS

  • Part Number: 901307
  • Minimum Flow Rate: 25 GPM
  • Maximum Flow Rate: 45 GPM
  • Maximum Speed: 130 RPM
  • Minimum Operating Pressure: 2,200 psi
  • Maximum Pressure: 4,800 psi
  • Maximum Power Output: 80 HP
  • Maximum Torque: 6,640 lb-ft
  • Hydraulic Flow Classification: High Flow
  • Number of Teeth: 72
  • Width of Cut: 2.75"
  • Depth of Cut: 24"
  • Depth Control: Hydraulic
  • Side-Shift Distance: 24"
  • Side-Shift Control: Hydraulic
  • Overall Width: 66.5"
  • Overall Length: 76.2"
  • Overall Height: 64"
  • Weight: 3,150 lb.
  • Cutting Speed: Up to 20 FPM

Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.

Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

Product Brochure

Manual
