THE POWER TO SEE MORE

GMR Fantom™ 256 is the most powerful 6’ consumer solid-state radar.

Know what’s out there.

MOTIONSCOPE TECHNOLOGY:

MotionScope technology detects and highlights moving targets in different colors to help avoid collisions, find flocks of birds and track weather from 20’ to 96 nautical miles.

AUTOMATIC ACQUISITION:

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope.

CLEAR THE WAY:

Scan-to-scan averaging aids in reduction of sea clutter and interference, so you have a clear view of what’s out there.

AUTO BIRD GAIN:

Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water’s surface.

PULSE COMPRESSION:

This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.

ECHO TRAILS:

True Echo Trails feature displays a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat.

RADAR OVERLAY:

Overlay radar on your chart screen as single display or split screen with independent range settings.

DYNAMIC SEA FILTER:

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

GUARD ZONE:

Set the safety zone and receive an alarm when an object enters the zone.

GMR Fantom™ 18" Radome 40 W:

General:

• PHYSICAL DIMENSIONS 20" x 9.8" (50.8 cm x 24.8 cm)
• WEIGHT 13.6 lbs (6.2 kg)
• WATER RATING IPX7
• PEAK TRANSMIT POWER 40 W
• ANTENNA LENGTH 17" (43.18 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 5.2° horizontal, 25° vertical
• MAXIMUM RANGE 48 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Radome.

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 18 W
• MAX POWER CONSUMPTION 25 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE

GMR Fantom™ 24" Radome 40 W:

General:

• PHYSICAL DIMENSIONS 25.4" x 9.8" (64.5 cm x 24.9 cm)
• WEIGHT 21 lb (9.5 kg)
• WATER RATING IPX7
• PEAK TRANSMIT POWER 40 W
• ANTENNA LENGTH 23" (58.42 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 3.7° horizontal, 25° vertical
• MAXIMUM RANGE 48 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Radome

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 18 W
• MAX POWER CONSUMPTION 25 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE

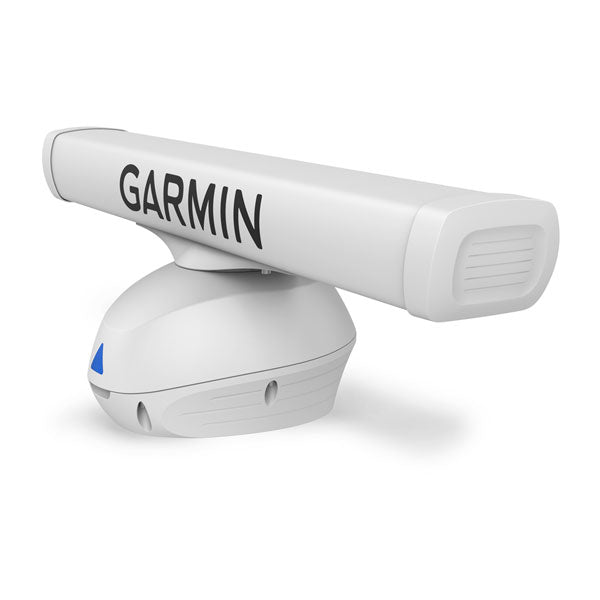

GMR Fantom™ 54 4' 50W Open Array Radar and Pedestal:

General:

• PHYSICAL DIMENSIONS
• Pedestal: 16.6" x 14.3" x 10.7"
• Pedestal: 42.1 x 36.4 x 27.1 cm
• Full assembly: 15.9" height x 51.8" diameter
• Full assembly: 40.3 cm height x 131.4 cm diameter

WEIGHT

• Array: 11.4 lb (5.2 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 50 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 48" (121.92 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.8° horizontal, 23° vertical
• MAXIMUM RANGE 72 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 65 W
• MAX POWER CONSUMPTION 170 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

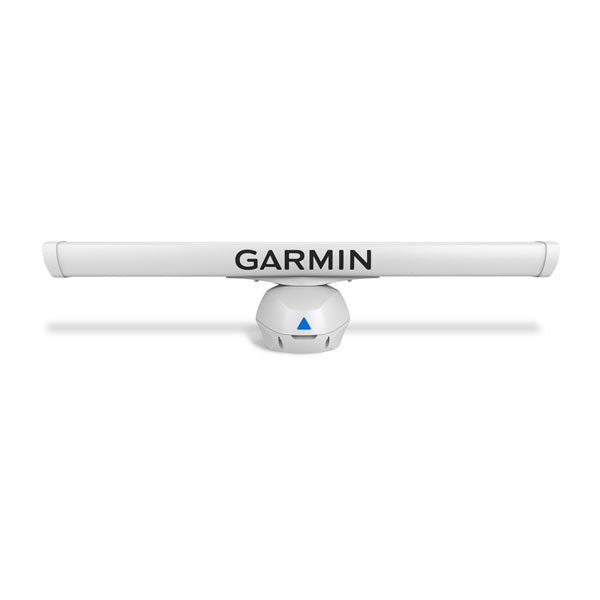

GMR Fantom™ 56 6' Open Array and Pedestal:

General:

• PHYSICAL DIMENSIONS
• Pedestal: 16.6" x 14.3" x 10.7"
• Pedestal: 42.1 x 36.4 x 27.1 cm
• Full assembly: 15.9" height x 75.2" diameter
• Full assembly: 40.3 cm height x 190.9 cm diameter

WEIGHT:

• Array: 16 lb (7.3 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 50 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 72" (182.9 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.25° horizontal, 23° vertical
• MAXIMUM RANGE 72 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 65 W
• MAX POWER CONSUMPTION 170 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

GMR Fantom™ 124 120W Open Array and Pedestal:

General:

• PHYSICAL DIMENSIONS
• Pedestal: 16.6" x 14.3" x 10.7"
• Pedestal: 42.1 x 36.4 x 27.1 cm
• Full assembly: 15.9" height x 51.8" diameter
• Full assembly: 40.3 cm height x 131.4 cm diameter

WEIGHT

• Array: 11.4 lb (5.2 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 120 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 48" (121.92 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.8° horizontal, 23° vertical
• MAXIMUM RANGE 96 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 80 W
• MAX POWER CONSUMPTION 185 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

GMR Fantom™ 126 Open Array and Pedestal:

General:

• PHYSICAL DIMENSIONS
• Pedestal: 16.6" x 14.3" x 10.7"
• Pedestal: 42.1 x 36.4 x 27.1 cm
• Full assembly: 15.9" height x 75.2" diameter
• Full assembly: 40.3 cm height x 190.9 cm diameter
• WEIGHT
• Array: 16 lb (7.3 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 120 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 72" (182.9 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.25° horizontal, 23° vertical
• MAXIMUM RANGE 96 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V DC
• POWER CONSUMPTION 80 W
• MAX POWER CONSUMPTION 185 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

GMR Fantom™ 254 with Antenna and Pedestal:

General:

• PHYSICAL DIMENSIONS Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)
• Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)
• WEIGHT
• Array: 11.4 lb (5.2 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 250 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 48" (121.92 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.8° horizontal, 23° vertical
• MAXIMUM RANGE 96 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V
• POWER CONSUMPTION 150 W
• MAX POWER CONSUMPTION 260 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

GMR Fantom™ 256 Antenna and Pedestal:

General:

• PHYSICAL DIMENSIONS Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)
• Full assembly: 15.9" height x 75.2" diameter (40.3 cm x 190.9 cm)
• WEIGHT
• Array: 16.0 lb (7.3 kg)
• Pedestal: 34.7 lb (15.7 kg)
• WATER RATING IPX6
• PEAK TRANSMIT POWER 250 W
• MAX WIND LOAD 80kt
• ANTENNA LENGTH 72" (182.9 cm)
• ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
• BEAM WIDTH 1.25° horizontal, 23° vertical
• MAXIMUM RANGE 96 nm
• MINIMUM RANGE 6 meters
• RADAR TYPE Open-Array

Electrical:

• POWER INPUT 10-32 V
• POWER CONSUMPTION 150 W
• MAX POWER CONSUMPTION 260 W

Radar Features:

• DUAL RANGE
• OVERLAY
• DUAL RADAR SUPPORT
• AUTOBIRD GAIN
• AUTOGAIN Dynamic
• MARPA WITH AUTO ACQUISITION Yes (Requires Heading Sensor, Sold Separately)
• ECHO TRAILS
• MOTIONSCOPE
• PROGRAMMABLE ANTENNA PARKING
• TARGET SIZE
• SCAN AVERAGING

IN THE BOX

GMR Fantom™ 18" Radome 40 W:

• GMR Fantom 18
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template

GMR Fantom™ 24" Radome 40 W:

• GMR Fantom 24
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template

GMR Fantom™ 54 4' 50W Open Array Radar and Pedestal:

• GMR Fantom 54 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Documentation

GMR Fantom™ 56 6' Open Array and Pedestal:

• GMR Fantom 56 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Documentation

GMR Fantom™ 124 Open Array and Pedestal:

• GMR Fantom 124 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Voltage converter
• Documentation

GMR Fantom™ 126 Open Array and Pedestal:

• GMR Fantom 126 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Voltage converter
• Documentation

GMR Fantom™ 254 with Antenna and Pedestal:

• GMR Fantom 254 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Voltage converter
• Documentation

GMR Fantom™ 256 Antenna and Pedestal:

• GMR Fantom 256 antenna and pedestal
• Mounting hardware kit and template
• Right angle power cable (15 meters)
• Right angle network cable (15 meters)
• Voltage converter
• Documentation
