Product Description
HitchDoc Dual Dozer | Model HDD-7 Base | Width 84" inches | Horsepower 55+ HP | For Tractors
DESCRIPTION

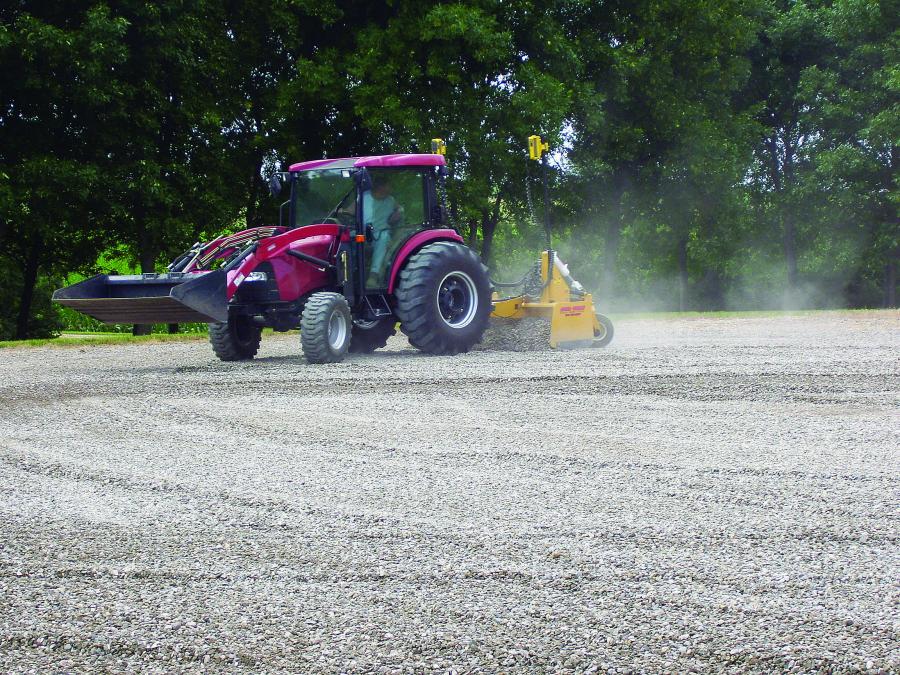

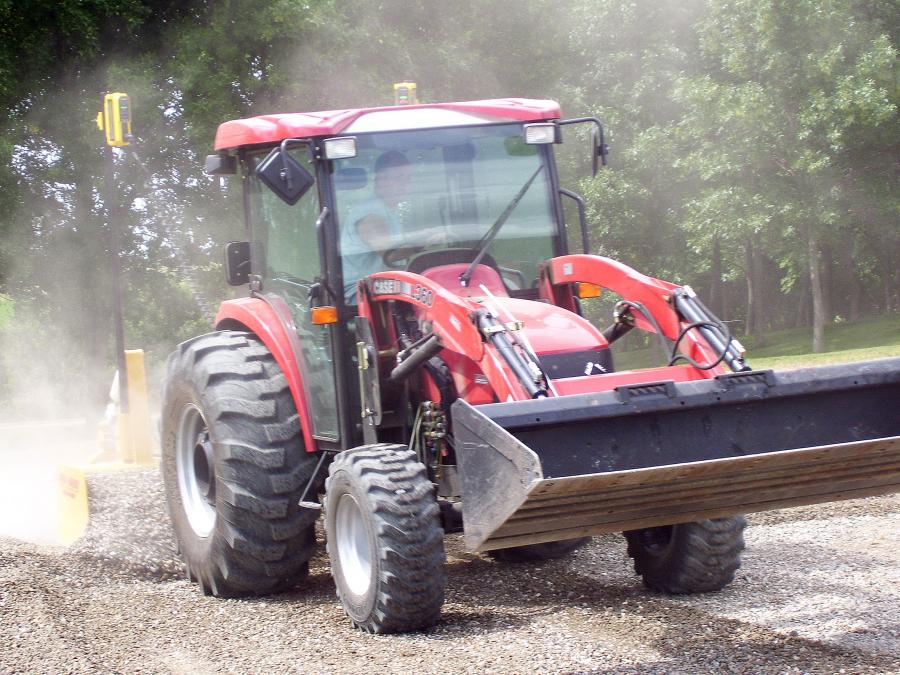

The Dual Dozer by HitchDoc is a high-performance grading attachment designed to streamline sub-grade surface preparation. Built with certified American steel and featuring advanced hydraulic controls, this attachment excels in finish grading for contractors handling dirt, gravel, and other materials. With its compatibility for laser, GPS, and 3D systems and hydraulic precision, the Dual Dozer ensures smooth operations for projects requiring accuracy and efficiency.
Key Features
- Heavy-Duty Construction: Fabricated using certified American steel and reinforced tubing for unmatched strength and durability.
- Hydraulic Flow Optimization: Equipped with a 40 GPM hydraulic block to eliminate oil flow restrictions, preventing overheating and ensuring optimal efficiency.
- Wide Blade Options: Available in 6', 7', and 8' widths to accommodate diverse operational requirements.
- Dual-Sided Cutting Edge: Features bolt-on, hardened steel cutting edges for precise material placement in forward or reverse motion.
- Electronic Compatibility: Integrates seamlessly with Trimble, TopCon, and Leica laser, slope, and GPS systems for automated precision grading.
- Rear-Positioned Casters: Designed for maneuverability in tight spaces and stability over graded surfaces.
- User-Friendly Controls: Fingertip switches and in-cab monitors simplify operations for contractors.
- Optional Accessories: Available with GPS mounting brackets, mirrors, and slope or sonic tracers for enhanced functionality.
Harness Control Options
| Control Option Name | Description | Compatibility |
|---|---|---|
| HE1919 – Integrated Wiring System | Integrated wiring system kit with dozer or cab display mount location. Requires a 14-pin machine connector and specific machine wiring. | General 14-pin machine compatibility |
| HE1926 – Bobcat Integrated Wiring System | Integrated wiring system kit with dozer or cab display mount location for Bobcat 7-pin wiring only. | Exclusive to Bobcat machines with 7-pin wiring |
| HE1921 – Universal Joystick Harness Kit | Universal Joystick Control Harness Kit with manual dual switch control. Requires a 14-pin machine connector for power and specified machine wiring. | Universal compatibility for machines with 14-pin connectors |
| HE1927 – Power Harness Kit | Power harness for Universal Joystick control harness HE1921. Connects to battery harness when no auxiliary power on loader. Designed to work with HE1921 (Bobcat Pin-Out). | Connects to HE1921; for loaders lacking auxiliary power |
Electronic Package
| Package Name | System Type | Components Included |
|---|---|---|
| HE1909 | Dual Laser System | EG2 display with cab or dozer mounts, dual receivers with offset mounts, wiring from receivers to display. |
| HE1910 | Slope & Single Laser System | EG2 display with cab or dozer mounts, slope sensor with mount, single receiver with offset mount, wiring from sensors to display. |
Detailed Specifications
| Feature | HDD 6 Base | HDD 7 Base | HDD 8 Base |
|---|---|---|---|
| Width | 6' | 7' | 8' |
| Weight (lbs) | 1,500 lbs. | 1,600 lbs. | 1,700 lbs. |
| Box Height | 19" | 19" | 19" |
| Front Box Capacity | 14.5 cu. ft. | 17 cu. ft. | 19.5 cu. ft. |
| Rear Box Capacity | 8.5 cu. ft. | 10 cu. ft. | 11.5 cu. ft. |
| Required HP | 40+ HP | 55+ HP | 70+ HP |
| Attachment Length | 58.5" | 58.5" | 58.5" |
