Product Description
Ranew Outdoors Hydraulic Top Link, Cat 2, 3" x 8", 22" Closed and Top Link Cylinder-Cat 1, 2" x 8"
DESCRIPTION

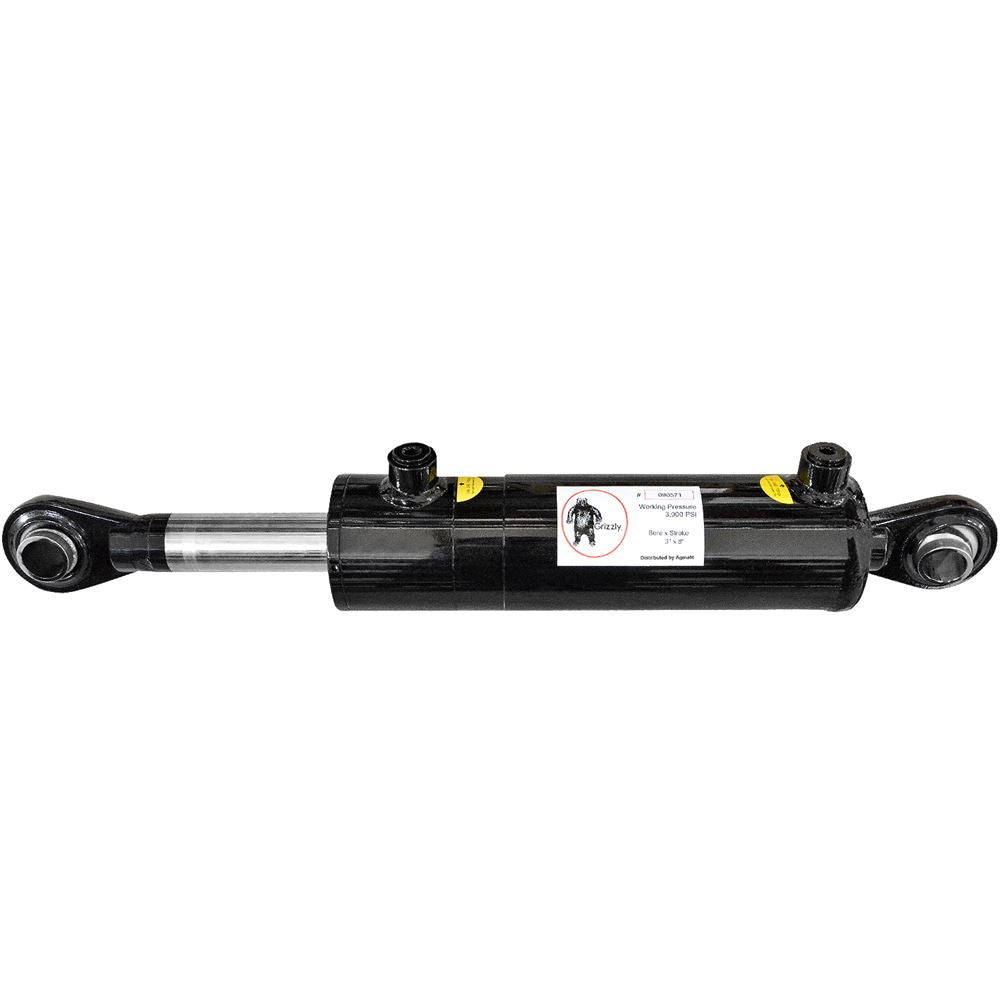

Hydraulic Top Link, Cat 2, 3" x 8", 22" Closed
Easily attach this category 2 top link to a 3-point implement on your tractor. It features a range of motion from 22 inches when retracted to 30 inches when extended. The rod is chrome plated to ensure durability when being used for agricultural or maintenance use.
Constructed to perform for excellent longevity, this hydraulic top link is a useful agricultural tool that connects to 3-point equipment. It is a category 2 cylinder, compatible with a horsepower range of 45 to 95, and can operate at 3,000 PSI. The extended length of this tractor top link measures 30 inches and the retracted length measures 22 inches. The bore is 3 inches, stroke is 8 inches, and the pin measures 1 inch. The rod features chrome plated construction, which allows this top link to remain in good condition after years of use.

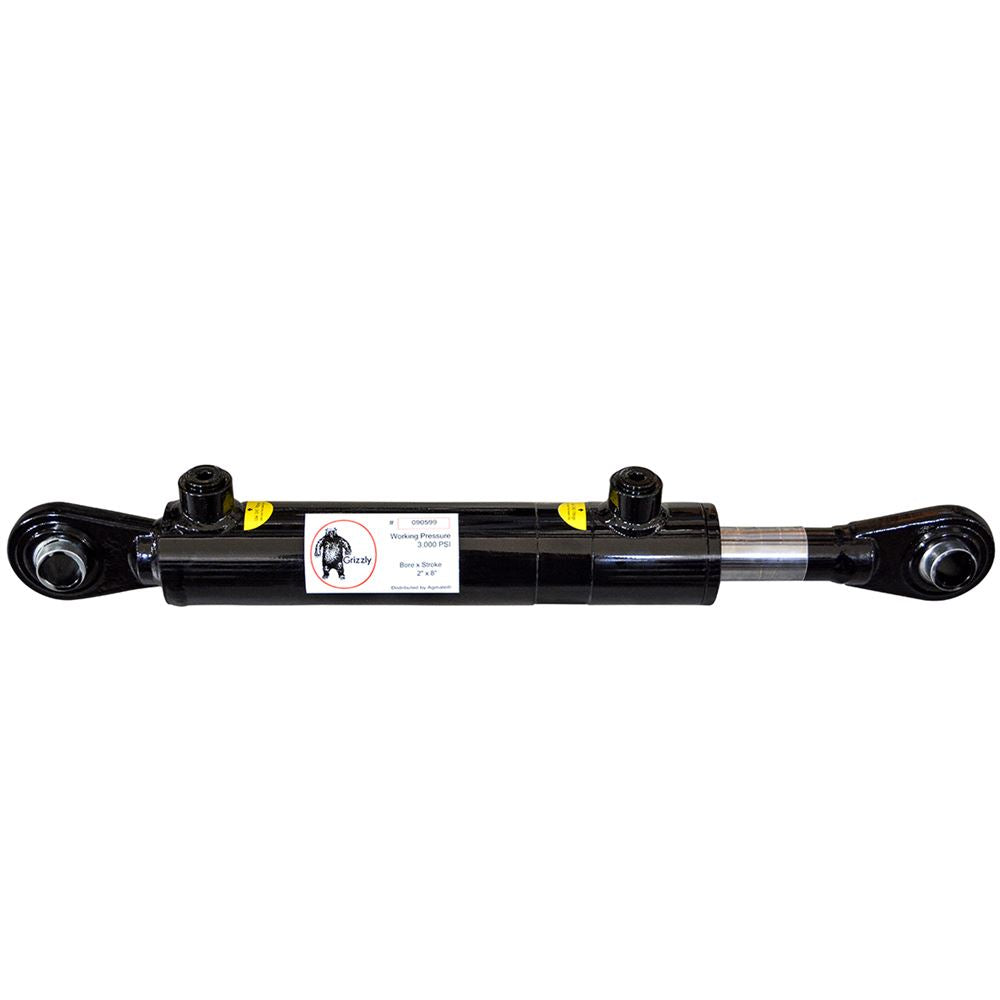

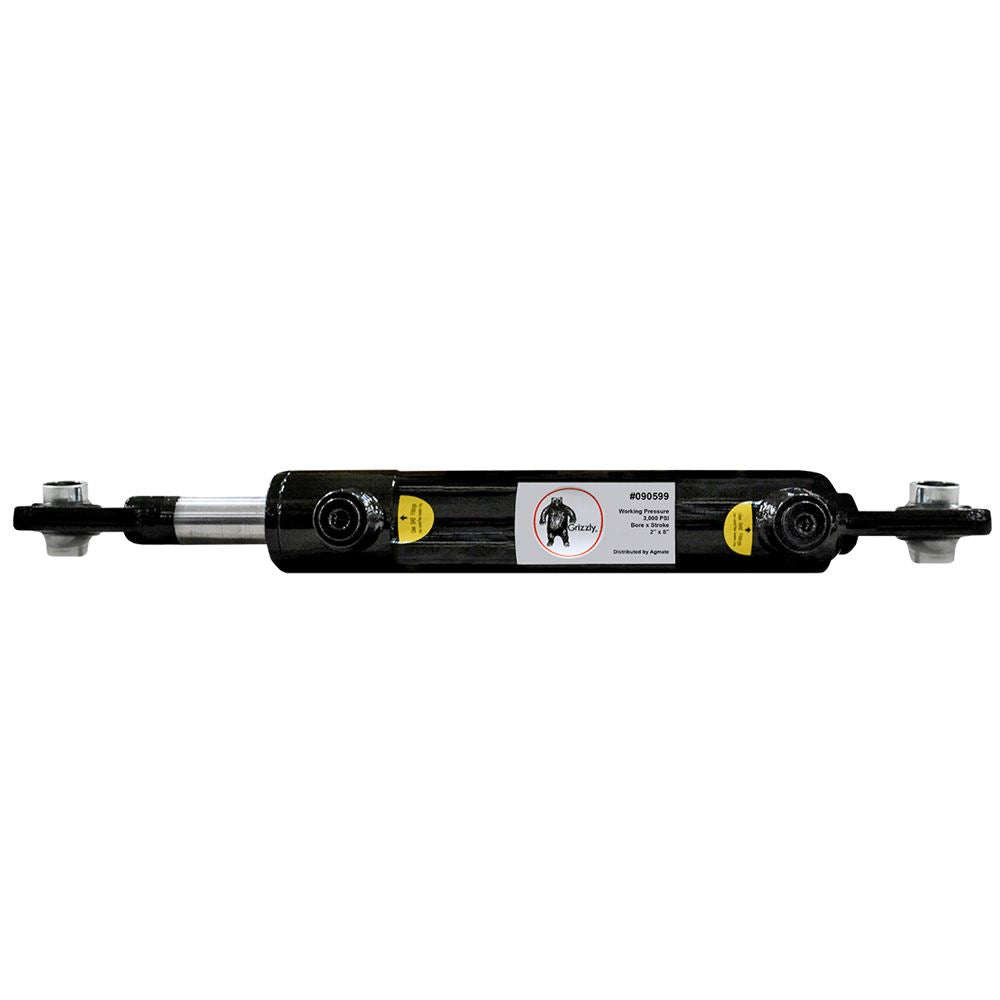

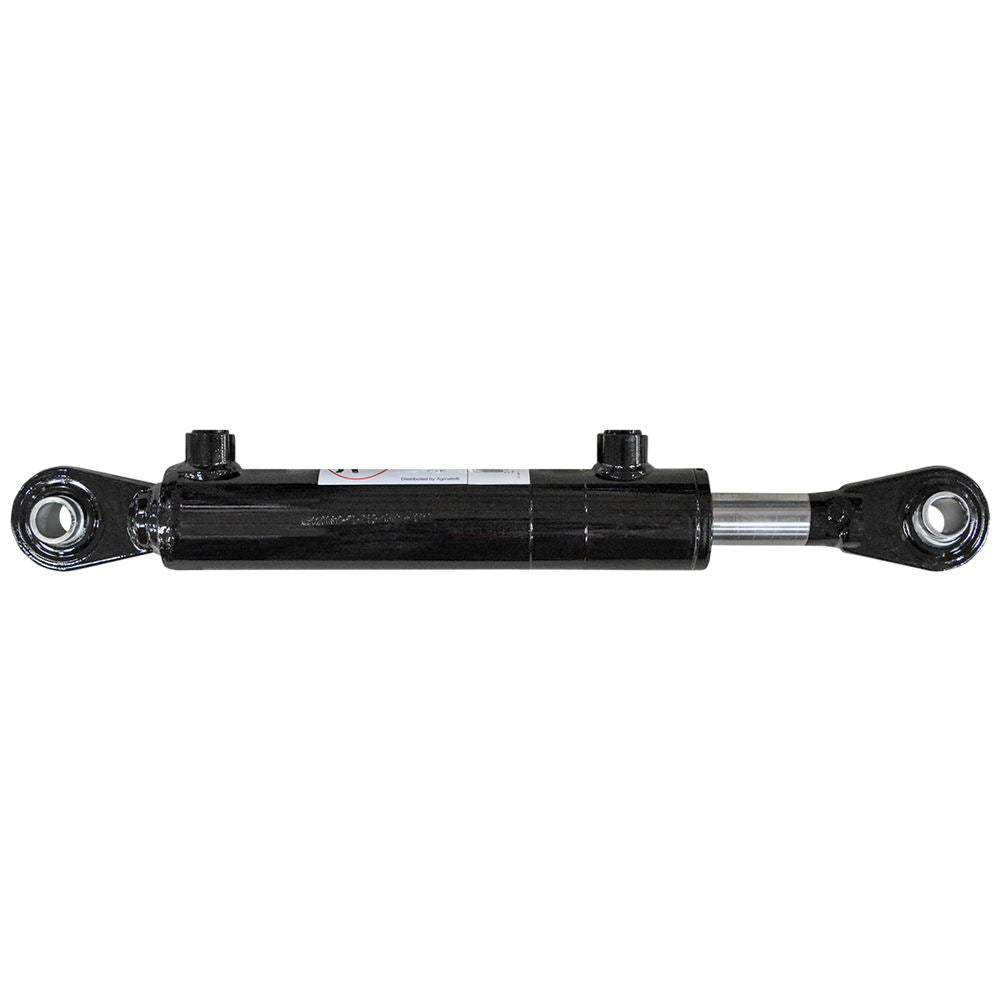

Top Link Cylinder, Cat 1, 2" x 8"
Easily attach this category 1 top link to a 3-point implement on your tractor. It features a range of motion from 20 inches when retracted to 28 inches when extended. The rod is chrome plated to ensure durability when being used for agricultural or maintenance use.
Constructed to perform for excellent longevity, this hydraulic top link is a useful agricultural tool that connects to 3-point equipment. It is a category 1 cylinder, compatible with a horsepower range of 25 to 55, and can operate at 3,000 PSI. The extended length of this tractor top link measures 28 inches and the retracted length measures 20 inches. The bore is 2 inches, the stroke is 8 inches, and the pin measures 3/4 inch. The rod features chrome plated construction, which allows this top link to remain in good condition after years of use.
Key Features
Category 2 Hydraulic Top Link
- Bore: 3 inches
- Stroke: 8 inches
- Retracted Length: 22 inches
- Extended Length: 30 inches
- Rod Diameter: 1.5 inches
- Pin Size: 1 inch
- Working PSI: 3,000
- Push/Pull Capacity: 21,206 lbs (push), 9,619 lbs (pull)
- Port Size: (2) 3/4-16 ORB (SAE#8)
Category 1 Hydraulic Top Link
- Bore: 2 inches
- Stroke: 8 inches
- Retracted Length: 20 inches
- Extended Length: 28 inches
- Rod Diameter: 1.25 inches
- Pin Size: 3/4 inch
- Working PSI: 3,000
- Push/Pull Capacity: 9,425 lbs (push), 6,443 lbs (pull)
- Port Size: (2) 3/4-16 ORB (SAE#8)
Detailed Specifications
| Specification | Details |
|---|---|
| Product | Hydraulic Top Link – Top Link Cylinder |
| Model Number | W30300812TLDDI |
| Category | 2 |
| Working PSI | 3,000 |
| Retracted Length | 22 in. |
| Extended Length | 30 in. |
| Bore | 3 in. |
| Rod | 1-1/2 in. |
| Port | (2) 3/4-16 ORB (SAE#8) |
| Stroke | 8 in. |
| Pin | 1 in. |
| Rod Construction | Chrome plated |
| Push Capacity | 21,206 lbs |
| Pull Capacity | 9,619 lbs |
| Application | For 3-point hitch |
| Repair Kit | Use ASC #106526 |
| Adapters | Use 18648 to adapt to 3/8" FeNPT → for a 90° fitting use 18652 Use 18649 to adapt to 1/2" FeNPT → for a 90° fitting use 18653 |
Top Link Cylinder
| Specification | Details |
|---|---|
| Product | Top Link Cylinder |
| Model Number | W30200810TLDDI |
| Category | 1 |
| Working PSI | 3,000 |
| Retracted Length | 20 in. |
| Extended Length | 28 in. |
| Bore | 2 in. |
| Stroke | 8 in. |
| Pin | 3/4 in. |
| Port Hole Size | 2 Holes 3/4" – 16 ORB (SAE-8) |
| Rod Diameter | 1.25" |
| Rod Construction | Chrome plated |
| Push Capacity | 9,425 lbs |
| Pull Capacity | 6,443 lbs |
| Application | For 3-point hitch |
| Adapter | ASC 18670 – Converts from 3/4" – 16 ORB Male to 1/2" FPT |
| Seal Kit | For replacement use ASC #106524 |
