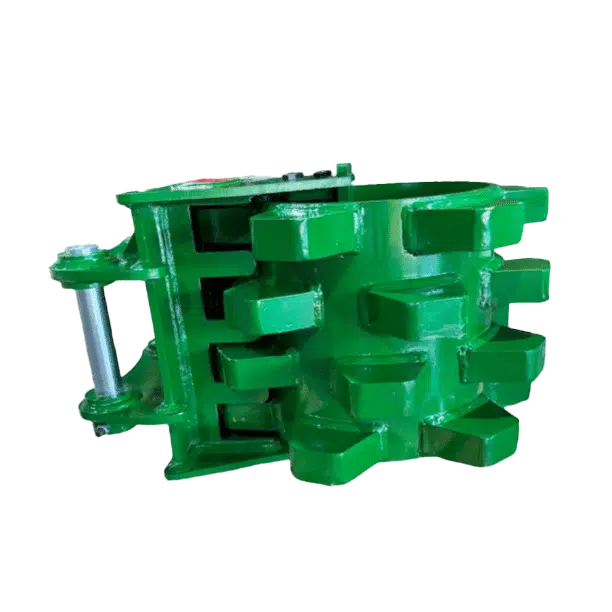

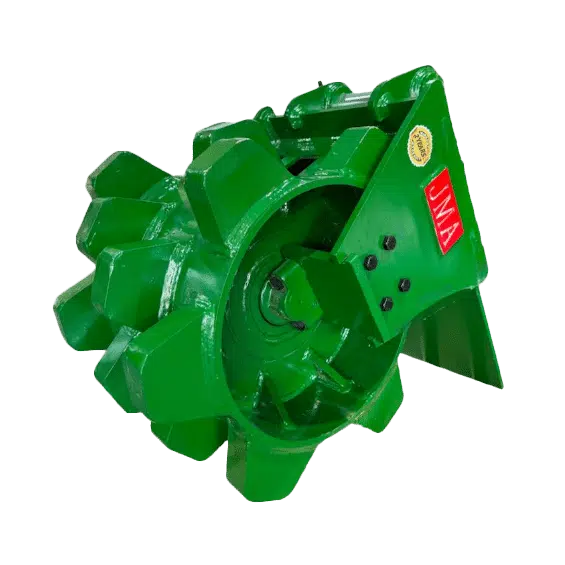

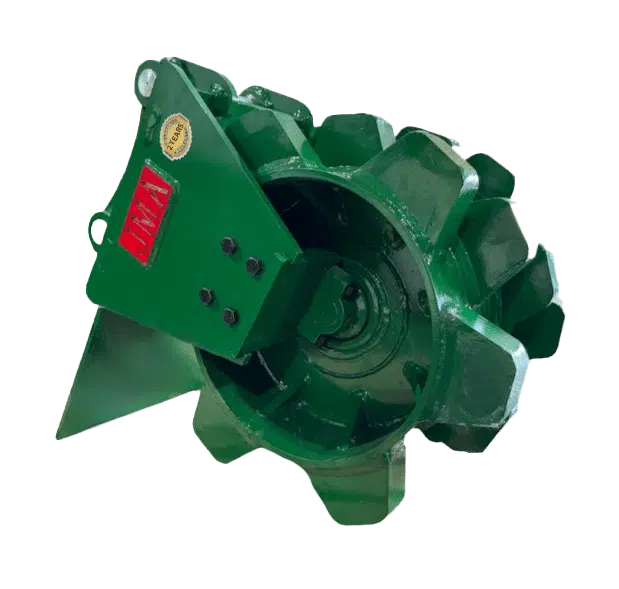

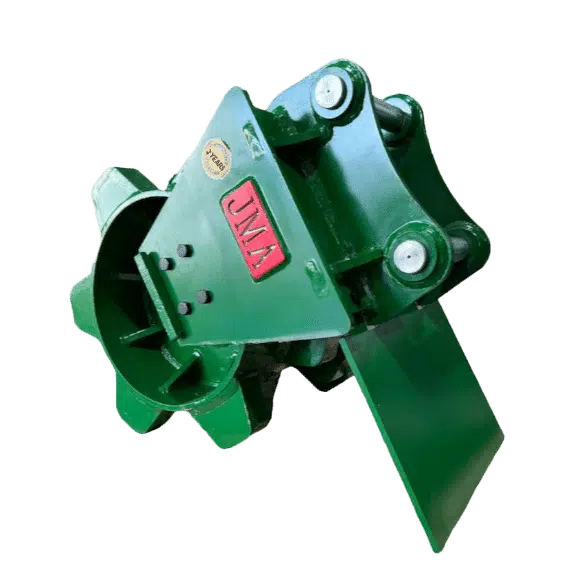

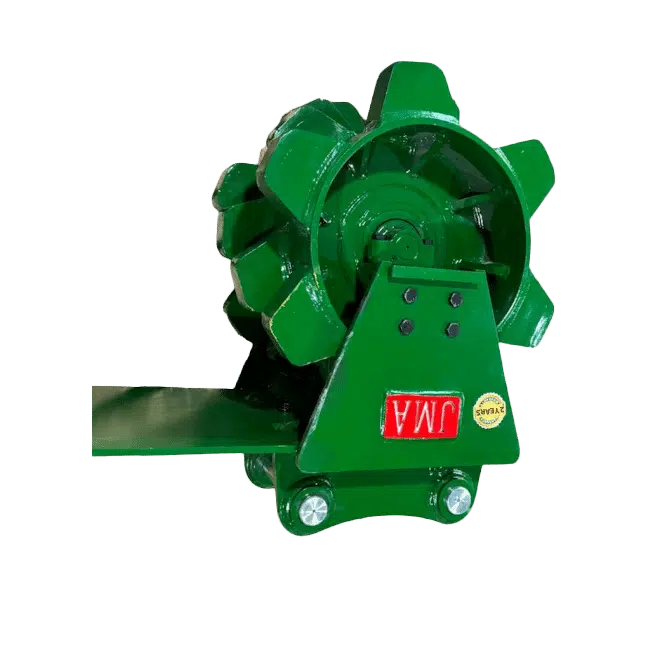

JMA Attachments Compaction Wheels | Compaction Width 21" inches | For 11 – 15 Tons Excavators

JMA Attachments Compaction Wheels | Compaction Width 21" inches | For 11 – 15 Tons Excavators

$4,396.70
$4,396.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Coverage Champion: The 21" width ensures rapid and uniform compaction, saving you time and effort on every project.
  • Durability Defined: Forged from top-grade AR400 Steel for years of reliable service in the toughest conditions.
  • Excavator Enhanced: Engineered to work in perfect harmony with your machine, maximizing its capabilities and your investment.
View full details

Product Description

JMA Attachments Compaction Wheels | Compaction Width 21" inches | For 11 – 15 Tons Excavators

Description

Introducing the 21" Compaction Wheels for 11 - 15 Tons Excavators. 65mm Pins – where power meets finesse in ground preparation. This 21" powerhouse is set to transform the way you approach soil compaction.

Key Features

  • Coverage Champion: The 21" width ensures rapid and uniform compaction, saving you time and effort on every project.
  • Durability Defined: Forged from top-grade AR400 Steel for years of reliable service in the toughest conditions.
  • Excavator Enhanced: Engineered to work in perfect harmony with your machine, maximizing its capabilities and your investment.
  • Versatility Unleashed: From landscaping to road construction, conquer diverse compaction challenges with ease.
  • Experience the future of soil preparation. With the 21" Compaction Wheels for 11 - 15 Tons Excavators. 65mm Pins, you're not just compacting – you're crafting the perfect foundation for construction excellence.

Detailed Specifications

Attribute Value
Compaction Width (mm) 520 mm
Compaction Width (in) 21"
Material Type AR400 Steel
Finish Powder-Coated Green
Inner Wheel Dimension (mm) 500 mm
Outer Wheel Dimension (mm) 705 mm
Front Pin Diameter (mm) 65 mm
Rear Pin Diameter (mm) 65 mm
Front Ear to Ear Distance (mm) 220 mm
Rear Ear to Ear Distance (mm) 220 mm
Center to Center Distance (mm) 408 mm
Carrier Weight Class (tn) 11 - 15 Tons
Carrier Weight Class (lbs) 22,000 - 30,000 lbs
Product Weight (lbs) 1,113.33 lb
Product Weight (kg) 505 kg



Fits To

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U
