Product Description
KIOTI | Loader | TL Series | TL750 | 70.6″ Width | 21.9 GPM / 73.8 Hp | Heavy-Duty Construction | For Compact Skid Loader
DESCRIPTION

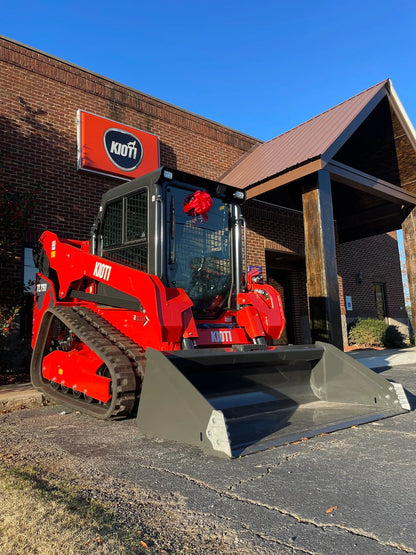

The Kioti TL750 Enclosed Compact Skid Loader is a powerful and versatile machine designed to tackle a wide range of tasks in construction and landscaping. With a robust 73.8 horsepower engine, this compact loader is engineered for efficiency and performance, making it an essential tool for any job site.
Featuring a loader hydraulic pressure of 3,335 psi and an auxiliary standard flow of 21.9 gpm, the TL750 is capable of powering various attachments, enhancing its versatility. The loader's impressive tipping load capacity of 6,570 lbs and a rated operating capacity of 2,300 lbs ensure that it can handle heavy materials with ease.
The TL750's compact dimensions, including a lift height to hinge pin of 126.4 inches and a width over tires of 70.6 inches, allow for excellent maneuverability in tight spaces. Whether you're lifting, loading, or transporting materials, the Kioti TL750 is designed to deliver exceptional performance and reliability.
Key Features
- Engine: KIOTI with 73.8 hp (55.1 kW) for powerful performance.
- Hydraulic System: Loader hydraulic pressure of 3,335 psi (230 bar) for efficient operation.
- Auxiliary Flow: Standard flow of 21.9 gpm (82.9 lpm) for powering attachments.
- Tipping Load: 6,570 lbs for handling heavy materials.
- Rated Operating Capacity: 2,300 lbs for versatile applications.
- Operating Weight: 9,315 lbs for stability and strength.
- Lift Height: 126.4 inches to hinge pin for high reach capabilities.
- Compact Dimensions: Length without attachment of 110 inches and width over tires of 70.6 inches for easy maneuverability.
- Wheelbase: 47.2 inches for improved stability and handling.
- Standard Equipment: Includes LED work lights, hydraulic pilot joystick, overhead sliding front door, in-cab display, and more for enhanced operator comfort and control.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | KIOTI Diesel |
| Horsepower | 73.8 hp (55.1 kW) |
| Loader Hydraulic Pressure | 3,335 psi (230 bar) |
| Auxiliary Flow | 21.9 gpm (82.9 lpm) |
| Tipping Load | 6,570 lbs (2,980 kg) |
| Rated Operating Capacity | 2,300 lbs (1,043 kg) |
| Operating Weight | 9,315 lbs (4,227 kg) |
| Low | 4.7 mph (7.5 kph) |
| High | 7.1 mph (11.5 kph) |
| Lift Height to Hinge Pin | 126.4 in (3,211 mm) |
| Length (w/o attachment) | 110 in (2,794 mm) |
| Width Over Tracks | 70.6 in (1,793 mm) |
| Height to Top of Cab | 81.8 in (2,078 mm) |
Comparison Chart
| Feature | SL750 | TL750 |
|---|---|---|
| Horsepower | 73.8 hp | 73.8 hp |
| Hydraulic Flow | 21.9 gpm | 21.9 gpm |
| Rated Operating Capacity | 2,689 lbs | 2,300 lbs |
| Tipping Load | 5,380 lbs | 6,570 lbs |
| Travel Speed (High) | 12.05 mph | 7.1 mph |
| Travel Speed (Low) | 7.15 mph | 4.7 mph |
| Operating Weight | 8,362 lbs | 9,315 lbs |
| Lift Height to Hinge Pin | 126.6 in | 126.4 in |
| Width Over Tires/Tracks | 71.7 in | 70.6 in |
| Enclosed Cab | Optional | Standard |
